Huskee 13AF693G131 (2003) Lawn Tractor

Model: 13AF693G131 (2003)

Back To Assemblies

Save Part Not Listed?
product name

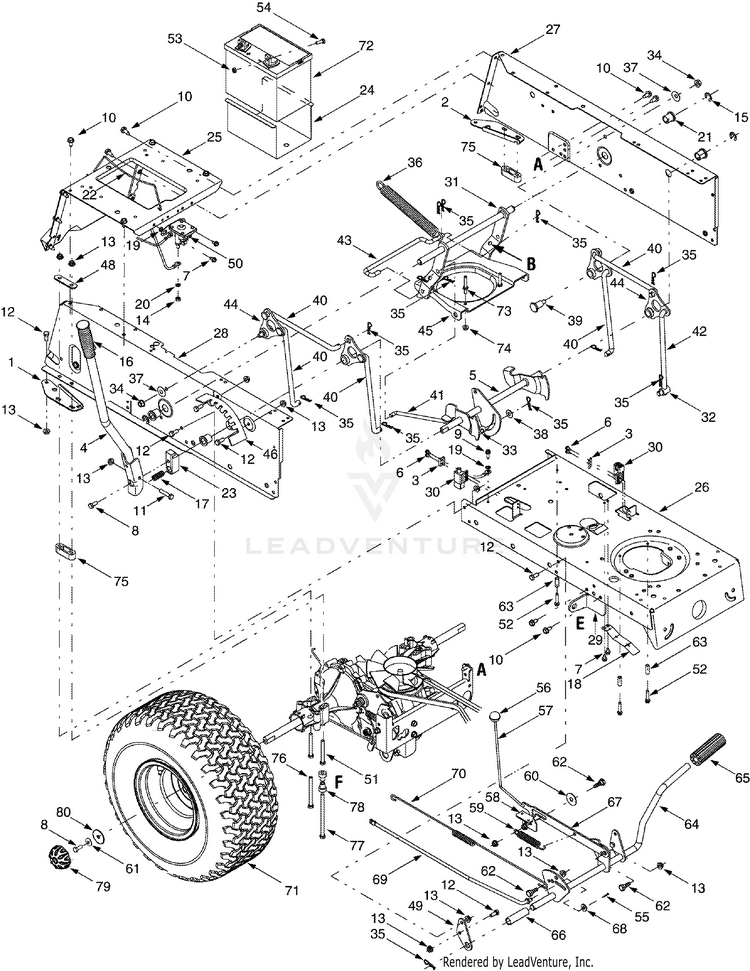

Controls, Battery

...
...
1
BRACKET-AXLE SUPPORT MTD-17668A-0637
...
2
BRACKET-AXLE SUPPORT MTD-17669A-0637
...
3
Switch Plate MTD-17962
...
4
Lift Handle Assembly MTD-683-04025
...
5
LIFT SHAFT ASSEMBLY (POWDER BLACK) MTD-683-04049A-0637
...
6
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
7
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
8
Hex Cap Screw, 5/16-24 x .75 MTD-710-0627
...
9
Self-tapping Screw, 1/4-20 x .75 MTD-710-0642
...
10
Self-tapping Screw, 5/16-12 x .75 MTD-710-0726
...
11
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
12
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
13
HEX FLANGE NUT MTD-712-3004A
...
14
HEX NUT MTD-712-3006
...
15
E-Ring, .625 Dia Shaft MTD-716-0106
...
16
LIFT HANDLE GRIP MTD-720-0233
...
17
SPRING MTD-932-0369
...
18
Spring Switch MTD-932-0750A
...
19
External Lock Washer, 1/4 MTD-736-0222
...
20
L-Wash. 1/4" I.D. MTD-936-0329
...
21
Flange Bearing .632 ID MTD-741-0487C
...
22
BATTERY HOLD DOWN ROD MTD-747-04031
...
23
Lift Shaft Connector MTD-948-04011A
...
24
Battery Tray MTD-783-0345-0637
...
25
HITCH PLATE Attach the rear end of spring (Ref. 36) to the notch opening in the rear of Ref. 25 MTD-783-0355D
...
26
LOWER FRAME MTD-783-04011A
...
27
SIDE PANEL (LH) MTD-783-04031A
...
28
SIDE PANEL (RH) MTD-783-04032
...
29
FRAME BRACKET MTD-783-04213-0637
...
30
SWITCH MTD-925-04039
...
31
STABALIZER SHAFT ASSEMBLY (POWDER BLACK) MTD-683-04048A-0637
...
32
FERRULE 1/2-20 x .500 MTD-911-04036
...
33
Ferrule, 3/8-24 X .375 DIA. MTD-911-04075A
...
34
Flange Lock Nut 3/8-16 MTD-912-0431
...
35
Internal Cotter Pin, .080 x 1.56 MTD-714-04023
...
36
Extension Spring, 1.07 x 9.52 Attach the front end of spring (Ref. 36) to Reference B on tractor models with a 38- or 42-inch deck only. Also see reference 25. MTD-732-04050D
...
37
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
38
FLAT WASHER .38X.88 MTD-736-0267
...
39
SHOULDER BOLT MTD-738-0445A
...
40
HANGAR DECK LINK MTD-947-04018A
...
41
Deck Disengagement Rod MTD-747-04040A
...
42
Deck Hanger Link MTD-747-04069A
...
43
REAR STABILIZER ROD MTD-747-04115A
...
44
LIFT LINK MTD-948-04010
...
45
DECK STABILIZER BRACKET MTD-783-04093-0637
...
46
Index Brkt. MTD-783-04113P
...
47
Shift Lever Bracket not shown MTD-17630A-0637
...
48
Transaxle Mounting Bracket MTD-17840-0637
...
49
BRACKET-PEDAL MTD-17860-0637
...
50
Solenoid MTD-925-1426A
...
51
Hex Cap Screw, 5/16-18 x 2.75 MTD-710-0176
...
52
Self-tapping Screw, 1/4-20 x 1.25 MTD-710-0809
...
53
Hex Sems Nut, 1/4-20 MTD-712-0271
...
54
Hex Screw,1/4-20 x .75 MTD-710-3015
...
55
Cotter Pin, 1.0 MTD-714-0111
...
56
THROTTLE KNOB MTD-720-0166
...
57
BRAKE LOCKOUT ROD MTD-747-0608B
...
58
BRACKET MTD-17755A
...
59
BRAKE RETURN SPRING MTD-732-0728
...
60
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
61
Bell Washer, .34 x .872 x .060 MTD-736-0242
...
62
Shoulder Screw, .437 x .286 MTD-738-0296
...
63
Spacer, .260 x .372 x 1.030 MTD-750-0566A
...
64
CLUTCH PEDAL ASSEMBLY MTD-683-04005A
...
65
FOOT PAD MTD-735-0239A
...
66
Spacer, .640 x .76 x 2.63 MTD-750-0802
...
67
BRACKET-BRAKE LOCKOUT MTD-783-04164
...
68
FLAT WASHER MTD-936-3008
...
69
BRAKE ROD MTD-747-04082
...
70
EXTENSION SPRING 22.16 LG MTD-732-04032A
...
71
Round Shoulder Wheel Ass'y Complete MTD-734-1675
...
71
Square Shoulder Wheel Ass'y Complete MTD-634-0104
...
72
BATTERY MTD-925-1707D
...
72
BATTERY MTD-925-1707D
...
73
LOCK NUT 1/4 MTD-912-3027
...
74
Belt Guard Pin 1/4" Dia. MTD-911-0993
...
75
Spacer Found on tractor models with 46-inch deck only. MTD-749-0334
...
76
Hex Cap Screw, 5/16-18 x 3.25 Found on tractor models with 46-inch deck only. MTD-710-1266
...
77
Hex Cap Screw, 5/16-18 x 5.25 Found on tractor models with 46-inch deck only. MTD-710-0833
...
78
SHOULDER SPACER Found on tractor models with 46-inch deck only. MTD-948-04021A
...
79
HUB CAP MTD-731-2290B
...
80
Flat Washer, .350 x 1.59 x .062 Used on tractor models with Deluxe hub cap only. MTD-736-0430
...
xx
Reference E and F, refer to Deck Assembly MTD-NA
