product name

Huskee 13AF673H131 (2002) Lawn Tractor

Model: 13AF673H131 (2002)

Back To Assemblies

Save Part Not Listed?
product name

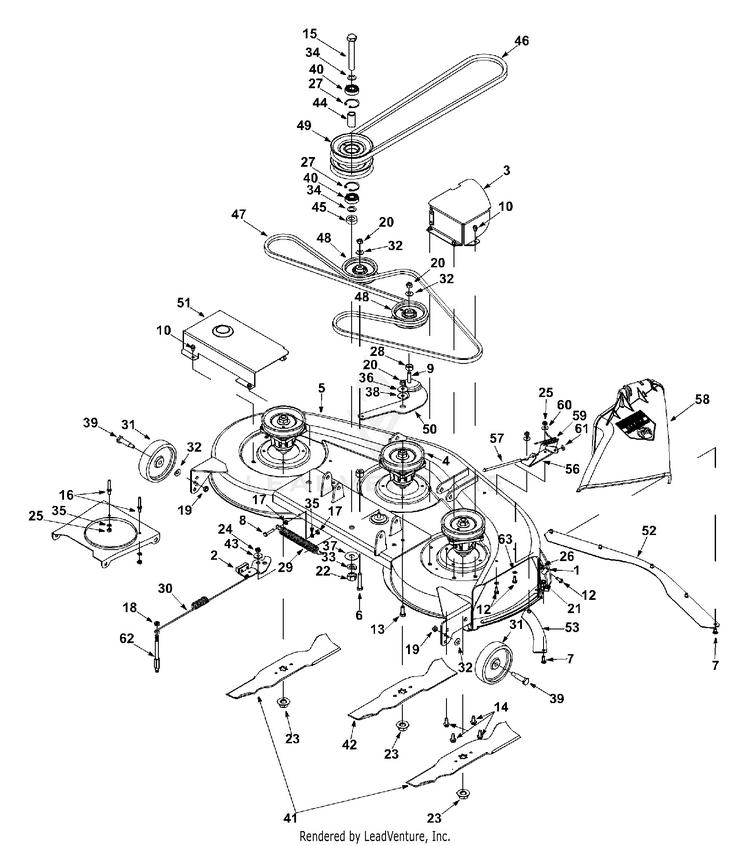

Deck Assembly "H"

...
...
1
Retainer Hook Bracket MTD-96606
...
2
Deck Brake Brkt. Ass'y. MTD-97116
...
3
RH Belt Cover, Deck 46" MTD-17258E
...
4
Spindle Assembly, 5.00 Dia. MTD-918-0240C
...
5
DECK ASSEMBLY- Must be ordered with 4 digit color code. MTD-983-0120A
...
xx
DECK ASSEMBLY-COMP 46 (For Svc.) Must be ordered with 4 digit color code. MTD-913-06921
...
6
Hex Bolt 3/8-24 x 2" Lg. MTD-710-0151
...
7
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
8
HEX SCREW 1/4-28 x 1.25 GR5 MTD-710-0428
...
9
Hex Bolt 3/8-24 x 2" Lg. MTD-710-0459A
...
10
Hex Wash. Hd. TT-Tap Scr. MTD-710-0599
...
12
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
13
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
14
Hex Flange Bolt 5/16-24 x .75" MTD-710-1260A
...
15
Hex Bolt 5/8-18 x 4.25" Lg. MTD-710-3151
...
16
Belt Guard Pin 1/4" Dia. MTD-911-0993
...
17
Hex Nut 1/4-28 Thd. MTD-712-0138
...
18
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
19
Hex Top Jam Nut 3/8-16 Thd. MTD-712-0181
...
20
Hex Nut 3/8-24 Gr. 5 MTD-712-0241
...
21
Hex Sems Nut 1/4-20 MTD-712-0271
...
22
HEX NUT 5/8-18 MTD-712-0337
...
23
HEX NUT MTD-712-0417A
...
24
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
25
HEX NUT MTD-712-3006
...
26
LOCK NUT 1/4 MTD-912-3027
...
27
Int. Snap Ring MTD-916-3020
...
28
Slide Cap MTD-731-1490
...
29
Extension Spring 6.17" Lg. MTD-932-0594A
...
30
SPRING .788ODX15.5 MTD-732-0723
...
31
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
32
Bell-Wash 3/8" x .87" x .064" MTD-736-0105
...
33
L-Wash. 5/8" I.D. MTD-736-0158
...
34
FLAT WASHER MTD-736-0290
...
35
L-Wash. 1/4" I.D. MTD-936-0329
...
36
Bell-Wash. 3/8" x 1.125" x .062" MTD-736-0331
...
37
Fl-Wash. .635" I.D. MTD-736-3088
...
38
Shld. Spacer .625" I.D. MTD-938-0347
...
39
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
40
Ball Brg. .625" I.D. x 1.574" O.D. x .47" MTD-941-0524A
...
41
46" BLADE (STAR) MTD-742-0611A-0637
...
42
Blade 14.88" Lg. (Middle) MTD-942-0645
...
43
Shoulder Spacer MTD-748-0234
...
44
Spacer 5/8" I.D. x 7/8" O.D. MTD-950-0932A
...
45
Spacer .635" I.D. x 1" O.D. MTD-950-0960A
...
46
V-Belt MTD-954-0439
...
47
V-Belt MTD-954-0440
...
48
Fl-Idler Pulley 3.5" O.D. MTD-756-0627D
...
49
Pulley Double Deck MTD-756-0638
...
50
IDLER BRACKET MTD-783-0046
...
51
BELT COVER (LH) MTD-783-0063A
...
52
46" Deck Skirt Center MTD-783-0141
...
53
Skirt-Right Hand MTD-783-0142-0637
...
56
Hinge Brkt. MTD-703-1693A
...
57
Hinge Pin MTD-911-0792
...
58
CHUTE ASSEMBLY (Incl. 12, 56, 57, 59, 60, 61, 62, 63) MTD-631-05229
...
xx
Chute Deflector MTD-731-1031B
...
59
Torsion Spring MTD-732-0602A
...
60
SPRING WASHER BELL MTD-736-0270
...
61
PUSH NUT MTD-726-0106
...
62
STUD RETURN SPRING MTD-738-0999
...
63
Push Nut MTD-726-0233
