Huskee 13AB606H730 (2005) Lawn Tractor

Model: 13AB606H730 (2005)

Back To Assemblies

Save Part Not Listed?
product name

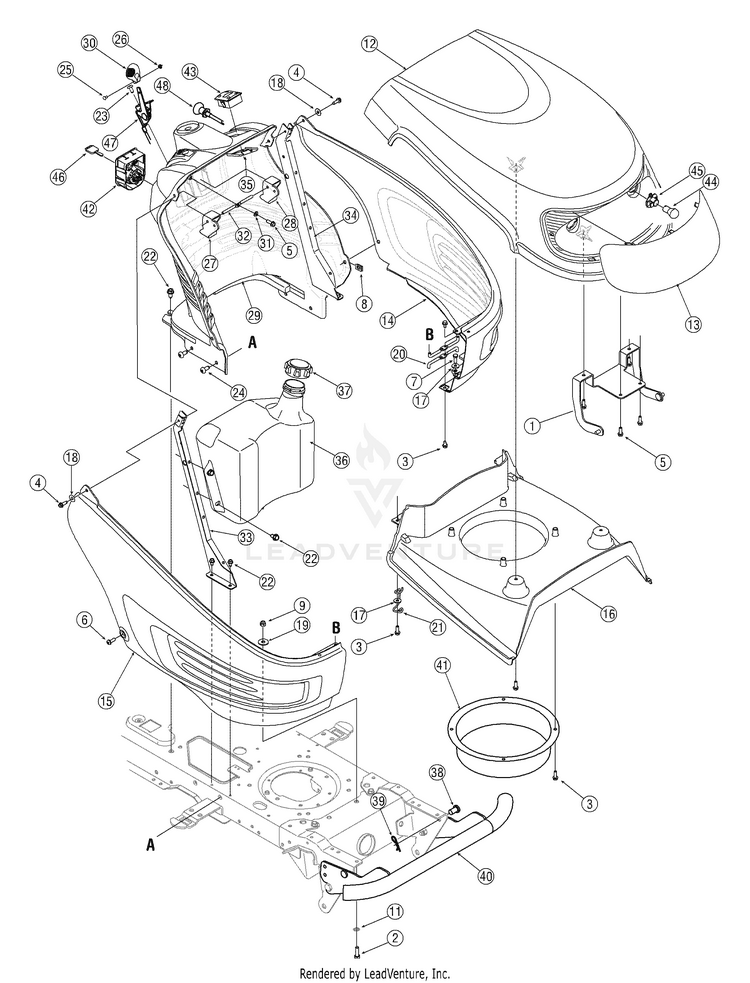

Hood

...
...
1
HOOD BRACKET ASSEMBLY (POWDER BLACK) MTD-683-0305-0637
...
2
Hex Screw, 5/16-18, 1.00, Gr5 MTD-710-0376
...
3
Screw, 1/4-20, 0.500 MTD-710-0599
...
4
Screw, 1/4-20, 0.750 MTD-710-0642
...
5
Screw, 1/4-15, 0.750 MTD-710-0895
...
6
Screw, Machine, 1/4-20, 0.750 MTD-710-0924
...
7
Hex Screw, 1/4-20, .75, Gr5 MTD-710-3015
...
8
Nut, Clip, 1/4-20 MTD-712-0292
...
9
Nut, Flange Lock, 5/16-18, Grf, Nylon MTD-712-04063
...
10
Nut, Flange Lock, 1/4-20, Grf, Nylon MTD-712-04064
...
11
Nut, Speed, .3125 ID MTD-726-0201
...
12
HOOD-6 STYLE MTD-931-2283A
...
13
LENS-6 STYLE MTD-931-2286
...
14
LH Side Panel, Style 6 MTD-931-05473
...
15
RH Side Panel, Style 6 MTD-931-2308B
...
16
PLENUM MTD-731-05219
...
17
Washer, Flat, .28 x .74 x .063 MTD-736-0173
...
18
Washer, Flat, .283 x .75 x .030 MTD-736-0342
...
19
Washer, Flat, .344 x 1.0 x .063 MTD-736-3078
...
20
SIDE PANEL SUPPORT MTD-747-04301
...
21
HOOD LATCH ROD MTD-747-2127
...
22
Screw, 5/16-12, 0.750 MTD-710-0726
...
23
Screw, 1/4-14, 0.625 MTD-710-1017
...
24
Screw, 5/16-18, 0.750 MTD-710-1611B
...
25
Screw, Machine, #8-32, 0.375 MTD-710-3217
...
26
Nut, Hex, #8-32 MTD-712-0142
...
27
Brake Lever MTD-731-04213
...
28
CRUISE CONTROL MTD-731-04214
...
29
DASH PANEL 4 STYLE (Models w/ Electric PTO) MTD-731-05037
...
29
DASH PANEL 4 STYLE (Models w/ Manual PTO) MTD-731-05002
...
30
Control Knob MTD-731-1857
...
31
Washer, Flat, .281 x .50 x .063 MTD-736-0142
...
32
BRAKE/CRUISE PIVOT ROD MTD-747-1155
...
33
DASH SUPPORT MTD-783-04285F-0637
...
34
DASH SUPPORT MTD-783-04323F-0637
...
35
RETAINER SWITCH MTD-783-0462
...
36
Fuel Tank, 3 Gal. MTD-751-0658E
...
36
Fuel Tank 2 Gal. MTD-751-0659D
...
37
TANK CAP MTD-751-0603B
...
38
Clevis Pin MTD-911-0332
...
39
Pin, Click, .092 x 1.64 MTD-714-0145
...
40
BUMPER KIT MTD-OEM-190-679
...
41
INTAKE BELLOW MTD-731-2234A
...
42
IGNITION MODULE SWITCH RMC (MAN PTO BLK) MTD-925-06119C
...
43
HOUR METER/SERVICE MINDER w/ Hour Meter MTD-925-06170B
...
44
Miniature Lamp 12V Socket Type MTD-925-0963
...
45
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
46
Key MTD-925-1745A
...
46
Key MTD-925-1745A
...
47
THROTTLE CABLE MTD-946-1086
...
48
Choke Cable 39" Lg. MTD-946-1085A
...
xx
Wire Harness (All Models) MTD-929-04083B
...
xx
HARNESS ASSEMBLY (MANUAL PTO) (Models with Hour Meter & Manual PTO) MTD-629-04105
...
xx
HARNESS ASSEMBLY (ELECTRIC PTO) (Models with Hour Meter & Electric PTO) MTD-629-04104
