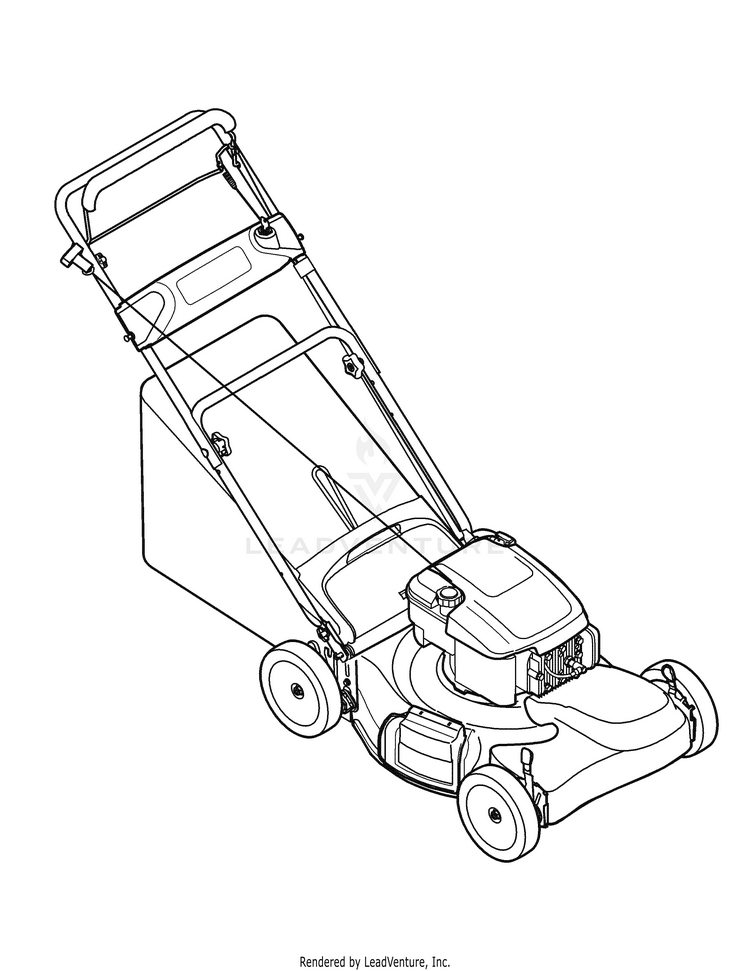

Huskee 12AE467E030 (2007) Self Propelled Mower

Model: 12AE467E030 (2007)

Save Part Not Listed?
product name

.Quick Reference 467

...
...
xx
Spark Plug MTD-KM-BPR5ES
...
xx
PRECLNR-AIR FILTER MTD-KM-11013-2232
...
xx
AIR FILTER ELEMENT MTD-KM-11029-0017
...
xx
39" CONTROL CABLE (Brake) MTD-946-04135
...
xx
Drive Cable MTD-946-04203
...
xx
V-Belt MTD-954-0637A
...
xx
21-inch Mulching Blade MTD-942-0741A
...
xx
Blade Bolt MTD-710-1257
...
xx
Blade Adapter w/ Pulley MTD-948-04015A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Wheel (Front) MTD-634-0190A
...
xx
Wheel Ass'y 8 x 2.125 Gear Zag (Front) MTD-734-2042A
...
xx
Wheels - Front (Rear) MTD-753-08093
...
xx
Wheel (Rear) MTD-734-1987
...
xx
Hub Cap MTD-731-0981C
...
xx
Rear Trailing Shield MTD-731-05642A
...
xx
Rear Discharge Door MTD-731-06847
...
xx
Grass Bag Assembly MTD-964-04007A
...
xx
Grass Bag Assembly MTD-964-04007A
...
xx
Grass Bag Frame MTD-747-04080A
...
xx
Key MTD-925-0201
...
xx
Key Switch MTD-925-04347
...
xx
BATTERY REPLACEMENT KIT MTD-753-10804
...
xx
BATTERY CHARGER MTD-725-06121C

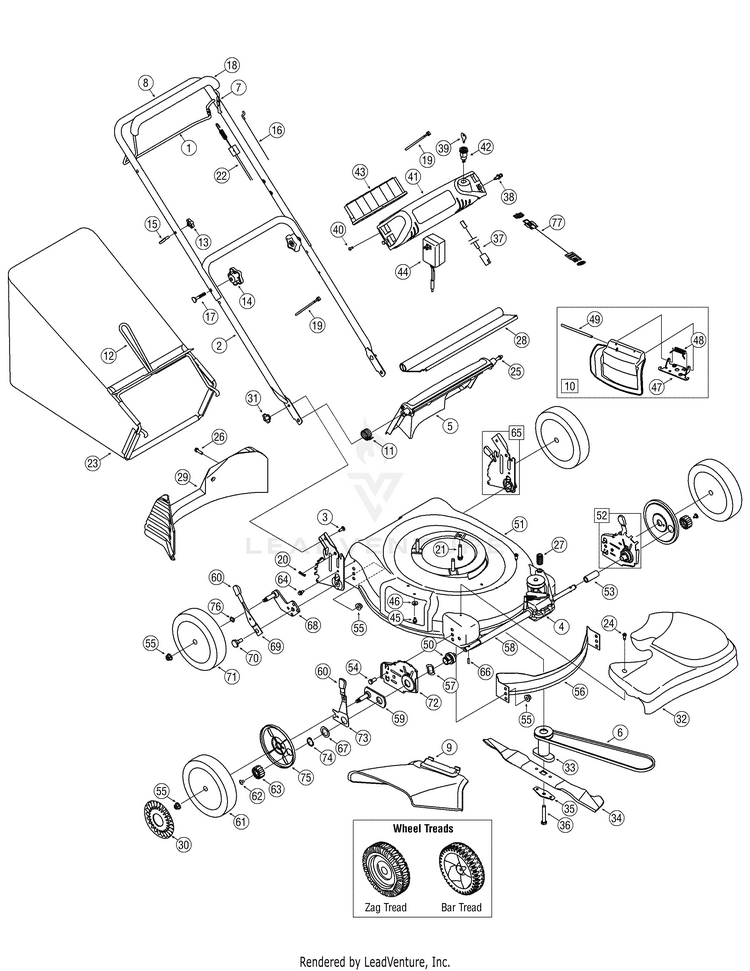

General Assembly

...
...
1
Drive Control MTD-747-1214
...
2
Lower Handle MTD-749-0928A-0637
...
3
Carriage Bolt 1/4-20 MTD-710-0703
...
4
Transmission Assembly MTD-753-05465
...
5
Rear Discharge Door MTD-731-06847
...
6
V-Belt MTD-954-0637A
...
7
Blade Control MTD-747-1161A
...
8
UPPER HANDLE MTD-749-1233D-0637
...
8
Upper Handle (Non-electric start) MTD-749-1092A
...
9
Chute Deflector MTD-731-04177
...
10
Mulch Cover MTD-987-02055
...
11
Torsion Spring - RH MTD-732-04090A
...
12
Grass Bag Frame MTD-747-04080A
...
13
Handle Knob MTD-720-0279
...
14
Star Knob MTD-720-04072A
...
15
Eye Bolt MTD-710-1205
...
16
Cable Control MTD-946-1132
...
16
39" CONTROL CABLE MTD-946-04309
...
16
39" CONTROL CABLE MTD-946-04135
...
17
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
18
Bail Cover If Equipped MTD-731-04859
...
19
Cable Tie MTD-725-0157
...
20
Cotter Pin MTD-714-0104
...
21
Self-Tapping Sems Screw MTD-710-0654A
...
22
Drive Cable MTD-946-04203
...
23
Grass Bag Assembly MTD-964-04007A
...
23
Grass Bag Assembly MTD-964-04007A
...
24
Shoulder Screw # 12 -24 MTD-710-1650
...
25
Pivot Rod MTD-747-04587
...
26
Screw, 1/4-15 x 1.00 MTD-710-1741
...
27
Belt Tension Spring MTD-732-1043
...
28
Rear Trailing Shield MTD-731-05642A
...
29
REAR BAFFLE 21" MTD-731-04150C
...
30
Hub Cap If Equipped MTD-731-0981C
...
31
Wing Nut MTD-712-0397A
...
32
Transmission Cover MTD-931-05013A
...
32
Transmission Cover MTD-931-05013A
...
33
Blade Adapter w/ Pulley MTD-948-04015A
...
34
21-inch Mulching Blade MTD-942-0741A
...
35
BLADE BELL SUPPORT MTD-736-0524B-1
...
36
Hex Screw 3/8-24 x 2.50 MTD-710-1257
...
37
Electric Start Harness Assembly If Equipped MTD-925-04072
...
38
Rivet If Equipped MTD-728-0199
...
39
Key If Equipped MTD-925-0201
...
40
Screw, #10-16 x .75 If Equipped MTD-710-1667A
...
41
Electric Start Harness Assembly If Equipped MTD-925-04072
...
42
Key Switch If Equipped MTD-925-04347
...
43
BATTERY REPLACEMENT KIT If Equipped MTD-753-10804
...
44
BATTERY CHARGER If Equipped MTD-725-06121C
...
45
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
46
SPRING WASHER BELL MTD-736-0270
...
47
PLATE-ADAPTER MTD-17032A
...
48
Torsion Spring MTD-732-1014C
...
49
Hinge Pin MTD-747-0710A
...
50
Front Bearing Assembly MTD-982-0015
...
51
21" DECK MTD-787-01278
...
52
Height Adjustment Ass’y - RH MTD-987-02194A
...
52
Height Adjustment Ass’y - LH MTD-987-02193A
...
53
Slev. Spacer 1.4" Lg. MTD-750-04595
...
54
Hex Screw, 3/8-16 x.75 MTD-710-0216
...
55
Flange Lock Nut, 3/8-16 MTD-712-04065
...
56
FRONT BAFFLE MTD-782P5002B
...
57
Wave Washer MTD-736-0447
...
58
Sleeve Spacer 8.985" Lg. MTD-750-04594
...
59
PIVOT PLATE ASSEMBLY MTD-687-02044
...
60
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
61
Wheel MTD-634-0190A
...
61
Wheel Ass'y 8 x 2.125 Gear Zag MTD-734-2042A
...
62
Screw, 1/4-20 x .390 MTD-710-04531
...
63
Gear 14T RH FWD MTD-717-1762
...
63
Gear 14T LH FWD MTD-717-1761
...
64
TT Scr. w/Washer 1/4-20 x.625 MTD-710-1652
...
65
HANDLE BRACKET ASSEMBLY (RH) MTD-987-02271A
...
65
HANDLE BRACKET ASSEMBLY (LH) MTD-987-02270A
...
66
Dowel Pin MTD-915-0221
...
67
Washer MTD-736-0474
...
68
Pivot Arm Assembly - RH MTD-987-02071A
...
68
Pivot Arm Assembly - LH MTD-987-02070A
...
69
Rear Spring Lever MTD-732-04175
...
70
Shoulder Scr., 500 Dia. x. 434 MTD-738-0507B
...
71
Rear Wheel, 8 x 1.8, Bar MTD-734-1987
...
71
Wheels - Front MTD-753-08093
...
71
Wheels - Front MTD-753-08093
...
72
ADJUSTMENT PLATE (RH) MTD-787-01298A-0637
...
72
ADJUSTMENT PLATE (LH) MTD-787-01299A-0637
...
73
Front Lever - RH MTD-732-0706
...
73
Front Lever - LH MTD-732-0707
...
74
Snap Ring MTD-716-0102
...
75
Wheel Dust Cap MTD-782-7551A
...
76
Wave Washer.510 ID x.750 OD If Equipped MTD-936-0504
...
77
EXTENSION HARNESS If Equipped MTD-725-04310
