Huskee 12A-A2K7231 (2011) Self Propelled Mower

Model: 12A-A2K7231 (2011)

Save Part Not Listed?
product name

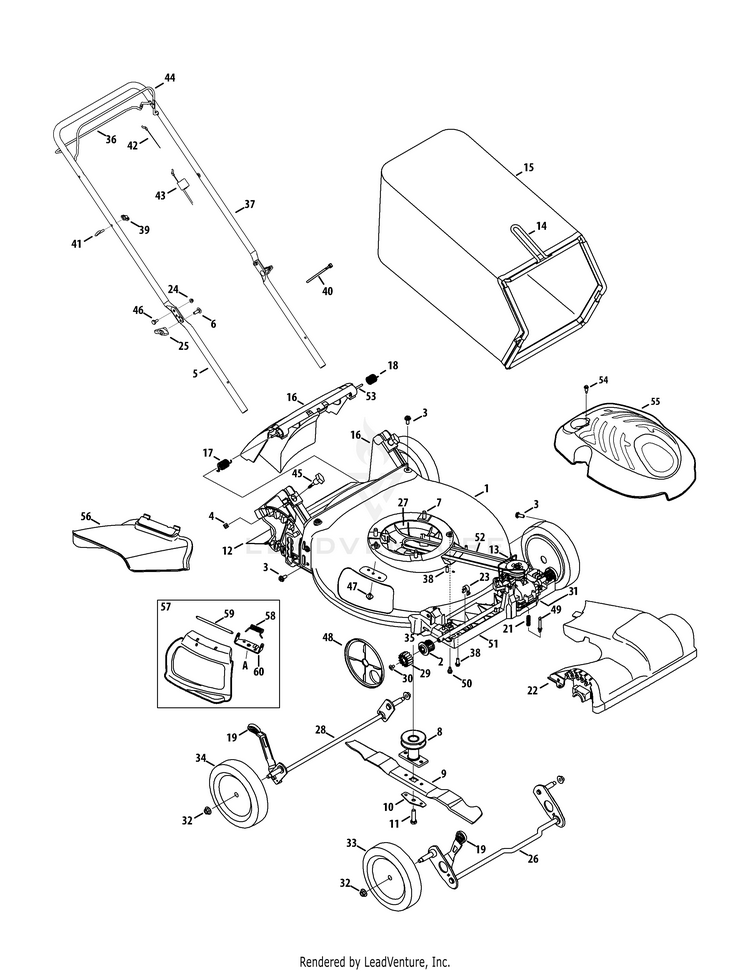

General Assembly 12A-A2

...
...
1
Deck , 21" MTD-787-01871A-0638
...
2
Bearing Assembly MTD-941-00019
...
3
Screw, 5/16-14 x .750 MTD-710-04995A
...
4
Nut, Sq., 1/4-20 MTD-712-04222
...
5
LOWER HANDLE (POWDER BLACK) MTD-749-07298-0637
...
6
Carriage Screw ,5/16-18 MTD-710-04998
...
7
Screw, 3/8-16 x 1.00 MTD-710-0654A
...
8
ADAPTER ASSEMBLY (7/8 ID x .430 SP) MTD-687-02539
...
8
ADAPTER ASSEMBLY (25MM ID x 2.66) (Kohler) MTD-687-02538
...
9
Mulching Blade MTD-942-0741A
...
10
BLADE BELL SUPPORT MTD-736-0524B-1
...
11
Screw, 3/8-24 x 1.50 MTD-710-1044
...
12
Trailing Shield MTD-731-07203
...
13
TRANSMISSION WIRE MTD-732-04675B
...
14
Grass Catcher Frame MTD-647-04271-0637
...
15
GRASSBAG 21" MTD-764-04077D
...
16
REAR DOOR & BAFFLE ASSEMBLY MTD-631-08159
...
17
TORSION SPRING (RH) MTD-732-05061B
...
18
Torsion Spring - LH MTD-732-04674A
...
19
Adjustment Lever Knob MTD-720-04131A
...
20
Screw, 1/4-20 x .500 MTD-710-05073
...
21
Compression Spring MTD-732-04704
...
22
FRONT COVER MTD-731-07797A
...
23
Front Axle Clip MTD-787-01793
...
24
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
25
Wing Knob MTD-720-04122
...
26
Front Axle Assembly MTD-911-04150
...
27
ENGINE BAFFLE ASSEMBLY MTD-931-04535C
...
28
8" REAR AXLE ASSEMBLY MTD-611-04142A
...
29
Spur Gear, 14T - RH MTD-917-04801
...
29
Spur Gear, 14T - LH MTD-917-04802
...
30
Screw, 1/4-20 x .390 MTD-710-04531
...
31
TRANSMISSION KIT (SP FWD 53CM WALK) MTD-753-09444
...
32
Flange Lock Nut, 3/8-16 MTD-712-04217
...
33
Front Wheel MTD-734-04581
...
34
Rear Wheel MTD-734-04563
...
35
Dowel Pin MTD-715-04099
...
36
Drive Control MTD-747-05210B
...
37
UPPER HANDLE (POWDER BLACK) MTD-749-05084B-0637
...
38
Screw, 1/4-15 x .750 MTD-710-0895
...
39
Knob MTD-720-0279
...
40
Cable Tie MTD-725-0157
...
41
Rope Guide MTD-710-1205
...
42
CONTROL CABLE 50.19" MTD-946-1114
...
42
CABLE 37.750" (Kohler) MTD-946-1113A
...
43
SINGLE SPEED FORWARD CABLE MTD-946-04728A
...
44
Blade Control MTD-747-05184D
...
45
Wing Nut MTD-720-05066A
...
46
Sldr. Screw, .375 x .126 x 1/4-20 MTD-738-04419A
...
47
Screw, 1/4-20 x .500 MTD-710-05073
...
48
Wheel Dust Cover MTD-731-07240A
...
49
Spring Body MTD-731-07355
...
50
Scr., Shldr., 1/4-20 x .50 MTD-738-04278
...
51
LOWER TRAY MTD-731-07789A
...
52
V-Belt MTD-954-04259A
...
53
Pivot Rod MTD-747-05183
...
54
Screw, #12-16 x 1.00 MTD-710-04744
...
55
ENGINE SHROUD ASSEMBLY MTD-931-04437
...
56
Side Discharge Chute MTD-731-07486
...
57
21" MULCH PLUG (HINGED) MTD-687-06029
...
58
Torsion Spring MTD-732-1014C
...
59
Hinge Pin MTD-747-0710A
...
60
Chute Deflector Bracket MTD-787-01779

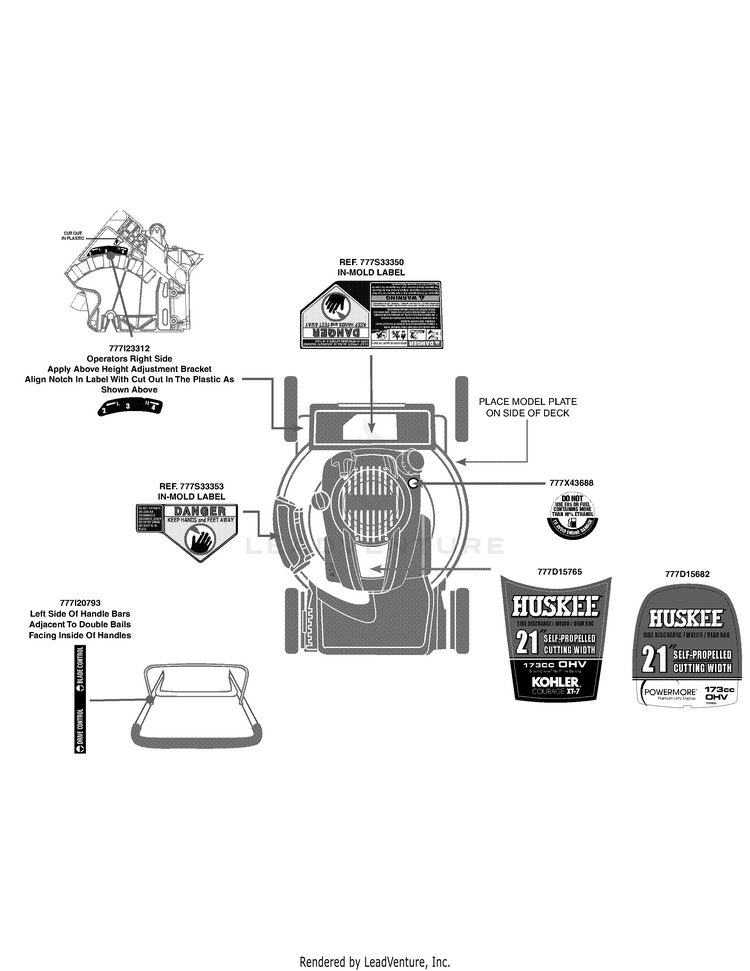

Label Map Huskee

...
...
777I23312
LABEL-MOWER REAR HGT ADJUST MTD-777I23312
...
777S33353
LABEL-MWR:SD CHT:IN-MOLD:CUT FNG IN-MOLD LABEL MTD-NA
...
777I20793
LABEL-HANDLE MTD-777I20793
...
777D15765
LABEL-MOWER SHROUD KOHLER California Models MTD-777D15765
...
777D15682
LABEL-MOWER SHROUD MTD-777D15682
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777S33350
LABEL-MWR:RR DR:IN-MOLD:DOM IN-MOLD LABEL MTD-NA
