Huskee 12A-527H230 (2007) Self Propelled Mower

Model: 12A-527H230 (2007)

Save Part Not Listed?
product name

.Quick Reference 527H

...
...
xx
Spark Plug MTD-KM-BPR5ES
...
xx
PRECLNR-AIR FILTER MTD-KM-11013-2232
...
xx
AIR FILTER ELEMENT MTD-KM-11029-0017
...
xx
CONTROL CABLE 42" (Brake) MTD-946-04389
...
xx
Drive Control Cable MTD-946-04204
...
xx
V-Belt, 3L x 32.90 MTD-954-04100
...
xx
Blade MTD-742-0742A-0637
...
xx
Blade Bolt MTD-710-1044
...
xx
Blade Adapter MTD-748-04016A
...
xx
Bell Blade Support MTD-736-0452
...
xx
Wheel Ass'y 8 x 2.125 Gear Zag (Front) MTD-734-2042A
...
xx
Wheels (Rear) MTD-734-04093
...
xx
Hub Cap (Front) MTD-731-0981C
...
xx
Trail Shield MTD-731-2537
...
xx
CHUTE DEFLECTOR MTD-931-1034B
...
xx
Grass Bag MTD-NA

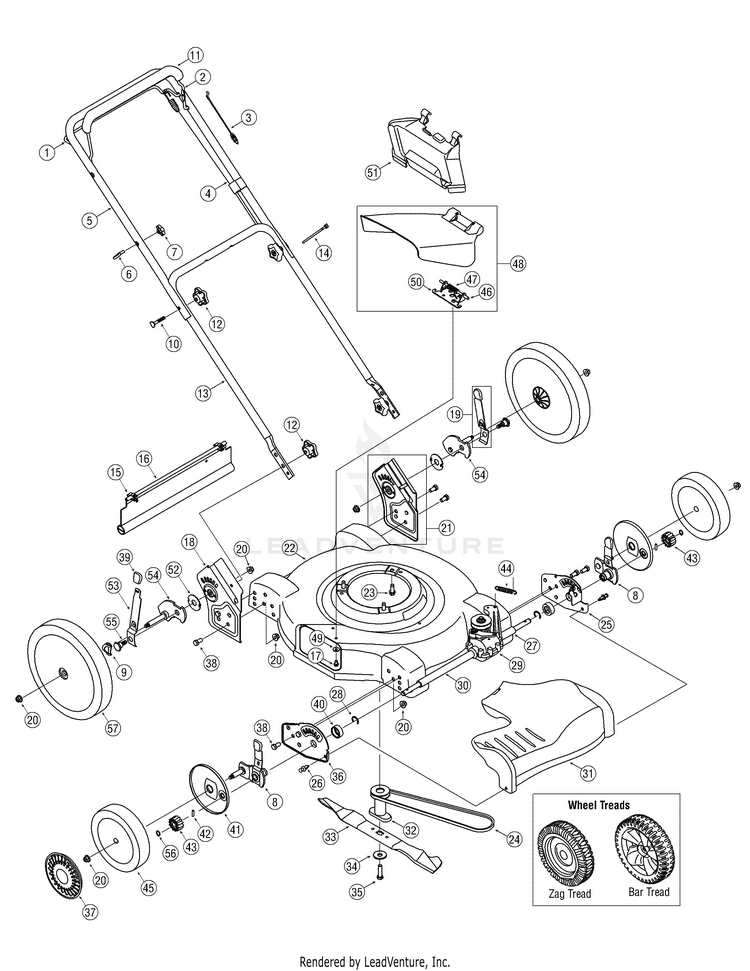

General Assembly

...
...
1
Drive Control MTD-747-1214
...
2
Blade Control MTD-747-1161A
...
3
Cable Control MTD-946-1132
...
3
CONTROL CABLE 42" MTD-946-04389
...
4
Drive Control Cable MTD-946-04204
...
5
Upper Handle MTD-749-1092A
...
6
Eye Bolt MTD-710-1205
...
7
Wing Nut, 1/4-20 MTD-720-0279
...
8
HEIGHT ADJUSTMENT ASSEMBLY (RH) Use for RH in this application MTD-987-02140A
...
8
Front Lever Assembly - Use for LH in this application MTD-987-02141A
...
9
Sprg Washer, .500 x 1.00 x .022 If Equipped MTD-736-0182
...
10
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
11
Bail Cover - Gray If Equipped MTD-731-04859
...
11
Bail Cover - Black If Equipped MTD-731-2626
...
12
Star Knob MTD-720-04072A
...
13
Lower Handle MTD-749-04037
...
14
Cable Tie MTD-725-0157
...
15
HINGE CLIP MTD-17098P
...
16
Trail Shield MTD-731-2537
...
17
Hex Screw, 1/4-20 x.500 MTD-710-0599
...
18
HANDLE BRACKET (RH) MTD-982-3062A
...
19
HEIGHT LEVER ASSEMBLY MTD-687-02052
...
20
Lock Nut 3/8-16 MTD-712-04065
...
21
HANDLE BRACKET ASSEMBLY (LH) MTD-682-3063A
...
22
22" DECK ASSEMBLY MTD-687-02046
...
23
Hex Washer Scr., 3/8-16 x 1.0 MTD-710-0654A
...
24
V-Belt, 3L x 32.90 MTD-954-04100
...
25
HEIGHT ADJUSTMENT PLATE MTD-782-0585A-0637
...
26
Rivet MTD-728-0199
...
27
SLEEVE SPACER .550IDX2.22LG MTD-750-04407
...
28
Retainer Ring MTD-716-0198
...
29
TRANSMISSION MTD-918-04375B
...
30
SLEEVE SPACER MTD-750-04406A
...
31
TRANSMISSION COVER MTD-931-04014
...
31
Transmission Cover - Black MTD-731-0073
...
32
Blade Adapter MTD-748-04016A
...
33
Blade MTD-742-0742A-0637
...
34
Washer, Bell, .396 x 1.140 x .095 MTD-736-0452
...
35
Hex Cap Screw 3/8-24 x 1.5 MTD-710-1044
...
36
HEIGHT ADJUSTMENT PLATE MTD-782-0584-0637
...
37
Hub Cap If Equipped MTD-731-0981C
...
38
Hex Cap Screw 3/8-16 x.75 MTD-710-0216
...
39
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
40
Bearing Support Spacer MTD-748-0390
...
41
Wheel Dust Cover MTD-731-04643
...
42
Dowel Pin MTD-915-0221
...
43
Spur Gear 14T - RH MTD-717-1762
...
43
Spur Gear 14T - LH MTD-717-1761
...
44
Ext. Spring.47 OD x 2.50 MTD-732-04049
...
45
Wheel Ass'y 8 x 2.125 Gear Zag MTD-734-2042A
...
46
Hinge Pin MTD-747-0710A
...
47
Torsion Spring MTD-732-1014C
...
48
CHUTE DEFLECTOR MTD-931-1034B
...
49
SPRING WASHER BELL MTD-736-0270
...
50
PLATE-ADAPTER MTD-17032A
...
51
Mulching Baffle MTD-631-04045
...
52
THRUST BEARING MTD-741-0717
...
53
SPRING LEVER MTD-732-0984B
...
54
PIVOT ARM ASSEMBLY (RH) MTD-687-02080
...
54
PIVOT ARM ASSEMBLY (LH) MTD-687-02079
...
55
Shoulder Screw 3/8 - 16 x.442 MTD-738-1127B
...
56
Screw 1/4-20 X .39 Image shows Snap Ring, but should be a Screw MTD-710-04531
...
57
Rear Wheel, 12 x 2.125, Zag MTD-734-04093

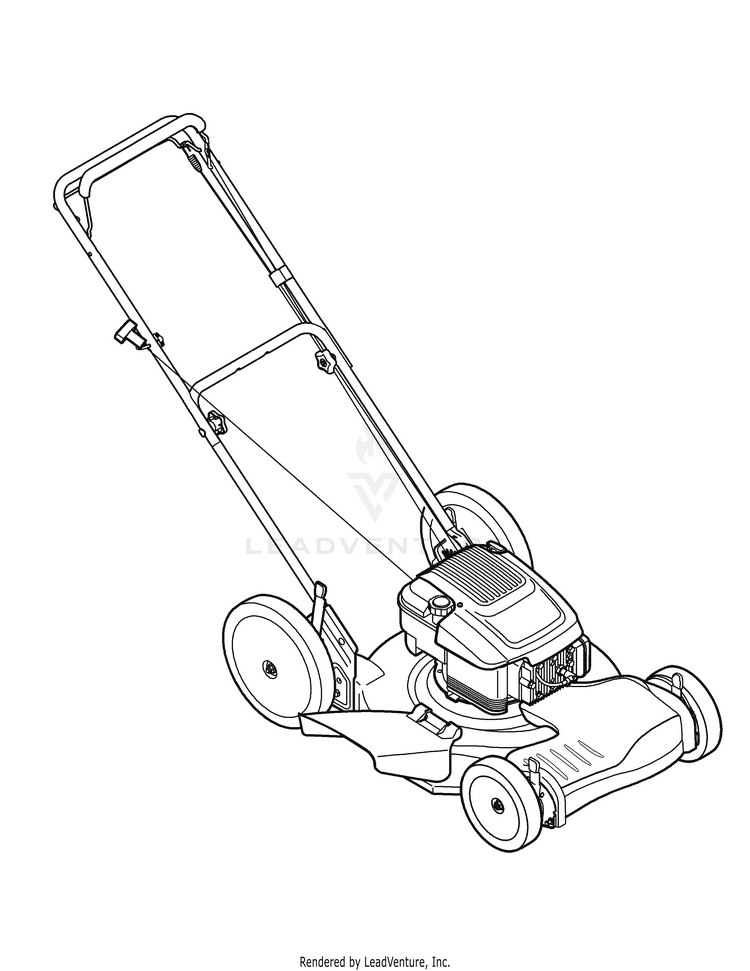

OEM-190-110 (2007)

...

No Parts Available for this Schematic
