Huskee 12A-46MZ031 (2009) Self Propelled Mower

Model: 12A-46MZ031 (2009)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-951-10292A
...
xx
GENUINE FACTORY PARTS® Spark Plug 751-10292 Snow, Ride MTD-490-250-F012
...
xx
Pre Filter MTD-951-10298
...
xx
Air Filter MTD-951-10298
...
xx
FUEL FILTER MTD-951-12296A
...
xx
Fuel Cap MTD-951-10440
...
xx
Control Cable MTD-946-04299
...
xx
Drive Cable MTD-946-04303
...
xx
Choke Cable MTD-746-04239A
...
xx
Blade Adapter MTD-948-04015A
...
xx
21-inch Mulching Blade MTD-942-0741A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1257
...
xx
Wheel MTD-634-0190A
...
xx
Wheels - Rear MTD-734-1987
...
xx
Trailshield MTD-731-05642A
...
xx
Discharge Chute MTD-731-04177
...
xx
Mulch Plug MTD-987-02055
...
xx
Grass Bag MTD-964-04007A
...
xx
Grass Bag Frame MTD-747-04080A

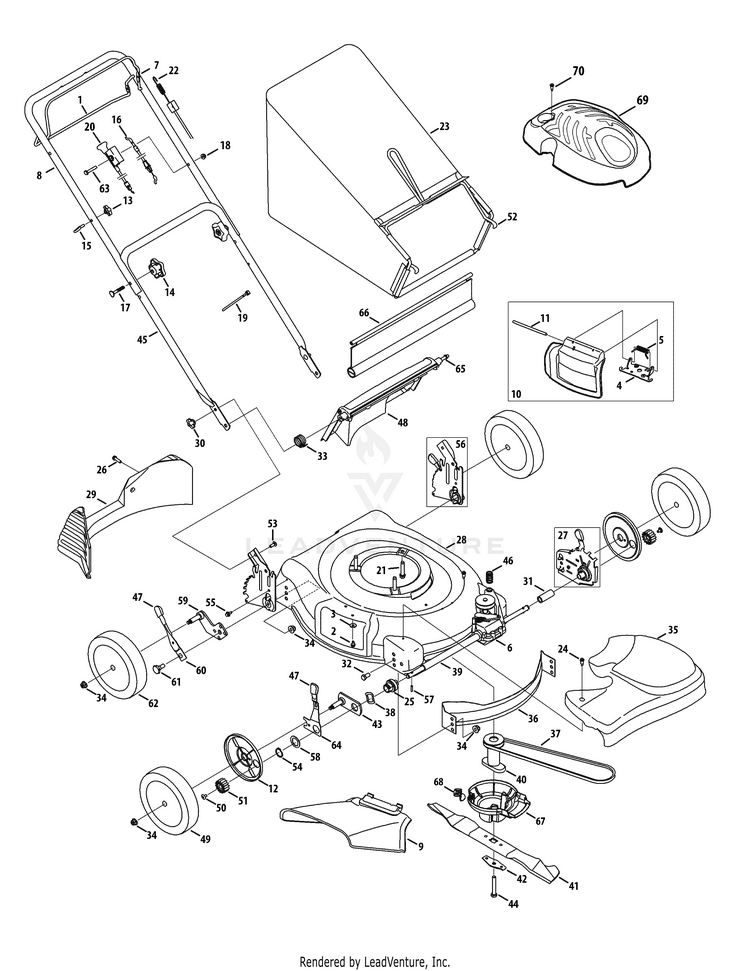

General Assembly

...
...
1
Drive Control MTD-747-1214
...
2
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
3
SPRING WASHER BELL MTD-736-0270
...
4
PLATE-ADAPTER MTD-17032A
...
5
Torsion Spring MTD-732-1014C
...
6
Transmission Assembly MTD-753-05465
...
7
Blade Control MTD-747-1161A-0637
...
8
Upper Handle MTD-749-1092A-0637
...
9
Chute Deflector MTD-731-04177
...
10
Mulch Plug Complete MTD-987-02055
...
11
Hinge Pin MTD-747-0710A
...
12
Wheel Dust Cap MTD-782-7551A
...
13
Handle Knob MTD-720-0279
...
14
Star Knob MTD-720-04072A
...
15
Eye Bolt MTD-710-1205
...
16
Control Cable MTD-946-04299
...
17
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
18
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
19
Cable Tie MTD-725-0157
...
20
Choke Cable MTD-746-04239A
...
21
Self-Tapping Sems Screw MTD-710-0654A
...
22
Drive Cable MTD-946-04303
...
23
Grassbag MTD-964-04007A
...
24
Shoulder Screw # 12 -24 MTD-710-1650
...
25
Front Bearing Assembly MTD-987-02347
...
26
Screw, 1/4-15 x 1.000 MTD-710-1241
...
27
Height Adjustment Ass’y - RH MTD-987-02194A
...
27
Height Adjustment Ass’y - LH MTD-987-02193A
...
28
21" DECK (MTD RED) MTD-787-01278-0638
...
29
REAR BAFFLE 21" MTD-731-04150C
...
30
Wing Nut MTD-712-0397A
...
31
Slev. Spacer 1.4" Lg. MTD-750-04595
...
32
Hex Screw, 3/8-16 x.75 MTD-710-0216
...
33
Torsion Spring - RH MTD-732-04090A
...
34
Flange Lock Nut, 3/8-16 MTD-712-04065
...
35
Transmission Cover MTD-931-05013A
...
36
FRONT BAFFLE MTD-782P5002B
...
37
V-Belt MTD-954-0637A
...
38
Wave Washer MTD-736-0447
...
39
Sleeve Spacer 8.985" Lg. MTD-750-04594
...
40
One Piece Blade Adapter MTD-948-04015A
...
41
21-inch Mulching Blade MTD-942-0741A
...
42
BLADE BELL SUPPORT MTD-736-0524B-1
...
43
Pivot Plate Assembly MTD-987-02334
...
44
Hex Screw 3/8-24 x 2.50 MTD-710-1257
...
45
Lower Handle MTD-749-0928A-0637
...
46
Belt Tension Spring MTD-732-1043
...
47
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
48
Rear Discharge Door MTD-731-06847
...
49
Wheel MTD-634-0190A
...
50
Screw, 1/4-20 x .390 MTD-710-04531
...
51
Gear 14T RH FWD MTD-717-1762
...
51
Gear 14T LH FWD MTD-717-1761
...
52
Grass Bag Frame MTD-747-04080A
...
53
Carriage Bolt 1/4-20 MTD-710-0703
...
54
Snap Ring MTD-716-0102
...
55
TT Scr. w/Washer 1/4-20 x.625 MTD-710-1652
...
56
HANDLE BRACKET ASSEMBLY (RH) MTD-987-02271A
...
56
HANDLE BRACKET ASSEMBLY (LH) MTD-987-02270A
...
57
Dowel Pin MTD-915-0221
...
58
Washer MTD-736-0474
...
59
PIVOT ARM ASSEMBLY (RH) MTD-987-02333
...
59
Pivot Arm Assembly - LH MTD-987-02332
...
60
Rear Spring Lever MTD-732-04175
...
61
Shoulder Scr.500 Dia. x.434 MTD-738-04266
...
62
Rear Wheel MTD-734-1987
...
63
Screw, 1/4-20 x 1.50 MTD-710-0606
...
64
Front Lever - RH MTD-732-0706
...
64
Front Lever - LH MTD-732-0707
...
65
Pivot Rod MTD-747-04587
...
66
Rear Trailing Shield MTD-731-05642A
...
67
Engine Baffle MTD-753-06116
...
68
Engine Baffle Bracket MTD-787-01593
...
69
ENGINE SHROUD MTD-731-06265A
...
70
Screw, HL, #12-16 x 1.00 MTD-710-04744

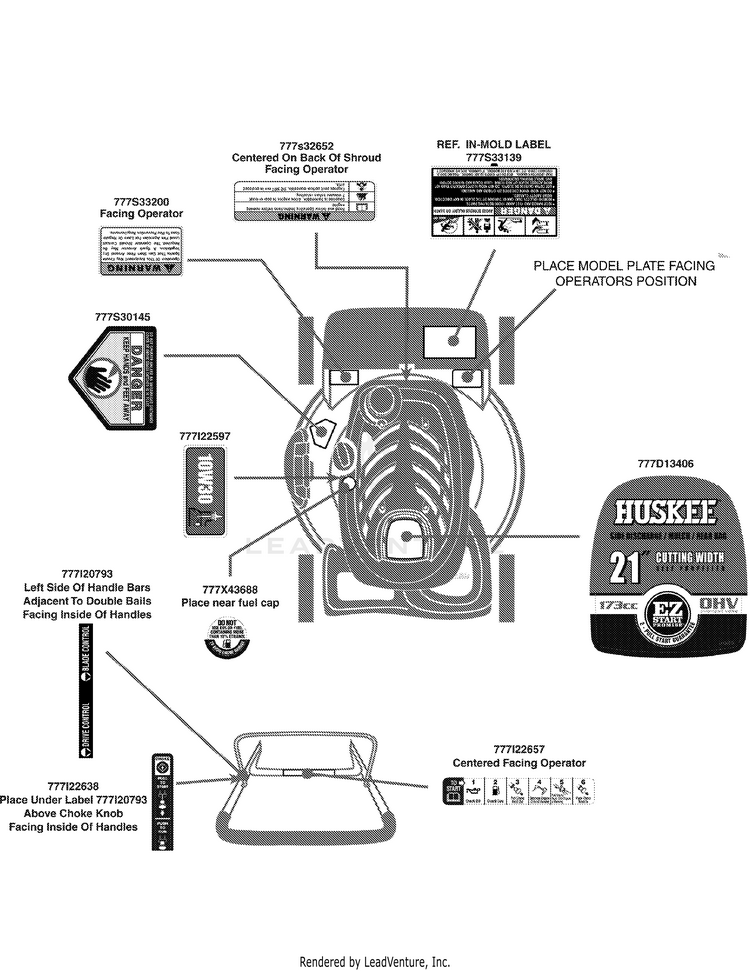

Label Map

...
...
777S32652
LABEL:MOWER:ENGINE SHROUD MTD-777S32652
...
777S33200
LABEL-WARNING SPARKS MTD-777S33200
...
777S30145
LABEL MTD-977S30145
...
777I22597
LABEL:MOWER SHROUD MTD-777I22597
...
777I20793
LABEL-HANDLE MTD-777I20793
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777I22638
LABEL-MOWER HANDLE MTD-777I22638
...
777I22657
LABEL-MOWER HANDLE MTD-777I22657
...
777D13406
LABEL-MOWER SHROUD HUSKEE MTD-777D13406
...
777S33139
LABEL-MOWER BAG DOOR:IN-MOLD Mold In Graphic MTD-NA

Engine Assembly 1P70MC

...
...
1
FUEL TANK MTD-951-10438
...
2
FLYWHEEL SHROUD MTD-951-10369
...
3
REED VALVE ASSEMBLY MTD-951-10840
...
4
Oil Filler Tube Assembly MTD-951-10334
...
5
DIPSTICK ASSEMBLY MTD-951-10863
...
6
Cylinder Head Assembly MTD-951-10413B
...
7
SHORTBLOCK ASSEMBLY MTD-951-12724
...
8
Stop Switch and Brake Ass'y MTD-951-10321A
...
9
Recoil Spring and Pulley Assembly MTD-951-10319
...
10
Push Rod Kit MTD-951-10344
...
11
Valve Kit MTD-951-10345
...
12
Oil Drain Plug and Washer Assembly MTD-951-10370
...
13
Ignition Coil MTD-951-10366
...
14
Carburetor Assembly MTD-951-10862
...
15
WOODRUFF KEY MTD-751P10307A
...
16
Air Cleaner Housing Assembly Complete MTD-951-10865
...
17
Muffler Stud Assembly MTD-951-10342
...
18
Fuel Line Kit - Inc. hoses, clamps & filter MTD-951-10364
...
19
FUEL FILTER MTD-951-12296A
...
20
Fuel Cap MTD-951-10440
...
21
Recoil Starter MTD-951-10299A
...
22
Air Cleaner Kit MTD-951-10298
...
22
Cub Cadet AIR FILTER Retail Packaged Part MTD-OCC-751-10298
...
22
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10298
...
23
Air Cleaner Thumb Screw MTD-951-10297
...
24
Muffler Guard MTD-951-10411
...
25
MUFFLER MTD-951-10864
...
26
Muffler Gasket /Heat Shield MTD-951-10402
...
27
Governor Return Spring MTD-951-10387
...
28
Spark Plug MTD-951-10292A
...
29
ROLL OVER VALVE ASSEMBLY MTD-951-10869
...
30
Carbon Canister MTD-951-14126
...
31
SPARK ARRESTOR MTD-951-10351A
...
xx
Carburetor Repair Kit - Major Not Shown MTD-951-10868
...
xx
CYLINDER HEAD KIT Not Shown MTD-951-10870
...
xx
GASKET KIT (COMPLETE) Not Shown MTD-951-10416A
...
xx
Gasket Kit - External Not Shown MTD-951-10417A
...
xx
COMPLETE ENGINE 173cc Not Shown MTD-952Z5P70MU
