Huskee 12A-26MZ231 (2010) Self Propelled Mower

Model: 12A-26MZ231 (2010)

Save Part Not Listed?
product name

.Quick Reference 12A-26MZ

...
...
xx
Spark Plug MTD-951-10292A
...
xx
Pre Filter MTD-NA
...
xx
Air Filter MTD-951-10298
...
xx
FUEL FILTER MTD-951-12296A
...
xx
Fuel Cap MTD-951-10440
...
xx
ERS Control Cable MTD-946-04300
...
xx
Drive Control Cable MTD-946-04304
...
xx
Choke Cable MTD-946-04295A
...
xx
Belt MTD-954-04100
...
xx
Blade Adapter MTD-687-02555
...
xx
Blade MTD-742-0742A-0637
...
xx
Blade Bell Support MTD-732-1026
...
xx
Blade Bolt MTD-710-1044
...
xx
Wheel MTD-634-0190A
...
xx
Wheels - Rear MTD-734-1987
...
xx
Trailshield MTD-731-06952
...
xx
CHUTE DEFLECTOR MTD-931-1034B
...
xx
Mulch Plug MTD-631-04045
...
xx
Grass Bag MTD-NA
...
xx
Grass Bag Frame MTD-NA
...
xx
Key MTD-NA
...
xx
Key Switch MTD-NA
...
xx
Battery MTD-NA
...
xx
Battery Charger MTD-NA

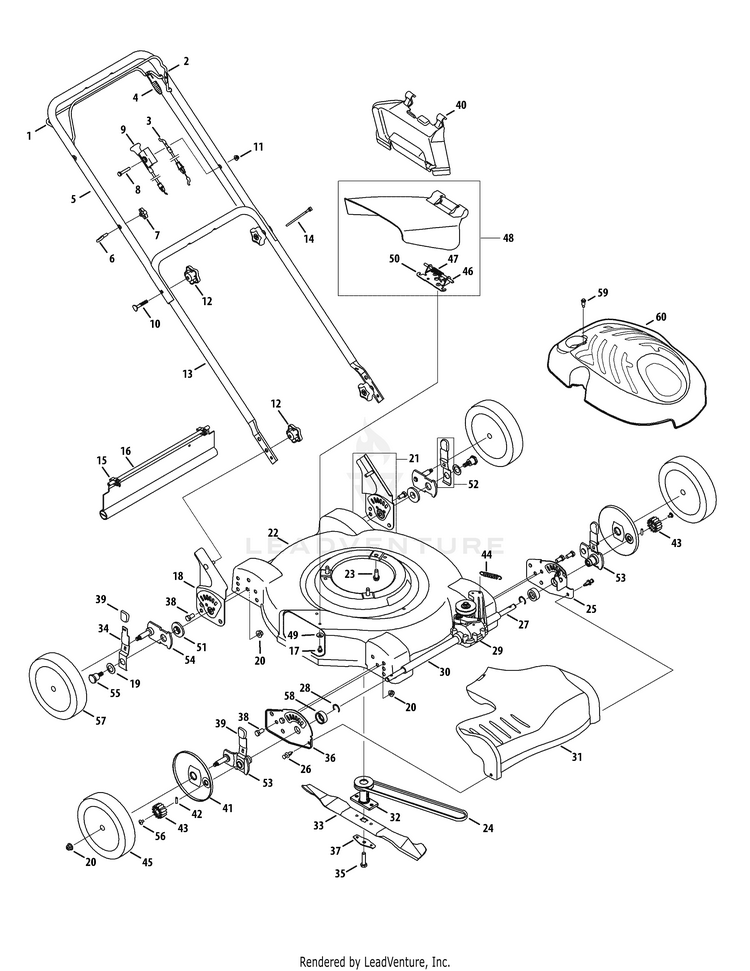

General Assembly 12A-26MZ

...
...
1
Drive Control MTD-747-1214
...
2
Blade Control MTD-747-1161A-0637
...
3
ERS Control Cable MTD-946-04300
...
4
Drive Control Cable MTD-946-04304
...
5
Upper Handle MTD-749-1092A-0637
...
6
Eye Bolt MTD-710-1205
...
7
Wing Nut, 1/4-20 MTD-720-0279
...
8
Hex Screw, 1/4-20 x 1.50 MTD-710-0606
...
9
Choke Cable MTD-946-04295A
...
10
Carriage Bolt, 5/16-18 x 2.0 MTD-710-1174
...
11
Flange Lock Nut, 1/4-20 MTD-712-04064
...
12
Star Knob MTD-720-04072A
...
13
Lower Handle MTD-749-04037
...
14
Cable Tie MTD-725-0157
...
15
Hinge Clip MTD-732-04631A
...
16
Trail Shield MTD-731-06952
...
17
Hex Screw, 1/4-20 x.500 MTD-710-0599
...
18
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-682-3064-0637
...
19
Bell Washer, .760 x 1.25 x.041 MTD-736-0741
...
20
Lock Nut, 3/8-16 MTD-712-04065
...
21
Handle Bracket Assembly - LH MTD-682-3065-0637
...
22
22" DECK ASSEMBLY (MTD RED) MTD-687-02046-0638
...
23
Hex Washer Scr., 3/8-16 x 1.0 MTD-710-0654A
...
24
V-Belt, 3L x 32.90 MTD-954-04100
...
25
HEIGHT ADJUSTMENT PLATE MTD-782-0585A-0637
...
26
Rivet MTD-728-0199
...
27
SLEEVE SPACER .550IDX2.22LG MTD-750-04407
...
28
Retainer Ring MTD-716-0198
...
29
TRANSMISSION MTD-918-04375B
...
30
SLEEVE SPACER MTD-750-04406A
...
31
Transmission Cover MTD-731-0073
...
32
Blade Adapter MTD-687-02555
...
33
Blade MTD-742-0742A-0637
...
34
Spring Lever MTD-732-1026
...
35
Screw, 3/8-24 x 1.5 MTD-710-1044
...
36
HEIGHT ADJUSTMENT PLATE MTD-782-0584-0637
...
37
BLADE BELL SUPPORT MTD-736-0524B-1
...
38
Hex Cap Screw, 3/8-16 x.75 MTD-710-0216
...
39
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
40
Mulch Plug MTD-631-04045
...
41
Wheel Dust Cover MTD-731-04643
...
42
Pin MTD-915-0221
...
43
Spur Gear 14T - RH MTD-717-1762
...
43
Spur Gear 14T - LH MTD-717-1761
...
44
Ext. Spring, .47 OD x 2.50 MTD-732-04049
...
45
Wheel MTD-634-0190A
...
46
Hinge Pin MTD-747-0710A
...
47
Torsion Spring MTD-732-1014C
...
48
CHUTE DEFLECTOR MTD-931-1034B
...
49
SPRING WASHER BELL MTD-736-0270
...
50
PLATE-ADAPTER MTD-17032A
...
51
Height Adjustment Bearing MTD-741-04242
...
52
Lever Ass'y MTD-687-02051
...
53
HEIGHT ADJUSTMENT ASSEMBLY (RH) MTD-987-02140A
...
53
Front Lever Assembly - LH MTD-987-02141A
...
54
Rear Pivot Arm Assembly MTD-687-02342
...
55
Shoulder Screw, 3/8-16 MTD-738-1173
...
56
Screw, 1/4-20 x .390 MTD-710-04531
...
57
Rear Wheel MTD-734-1987
...
58
Bearing Support Spacer MTD-748-0390
...
59
Screw, #12-16 x 1.00 MTD-710-04744
...
60
ENGINE SHROUD ASSEMBLY MTD-931-04437

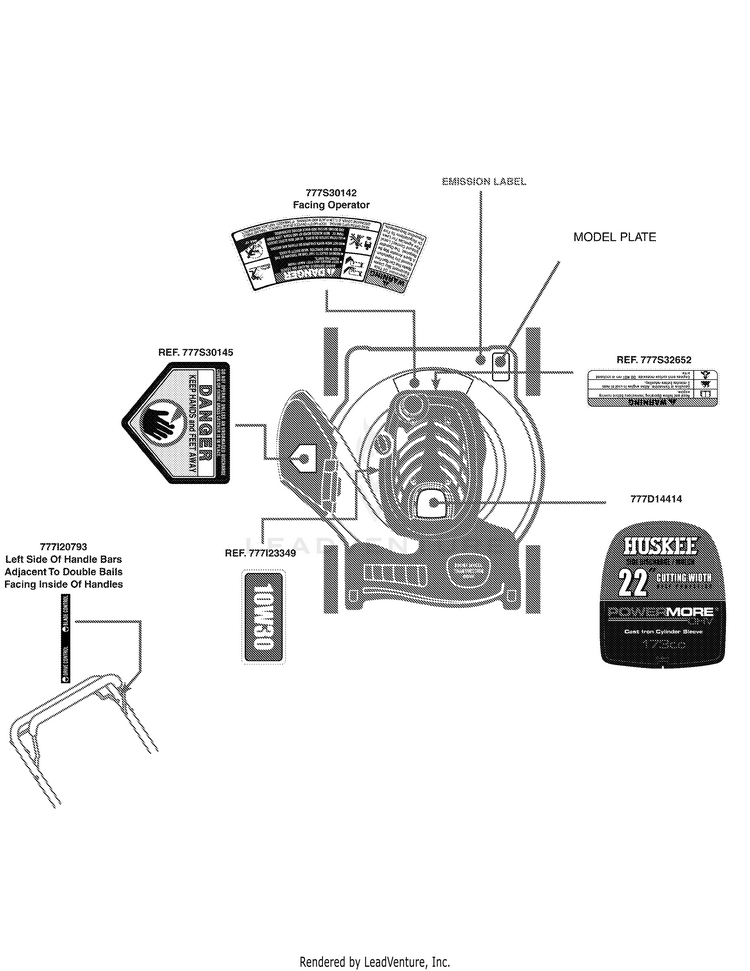

Label Map 12A-26MZ

...
...
777S30145
LABEL MTD-977S30145
...
777I20793
LABEL-HANDLE MTD-777I20793
...
777I23349
LABEL-10W30 MTD-777I23349
...
777D14414
LABEL-MOWER SHROUD HUSKEE 22" MTD-777D14414
...
777S32652
LABEL-MOWER:ENGINE MTD-777S32652
...
777S30142
LABEL-DANGER CURVE MTD-777S30142

Engine Assembly 1P70MC

...
...
1
FUEL TANK MTD-951-10438
...
2
FLYWHEEL SHROUD MTD-951-10369
...
3
REED VALVE ASSEMBLY MTD-951-10840
...
4
Oil Filler Tube Assembly MTD-951-10334
...
5
DIPSTICK ASSEMBLY MTD-951-10863
...
6
Cylinder Head Assembly MTD-951-10413B
...
7
SHORTBLOCK ASSEMBLY MTD-951-12724
...
8
Stop Switch and Brake Ass'y MTD-951-10321A
...
9
Recoil Spring and Pulley Assembly MTD-951-10319
...
10
Push Rod Kit MTD-951-10344
...
11
Valve Kit MTD-951-10345
...
12
Oil Drain Plug and Washer Assembly MTD-951-10370
...
13
Ignition Coil MTD-951-10366
...
14
Carburetor Assembly MTD-951-10862
...
15
WOODRUFF KEY MTD-751P10307A
...
16
Air Cleaner Housing Assembly Complete MTD-951-10865
...
17
Muffler Stud Assembly MTD-951-10342
...
18
Fuel Line Kit - Inc. hoses, clamps & filter MTD-951-10364
...
19
FUEL FILTER MTD-951-12296A
...
20
Fuel Cap MTD-951-10440
...
21
Recoil Starter MTD-951-10299A
...
22
Air Cleaner Kit MTD-951-10298
...
22
Cub Cadet AIR FILTER Retail Packaged Part MTD-OCC-751-10298
...
22
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10298
...
23
Air Cleaner Thumb Screw MTD-951-10297
...
24
Muffler Guard MTD-951-10411
...
25
MUFFLER MTD-951-10864
...
26
Muffler Gasket /Heat Shield MTD-951-10402
...
27
Governor Return Spring MTD-951-10387
...
28
Spark Plug MTD-951-10292A
...
29
ROLL OVER VALVE ASSEMBLY MTD-951-10869
...
30
Carbon Canister MTD-951-14126
...
31
SPARK ARRESTOR MTD-951-10351A
...
xx
Carburetor Repair Kit - Major Not Shown MTD-951-10868
...
xx
CYLINDER HEAD KIT Not Shown MTD-951-10870
...
xx
GASKET KIT (COMPLETE) Not Shown MTD-951-10416A
...
xx
Gasket Kit - External Not Shown MTD-951-10417A
...
xx
COMPLETE ENGINE 173cc Not Shown MTD-952Z5P70MU
