Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...

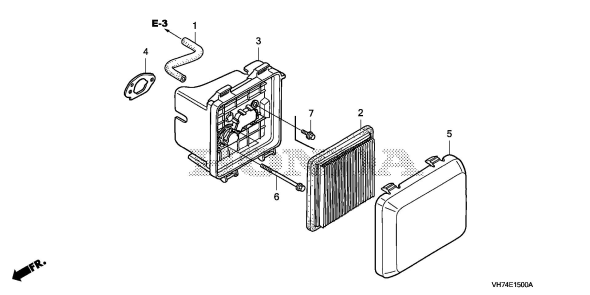

1
Tube, Breather HON-15721-ZM0-000
...
2
Element, Air Cleaner (Toyo Roki) HON-17211-ZL8-023
...
2
Element, Air Cleaner (Wix Filters) HON-17211-Z8B-901
...
3
Case Assembly Air Cleaner HON-17220-ZM0-030
...
4
Gasket, Air Cleaner HON-17228-ZM0-000
...
4
Gasket, Air Cleaner HON-17228-Z8B-000
...
5
Cover, Air Cleaner HON-17231-Z0L-050
...
6
Bolt, Flange (6X85) (Ct200) HON-90003-ZM0-010

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Tube, Breather HON-15721-ZM0-000
...
2
Element, Air Cleaner (Toyo Roki) HON-17211-ZL8-023
...
2
Element, Air Cleaner (Wix Filters) HON-17211-Z8B-901
...
3
Case Assembly Air Cleaner HON-17220-ZM0-030
...
3
Case Assembly Air Cleaner HON-17220-Z8B-010
...
4
Gasket, Air Cleaner HON-17228-ZM0-000
...
4
Gasket, Air Cleaner HON-17228-Z8B-000
...
5
Cover, Air Cleaner HON-17231-Z0L-050
...
6
Bolt, Flange (6X85) (Ct200) HON-90003-ZM0-010
...
6
Bolt, Special (6Mm) HON-90003-Z8B-900
...
7
Bolt, Flange (6X14) HON-95701-06014-08

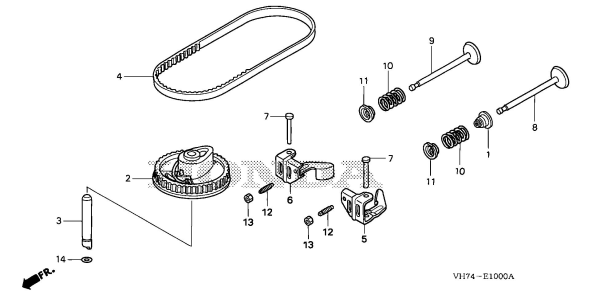

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Seal, Valve Stem HON-12209-ZM0-003
...
2
Pulley, Camshaft HON-14320-Z8D-000
...
3
Shaft, Cam Pulley HON-14324-ZL8-000
...
4
Belt, Timing (84Hu7 G-200) HON-14400-Z8B-003
...
4
Belt, Timing (84Hu6 G-200) HON-14400-Z8B-003
...
5
Arm, In. Valve Rocker HON-14431-Z0J-000
...
6
Arm, Ex. Valve Rocker HON-14441-Z0J-000
...
7
Shaft, Rocker Arm HON-14461-ZL8-000
...
8
Valve, In. (Technostar) HON-14711-ZL8-000
...
8
Valve, In. (Rocknel) HON-14711-ZL8-000
...
8
Valve, In. HON-14711-ZL8-000
...
9
Valve, Ex. (L8E) HON-14721-ZL8-000
...
9
Valve, Ex. (C8E) HON-14721-Z8B-000
...
10
Spring, Valve HON-14751-ZL8-000
...
11
Retainer, Valve Spring HON-14771-Z0J-000
...
12
Screw, Tappet Adjusting HON-90012-333-000
...
13
Nut, Tappet Adjusting HON-90206-001-000
...
14
O-Ring (6.8X1.9) (Arai) HON-91301-ZM0-V31

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Seal, Valve Stem HON-12209-ZM0-003
...
1
Seal, Valve Stem HON-12209-Z8B-003
...
2
Pulley, Camshaft HON-14320-Z8D-000
...
3
Shaft, Cam Pulley HON-14324-ZL8-000
...
4
Belt, Timing (84Hu6 G-200) HON-14400-Z8B-003
...
5
Arm, In. Valve Rocker HON-14431-Z0J-000
...
6
Arm, Ex. Valve Rocker HON-14441-Z0J-000
...
7
Shaft, Rocker Arm HON-14461-ZL8-000
...
8
Valve, In. (Technostar) HON-14711-ZL8-000
...
9
Valve, Ex. (L8E) HON-14721-ZL8-000
...
9
Valve, Ex. (C8E) HON-14721-Z8B-000
...
10
Spring, Valve HON-14751-ZL8-000
...
11
Retainer, Valve Spring HON-14771-Z0J-000
...
12
Screw, Tappet Adjusting HON-90012-333-000
...
13
Nut, Tappet Adjusting HON-90206-001-000
...
14
O-Ring (6.8X1.9) (Arai) HON-91301-ZM0-V31

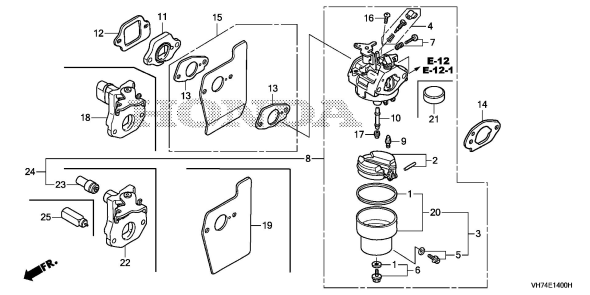

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Gasket Set HON-16010-883-015
...
2
Float Set HON-16013-ZL1-003
...
3
(Carburetor No.) HON-16015-887-782
...
4
(Carburetor No.) HON-16016-ZG0-W00
...
5
(Carburetor No.) HON-16024-ZE1-811
...
6
Screw Set HON-16028-ZE0-005
...
6
Screw Set HON-16028-ZK7-S91
...
7
Screw Set (Throttle Stop) HON-16029-ZG0-901
...
8
Carburetor Assembly (Bb65B C) HON-16100-Z0Y-813
...
9
(Carburetor No.) HON-16155-ZM0-013
...
10
(Carburetor No.) HON-16166-Z0Y-003
...
11
Insulator, Carburetor HON-16211-ZL8-000
...
11
Insulator, Carburetor HON-16211-Z8B-000
...
12
Gasket, Insulator HON-16212-ZL8-000
...
14
Gasket, Carburetor HON-16228-ZL8-000
...
16
Screw, Pan (5X6) HON-93500-05006-0H
...
17
(Carburetor No.) HON-99101-124-0650
...
17
(Carburetor No.) HON-99101-124-0680
...
17
Jet, Main (#70) HON-99101-124-0700
...
19
Guide, Air HON-19651-Z0L-000
...
20
(Carburetor No.) HON-16015-Z0L-881

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Gasket Set HON-16010-883-015
...
2
Float Set HON-16013-ZL1-003
...
3
(Carburetor No.) HON-16015-887-782
...
4
(Carburetor No.) HON-16016-ZG0-W00
...
5
(Carburetor No.) HON-16024-ZE1-811
...
6
Screw Set HON-16028-ZE0-005
...
7
Screw Set (Throttle Stop) HON-16029-ZG0-901
...
8
Carburetor Assembly (Bb65B A) HON-16100-Z0Y-813
...
8
Carburetor Assembly (Bb65B C) HON-16100-Z0Y-813
...
9
(Carburetor No.) HON-16155-ZM0-013
...
10
(Carburetor No.) HON-16166-Z0Y-003
...
11
Insulator, Carburetor HON-16211-ZL8-000
...
11
Insulator, Carburetor HON-16211-Z8B-000
...
12
Gasket, Insulator HON-16212-ZL8-000
...
14
Gasket, Carburetor HON-16228-ZL8-000
...
16
Screw, Pan (5X6) HON-93500-05006-0H
...
17
(Carburetor No.) HON-99101-124-0650
...
17
(Carburetor No.) HON-99101-124-0680
...
17
Jet, Main (#70) HON-99101-124-0700
...
19
Guide, Air HON-19651-Z0L-000
...
20
(Carburetor No.) HON-16015-Z0L-881

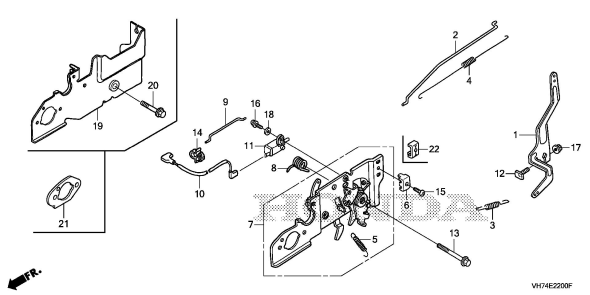

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Arm, Governor HON-16551-ZM0-010
...
2
Rod, Governor HON-16555-Z0L-801
...
3
Spring, Governor HON-16561-Z0L-000
...
4
Spring, Throttle Return HON-16562-ZM0-000
...
5
Spring, Lever HON-16576-ZE7-300
...
6
Holder, Cable HON-16617-VG3-000
...
7
Base, Control HON-16580-ZM0-J23
...
8
Spring, Control Lever Return HON-16593-ZM0-000
...
9
Rod, Choke HON-16674-ZM0-000
...
10
Wire, Stop Switch HON-32195-ZM0-800
...
10
Wire, Stop Switch HON-32195-Z0L-M90
...
10
Wire, Stop Switch HON-32195-Z0L-900
...
11
Switch Assembly Engine Stop (N.O) HON-35120-ZL8-003
...
12
Bolt, Governor Arm HON-90015-ZE5-010
...
13
Bolt, Flange (6X45) (Ct200) HON-90016-ZM0-000
...
13
Bolt, Flange (6X45) (Ct200) HON-90016-ZE8-000
...
14
Holder, Wire (Fastex) HON-51125-Z0L-003
...
14
Clip A, Cable (3.8Mm Black) (Nifco) HON-90681-959-003
...
15
Screw, Pan (5X16) HON-93500-05016-0A
...
16
Screw-Washer (4X12) HON-93892-04012-00
...
17
Nut, Flange (6Mm) HON-94050-06000
...
18
Washer, Plain (4Mm) HON-94103-04000

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Arm, Governor HON-16551-ZM0-010
...
2
Rod, Governor HON-16555-Z0L-801
...
3
Spring, Governor (L=69Mm) HON-16561-Z0L-000
...
4
Spring, Throttle Return HON-16562-ZM0-000
...
5
Spring, Lever HON-16576-ZE7-300
...
6
Holder, Cable HON-16617-VG3-000
...
7
Base, Control HON-16580-ZM0-J23
...
7
Base, Control HON-16580-Z0L-J20
...
8
Spring, Control Lever Return HON-16593-ZM0-000
...
8
Spring, Control Lever Return HON-16593-Z0L-000
...
9
Rod, Choke HON-16674-ZM0-000
...
10
Wire, Stop Switch HON-32195-ZM0-800
...
10
Wire, Stop Switch HON-32195-Z0L-M90
...
10
Wire, Stop Switch HON-32195-Z0L-900
...
11
Switch Assembly Engine Stop (N.O) HON-35120-ZL8-003
...
12
Bolt, Governor Arm HON-90015-ZE5-010
...
13
Bolt, Flange (6X45) (Ct200) HON-90016-ZM0-000
...
13
Bolt, Flange (6X50) (Ct200) HON-90014-888-000
...
13
Bolt, Flange (6X45) (Ct200) HON-90016-ZE8-000
...
14
Clip A, Cable (3.8Mm Black) (Nifco) HON-90681-959-003
...
14
Holder, Wire (Fastex) HON-51125-Z0L-003
...
15
Screw, Pan (5X16) HON-93500-05016-0A
...
16
Screw-Washer (4X12) HON-93892-04012-00
...
17
Nut, Flange (6Mm) HON-94050-06000
...
18
Washer, Plain (4Mm) HON-94103-04000
...
22
Holder, Cable HON-16576-891-000

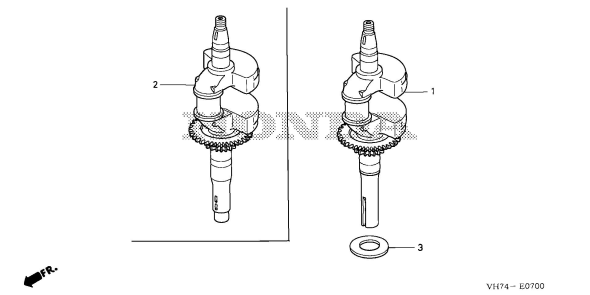

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
2
Crankshaft HON-06131-Z8D-W50
...
3
Washer, Thrust HON-90402-ZL8-000

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
2
Crankshaft HON-13311-Z8D-960
...
3
Pulley, Timing Belt Drive HON-13621-Z8B-900
...
4
Washer, Thrust HON-90402-ZL8-000

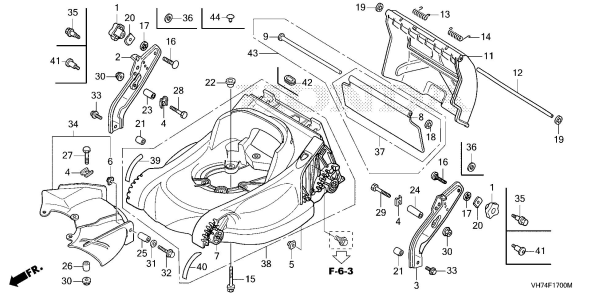

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
2
Stay, R. Handle *Nh105* (Mat Black) HON-53130-VH7-K00ZA
...
3
Stay, L. Handle *Nh105* (Mat Black) HON-53135-VH7-K00ZA
...
4
Holder, Handle Stay HON-53137-VH7-000
...
5
Nut, Headlight Setting HON-61304-165-013
...
6
Nut, Special (6X7) HON-61304-958-003
...
7
Housing, Cutter *Nh462R* (Vintage Gray Solid) HON-06761-VH7-030ZA
...
7
Housing, Cutter *Nh462R* (Vintage Gray Solid) HON-76111-VH7-070ZA
...
8
Shield, Rr. HON-76118-VH7-020
...
9
Shaft, Rr. Shield HON-76138-VH7-000
...
11
Guard, Discharge HON-76281-VH7-010
...
12
Shaft, Discharge Guard HON-76282-VH7-000
...
13
Spring, R. Guard Return HON-76284-VH7-000
...
14
Spring, L. Guard Return HON-76294-VH7-000
...
15
Bolt, Engine Setting HON-90102-VE0-000
...
18
Nut, Push (3.96Mm) (Flat Round Type) HON-90301-VG3-020
...
19
Nut, Push (7.94Mm) HON-90301-VG4-000
...
21
Collar, Stay (Lower) HON-91551-VE2-000
...
22
Collar, Bed HON-91553-VH7-000
...
23
Collar, R. Stay (Upper) HON-91554-VH7-000
...
24
Collar, L. Stay (Upper) HON-91555-VH7-000
...
25
Collar, Scroll HON-91558-VE2-000
...
26
Collar, Scroll HON-91558-VH7-000
...
27
Bolt, Hex. (8X28) HON-92101-08028-0A
...
28
Bolt, Hex. (8X40) HON-92101-08040-0A
...
29
Bolt, Hex. (8X50) HON-92101-08050-0A
...
30
Nut, Flange (8Mm) HON-94050-08000
...
31
Washer, Plain (6Mm) HON-94103-06000
...
32
Bolt, Flange (6X35) HON-95701-06035-08
...
33
Bolt, Flange (8X22) HON-95701-08022-00
...
34
Guide Assembly Scroll HON-76105-VH7-010
...
35
Bolt, Special (8X32) HON-90102-VL0-P00
...
36
Washer (25Mm) HON-90503-VL0-B00
...
37
Shield Kit, Rr. HON-06761-VH7-306
...
38
Housing Kit, Cutter *Nh462R* (Vintage Gray Solid) HON-06761-VH7-030ZA
...
39
Mark, R. Fr. Height Indication HON-87138-VH7-000
...
40
Mark, Fr. L Height Indication HON-87139-VH7-000
...
41
Bolt, Special (8X32) HON-90102-VL0-P00
...
43
Shield Kit, Rr. HON-06761-VH7-306

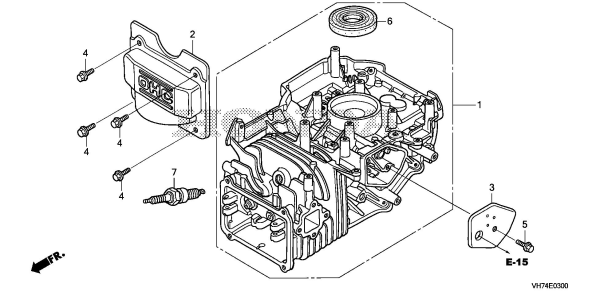

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Cylinder Assembly HON-12000-Z0Y-940
...
1
Cylinder Assembly HON-06120-Z0Y-305
...
2
Cover, Cylinder Head HON-12310-Z8A-000
...
2
Cover, Head HON-12311-Z8B-000
...
3
Cover, Breather (Breather Valve Assembly) HON-12355-ZL8-000
...
4
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
5
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
6
Oil Seal (25.4X62X6) HON-91201-Z0Y-003
...
7
Spark Plug (Bpr5Es) (Ngk) HON-98079-55846

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Cylinder Assembly HON-12000-Z0Y-415
...
1
Cylinder Assembly (Na Use Alt:12000-Z0Y-940) HON-12000-Z0Y-407
...
2
Cover, Cylinder Head HON-12310-Z8A-000
...
2
Cover, Head HON-12311-Z8B-000
...
3
Cover, Breather (Breather Valve Assembly) HON-12355-ZL8-000
...
4
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
5
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
6
Oil Seal (25.4X62X6) (Arai) HON-91201-Z0Y-003
...
7
Spark Plug (Bpr5Es) (Ngk) HON-98079-55846

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Rubber, Supporter (107Mm) HON-16854-ZH8-000
...
2
Petcock Assembly HON-16950-ZM0-003
...
3
Filter, Fuel HON-16952-ZA8-800
...
3
Filter, Fuel HON-16952-Z8B-000
...
4
Tank, Fuel HON-17511-Z8B-801
...
5
Seal, Fuel Filler Neck HON-17514-Z0L-000
...
6
Clip, Tank Mounting HON-17516-Z0L-000
...
7
Rubber A, Tank Mounting HON-17532-Z8B-800
...
8
Rubber B, Tank Mounting HON-17533-Z8B-800
...
9
Nut, Tank Mounting HON-17534-Z0L-000
...
10
Cap Assembly Fuel Tank HON-17620-Z8B-800
...
11
Gauge, Fuel Level HON-17636-Z0L-010
...
12
Tube, Fuel Tank HON-17701-Z0L-810
...
12
Tube, Fuel Tank (Fkm) HON-17701-Z8B-813
...
13
Tube, Fuel HON-17702-ZM0-800
...
13
Tube, Fuel (Fkm) HON-17702-Z8B-801
...
14
Cover, Fan *R280* (Power Red) HON-19611-Z0L-850ZF
...
15
Collar, Fan Cover HON-19619-ZL8-300
...
16
Collar, Fr. Turn Signal HON-33609-GK4-620
...
17
Bolt, Stud (Fan Cover) HON-90043-Z8B-000
...
17
Bolt, Stud (Fan Cover) HON-90043-Z8D-010
...
18
Screw-Washer (5X10) HON-93891-05010-08
...
19
Clip, Tube (B8) HON-95002-02080
...
20
Clip, Tube (B10) HON-95002-02100
...
21
Clip, Tube (C11) HON-95002-70000
...
22
Bolt, Stud (H=42.5Mm) HON-90043-ZL8-000
...
22
Bolt, Stud (Fan Cover) HON-90043-Z8B-900
...
22
Bolt, Stud (Fan Cover) HON-90043-Z8D-010
...
22
Bolt, Stud (Fan Cover) HON-90043-Z8D-901
...
31
Clamp, Tube (D8) HON-95002-40800-08
...
32
Clamp, Tube (D10) HON-95002-41000-08
...
33
Clamp, Tube (D12) HON-95002-41200-08
...
34
Rubber, Fan Cover HON-19617-Z0Y-300
...
36
Tank Kit, Fuel HON-06175-Z8B-800
...
37
Cover, Fan *R280* (Power Red) HON-19611-Z0L-850ZF

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Rubber, Supporter (107Mm) HON-16854-ZH8-000
...
2
Petcock Assembly HON-16950-ZM0-003
...
3
Filter, Fuel HON-16952-ZA8-800
...
3
Filter, Fuel HON-16952-Z8B-000
...
4
Tank, Fuel HON-17511-Z8B-801
...
5
Seal, Fuel Filler Neck HON-17514-Z0L-000
...
6
Clip, Tank Mounting HON-17516-Z0L-000
...
7
Rubber A, Tank Mounting HON-17532-Z8B-800
...
8
Rubber B, Tank Mounting HON-17533-Z8B-800
...
9
Nut, Tank Mounting HON-17534-Z0L-000
...
10
Cap Assembly Fuel Tank HON-17620-Z8B-800
...
11
Gauge, Fuel Level HON-17636-Z0L-010
...
12
Tube, Fuel Tank HON-17701-Z0L-810
...
12
Tube, Fuel Tank (Fkm) HON-17701-Z8B-813
...
13
Tube, Fuel HON-17702-ZM0-800
...
13
Tube, Fuel (Fkm) HON-17702-Z8B-801
...
14
Cover, Fan *R280* (Power Red) HON-19611-Z0L-850ZF
...
15
Collar, Fan Cover HON-19619-ZL8-300
...
16
Collar, Fr. Turn Signal HON-33609-GK4-620
...
16
Collar, Fuel Petcock HON-91501-Z0L-800
...
17
Bolt, Stud (Fan Cover) HON-90043-Z8B-000
...
17
Bolt, Stud (Fan Cover) HON-90043-Z8D-010
...
18
Screw-Washer (5X10) HON-93891-05010-08
...
19
Clip, Tube (B8) HON-95002-02080
...
20
Clip, Tube (B10) HON-95002-02100
...
21
Clip, Tube (C11) HON-95002-70000
...
22
Bolt, Stud (H=42.5Mm) HON-90043-ZL8-000
...
22
Bolt, Stud (Fan Cover) HON-90043-Z8B-900
...
22
Bolt, Stud (Fan Cover) HON-90043-Z8D-010
...
22
Bolt, Stud (Fan Cover) HON-90043-Z8D-901
...
31
Clamp, Tube (D8) HON-95002-40800-08
...
32
Clamp, Tube (D10) HON-95002-41000-08
...
33
Clamp, Tube (D12) HON-95002-41200-08
...
34
Rubber, Fan Cover HON-19617-Z0Y-300
...
36
Tank Kit, Fuel HON-06175-Z8B-800
...
37
Cover, Fan *R280* (Power Red) HON-19611-Z0L-850ZF

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Key, Special Woodruff (25X18) HON-13331-357-000
...
2
Plate, Side HON-19612-Z0L-000
...
3
Coil Assembly Ignition (Phelon) (Use For F/W Of Phelon) HON-30500-Z8B-903
...
3
Coil Assembly Ignition (Use For F/W Of Tec) (Tec) HON-30500-ZL8-014
...
4

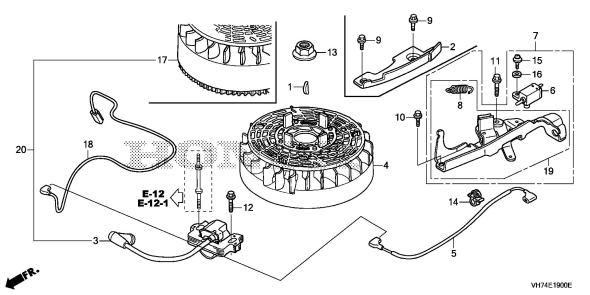

Flywheel Assembly (Phelon) (Use For Ign. Coil Of Phelon) HON-31105-Z0Y-J11
...
9
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
12
Bolt, Flange (6X20) (Ct200) HON-90022-888-010
...
13
Nut, Flange (14Mm) HON-90213-S3Y-000
...
17
Flywheel Assembly(Tec) (Use For Ign. Coil Of Tec) HON-31105-Z0Y-932
...
20
Flywheel Kit (Sel) HON-06311-Z0L-930

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Key, Special Woodruff (25X18) HON-13331-357-000
...
2
Plate, Side HON-19612-Z0L-000
...
3
Coil Assembly Ignition (Phelon) HON-30500-Z8B-903
...
3
Coil Assembly Ignition (Fenix) HON-30500-Z8B-903
...
3
Coil Assembly Ignition (Use For F/W Of Tec) (Tec) HON-30500-ZL8-014
...
4
Flywheel Assembly (Phelon) (Use For Ign. Coil Of Phelon) HON-31105-Z0Y-J11
...
9
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
12
Bolt, Flange (6X20) (Ct200) HON-90022-888-010
...
13
Nut, Flange (14Mm) HON-90213-S3Y-000
...
17
Flywheel Assembly (Tec) (Use For Ign. Coil Of Tec) HON-31105-Z0Y-932
...
20
Flywheel Kit (Sel) HON-06311-Z0L-930

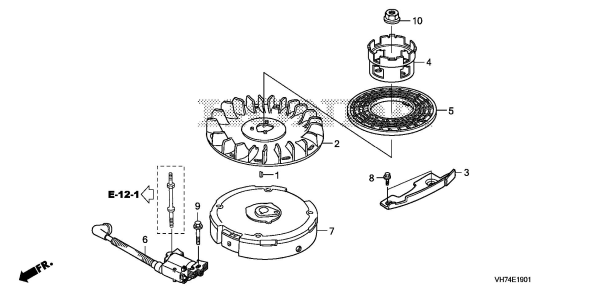

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Key, Special Woodruff (25X18) HON-13331-Z8B-900
...
1
Key, Special Woodruff (25X18) HON-13331-357-000
...
2
Fan, Cooling HON-19511-Z0J-900
...
3
Plate, Side HON-19612-Z0L-000
...
4
Pulley, Starter HON-28451-Z0J-900
...
5
Grid, Screen HON-28452-Z0J-900
...
6
Coil Assembly Ignition (Toyo) HON-30500-Z0J-004
...
6
Coil Assembly Ignition (Phelon) HON-30500-Z8B-912
...
7
Flywheel HON-31110-Z0J-014
...
8
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
9
Bolt, Flange (6X23) (Ct200) HON-90018-ZE1-000
...
10
Nut, Special (14Mm) HON-90201-Z0T-800

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
3
Plate, Fr. Adjuster HON-42951-VE2-000
...
4
Grip, Adjuster *Nh105* (Mat Black) HON-42952-VG3-000ZA
...
5

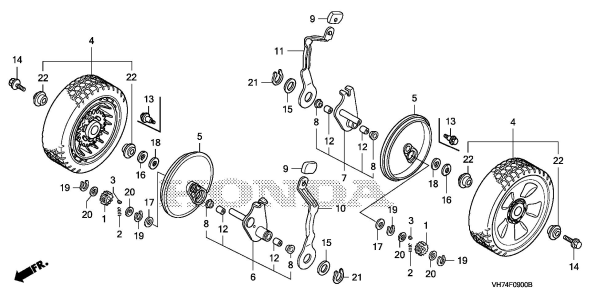

Wheel, Fr. *Nh164* (Grip Gray) HON-44710-VH7-000ZA
...
5
Wheel, Fr. *Nh164* (Grip Gray) HON-44710-VH7-010ZA
...
7
Nut, Self-Lock (8Mm) (Clinch) HON-90115-659-003
...
8
Washer, Wheel HON-90455-VA2-000
...
9
Collar, Fr. Arm HON-91561-VH7-000
...
10
Washer, Plain (8Mm) HON-94103-08000
...
11
Bolt, Flange (8X50) HON-95801-08050-00
...
12
Bearing, Radial Ball HON-91051-VG3-000
...
12
Bearing, Wheel HON-91056-VL0-B00
...
13
Arm, R. Fr. Adjuster HON-42910-VH7-010
...
14
Arm, L. Fr. Adjuster HON-42920-VH7-010
...
15
Bolt, Fr. Wheel Shaft HON-90101-VG4-D00

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Fabric, Grass Bag HON-81320-VH7-D00
...
3
Frame, Bag HON-81330-VH7-D01

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1

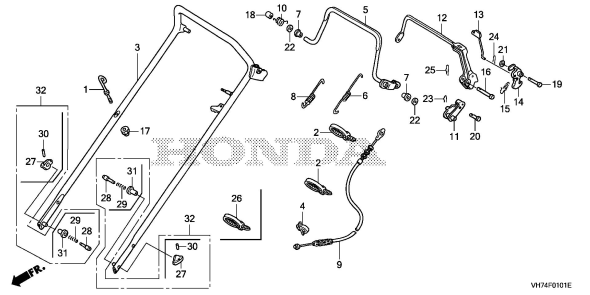

Guide, Rope HON-28475-VE1-R00
...
2
Tie, Cable (157.5Mm) HON-32901-VB5-A00
...
3
Pipe, Handle *Nh105* (Mat Black) HON-53110-VH7-E00ZA
...
5
Lever, Clutch HON-54410-VE1-R00
...
6
Spring, Clutch HON-54411-VB3-800
...
7
Bush, Clutch Lever HON-54412-952-770
...
8
Spring, Clutch Lever Return HON-54414-VA3-P00
...
9
Cable, Roto-Stop HON-54530-VH7-000
...
10
Spring, R. Stop Return HON-75118-VA3-J00
...
11
Arm, Roto-Stop Cable HON-75128-VE1-R00
...
12
Lever, Roto-Stop (For U.S.A.)(Coo) HON-75161-VE0-305
...
13
Rod, Ratchet Push HON-75165-VE0-L00
...
14
Lever, Lock HON-75166-VE1-R00
...
15
Spring, Ratchet Return HON-75168-VA4-000
...
16
Pin, Clutch Lever HON-90106-VA4-800
...
17
Nut, Nylon Lock (6Mm) HON-90303-VG3-000
...
18
Collar (8X11X13.5) HON-90552-VA3-J00
...
19
Pin, Lock Lever Hinge (6X30) HON-90753-VA3-J00
...
20
Pin, Cable Joint HON-90754-VA9-P40
...
21
Washer, Plain (6Mm) HON-94101-06800
...
22
Washer, Plain (8Mm) HON-94101-08000
...
23
Pin, Split (1.6X12) HON-94201-16120
...
24
Pin, Lock (6Mm) HON-94251-06000
...
25
Pin, Lock (8Mm) HON-94251-08000
...
26
Tie, Cable (157.5Mm) HON-32901-VB5-A00
...
27
Grip, Handle Joint *Nh164* (Grip Gray) HON-53125-VL0-B00ZA
...
28
Pin (8Mm) HON-53158-VL0-B01
...
29
Spring, Handle Adjusting HON-53367-VL0-B00
...
30
Pin, Coiled (2X12) HON-90751-VL0-B00
...
31
Collar, Handle Height Adjusting HON-91551-VL0-B00
...
32
Adjuster Kit, Handle Height *Nh164* (Grip Gray) HON-06530-VL0-315ZA

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...

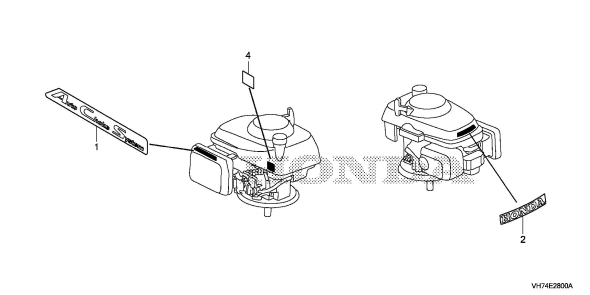

2
Mark, Honda (Type1) HON-87531-Z0Y-M11ZA
...
4
Mark, Fuel Petcock Caution HON-87524-Z8B-000

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
2
Mark, Honda (Type1) HON-87531-Z0Y-M11ZA

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Caution C, Housing HON-87104-VA2-000
...
2
Label, Warning (English) HON-87114-VE2-010
...
2
Label, Warning (English) HON-87114-VH7-900
...
3
Mark, Cruise Control HON-87127-VH7-000
...
4
Mark, Recoil Cover HON-87169-VH7-B01
...
5
Mark, Clutch Indication (English) HON-87512-VE1-E00
...
7
Mark, Honda HON-87531-VH7-000
...
8
Mark, Throttle Indication (English) HON-87532-VE2-J02
...
9
Label, Heat Warning HON-87539-VE2-000
...
11
Mark, Blade Control (English) HON-87588-VE1-G00
...
12
Mark, Oil Caution HON-87594-VG3-010
...
13
Mark, Sales Point (Hrx) HON-87602-VH7-000
...
14
Mark, Control HON-87661-VH7-000
...
15
Mark, Clip Director HON-87665-VH7-000
...
19
Mark, Oil Recommended HON-87603-VB5-000

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...

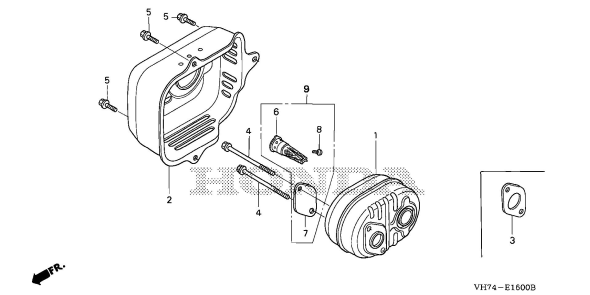

1

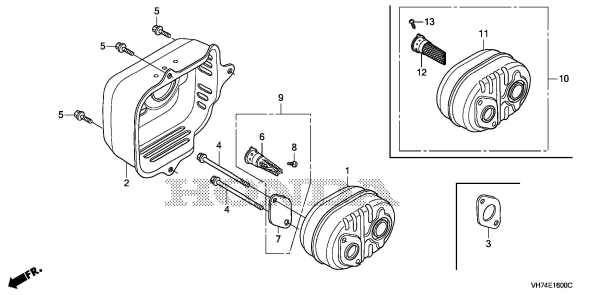

Muffler HON-18310-Z0Y-000
...
1
Muffler HON-18310-Z0Y-010
...
2
Protector, Muffler HON-18321-Z0L-J01
...
3
Gasket, Muffler HON-18381-ZL8-305
...
4
Bolt, Flange (6X79) (Ct200) HON-90004-ZL8-000
...
5
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
6
Arrester, Spark HON-18350-ZL8-000
...
7
Plate, Arrester Number HON-18356-ZL8-000
...
8
Screw, Tapping (4X6) HON-90055-ZE1-000
...
9
Arrester Kit, Spark HON-06180-Z0J-000

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Muffler HON-18310-Z0Y-000
...
1
Muffler HON-18310-Z0Y-010
...
2
Protector, Muffler HON-18321-Z0L-J01
...
3
Gasket, Muffler HON-18381-ZL8-305
...
4
Bolt, Flange (6X79) (Ct200) HON-90004-ZL8-000
...
5
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
6
Arrester, Spark HON-18350-ZL8-000
...
7
Plate, Arrester Number HON-18356-ZL8-000
...
8
Screw, Tapping (4X6) HON-90055-ZE1-000
...
9
Arrester Kit, Spark HON-06180-Z0J-000
...
10
Muffler Assembly (Arrester) HON-18300-Z8A-000
...
11
Muffler HON-18310-Z8A-000
...
12
Arrester, Spark HON-18350-Z0Y-000
...
13
Screw, Tapping (4X6) HON-90055-ZE1-000

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1

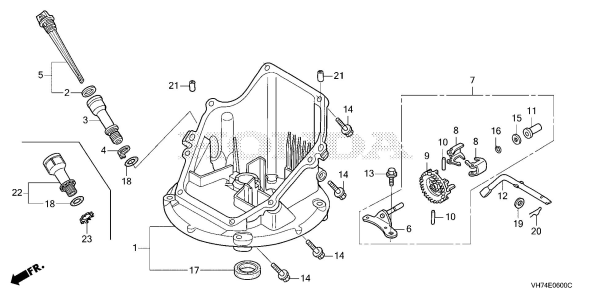

Pan Assembly Oil HON-11300-Z0Y-J00
...
2
Gasket, Oil Filler Cap HON-15625-ZE6-000
...
3
Extension, Oil Filler HON-15631-ZM0-000
...
4
Washer, Extension Lock HON-15639-ZM0-000
...
5
Gauge Assembly Oil Level HON-15650-ZM0-801
...
6
Shaft, Governor Holder HON-16508-ZM0-010
...
7
Governor Assembly HON-16510-ZM0-010
...
8
Weight, Governor HON-16511-ZL8-000
...
9
Holder, Governor Weight HON-16512-ZM0-000
...
10
Pin, Governor Weight HON-16513-ZE1-000
...
11
Slider, Governor HON-16531-ZE1-000
...
12
Shaft, Governor Arm HON-16541-ZM0-000
...
12
Shaft, Governor Arm HON-16541-Z8B-000
...
13
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
14
Bolt, Flange (6X25) (Ct200) HON-90121-952-000
...
15
Washer, Thrust (6Mm) HON-90451-ZE1-000
...
16
Clip, Governor Holder HON-90602-ZE1-000
...
17
Oil Seal (28X41.25X6) HON-91202-ZL8-003
...
18
O-Ring (14.8X2.4) (Arai) HON-91303-KF0-003
...
19
Washer, Plain (6Mm) HON-94101-06800
...
20
Pin, Lock (8Mm) HON-94251-08000
...
21
Pin, Dowel (8X20) HON-94301-08200

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Pan Assembly Oil HON-11300-Z0Y-J00
...
2
Gasket, Oil Filler Cap HON-15625-ZE6-000
...
3
Extension, Oil Filler HON-15631-ZM0-000
...
4
Washer, Extension Lock HON-15639-ZM0-000
...
5
Gauge Assembly Oil Level HON-15650-ZM0-801
...
6
Shaft, Governor Holder HON-16508-ZM0-010
...
7
Governor Assembly HON-16510-ZM0-010
...
7
Governor Assembly HON-16510-Z8B-000
...
8
Weight, Governor HON-16511-ZL8-000
...
9
Holder, Governor Weight HON-16512-ZM0-000
...
10
Pin, Governor Weight HON-16513-ZE1-000
...
11
Slider, Governor HON-16531-ZE1-000
...
12
Shaft, Governor Arm HON-16541-ZM0-000
...
12
Shaft, Governor Arm HON-16541-Z8B-000
...
13
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
14
Bolt, Flange (6X25) (Ct200) HON-90121-952-000
...
15
Washer, Thrust (6Mm) HON-90451-ZE1-000
...
16
Clip, Governor Holder HON-90602-ZE1-000
...
17
Oil Seal (28X41.25X6) HON-91202-ZL8-003
...
18
O-Ring (14.8X2.4) (Arai) HON-91303-KF0-003
...
19
Washer, Plain (6Mm) HON-94101-06800
...
20
Pin, Lock (8Mm) HON-94251-08000
...
21
Pin, Dowel (8X20) HON-94301-08200
...
21
Pin, Dowel (8X20) HON-90701-Z8B-000

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Ring Set, Piston (Std) (Teikoku) HON-13010-Z0Y-014
...
2
Piston HON-13101-Z8C-900
...
3
Pin, Piston HON-13111-Z0Y-000
...
4
Rod Assembly Connecting HON-13200-Z0Y-010
...
5
Bolt, Connecting Rod HON-90006-Z8B-000
...
6
Clip, Piston Pin (13Mm) HON-90551-ZE0-000

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Ring Set, Piston (Std) (Teikoku) HON-13010-Z0Y-014
...
2
Piston HON-13101-Z8C-900
...
3
Pin, Piston HON-13111-Z0Y-000
...
3
Pin, Piston HON-13111-Z8D-000
...
4
Rod Assembly Connecting HON-13200-Z0Y-010
...
5
Bolt, Connecting Rod HON-90001-ZE1-000
...
5
Bolt, Connecting Rod HON-90006-Z8B-000
...
6
Clip, Piston Pin (13Mm) HON-90551-ZE0-000

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Gear, Pinion (13T) HON-42661-VH7-000
...
2
Spring, Ratchet Return HON-42668-VE2-800
...
3
Key, Ratchet HON-42672-VE2-800
...
4
Wheel, Rr. *Nh164* (Grip Gray) HON-42710-VH7-010ZA
...
5
Cover HON-42866-VH7-000
...
6
Arm, R. Rr. Adjusting HON-42930-VH7-010
...
7
Arm, L. Rr. Adjusting HON-42940-VH7-010
...
8
Dust Seal (12.7Mm) HON-42944-VE2-801
...
9
Grip, Adjuster *Nh105* (Mat Black) HON-42952-VG3-000ZA
...
10
Plate, R. Rr. Adjusting HON-42961-VH7-000
...
11
Plate, L. Rr. Adjusting HON-42966-VH7-000
...
12
Bush, Driveshaft HON-44327-VE2-801
...
14
Bolt, Wheel HON-90110-VA4-000
...
15
Washer, Plain (22Mm) HON-90403-952-770
...
16
Washer, Wheel HON-90455-VA2-000
...
17
Washer, Thrust (13Mm) HON-90502-VE2-800
...
18
Washer, Thrust (13X27X1) HON-90505-VG3-000
...
19
Circlip (Outer) (12.7Mm) HON-90651-VE2-800
...
20
Collar, Pinion Gear HON-91559-VE2-800
...
21
Circlip (Outer) (22Mm) HON-94511-22000
...
22
Bearing, Radial Ball HON-91051-VG3-000
...
22
Bearing, Wheel HON-91056-VL0-B00

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...

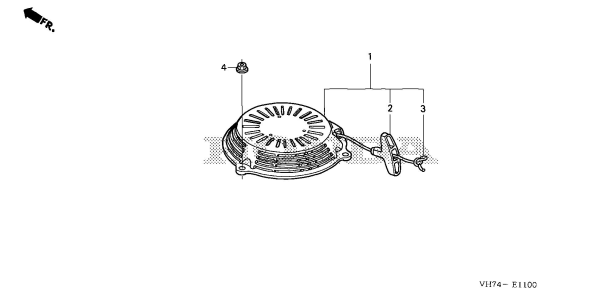

1
Starter Assembly Recoil *R280* (Power Red) HON-28400-Z0Y-023ZA
...
1
Starter Assembly Recoil *R280* (Long Rope) (Power Red) HON-28400-Z8B-003ZD
...
1
Starter Assembly Recoil *R280* (Long Rope) (Power Red) HON-28400-Z8B-901ZB
...
2
Grip, Starter HON-28461-ZL8-003
...
3
Rope, Recoil Starter (Long Type) HON-28462-ZL8-631
...
3
Rope, Recoil Starter (Long Type) HON-28462-ZL8-V71
...
4
Nut, Flange (6Mm) HON-90201-ZM0-000

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Pulley, Driven HON-22420-VH7-A00
...
2
V-Belt (3L-36.8) HON-22432-VH7-A00
...
3
Blade, Rotary HON-72511-VH7-000
...
4
Blade, Rotary (Upper) HON-72531-VH7-000
...
5
Holder Assembly Blade HON-72600-VE1-G00
...
6
Plate Assembly Ball Control HON-75110-VE1-R00
...
7
Plate, Ball Control HON-75111-VE1-G01
...
8
Ball, Steel HON-75117-VE1-G00
...
9
Plate, Spring Hook HON-75127-VE1-G00
...
10
Spring, Ball Plate HON-75132-VE1-G00
...
11
Disk, Drive HON-75141-VE1-R00
...
12
Hook, Return Spring HON-75143-VE1-G00
...
13
Disk, Driven HON-75150-VE1-R00
...
14
Pulley, Drive HON-75162-VE1-G00
...
15
Spring Assembly Clutch Return HON-75185-VE1-G00
...
16
Spring, Clutch HON-75183-VE1-G01
...
17
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
18
Bolt, Flange (10X24) HON-90101-VE1-G00
...
19
Bolt, Hex. (10X20) HON-90105-960-710
...
20
Washer, Spring (10Mm) HON-90502-VG3-000
...
21
Washer (10X24) HON-90504-VH7-A00
...
22
Bearing, Radial Ball (6006) (Sst) HON-91051-VE1-G00
...
23
Bearing, Radial Ball (6204) HON-91102-VA4-013
...
24
Nut, Flange (10Mm) HON-94050-10080
...
25
Key, Woodruff (16X15) HON-94401-16150

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Plate, Fr. Base HON-76256-VH7-000
...
2
Plate, Rr. Base HON-76257-VH7-000
...
3
Shutter HON-76262-VH7-000
...
3
Shutter HON-76262-VH7-010
...
4
Holder, Fr. Shutter HON-76263-VH7-000
...
5
Holder, Rr. Shutter HON-76264-VH7-000
...
6
Arm, Shutter HON-76265-VH7-010
...
7
Lever, Shutter *G186R* (Granny Apple Green) HON-76270-VH7-000ZA
...
8
Arm, Lever HON-76275-VH7-010
...
9
Ramp, Scroll HON-76286-VH7-010
...
10
Bolt, Special (6X19) HON-90101-VH7-000
...
11
Nut, Nylon Lock (6Mm) HON-90303-VG3-000
...
12
Washer, Thrust (13Mm) HON-90502-VE2-800
...
13
Washer, Arm HON-90502-VH7-000
...
14
Washer (6.5X18) HON-90503-VH7-000
...
15
Circlip (Outer) (12.7Mm) HON-90651-VE2-800
...
16
Collar, Arm HON-91557-VH7-000
...
17
Screw, Tapping (5X16) HON-93913-25420
...
18
Bolt, Flange (6X8) HON-95701-06008-00
...
19
Bolt, Flange (8X10) HON-95701-08010-00
...
20
Roller (4X19.8) HON-96220-40198

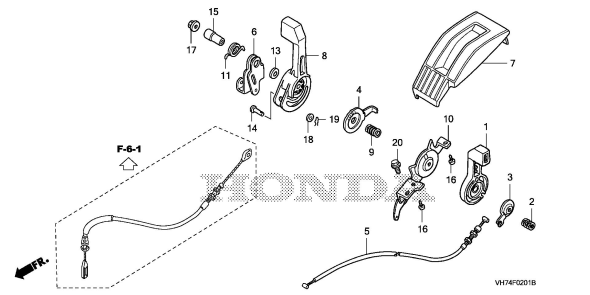

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Lever, Throttle HON-17851-VA3-D01
...
2
Spring, Throttle Lever HON-17858-VA4-000
...
3
Seat, Spring HON-17859-VA3-800
...
4
Seat, Spring HON-17859-VE1-R20
...
5
Cable, Throttle HON-17910-VH7-000
...
6
Arm, Change Lever HON-24412-VE0-J50
...
7
Cover, Control HON-54231-VA3-800
...
8
Lever, Change HON-54311-VE0-J50
...
9
Spring, Change Lever HON-54314-VA3-P00
...
10
Stopper, Lever HON-54315-VE1-R00
...
11
Spring, Arm Return HON-54318-VA3-P00
...
13
Washer (10.5X30) HON-90501-VE1-R00
...
14
Pin (6X22) HON-90752-VA3-P01
...
15
Collar, Change Lever HON-91551-VE1-R20
...
16
Screw, Tapping (5X12) HON-93901-35210
...
17
Nut, Flange (6Mm) HON-94050-06080
...
18
Washer, Plain (6Mm) HON-94101-06800
...
19
Pin, Lock (6Mm) HON-94251-06000
...
20
Bolt, Flange (6X10) HON-95701-06010-00

Honda HRX217K2 HXAA - MAGA 1500001-2019999

...
...
1
Transmission Assembly HON-20001-VE5-A01
...
3
Cap, Oil HON-21230-VE5-A00
...
4
Gasket, Oil Cap HON-21235-VE5-A00
...
5
Plate, Tension Spring HON-21557-VE2-800
...
7
Spring, Control Arm Return HON-24134-VE5-A00
...
8
Spring, Wheel Tension HON-24468-VE1-T00
...
11
Bolt, Flange (5X12) HON-90003-892-000
...
12
Bolt, Flange (6X16) (Ct200) HON-90029-888-000
...
15
Oil Seal (13X22X5) (Arai) HON-91204-KE8-003
...
19
Pin, Spring (4X25) HON-94305-40252
...
19
Pin, Spring (4X22) HON-94305-40222
...
20
Arm, Control HON-22533-VH7-A00
...
23
Cable, Change HON-54630-VH7-A04
...
24
Holder, Wire HON-51125-VE1-R21
...
25
Transmission Assembly HON-20001-VE5-A01
...
26
Guard, Grass HON-21912-VE5-A00
...
27
Pin, Spring (3X20) HON-90752-VE5-A00
...
...
...
Processing
