Honda HRR216K8 PKAA - MZCG 8400001-8669999 Lawn Mower

Model: HRR216K8 PKAA - MZCG 8400001-8669999

Save
 Part Not Listed?Part Not Listed?
product name

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Tube, Breather HON-15721-ZM0-000
...
2
Element, Air Cleaner (Toyo Roki) HON-17211-ZL8-023
...
2
Element, Air Cleaner (Wix Filters) HON-17211-Z8B-901
...
3
Case Assembly Air Cleaner HON-17220-ZM0-030
...
3
Case Assembly Air Cleaner HON-17220-Z8B-010
...
4
Gasket, Air Cleaner HON-17228-Z8B-000
...
4
Gasket, Air Cleaner HON-17228-Z8B-900
...
5
Cover, Air Cleaner HON-17231-Z0L-050
...
6
Bolt, Flange (6X85) (Ct200) HON-90003-ZM0-010
...
6
Bolt, Special (6Mm) HON-90003-Z8B-900

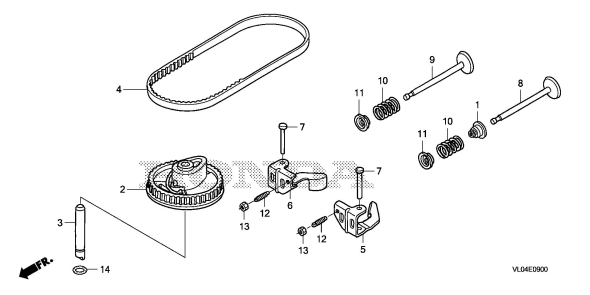

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Seal, Valve Stem HON-12209-ZM0-003
...
1
Seal, Valve Stem HON-12209-Z8B-003
...
2
Pulley, Camshaft HON-14320-ZL8-010
...
2
Pulley, Camshaft HON-14320-Z8D-000
...
3
Shaft, Cam Pulley HON-14324-Z8B-000
...
4
Belt, Timing (84Hu6 G-200) HON-14400-Z8B-003
...
5
Arm, In. Valve Rocker HON-14431-Z0J-000
...
6
Arm, Ex. Valve Rocker HON-14441-Z0J-000
...
7
Shaft, Rocker Arm HON-14461-ZL8-000
...
8
Valve, In. (Technostar) HON-14711-ZL8-000
...
9
Valve, Ex. (L8E) HON-14721-ZL8-000
...
9
Valve, Ex. (C8E) HON-14721-Z8B-000
...
10
Spring, Valve HON-14751-ZL8-000
...
11
Retainer, Valve Spring HON-14771-Z0J-000
...
12
Screw, Tappet Adjusting HON-90012-333-000
...
13
Nut, Tappet Adjusting HON-90206-001-000
...
14
O-Ring (6.8X1.9) (Arai) HON-91301-ZM0-V31

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Gasket Set HON-16010-883-015
...
2
Float Set HON-16013-ZL1-003
...
6
Screw Set HON-16028-ZK7-S91
...
7
(Carburetor No.) HON-16029-ZG0-901
...
8
Carburetor Assembly (Bb75E C) HON-16100-Z0L-876
...
8
Carburetor Assembly (Bb75G A) HON-16100-Z8B-871
...
10
Valve, Float HON-16155-ZM0-013
...
11
(Carburetor No.) HON-16166-Z2C-003
...
13
Gasket, Insulator HON-16212-ZL8-000
...
14
Gasket, Carburetor (Choke Side) HON-16228-Z0L-840
...
16
Guide, Air HON-19651-Z0L-000
...
17
Screw, Pan (5X6) HON-93500-05006-0H
...
18
(Carburetor No.) HON-99101-124-0620
...
18
(Carburetor No.) HON-99101-124-0680
...
18
(Carburetor No.) HON-99101-124-0600
...
18
(Carburetor No.) HON-99101-124-0650
...
19
(Carburetor No.) HON-16015-Z0L-881
...
20
(Carburetor No.) HON-16148-Z1L-851
...
21
Control Assembly Choke HON-16600-Z8D-840
...
24
Thermo Wax Assembly HON-16620-Z8D-842

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Arm, Governor HON-16551-ZM0-010
...
2
Rod, Governor HON-16555-Z0L-801
...
3
Spring, Governor (L=69Mm) HON-16561-Z0L-000
...
4
Spring, Throttle Return HON-16562-ZM0-000
...
14
Bolt, Governor Arm HON-90015-ZE5-010
...
19
Nut, Flange (6Mm) HON-94050-06000
...
21
Spacer, Carburetor HON-16221-Z0L-900

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Crankshaft HON-06131-Z8B-W00
...
2
Washer, Thrust HON-90402-ZL8-000
...
2
Washer, Thrust HON-90402-Z0Y-000
...
3
Crankshaft HON-13311-Z8B-900
...
4
Pulley, Timing Belt Drive HON-13621-Z8B-900

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
2
Cover, Belt HON-63610-VG4-020
...
3
Housing, Cutter *Nhb37M* (Rose Champagne Light HON-76111-VL0-P00ZA
...
4
Shield, Rr. HON-76118-VL0-P00
...
5
Scroll, Fr. HON-76125-VG3-010
...
6
Scroll, Rr. HON-76131-VG4-020
...
7
Shaft, Rr. Shield (405Mm) HON-76138-VG3-010
...
8
Plate, Scroll HON-76142-VL0-P00
...
9
Plate, Guide HON-76143-VG4-010
...
10
Cover, Roto-Stop HON-76147-VG4-000
...
12
Grommet, Plug HON-76232-VG3-000
...
13
Stuffing *Nh105* (Mat Black) HON-76266-VG4-020ZA
...
14
Guard, Discharge *Nh105* (Mat Black) HON-76281-VL0-P01ZA
...
15
Shaft, Discharge Guard HON-76282-VL0-P00
...
16
Spring, R. Guard Return HON-76284-VL0-N00
...
17
Spring, L. Guard Return HON-76294-VL0-N00
...
19
Bolt, Flange (5/16-24X1") HON-90104-VG3-000
...
21
Nut, Push (7.94Mm) HON-90301-VG4-000
...
22
Nut, Nylon Lock (6Mm) HON-90303-VG3-000
...
23
Washer, Plain (5/16) HON-90506-VG3-000
...
24
Nut, Flange (8Mm) HON-94050-08080
...
25
Bolt, Flange (6X10) HON-95701-06010-00
...
26
Nut, Push (3.96Mm) (Flat Round Type) HON-90301-VG3-020
...
28
Bolt, Pan (6X12) HON-90104-VL0-P00
...
29
Stopper, Stuffing HON-76267-VL0-P00
...
30
Plate, Grass Bag HON-81352-VL0-P00
...
31
Bolt, Grass Bag Plate HON-90103-VL0-P00
...
32
Nut, Flange (6Mm) HON-94050-06000

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
2
Cover, Belt HON-63610-VG4-020
...
3
Housing, Cutter *Nhb37M* (Rose Champagne Light HON-76111-VL0-P00ZA
...
4
Shield, Rr. HON-76118-VL0-P00
...
5
Scroll, Fr. HON-76125-VG3-010
...
6
Scroll, Rr. HON-76131-VG4-020
...
7
Shaft, Rr. Shield (405Mm) HON-76138-VG3-010
...
7
Shaft, Rr. Shield (405Mm) HON-76138-VG3-020
...
8
Plate, Scroll HON-76142-VL0-P00
...
9
Plate, Guide HON-76143-VG4-010
...
10
Cover, Roto-Stop HON-76147-VG4-000
...
12
Grommet, Plug HON-76232-VG3-000
...
13
Stuffing *Nh105* (Mat Black) HON-76266-VG4-020ZA
...
14
Guard, Discharge *Nh105* (Mat Black) HON-76281-VL0-P01ZA
...
15
Shaft, Discharge Guard HON-76282-VL0-P00
...
16
Spring, R. Guard Return HON-76284-VL0-N00
...
17
Spring, L. Guard Return HON-76294-VL0-N00
...
19
Bolt, Flange (5/16-24X1") HON-90104-VG3-000
...
21
Nut, Push (7.94Mm) HON-90301-VG4-000
...
22
Nut, Nylon Lock (6Mm) HON-90303-VG3-000
...
23
Washer, Plain (5/16) HON-90506-VG3-000
...
24
Nut, Flange (8Mm) HON-94050-08080
...
25
Bolt, Flange (6X10) HON-95701-06010-00
...
26
Nut, Push (3.96Mm) (Flat Round Type) HON-90301-VG3-020
...
28
Bolt, Pan (6X12) HON-90104-VL0-P00
...
29
Stopper, Stuffing HON-76267-VL0-P00
...
30
Plate, Grass Bag HON-81352-VL0-P01
...
31
Bolt, Grass Bag Plate HON-90103-VL0-P00
...
32
Nut, Flange (6Mm) HON-94050-06000
...
33
Shield Kit, Rr. HON-06761-VL0-305

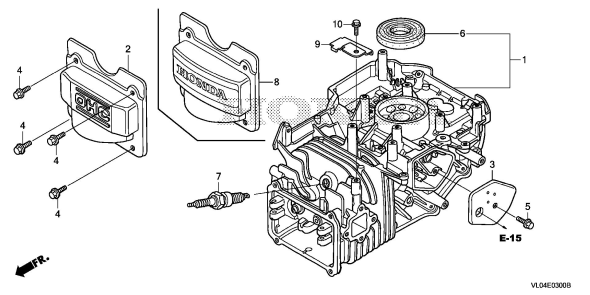

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Cylinder Assembly HON-12000-Z8B-000
...
3
Cover, Breather (Breather Valve Assembly) HON-12355-ZL8-000
...
4
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
5
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
6
Oil Seal (25.4X62X6) HON-91201-ZL8-003
...
7
Spark Plug (Bpr5Es) (Ngk) HON-98079-55846
...
8
Cover, Head HON-12311-Z8B-000
...
9
Bracket, Regulator HON-16384-Z8B-000
...
10
Bolt, Flange (6X14) (Ct200) HON-90014-952-000

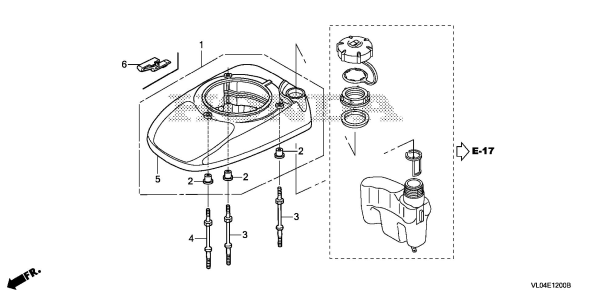

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Cover, Fan *R280* (Power Red) HON-19611-Z0L-850ZF
...
2
Collar, Fan Cover HON-19619-ZL8-300
...
3
Bolt, Stud (Fan Cover) HON-90043-Z8B-000
...
3
Bolt, Stud (Fan Cover) HON-90043-Z8D-010
...
4
Bolt, Stud (Fan Cover) HON-90043-Z8B-000
...
4
Bolt, Stud (Fan Cover) HON-90043-Z8D-010
...
5
Cover, Fan *R280* (Power Red) HON-19611-Z0L-850ZF

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Key, Special Woodruff (25X18) HON-13331-357-000
...
1
Key, Special Woodruff (25X18) HON-13331-Z8B-900
...
3
Coil Assembly Ignition (Use For F/W Of Tec) (Tec) HON-30500-ZL8-014
...
4
Flywheel Assembly (Tec) (Use For Ign. Coil Of Tec) HON-31105-ZM0-000
...
5
Wire, Stop Switch HON-32195-Z0L-000
...
6
Switch Assembly Engine Stop (N.C) HON-35120-ZM0-003
...
7
Holder, Wire (Fastex) HON-51125-Z0L-003
...
7
Clip A, Cable (3.8Mm Black) (Nifco) HON-90681-959-003
...
8
Brake Assembly HON-75100-Z0L-901
...
9
Spring, Brake Lever HON-75113-ZM0-000
...
11
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
12
Bolt, Flange (6X23) (Ct200) HON-90018-ZE1-000
...
13
Bolt, Flange (6X23) (Ct200) HON-90018-ZE1-000
...
14
Nut, Special (14Mm) HON-90201-Z0T-800
...
15
Screw-Washer (4X12) HON-93892-04012-00
...
16
Washer, Plain (4Mm) HON-94103-04000
...
17
Brake Assembly HON-75100-Z0L-901

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Key, Special Woodruff (25X18) HON-13331-357-000
...
3
Coil Assembly Ignition (Use For F/W Of Tec) (Tec) HON-30500-ZL8-014
...
4
Flywheel Assembly (Tec) (Use For Ign. Coil Of Tec) HON-31105-ZM0-000
...
5
Wire, Stop Switch HON-32195-Z0L-000
...
6
Switch Assembly Engine Stop (N.C) HON-35120-ZM0-003
...
7
Holder, Wire (Fastex) HON-51125-Z0L-003
...
7
Clip A, Cable (3.8Mm Black) (Nifco) HON-90681-959-003
...
8
Brake Sub-Assembly HON-75100-Z0L-901
...
9
Spring, Brake Lever HON-75113-ZM0-000
...
11
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
12
Bolt, Flange (6X23) (Ct200) HON-90018-ZE1-000
...
13
Bolt, Flange (6X23) (Ct200) HON-90018-ZE1-000
...
14
Nut, Special (14Mm) HON-90201-Z0T-800
...
15
Screw-Washer (4X12) HON-93892-04012-00
...
16
Washer, Plain (4Mm) HON-94103-04000
...
17
Brake Assembly HON-75100-Z0L-901

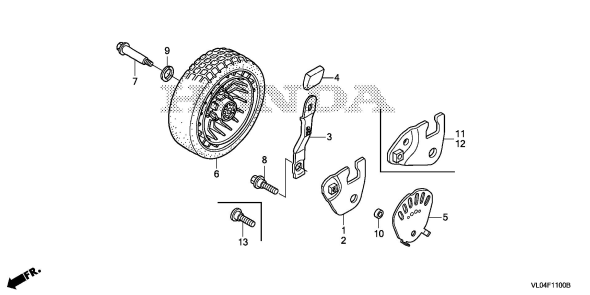

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
3
Plate, Fr. Adjuster HON-42951-VG3-000
...
4
Grip, Adjuster *Nh164* (Grip Gray) HON-42952-VG3-000ZD
...
5
Panel, Fr. Adjuster HON-42981-VL0-U00
...
6
Wheel, Fr. *Nh164* (Grip Gray) HON-44710-VL0-L02ZB
...
7
Bolt, Fr. Wheel Shaft HON-90101-VG3-000
...
9
Washer, Wheel HON-90455-VA2-000
...
10
Collar, Fr. Adjusting HON-91551-VG3-000
...
11
Arm, R. Fr. Adjuster HON-42911-VL0-900
...
12
Arm, L. Fr. Adjusting HON-42921-VL0-900
...
13
Bolt, Adjuster Arm HON-90103-VL0-900

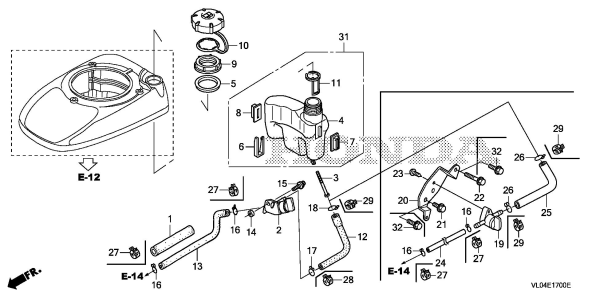

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
3
Filter, Fuel HON-16952-Z8B-000
...
4
Tank, Fuel HON-17511-Z8B-801
...
5
Seal, Fuel Filler Neck HON-17514-Z0L-000
...
6
Clip, Tank Mounting HON-17516-Z0L-000
...
7
Rubber A, Tank Mounting HON-17532-Z8B-800
...
8
Rubber B, Tank Mounting HON-17533-Z8B-800
...
9
Nut, Tank Mounting HON-17534-Z0L-000
...
10
Cap Assembly Fuel Tank HON-17620-Z8B-800
...
11
Gauge, Fuel Level HON-17636-Z0L-010
...
16
Clip, Tube (C9) HON-95002-50000
...
19
Petcock Assembly HON-16950-Z0Y-003
...
20
Stay, Petcock HON-16961-Z0L-900
...
21
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
22
Bolt, Flange (6X28) (Ct200) HON-90015-883-000
...
23
Screw, Tapping (5X12) (Po) HON-93913-25220
...
24
Tube, Fuel (4.5X110) HON-16840-Z8B-900
...
25
Tube, Fuel (7.3X160) HON-17700-Z8B-900
...
26
Clip, Tube (B12.5) HON-95002-02130
...
31
Tank Kit, Fuel HON-06175-Z8B-800

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Fabric, Grass Bag HON-81320-VL0-P00
...
2
Frame, Bag HON-81330-VL0-P00

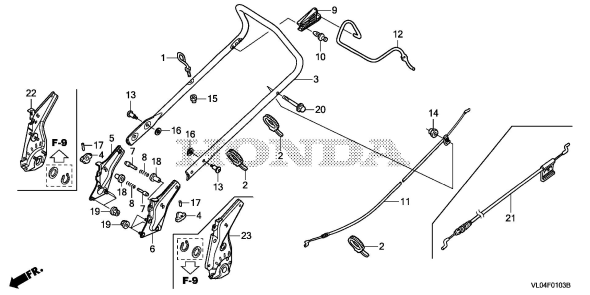

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Guide, Rope HON-28475-VE1-R00
...
2
Tie, Cable (157.5Mm) HON-32901-VB5-A00
...
3
Pipe, Handle *Nh105* (Mat Black) HON-53111-VL0-F00ZA
...
4
Grip, Handle Joint *Nh164* (Grip Gray) HON-53125-VL0-B00ZA
...
5
Stay, R. Handle HON-53130-VL0-P01
...
6
Stay, L. Handle HON-53135-VL0-P00
...
7
Pin (8Mm) HON-53158-VL0-B01
...
8
Spring, Handle Adjusting HON-53367-VL0-B00
...
9
Stopper, Lever HON-54315-VH7-K00
...
10
Pin, Lock HON-54316-VH7-K00
...
11
Cable, Brake HON-54530-VH7-K00
...
12
Lever, Brake *Nh105* (Mat Black) HON-75191-VH7-K00ZA
...
13
Bolt, Special (8X32) HON-90102-VL0-P00
...
14
Nut, Nylon Lock (6Mm) HON-90303-V10-000
...
15
Nut, Nylon Lock (6Mm) HON-90303-VG3-000
...
16
Washer (25Mm) HON-90503-VL0-B00
...
17
Pin, Coiled (2X12) HON-90751-VL0-B00
...
18
Collar, Handle Height Adjusting HON-91551-VL0-B00
...
19
Nut, Flange (8Mm) HON-94050-08080
...
20
Bolt, Flange (6X45) HON-95701-06045-07

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Caution C, Housing HON-87104-VA2-000
...
2
Label, Warning (English) HON-87114-VH7-900
...
4
Mark, Recoil Cover HON-87169-VL0-P00
...
6
Mark, Honda HON-87531-VL0-B00
...
8
Label, Heat Warning HON-87539-VE2-000
...
9
Mark, Blade Control (English) HON-87588-VG4-L00
...
12
Mark, Oil Caution HON-87594-VG3-010
...
13
Mark, Sales Point (Quadra Cut System) HON-87602-VL0-P00
...
14
Mark, Oil Recommended HON-87603-VB5-000

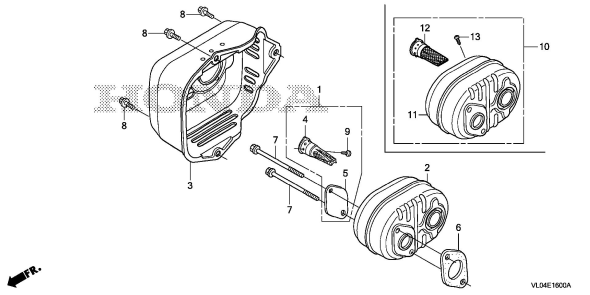

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Arrester Kit, Spark HON-06180-Z0J-000
...
2
Muffler HON-18310-Z0Y-000
...
2
Muffler HON-18310-Z0Y-010
...
3
Protector, Muffler HON-18321-Z0L-J01
...
4
Arrester, Spark HON-18350-ZL8-000
...
5
Plate, Arrester Number HON-18356-ZL8-000
...
6
Gasket, Muffler HON-18381-ZL8-305
...
7
Bolt, Flange (6X79) (Ct200) HON-90004-ZL8-000
...
8
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
9
Screw, Tapping (4X6) HON-90055-ZE1-000
...
10
Muffler Assembly (Arrester) HON-18300-Z8A-000
...
11
Muffler HON-18310-Z8A-000
...
12
Arrester, Spark HON-18350-Z0Y-000
...
13
Screw, Tapping (4X6) HON-90055-ZE1-000

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Pan Assembly Oil HON-11300-Z0L-K00
...
2
Gasket, Oil Filler Cap HON-15625-ZE6-000
...
3
Extension, Oil Filler HON-15631-ZM0-000
...
4
Washer, Extension Lock HON-15639-ZM0-000
...
5
Gauge Assembly Oil Level HON-15650-ZM0-801
...
6
Shaft, Governor Holder HON-16508-ZM0-010
...
7
Governor Assembly HON-16510-Z8B-000
...
8
Weight, Governor HON-16511-ZL8-000
...
9
Holder, Governor Weight HON-16512-ZM0-000
...
10
Pin, Governor Weight HON-16513-ZE1-000
...
11
Slider, Governor HON-16531-ZE1-000
...
12
Shaft, Governor Arm HON-16541-Z8B-000
...
13
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
14
Bolt, Flange (6X25) (Ct200) HON-90121-952-000
...
15
Washer, Thrust (6Mm) HON-90451-ZE1-000
...
16
Clip, Governor Holder HON-90602-ZE1-000
...
17
Oil Seal (28X41.25X6) HON-91202-ZL8-003
...
18
O-Ring (14.8X2.4) (Arai) HON-91303-KF0-003
...
19
Washer, Plain (6Mm) HON-94101-06800
...
20
Pin, Lock (8Mm) HON-94251-08000
...
21
Pin, Dowel (8X20) HON-90701-Z8B-000

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Ring Set, Piston (Std) (Teikoku) HON-13010-Z0L-014
...
2
Piston HON-13101-Z8A-900
...
3
Pin, Piston HON-13111-ZE0-000
...
3
Pin, Piston HON-13111-Z8B-000
...
4
Rod Assembly Connecting HON-13200-ZDS-000
...
4
Rod Assembly Connecting HON-13200-Z0J-000
...
5
Bolt, Connecting Rod HON-90006-Z8B-000
...
6
Clip, Piston Pin (13Mm) HON-90551-ZE0-000

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Shaft, Wheel HON-23371-VG4-000
...
5
(Rr.) HON-44710-VE2-M02ZD
...
8
Arm, R. Rr. Adjuster HON-42931-VG3-010
...
10
Arm, L. Rr. Adjuster HON-42941-VG3-010
...
12
Grip, Adjuster *Nh164* (Grip Gray) HON-42952-VG3-000ZD
...
13
Plate, Rr. Adjuster HON-42961-VG3-010
...
16
Bolt, Rr. Wheel Shaft HON-90102-VG3-000
...
17
Washer, Wheel HON-90455-VA2-000
...
19
Washer, Flat (26X44) HON-90503-VG3-000
...
22
Bearing, Wheel HON-91056-VL0-B00
...
23
Collar, Rr. Adjusting HON-91552-VG3-000
...
26
Nut, Flange (8Mm) HON-94050-08080
...
27
Pin, Split (3.0X25) HON-94201-30250
...
27
Pin, Split (3.0X45) HON-94201-30450
...
28
Circlip (Outer) (25Mm) HON-94510-25000
...
29
Panel, R. Rr. Adjusting HON-42990-VL0-900
...
30
Panel, L. Rr. Adjusting HON-42995-VL0-900

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
1
Starter Assembly Recoil *R280* (Long Rope) (Power Red) HON-28400-Z8B-901ZB
...
1
Starter Assembly Recoil *R280* (Long Rope) (Power Red) HON-28400-Z8B-003ZD
...
2
Grip, Starter HON-28461-ZL8-003
...
3
Rope, Recoil Starter (Long Type) HON-28462-ZL8-V71
...
4
Nut, Flange (6Mm) HON-90201-ZM0-000

Honda HRR216K8 PKAA - MZCG 8400001-8669999

...
...
2
Blade, Rotary HON-72511-VE1-020
...
3
Blade, Rotary (Upper) (Pcd=88Mm) HON-72531-VE2-020
...
4
Holder, Blade HON-72610-VG3-030
...
6
Bolt, Hex. (10X25) HON-90105-VA3-J01
...
7
Bolt, Flange (3/8-24X1") HON-90109-VG3-000
...
8
Washer, Spring (10Mm) HON-90502-VG3-000
...
9
Key, Woodruff (3/16X5/8) HON-90751-VG3-000
...
10
Holder Kit, Blade HON-06726-VG3-305
...
...
...
Processing
