product name

Honda HRC216K3 HXPH - MAKA 2000001-9999999 Power Equipment

Model: HRC216K3 HXPH - MAKA 2000001-9999999

Save Part Not Listed?
product name

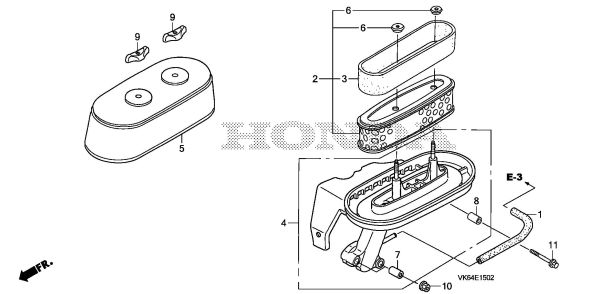

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Tube, Breather HON-15721-ZE7-000
...
2
Element, Air Cleaner HON-17210-Z1V-003
...
3
Filter (Outer) HON-17218-ZE6-305
...
4
Housing, Air Cleaner HON-17220-Z1V-010
...
5
Cover, Air Cleaner HON-17231-Z1V-G01
...
6
Grommet, Air Cleaner HON-17232-891-000
...
7
Collar, Air Cleaner HON-17238-ZE7-710
...
8
Collar B, Air Cleaner HON-17239-ZE6-300
...
9
Nut, Air Cleaner HON-90300-Z1V-000
...
10
Nut, Flange (6Mm) HON-94050-06000
...
11
Bolt, Flange (6X35) HON-95701-06035-00

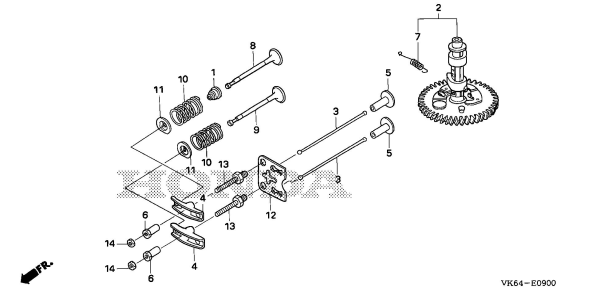

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Seal, Valve Stem HON-12209-ZE6-003
...
2
Camshaft Assy. HON-14100-ZE7-N40
...
3
Rod, Push HON-14410-ZE1-010
...
4
Arm, Valve Rocker HON-14431-ZE1-000
...
4
Arm, Valve Rocker HON-14431-Z1T-000
...
5
Lifter, Valve HON-14441-ZE1-010
...
6
Pivot, Rocker Arm HON-14451-Z7E-000
...
7
Spring, Weight Return HON-14568-ZE1-000
...
8
Valve, In. HON-14711-ZF1-000
...
9
Valve, Ex. HON-14721-ZE7-000
...
10
Spring, Valve HON-14751-ZE1-000
...
11
Retainer, Valve Spring HON-14771-Z1T-000
...
12
Plate, Push Rod Guide HON-14791-ZE1-010
...
13
Bolt, Pivot (8Mm) HON-90012-ZE0-010
...
14
Nut, Pivot Adjusting HON-90206-ZE1-000

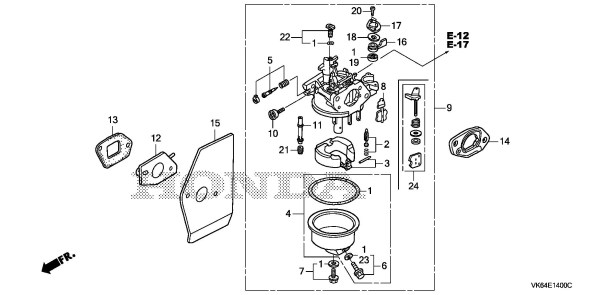

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Gasket Set HON-16010-Z1T-721
...
2
Valve Set, Float (Seat Not Included) HON-16011-ZE0-005
...
3
Float Set HON-16013-Z0S-B01
...
4
Chamber Set, Float HON-16015-Z1T-WA1
...
5
Screw Set HON-16016-ZDF-V01
...
6
Screw Set, Drain HON-16024-Z1T-WA1
...
7
Screw Set HON-16028-Z1T-WA1
...
9
Carburetor Assy. (Bea2T A) HON-16100-Z4P-WC1
...
10
Screw, Throttle Stop HON-16124-ZE0-005
...
11
Nozzle, Main HON-16166-Z4P-WA1
...
12
Insulator, Carburetor HON-16211-ZE7-000
...
13
Gasket, Insulator HON-16212-ZE7-M10
...
13
Gasket, Insulator (Ningbo Sil Gasket) HON-16212-Z1V-701
...
14
Spacer, Carburetor HON-16220-ZE6-010
...
15
Gasket, Carburetor HON-16221-ZE7-M11
...
15
Gasket, Carburetor (Ningbo Sil Gasket) HON-16221-Z1V-701
...
16
Lever, Petcock HON-16953-ZDK-003
...
17
Plate, Lever Setting HON-16954-ZE1-812
...
18
Spring, Petcock Lever HON-16956-ZE1-811
...
19
Gasket, Petcock HON-16957-ZE1-812
...
20
Screw, Pan (3X6) HON-93500-03006-0H
...
21
Jet, Main (#60) HON-99101-ZDK-0600
...
21
Jet, Main (#62) HON-99101-ZDK-0620
...
21
Jet, Main (#65) HON-99101-ZDK-0650
...
22
Jet Set, Pilot (#40) HON-99204-ZE2-0400
...
23
Washer, Plain (6.2X10.7 Drain) HON-16141-Z0S-003
...
24
Choke Set HON-16045-Z1V-WA1

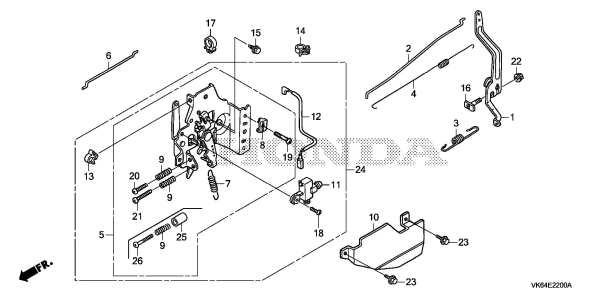

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Arm, Governor HON-16551-ZE7-000
...
2
Rod, Governor HON-16555-ZE7-000
...
3
Spring, Governor HON-16561-ZE7-020
...
4
Spring, Throttle Return HON-16562-ZE6-000
...
5
Control HON-16570-ZE7-W10
...
6
Rod, Choke HON-16573-ZE7-000
...
7
Spring, Lever HON-16576-ZE7-300
...
8
Holder, Cable HON-16576-891-000
...
9
Spring, Control Adjusting HON-16584-883-300
...
10
Protector, Control HON-16585-ZE7-000
...
11
Switch Assy., Engine Stop HON-36100-ZE7-013
...
12
Wire, Stop Switch HON-36101-ZE7-020
...
13
Holder, Stop Switch Wire HON-36103-V42-000
...
14
Clamp, Harness HON-46392-Z1V-003
...
15
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
16
Bolt, Governor Arm HON-90015-ZE5-010
...
17
Clip, Harness HON-90659-Z1V-003
...
18
Screw, Pan (4X8) HON-93500-04008-0A
...
19
Screw, Pan (5X16) HON-93500-05016-0A
...
20
Screw, Pan (5X20) HON-93500-05020-0A
...
22
Nut, Flange (6Mm) HON-94050-06000
...
23
Bolt, Flange (6X10) HON-95701-06010-00
...
24
Control Assy. HON-16500-ZE7-W31
...
25
Collar, Stopper HON-16599-ZG1-M10
...
26
Screw, Recessed (5X28) HON-90016-ZE7-W00

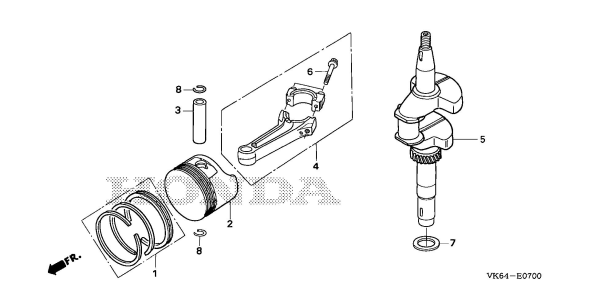

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Ring Set, Piston (Std) (Tpr) HON-13010-Z1V-931
...
1
Ring Set, Piston (Std) (Riken) HON-13010-Z1V-932
...
2
Piston (Std) HON-13101-ZDK-013
...
3
Pin, Piston HON-13111-Z1T-000
...
4
(Ident Mark Z) HON-13200-Z1V-600
...
4
Rod Assy., Connecting HON-13200-Z1V-610
...
5
Crankshaft HON-13310-ZE7-771
...
6
Bolt, Connecting Rod HON-90001-Z1T-000
...
7
Washer, Thrust (25.6Mm) HON-90401-ZE7-W00
...
8
Clip, Piston Pin (18Mm) HON-90551-ZE1-000

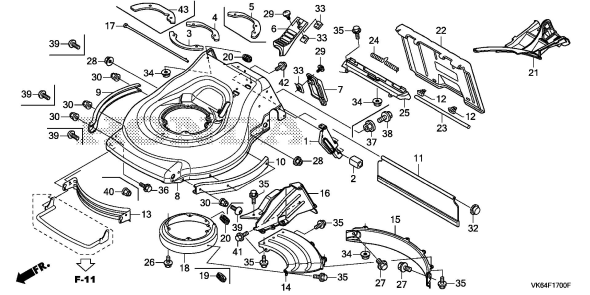

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Guide, Transmission Mount HON-22511-VK6-000
...
2
Slider, Transmission HON-22518-VK6-000
...
3
Spacer, Engine (A) HON-51117-VK6-000
...
4
Spacer, Engine (B) HON-51118-VK6-000
...
6
Cover, Driveshaft HON-54241-VK6-000
...
7
Cover, Rr. HON-63311-VK6-000
...
8
Housing, Cutter *Nh190M* (Vintage Gray Metallic) HON-76110-VK6-000ZA
...
9
Guard, R. Housing HON-76115-VK6-000
...
10
Guard, L. Housing HON-76116-VK6-000
...
11
Shield, Rr. HON-76118-VK6-000
...
12
Stopper, Discharge Guard HON-76122-VA4-000
...
13
Scroll, Fr. HON-76126-VK6-000
...
14
Scroll, Rr. (Upper) HON-76130-VK6-000
...
15
Scroll, Rr. (Lower) HON-76132-VK6-000
...
16
Scroll, Discharge HON-76135-VK6-000
...
17
Shaft, Rr. Shield HON-76138-VK6-000
...
18
Cover, Roto-Stop HON-76147-VK6-000
...
20
Grommet, Cable HON-76231-952-770
...
21
Stuffing *Nh105* (Mat Black) HON-76266-VK6-000ZA
...
22
Guard, Discharge HON-76311-VA3-000
...
23
Shaft, Discharge Guard HON-76312-VA3-E40
...
24
Spring, Guard Return HON-76314-VA5-010
...
25
Plate, Grass Bag HON-81352-VK6-020
...
26
Bolt, Engine Setting HON-90102-VA4-000
...
26
Bolt, Flange (5/16-24X1") HON-90104-VG3-000
...
27
Bolt, Special HON-90108-VK6-000
...
28
Nut, Flange (M8X1.25) (Self-Lock) HON-90309-428-731
...
29
Bolt, Chute Setting HON-90112-V10-R10
...
32
Nut, Push (6.35Mm) HON-90301-VK6-000
...
33
Nut, Clip (6Mm) HON-90344-964-003
...
34
Nut, Flange (6Mm) HON-94050-06000
...
35
Bolt, Flange (6X12) HON-95701-06012-00
...
39
Screw, Hex. Socket Button (6X12) HON-90104-VK6-010
...
40
Nut, Nylon Ring (6Mm) HON-90220-MA5-700
...
41
Bolt, Flange (6X10) HON-95701-06010-00
...
42
Bolt, Flange (6X12) HON-95701-06012-00

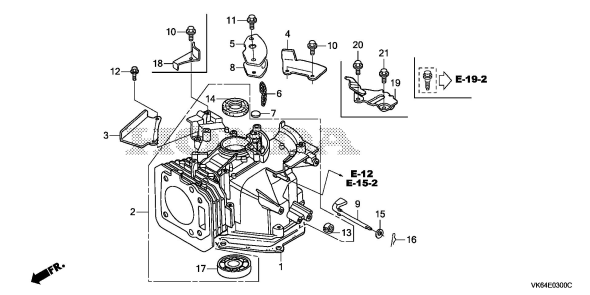

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Gasket, Oil Pan HON-11381-ZE7-M10
...
1
Gasket, Oil Pan (Ningbo Sil Gasket) HON-11381-Z1V-701
...
2
Cylinder Assy. HON-12000-Z1V-406
...
3
Plate, Guide HON-12125-Z1V-000
...
5
Cover, Breather HON-12355-Z1V-000
...
6
Filter, Breather HON-12367-883-003
...
7
Valve, Breather HON-12372-ZE7-000
...
8
Gasket, Breather Cover HON-12373-ZE7-000
...
9
Shaft, Governor Arm HON-16541-ZE7-000
...
10
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
11
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
12
Bolt, Flange (6X20) (Ct200) HON-90022-888-010
...
13
Oil Seal (6X11X4) (Arai) HON-91231-Z1V-003
...
14
Oil Seal (25X38X7) (Arai) HON-91251-Z1V-003
...
15
Washer, Plain (6Mm) HON-94101-06800
...
16
Pin, Lock (8Mm) HON-94251-08000
...
17
Bearing, Radial Ball (6205) HON-96100-62050-00
...
18
Plate A, Guide HON-12126-Z1V-000
...
19
Stay, Tank HON-17560-Z1V-000
...
20
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
21
Bolt, Flange (6X14) (Ct200) HON-90014-952-000

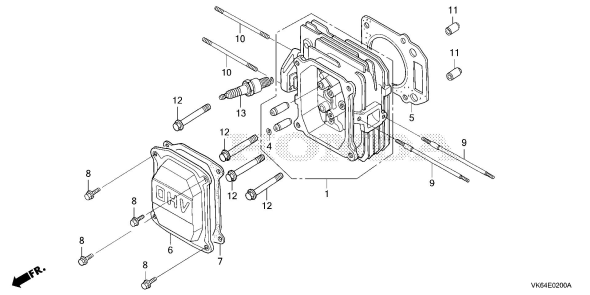

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Cylinder Head HON-12200-ZE7-405
...
5
Gasket, Cylinder Head (Guangzhou Leakless) HON-12251-Z1V-003
...
5
Gasket, Cylinder Head (Ningbo Sil Gasket) HON-12251-Z1V-701
...
6
Cover, Head HON-12311-ZG9-800
...
7
Gasket, Head Cover (Ningbo Sil Gasket) HON-12312-Z1V-701
...
7
Gasket, Head Cover HON-12391-ZE7-M10
...
8
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
9
Bolt, Stud (6X97) HON-90043-Z1V-000
...
10
Bolt, Stud (6X85) HON-90048-ZC3-000
...
11
Pin, Dowel (10X16) HON-94301-10160
...
12
Bolt, Flange (8X50) HON-95701-08050-00
...
13
Spark Plug (Bpr4Es) (Ngk) HON-98079-54846
...
13
Spark Plug (W14Epr-U) (Denso) HON-98079-54855
...
13
Spark Plug (Bpr5Es) (Ngk) HON-98079-55846
...
13
Spark Plug (W16Epr-U) (Denso) HON-98079-55855
...
13
Spark Plug (Bpr6Es) (Ngk) HON-98079-56846
...
13
Spark Plug (W20Epr-U) (Denso) HON-98079-56855

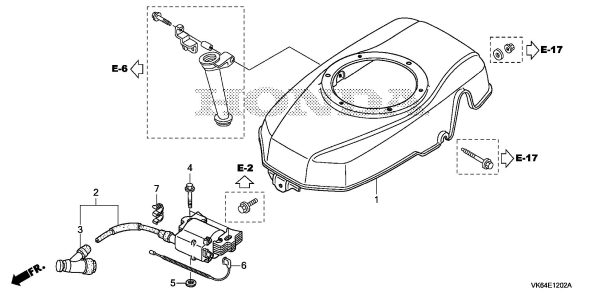

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Cover, Fan *R280* (Power Red) HON-19610-Z1V-930ZA
...
2
Coil Assy., Ignition & Cap Assy. Noise Suppressor (Toyo) HON-30100-Z1V-601
...
3
Cap Assy., Noise Suppressor (Toyo) HON-30700-Z1V-601
...
4
Bolt, Flange (6X28) (Ct200) HON-90015-883-000
...
5
Washer, Plain (6Mm) HON-90581-Z1V-000

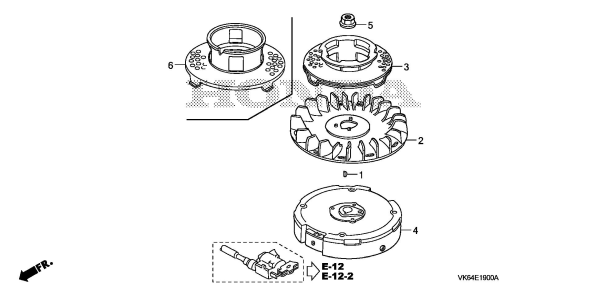

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Key, Special Woodruff (25X18) HON-13331-Z8B-900
...
2
Fan, Cooling HON-19511-Z1T-000
...
3
Pulley, Starter HON-28450-Z1V-930
...
4
Flywheel (Mahle) HON-31110-Z1V-003
...
5
Nut, Special (14Mm) HON-90201-878-003

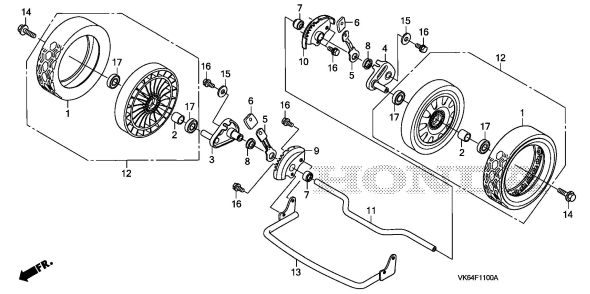

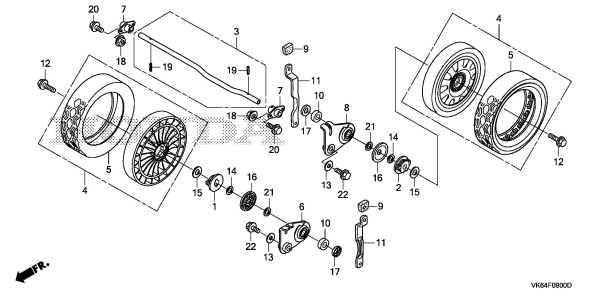

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Tire (9 Inch) HON-42751-VK6-010
...
2
Collar, Wheel HON-91556-VK6-000
...
3
Arm, R. Fr. Adjusting HON-42910-VK6-000
...
4
Arm, L. Fr. Adjusting HON-42920-VK6-000
...
5
Plate, Fr. Adjuster HON-42951-VK6-801
...
6
Grip, Adjuster *Nh105* (Mat Black) HON-42952-VG3-000ZA
...
7
Dust Seal A HON-42954-VB5-801
...
8
(Both Sides) HON-42955-VB5-801
...
9
Panel, R. Fr. Adjuster HON-42980-VK6-000
...
10
Panel, L. Fr. Adjuster HON-42985-VK6-000
...
11
Shaft, Fr. Axle HON-44311-VK6-000
...
12
Wheel Assy., Fr. *Nh462R* (Vintage Gray Solid) HON-44700-VK6-020ZA
...
13
Guard, Fr. HON-76260-VK6-000
...
14
Bolt, Wheel HON-90110-VA4-000
...
15
Washer, Rr. Engine Mounting HON-90505-SD9-000
...
16
Bolt, Flange (8X16) HON-95701-08016-00
...
17
Bearing, Radial Ball (6002Uu) HON-96150-60020-10

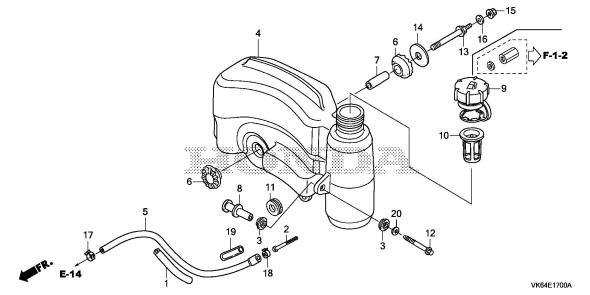

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Rubber, Supporter (107Mm) HON-16854-ZH8-000
...
2
Filter, Fuel HON-16952-Z1V-000
...
3
Rubber, Tank Setting HON-17506-ZE7-000
...
4
Tank, Fuel HON-17510-Z4P-810
...
5
Tube, Fuel (Fkm) HON-17512-Z4P-033
...
6
Rubber B, Tank Mounting HON-17516-896-700
...
7
Collar, Tank Set HON-17518-Z1V-000
...
8
Collar, Tank HON-17519-Z1V-000
...
9
Cap Assy., Fuel Tank HON-17620-Z8B-800
...
10
Gauge, Fuel Level HON-17636-Z1V-010
...
11
Cushion, Rr. Fender HON-80103-MG2-000
...
12
Bolt, Flange (6X47) (Ct200) HON-90014-Z1V-000
...
13
Bolt, Tank Stay HON-90016-Z1V-000
...
14
Washer, Tank Mounting HON-90455-896-700
...
15
Nut, Flange (6Mm) HON-94050-06000
...
16
Washer, Plain (6Mm) HON-94103-06000
...
17
Clamp, Tube (D8) HON-95002-40800-08
...
18
Clamp, Tube (D10.5) HON-95002-41050-08
...
19
Bulk Hose, Vinyl (9X11X3000) (9X11X30) HON-95003-25003-10M
...
20
Washer, Plain (6Mm) HON-94103-06000

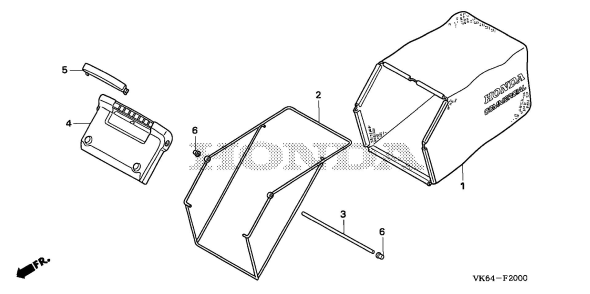

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Fabric, Grass Bag HON-81320-VK6-610
...
2
Frame, Bag (Lower) HON-81340-VK6-000
...
3
Joint, Grass Bag HON-81341-VA3-J00
...
4
Catcher, Grass (Upper) HON-81371-VA4-J00
...
5
Cover, Grass Catcher Grip HON-81377-VA3-J00
...
6
Nut, Push (8Mm) HON-90301-VA3-J01

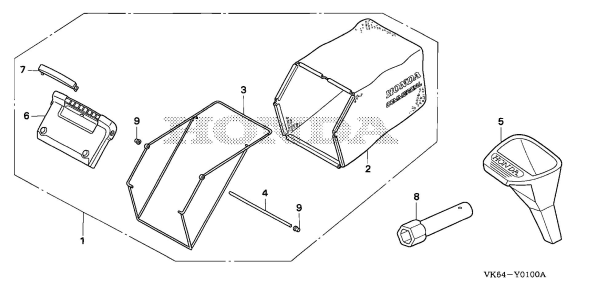

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Bag Kit, Grass HON-06813-VK6-610
...
2
Fabric, Grass Bag HON-81320-VK6-610
...
3
Frame, Bag (Lower) HON-81340-VK6-000
...
4
Joint, Grass Bag HON-81341-VA3-J00
...
5
Funnel, Oil HON-89115-VA4-000
...
6
Catcher, Grass (Upper) HON-81371-VA4-J00
...
7
Cover, Grass Catcher Grip HON-81377-VA3-J00
...
8
Wrench, Box (P21) HON-99004-21002
...
9
Nut, Push (8Mm) HON-90301-VA3-J01

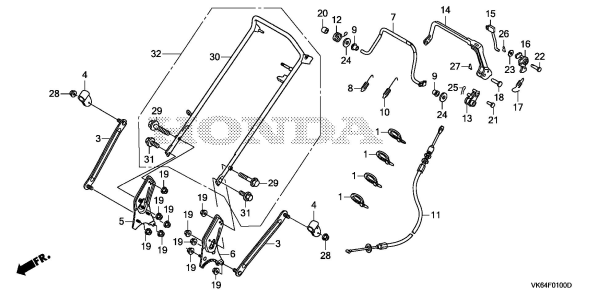

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Tie, Cable HON-32901-VK6-000
...
3
Plate, Handle Support HON-53118-VK6-000
...
4
Hanger, Handle Support HON-53119-VK6-000
...
5
Stay, R. Handle HON-53130-VK6-000
...
6
Stay, L. Handle HON-53135-VK6-000
...
7
Lever, Clutch HON-54410-VE1-R00
...
8
Spring, Clutch HON-54411-VA3-J00
...
9
Bush, Clutch Lever HON-54412-952-770
...
10
Spring, Clutch Lever Return HON-54414-VA3-P00
...
11
Cable, Roto-Stop HON-54530-VK6-003
...
12
Spring, R. Stop Return HON-75118-VA3-J00
...
13
Arm, Roto-Stop Cable HON-75128-VE1-R00
...
14
Lever, Roto-Stop HON-75161-VE0-L01
...
15
Rod, Ratchet Push HON-75165-VE0-L00
...
16
Lever, Lock HON-75166-VE1-R00
...
17
Spring, Ratchet Return HON-75168-VA4-000
...
18
Pin, Clutch Lever HON-90106-VA4-800
...
19
Nut, Flange (M8X1.25) (Self-Lock) HON-90309-428-731
...
20
Collar (8X11X13.5) HON-90552-VA3-J00
...
21
Pin, Cable Joint HON-90751-VK6-000
...
22
Pin, Lock Lever Hinge (6X30) HON-90753-VA3-J00
...
23
Washer, Plain (6Mm) HON-94101-06800
...
24
Washer, Plain (8Mm) HON-94101-08000
...
25
Pin, Split (1.6X12) HON-94201-16120
...
26
Pin, Lock (6Mm) HON-94251-06000
...
27
Pin, Lock (8Mm) HON-94251-08000
...
28
Nut, Flange (M8X1.25) (Self-Lock) HON-90309-428-731
...
29
Bolt, Flange (8X40) HON-95701-08040-00
...
30
Pipe, Handle *Nh105* (Mat Black) HON-53110-VK6-A01ZA
...
31
Bolt, Flange (8X16) HON-95701-08016-00

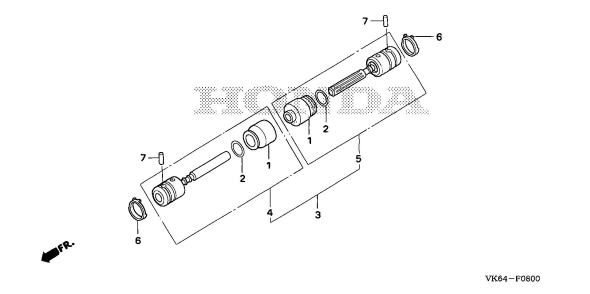

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Boot, Joint HON-22123-VK6-004
...
2
Ring, Seal HON-22127-VK6-004
...
3
Joint Assy. HON-22150-VK6-004
...
4
Joint Sub-Assy. (A) HON-22151-VK6-004
...
5
Joint Sub-Assy. (B) HON-22155-VK6-004
...
6
Clip, Clutch Shaft HON-90651-VD6-901
...
7
Roller (4X17.8) HON-96220-40178

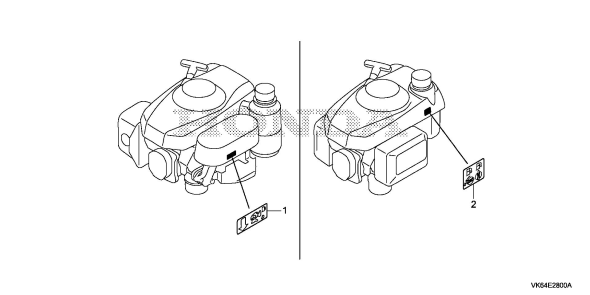

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Mark, Fuel Petcock Caution HON-87524-Z1V-000

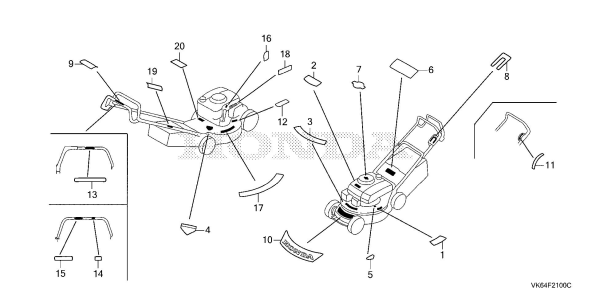

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
2
Mark, Emblem HON-87101-VK6-A00
...
3
Mark, Fr. HON-87103-VK6-000
...
4
Caution C, Housing HON-87104-VA2-000
...
6
Label, Warning (English) HON-87114-VH7-901
...
8
Mark, Throttle Indication (English) HON-87532-VE2-J02
...
9
Mark, Clutch Indication (English) HON-87512-VE1-E00
...
10
Mark, Honda HON-87531-VK6-000
...
12
Label, Heat Warning HON-87539-VE2-000
...
15
Mark, Blade Control (English) HON-87588-VE1-G00
...
16
Mark, Oil Caution HON-87594-VG3-010
...
19
Mark, Hold Position HON-87643-VK6-A00
...
20
Label, Warning HON-87114-ZT6-J20

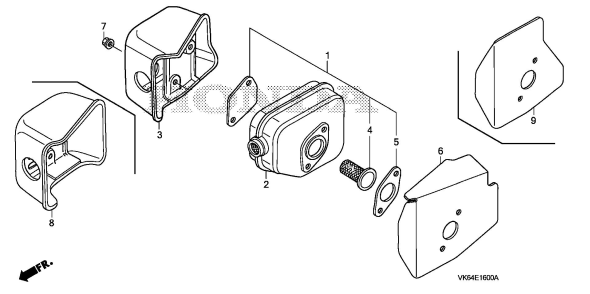

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Arrester Kit, Spark HON-06180-ZE6-820
...
2
Muffler HON-18310-Z1V-010
...
4
Arrester Kit, Spark HON-06180-888-505
...
5
Gasket, Muffler HON-18381-ZE6-820
...
7
Nut, Self-Lock (6Mm) HON-90343-ZE6-000
...
8
Protector, Muffler HON-18320-Z1V-010
...
9
Gasket, Muffler HON-18381-Z1V-000

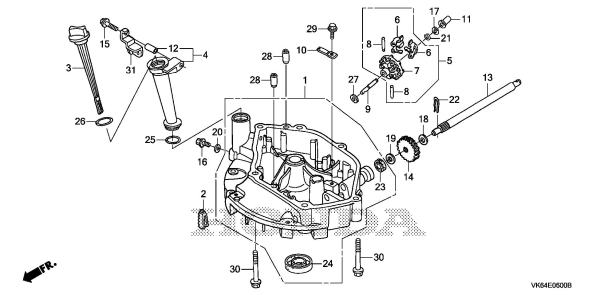

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Pan Assy., Oil HON-11300-Z1V-407
...
2
Rubber, Oil Return HON-15335-ZE7-000
...
3
Dipstick, Oil HON-15620-ZE6-810
...
4
Extension, Oil Filler HON-15630-ZE6-810
...
5
Governor Assy. HON-16510-ZE6-000
...
6
Weight, Governor HON-16511-ZE1-000
...
7
Holder, Governor Weight HON-16512-ZE6-000
...
8
Pin, Governor Weight HON-16513-ZE1-000
...
9
Shaft, Governor Holder HON-16515-ZE6-010
...
10
Plate, Governor Shaft Holder HON-16525-ZE6-010
...
11
Slider, Governor HON-16531-ZE1-000
...
12
Collar, Extension HON-17240-ZE6-000
...
13
Shaft, Drive HON-23411-ZE7-010
...
14
Gear, Driven (18T) HON-23431-ZG9-T20
...
15
Bolt, Flange (6X32) (Ct200) HON-90017-883-000
...
16
Bolt, Drain Plug HON-90131-ZE1-000
...
17
Washer, Thrust (6Mm) HON-90451-Z1T-000
...
18
Washer, Thrust (12Mm) HON-90452-166-600
...
19
Washer (10X21) HON-90452-187-000
...
20
Washer, Drain Plug (10.2Mm) HON-90601-ZE1-000
...
21
Clip, Governor Holder HON-90602-ZE1-000
...
22
Pin, Lock (2.0) HON-90701-ZE6-000
...
23
Oil Seal (12X20X6.5) (Nok) HON-91205-ZE7-003
...
24
Oil Seal (25.4X40X7) HON-91252-Z1V-003
...
25
O-Ring (22.1X2.2) HON-91301-Z1V-003
...
26
O-Ring (25.5X3) HON-91302-Z1V-003
...
27
Washer, Plain (6Mm) HON-94101-06800
...
28
Pin, Dowel (8X14) HON-94301-08140
...
29
Bolt, Flange (6X12) HON-95701-06012-08
...
30
Bolt, Flange (8X50) HON-95701-08050-00

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Holder, R. Ratchet HON-23510-VB5-803
...
2
Holder, L. Ratchet HON-23520-VB5-803
...
3
Shaft, Rr. Axle HON-42311-VK6-000
...
4
Wheel Assy., Rr. *Nh462R* (Vintage Gray Solid) HON-42700-VK6-020ZA
...
5
Tire (9 Inch) HON-42751-VK6-010
...
6
Arm, R. Rr. Adjusting HON-42930-VK6-010
...
7
Holder, Rr. Axle HON-42936-VK6-000
...
8
Arm, L. Rr. Adjusting HON-42940-VK6-010
...
9
Grip, Adjuster *Nh105* (Mat Black) HON-42952-VG3-000ZA
...
10
Collar, Dust Seal HON-42957-VB5-802
...
11
Plate, Rr. Adjuster HON-42961-VK6-000
...
12
Bolt, Wheel HON-90110-VA4-000
...
13
Washer, Rr. Engine Mounting HON-90505-SD9-000
...
14
Washer, Plain (15Mm) HON-90512-VK6-000
...
15
Washer (16Mm) HON-90551-VA4-800
...
16
Seal, Rr. Wheel HON-90555-VB3-801
...
17
Collar, Final Shaft HON-91554-VB5-P00
...
18
Nut, Flange (6Mm) HON-94050-06000
...
19
Pin, Spring (5X25) HON-94305-50252
...
20
Bolt, Flange (6X12) HON-95701-06012-00
...
21
Washer, Plain (15Mm) HON-90511-VK6-000
...
22
Bolt, Flange (8X16) HON-95701-08016-00

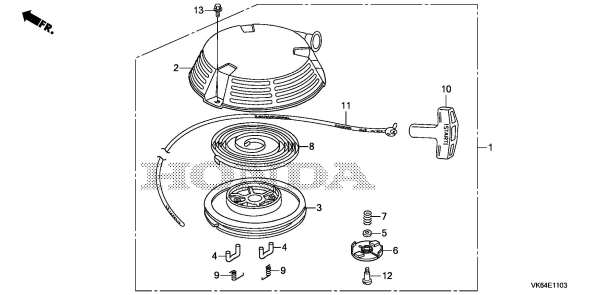

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Starter Assy., Recoil *R280* (Long Rope) (Power Red) HON-28400-Z1V-812ZB
...
2
Case, Recoil Starter *R280* (Power Red) HON-28410-Z1V-701ZB
...
3
Reel, Recoil Starter (Black) HON-28420-Z1V-702
...
4
Ratchet, Starter HON-28422-Z1T-701
...
5
Plate, Friction HON-28431-ZH8-801
...
6
Guide, Ratchet HON-28433-Z1T-702
...
7
Spring, Friction HON-28441-ZH8-801
...
8
Spring, Recoil Starter HON-28442-ZH8-003
...
9
Spring, Return HON-28443-Z1T-701
...
10
Knob, Recoil Starter HON-28461-ZE1-013
...
11
Rope, Recoil Starter (Long Type) HON-28462-Z1V-811
...
12
Screw, Setting HON-90003-ZH8-801
...
13
Bolt, Flange (6X8) HON-95701-06008-00

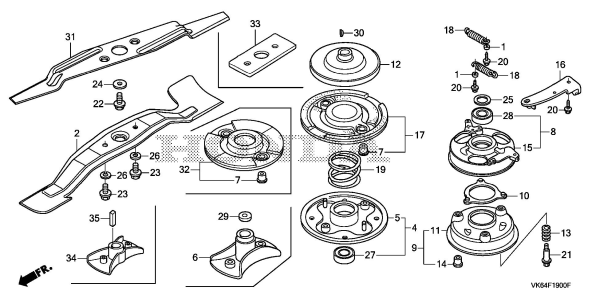

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Collar, Fan HON-19512-883-000
...
2
Blade, Rotary HON-72511-VK6-000
...
4
Holder Assy., Blade HON-72600-VA4-010
...
5
Holder, Blade HON-72610-VA4-000
...
7
Bush, Blade Holder HON-72613-VA4-000
...
8
Plate Assy., Ball Control HON-75090-VA4-030
...
9
Brake HON-75100-VA4-010
...
10
Retainer, Ball HON-75110-VA4-000
...
11
Disk, Brake HON-75120-VA4-010
...
12
Disk, Drive HON-75130-VA4-000
...
13
Spring, Brake Holder HON-75132-VA4-000
...
14
Bush, Brake Holder HON-75133-VA4-000
...
15
Plate, Ball Control HON-75140-VA4-020
...
16
Plate, Cable Hook HON-75142-VB3-803
...
18
Spring, Clutch Return (53.0Mm) HON-75182-VA3-J00
...
19
Spring, Clutch (36.6Mm) HON-75183-VA3-J00
...
20
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
21
Bolt, Special (6Mm) HON-90021-VA4-000
...
22
Bolt, Hex. (10X25) HON-90105-VA3-J01
...
23
Bolt, Hex. (10X20) HON-90105-960-710
...
24
Washer (10X30X3.5T) HON-90401-880-000
...
25
Washer, Thrust HON-90501-952-010
...
26
Washer, Spring (10Mm) HON-90502-VG3-000
...
27
Bearing, Radial Ball (6204) HON-91102-VA4-013
...
28
Bearing, Radial Ball (60/22) HON-91103-VA4-003
...
30
Key, Woodruff (16X15) HON-94401-16150
...
31
Blade, Rotary (Upper) HON-72531-VK6-010
...
33
Spacer Kit, Blade HON-06725-VK6-000

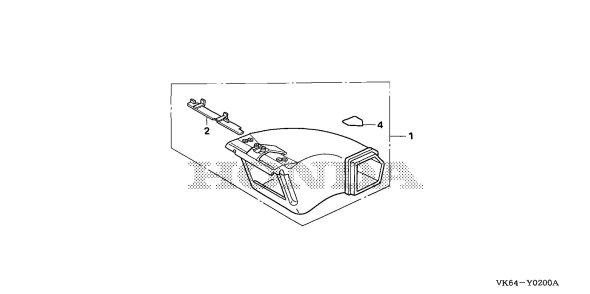

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Chute Kit, Side Discharge HON-06814-VK6-000
...
2
Bracket, Mounting HON-81217-VK6-000
...
4
Caution C, Housing HON-87104-VA2-000

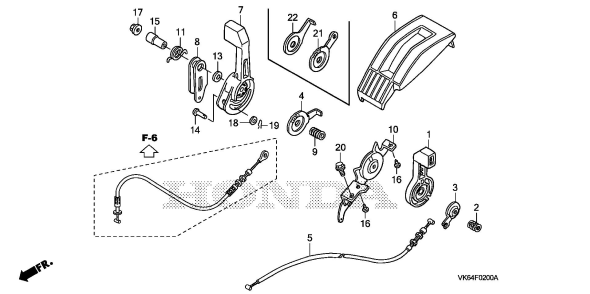

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Lever, Throttle HON-17851-VA3-D01
...
2
Spring, Throttle Lever HON-17858-VA4-000
...
3
Seat, Spring HON-17859-VA3-800
...
5
Cable, Throttle HON-17910-VK6-A03
...
6
Cover, Control HON-54231-VA3-800
...
7
Lever, Change HON-54311-VA3-P01
...
8
Arm, Change Lever HON-54312-VA3-P00
...
9
Spring, Change Lever HON-54314-VA3-P00
...
10
Stopper, Lever HON-54315-VE1-R00
...
11
Spring, Arm Return HON-54318-VA3-P00
...
14
Pin (6X22) HON-90752-VA3-P01
...
15
Collar, Change Lever HON-91551-VE1-R20
...
16
Screw, Tapping (5X12) HON-93901-35210
...
17
Nut, Flange (6Mm) HON-94050-06080
...
18
Washer, Plain (6Mm) HON-94101-06800
...
19
Pin, Lock (6Mm) HON-94251-06000
...
20
Bolt, Flange (6X10) HON-95701-06010-00
...
21
Seat, Spring HON-17859-VA3-P00
...
22
Plate, Thrust HON-54319-VA3-P00

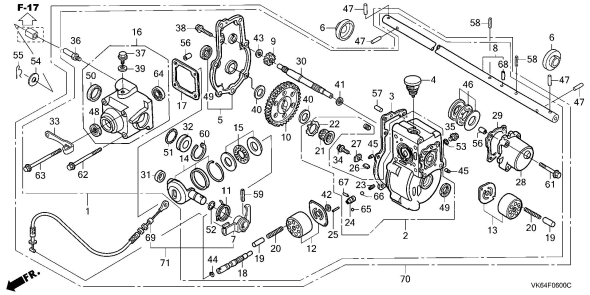

Honda HRC216K3 HXPH - MAKA 2000001-9999999

...
...
1
Transmission Assy. HON-20001-VK6-305
...
2
Case, Transmission HON-21110-VD6-405
...
3
Gasket, Transmission Case HON-21115-VD6-900
...
4
Cap, Oil HON-21230-VD6-903
...
5
Cover, Transmission HON-21520-VD6-901
...
6
Guard, Grass HON-21912-VK6-000
...
7
Arm, Control HON-22533-VK6-600
...
8
Shaft, Final HON-23250-VK6-000
...
9
Gear, Final Drive (13T) HON-23414-VK6-003
...
10
Gear, Final Driven (65T) HON-23442-VK6-003
...
11
Spring, Control Arm Return HON-24134-VD6-900
...
12
Plate Set, Pump Cylinder HON-25010-VD6-900
...
13
Plate Set, Motor Cylinder HON-25011-VD6-900
...
14
Bowl Set, Control HON-25012-VD6-902
...
15
Bearing Set, Thrust Needle HON-25014-VD6-900
...
16
Case Set, Pump HON-25016-VD6-900
...
17
Gasket, Pump Case HON-25312-VD6-900
...
18
Shaft, Pump HON-25321-VD6-900
...
19
Piston, Pump HON-25342-VD6-900
...
20
Spring, Piston HON-25343-VD6-900
...
21
Filter, Suction HON-25421-VD6-852
...
22
Plate, Filter HON-25425-VD6-901
...
23
Spring, Relief Valve HON-25431-VD6-900
...
24
Body, Neutral Valve HON-25435-VD6-901
...
25
Needle A, Neutral Valve (22.4) HON-25442-VD6-900
...
25
Needle B, Neutral Valve (22.6) HON-25443-VD6-900
...
25
Needle C, Neutral Valve (22.8) HON-25444-VD6-900
...
25
Needle D, Neutral Valve (23.0) HON-25445-VD6-900
...
25
Needle E, Neutral Valve (23.2) HON-25446-VD6-900
...
26
Magnet HON-25519-VD6-900
...
27
Plate, Magnet Setting HON-25529-VD6-900
...
28
Case, Motor HON-25711-VD6-901
...
29
Gasket, Motor Case HON-25712-VD6-902
...
30
Shaft, Motor HON-25721-VD6-901
...
31
Bush, Control Bowl (A) HON-25812-VD6-900
...
32
Bush, Control Bowl (B) HON-25813-VD6-900
...
33
Holder, Control Cable HON-54346-VK6-000
...
34
Bolt, Flange (6X18) HON-90017-ZV0-000
...
35
Bolt A, Plug HON-90102-VD6-901
...
36
Bolt, Guide HON-90102-VK6-000
...
37
Bolt, Sealing (8Mm) HON-90109-371-000
...
38
Bolt, Flange (6X21) HON-90113-VD6-900
...
39
Washer, Sealing HON-90421-KM1-003
...
40
Washer (15X24X3.2) HON-90533-VD6-901
...
41
Washer, Thrust (10.2X16X1) HON-90587-VD6-900
...
42
Washer, Thrust (8.3X13X1.6) HON-90588-VD6-900
...
43
Washer, Thrust (8.6X13X0.6) HON-90589-VD6-901
...
44
Clip, Bearing B HON-90662-VD6-900
...
45
Pin, Dowel (3X5.8) HON-90755-VD6-900
...
46
Bearing, Thrust Ball HON-91061-VD6-901
...
47
Roller (5X23.8) HON-91101-VA4-801
...
48
Oil Seal (10X20X5) HON-91201-VA4-801
...
49
Oil Seal (15X24X5) HON-91201-246-005
...
50
Plug, Seal (22X7) HON-91255-723-671
...
51
O-Ring (25X2.4) HON-91307-PE0-010
...
52
O-Ring (11.8X1.9) HON-91361-VD6-901
...
53
O-Ring (6.8X1.9) HON-91363-VD6-900
...
54
Washer, Plain (10Mm) HON-94103-10000
...
55
Pin, Lock (10Mm) HON-94251-10000
...
56
Pin, Dowel (8X10) HON-94301-08100
...
57
Pin C, Dowel (4X6.5) HON-94303-04065
...
58
Pin, Spring (4X22) HON-94305-40222
...
59
Pin, Spring (5X20) HON-94305-50202
...
60
Circlip (Inner) (30Mm) HON-94520-30000
...
61
Bolt, Flange (6X32) HON-96001-06032-00
...
62
Bolt, Flange (6X60) HON-96001-06060-00
...
63
Bolt, Flange (6X65) HON-96001-06065-00
...
64
Bearing, Radial Ball (6000) HON-96100-60000-00
...
65
Ball, Steel (#5) (5/32) HON-96211-05000
...
66
Ball, Steel (#8) (1/4) HON-96211-08000
...
67
Roller (4X19.8) HON-96220-40198
...
68
Roller (6X22.4) HON-96220-60224
...
69
Cable, Change HON-54630-VK6-010
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
