Honda GXV390UT1 DNXE Engine

Model: GXV390UT1 DNXE

Save Part Not Listed?
product name

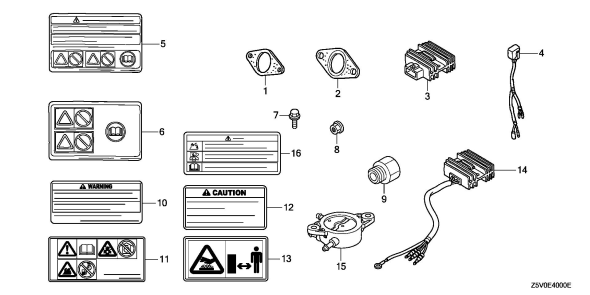

Honda GXV390UT1 DNXE

...
...

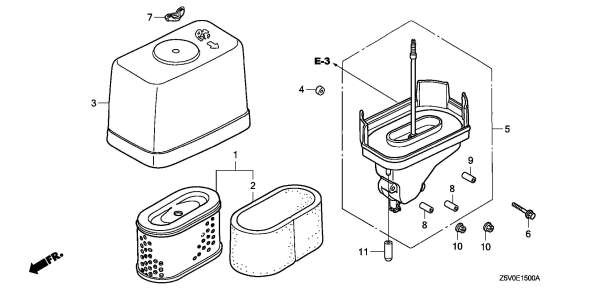

1
Element, Air Cleaner HON-17210-Z1E-801
...
3
Cover, Air Cleaner HON-17231-ZF5-V00
...
5
Elbow, Air Cleaner HON-17410-Z1E-802
...
6
Bolt, Flange (6X35) (Ct200) HON-90014-ZE6-000
...
7
Nut, Tool Box Setting HON-90325-044-000
...
8
Collar, Air Cleaner HON-91502-ZF5-V00
...
9
Collar, Air Cleaner HON-91503-ZF5-V00
...
10
Nut, Flange (6Mm) HON-94050-06000

Honda GXV390UT1 DNXE

...
...

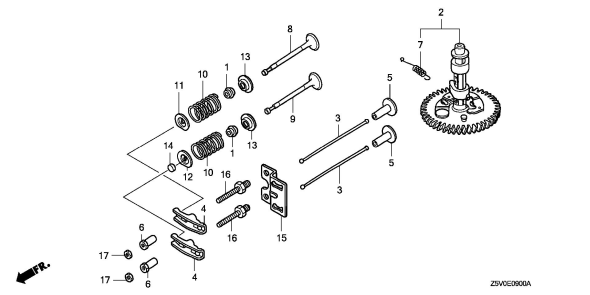

1
Seal, Valve Stem HON-12209-ZE8-003
...
2
Camshaft Assy. HON-14100-ZF5-020
...
3
Rod, Push HON-14410-Z1C-000
...
4
Arm, Valve Rocker HON-14431-ZE2-010
...
5
Lifter, Valve HON-14441-ZE2-000
...
6
Pivot, Rocker Arm HON-14451-Z4M-000
...
7
Spring, Weight Return HON-14568-ZE1-000
...
8
Valve, In. HON-14711-ZE3-000
...
9
Valve, Ex. HON-14721-ZE3-000
...
10
Spring, Valve HON-14751-Z1C-000
...
11
Retainer, In. Valve Spring HON-14771-Z8S-000
...
12
Retainer, Ex. Valve Spring HON-14773-Z8S-000
...
13
Seat, Valve Spring HON-14775-ZE2-010
...
14
Rotator, Valve HON-14781-ZE2-000
...
15
Guide, Push Rod HON-14791-ZE9-010
...
16
Bolt, Pivot (8Mm) HON-90012-ZE0-010
...
17
Nut, Pivot Adjusting HON-90206-ZE1-000

Honda GXV390UT1 DNXE

...
...

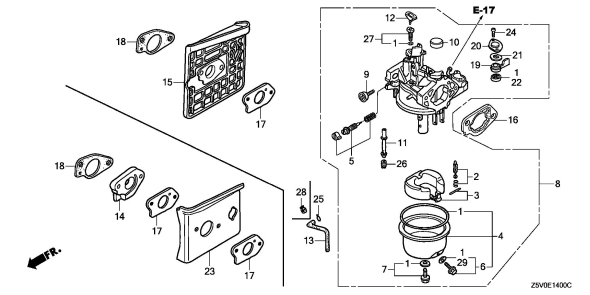

1
Gasket Set (Except 16173-001-004) HON-16010-ZE2-015
...
2
Valve Set, Float HON-16011-ZA0-931
...
3
Float Set HON-16013-Z1C-003
...
4
Chamber Set, Float HON-16015-ZE8-005
...
5
Screw Set HON-16016-Z5V-WA1
...
6
Screw Set, Drain HON-16024-ZE1-811
...
7
Screw Set HON-16028-ZE0-005
...
7
Screw Set HON-16028-ZK7-S91
...
8
Carburetor Assy. (Be81P A) HON-16100-Z5V-WA1
...
9
Screw, Throttle Stop HON-16124-ZE0-005
...
10
Cap, Choke Dust HON-16148-141-881
...
11
Nozzle, Main HON-16166-Z5V-WA1
...
12
Collar, Setting HON-16172-ZE3-W10
...
13
Tube, Air Vent (75Mm) HON-16199-ZE8-000
...
15
Insulator, Carburetor HON-16211-Z5V-900
...
16
Spacer, Carburetor HON-16220-ZA0-702
...
17
Gasket, Carburetor HON-16221-Z8T-000
...
18
Gasket, Insulator HON-16223-ZE9-800
...
19
Lever, Petcock HON-16953-ZE1-712
...
20
Plate, Lever Setting HON-16954-ZE1-812
...
21
Spring, Petcock Lever HON-16956-ZE1-811
...
22
Gasket, Petcock HON-16957-ZE1-812
...
24
Screw, Pan (3X6) HON-93500-03006-0H
...
25
Clip, Tube (B8) HON-95002-02080
...
26
Jet, Main (#95) HON-99101-ZH8-0950
...
26
Jet, Main (#98) HON-99101-ZH8-0980
...
26
Jet, Main (#100) HON-99101-ZH8-1000
...
27
Jet Set, Pilot (#45) HON-99204-ZE0-0450
...
29
Washer, Plain (6.2X10.7 Drain) HON-16141-Z0S-003

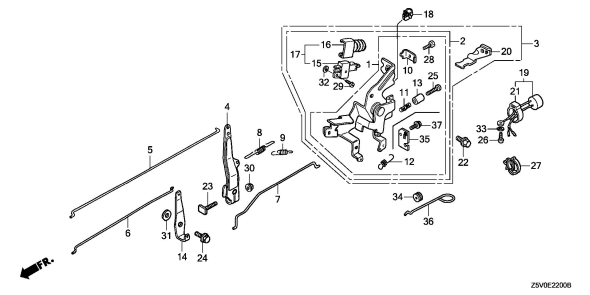

Honda GXV390UT1 DNXE

...
...
2
Control Assy. HON-16500-ZF5-821
...
4
Arm, Governor HON-16551-ZF5-000
...
5
Rod, Governor HON-16555-ZE9-000
...
6
Rod, Choke HON-16556-ZE9-000
...
7
Rod, Joint HON-16557-ZE8-810
...
8
Spring, Governor HON-16561-ZF5-000
...
9
Spring, Governor Primary HON-16563-ZE8-010
...
10
Holder, Cable HON-16576-891-000
...
11
Spring, Control Adjusting HON-16584-883-300
...
12
Spring, Cable Return HON-16592-732-700
...
13
Collar, Stopper HON-16599-ZG1-M10
...
14
Lever, Choke Joint HON-16619-ZF5-000
...
15
Switch Assy., Engine HON-35330-ZG1-751
...
16
Cover, Switch HON-35336-750-003
...
17
Switch Assy., Engine Stop HON-36100-ZE8-003
...
22
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
23
Bolt, Governor Arm HON-90015-Z5T-000
...
24
Bolt, Flange (6Mm) HON-90015-ZE8-000
...
25
Screw, Recessed (5X20) HON-90016-ZF5-W40
...
28
Bolt, Recessed (5X14) HON-92301-05014-0A
...
29
Screw, Pan (4X14) HON-93500-04014-0A
...
30
Nut, Flange (6Mm) HON-94050-06000
...
31
Washer, Plain (6Mm) HON-94101-06800
...
32
Washer, Spring (4Mm) HON-94111-04000

Honda GXV390UT1 DNXE

...
...

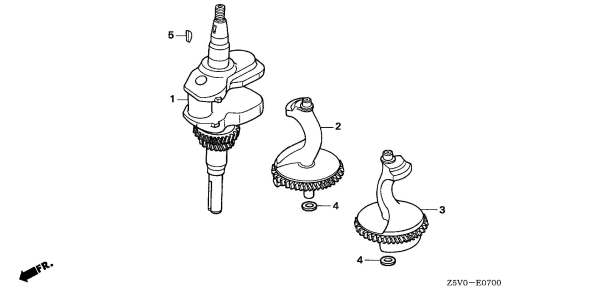

1
Crankshaft HON-13310-ZF5-040
...
2
Weight A, Balancer HON-13351-ZF5-030
...
3
Weight B, Balancer HON-13356-ZF5-040
...
4
Washer, Thrust (15Mm) HON-90417-HA0-000
...
5
Key, Special Woodruff (25X18) HON-90741-ZE2-000

Honda GXV390UT1 DNXE

...
...

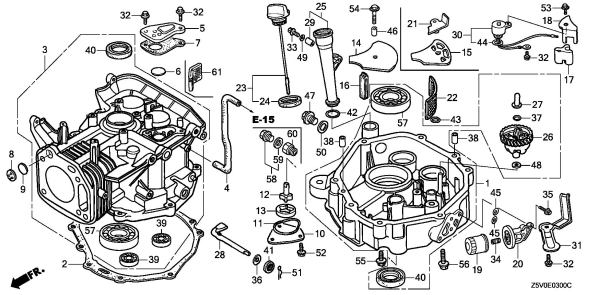

1
Pan Assy., Oil HON-11300-Z1E-407
...
2
Gasket, Oil Pan HON-11381-ZE9-801
...
3
Cylinder Assy. HON-12000-Z1E-415
...
4
Tube, Breather HON-12315-ZF5-000
...
5
Cap, Breather Chamber HON-12370-ZF5-000
...
6
Valve, Breather HON-12372-ZE2-300
...
7
Gasket, Breather Cap HON-12373-ZE8-000
...
10
Cover, Oil Pump HON-15130-ZE8-000
...
11
O-Ring, Pump Cover HON-15131-ZE9-003
...
12
Rotor (Inner) HON-15330-ZE8-000
...
13
Rotor, Oil Pump (Outer) HON-15332-891-003
...
14
Plate, Oil Filter HON-15334-ZE8-010
...
16
Rubber, Oil Return HON-15335-ZE9-000
...
22
Screen, Oil Filter HON-15421-ZE9-003
...
23
Cap Assy., Oil Filler HON-15600-Z5N-800
...
24
Gasket, Oil Filler Cap HON-15625-ZE8-000
...
25
Extension, Oil Filler HON-15630-Z5N-800
...
26
Governor Assy. HON-16510-ZE3-000
...
27
Slider, Governor HON-16531-Z0A-000
...
28
Shaft, Governor Arm HON-16541-ZE8-010
...
29
Collar, Extension HON-17240-ZE6-000
...
32
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
33
Bolt, Flange (6X35) (Ct200) HON-90014-ZE6-000
...
36
Washer, Thrust (8.1Mm) HON-90406-VM6-000
...
37
Clip, Governor Holder HON-90602-ZE1-000
...
38
Pin, Dowel (8X12) HON-90701-HC4-000
...
39
Bearing, Radial Ball (6202) HON-91001-ZF5-003
...
40
Oil Seal (35X52X8) (Nok) HON-91201-Z1C-003
...
41
Oil Seal (8X14X5) HON-91201-ZE9-003
...
41
Oil Seal (8X14X5) HON-91203-952-771
...
42
O-Ring (22.1X2.2) HON-91301-ZE9-003
...
43
O-Ring (11.8X2.4) HON-91302-ZE9-003
...
46
Collar, Oil Filter Setting HON-91501-ZF5-000
...
47
Bolt, Drain Plug (20Mm) HON-92800-20000
...
48
Washer, Plain (6Mm) HON-94101-06800
...
49
Washer, Plain (6Mm) HON-94103-06700
...
50
Washer, Drain Plug (20Mm) HON-94109-20000
...
51
Pin, Lock (10Mm) HON-94251-10000
...
52
Bolt, Flange (6X12) HON-95701-06012-00
...
54
Bolt, Flange (6X25) HON-95701-06025-00
...
55
Bolt, Flange (8X40) HON-95701-08040-08
...
56
Bolt, Flange (8X60) HON-95701-08060-08
...
57
Bearing, Radial Ball (6207) HON-96100-62070-00
...
61
Mesh, Breather HON-15427-Z5V-900

Honda GXV390UT1 DNXE

...
...

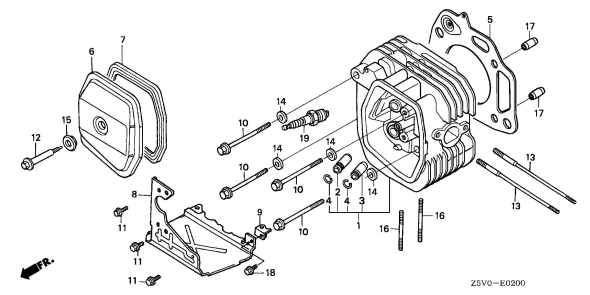

1
Cylinder Head HON-12200-Z1E-405
...
4
Clip, Valve Guide HON-12216-ZE2-300
...
5
Gasket, Cylinder Head HON-12251-ZF5-H03
...
6
Cover, Head HON-12310-ZE8-000
...
7
Gasket, Head Cover HON-12391-ZE8-000
...
8
Cover (Lower) HON-18345-ZF5-030
...
9
Stay, Cover (Lower) HON-18347-ZE8-000
...
10
Bolt, Flange (10X85) HON-90003-Z1E-000
...
11
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
12
Bolt, Head Cover HON-90014-ZE8-000
...
13
Bolt, Stud (8X131.5) HON-90042-ZE8-000
...
14
Washer, Plain (10Mm) HON-90401-437-000
...
15
Washer, Head Cover HON-90441-ZE2-010
...
16
Bolt, Stud (8X32) HON-92900-08032-0B
...
17
Pin, Dowel (12X20) HON-94301-12200
...
18
Bolt, Flange (6X12) HON-95701-06012-00
...
19
Spark Plug (Bpr5Es) (Ngk) HON-98079-55846

Honda GXV390UT1 DNXE

...
...

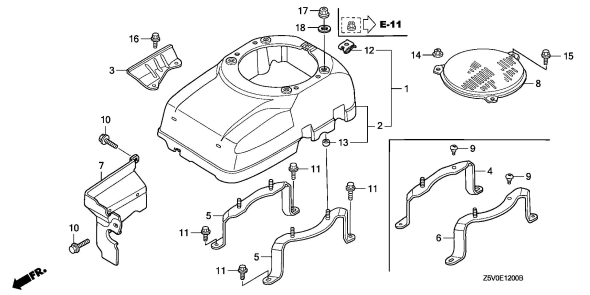

2
Cover, Fan *R280* (Power Red) HON-19610-ZF5-V11ZC
...
5
Bracket, Fan Cover HON-19617-ZF5-V01
...
11
Bolt, Flange (6X16) (Ct200) HON-90029-888-000
...
13
Collar, Fan Cover HON-91501-ZF5-V00

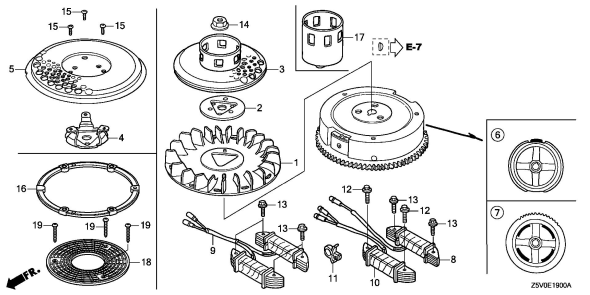

Honda GXV390UT1 DNXE

...
...
1
Fan, Cooling HON-19511-ZE9-020
...
7
Flywheel (Sel-4Pole) HON-31110-ZF5-L32
...
10
Coil Assy., Charge (1A) HON-31630-ZF5-801
...
11
Clip, Brake Pipe (A) HON-46391-VM0-003
...
12
Bolt, Flange (6X28) (Ct200) HON-90015-883-000
...
14
Nut, Special (16Mm) HON-90201-ZE3-V00
...
16
Spacer, Recoil Starter Mounting *R280* (Power Red) HON-28405-Z5V-900ZA
...
17
Pulley, Starter HON-28451-ZE3-W01
...
18
Grid, Screen HON-28452-Z5V-900
...
19
Screw, Tapping (4X30) (Po) HON-93913-24780

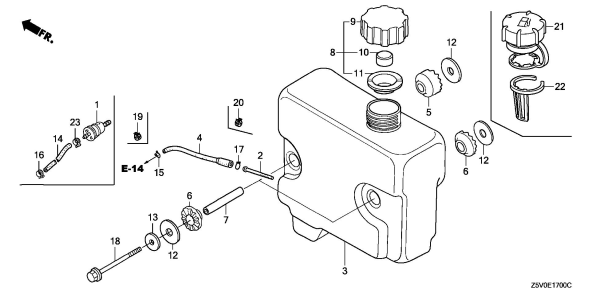

Honda GXV390UT1 DNXE

...
...
2
Filter, Fuel HON-16952-ZE6-000
...
3
Tank, Fuel HON-17511-Z5N-801
...
4
Tube, Fuel (Fkm) HON-17512-Z5N-033
...
5
Rubber B, Tank Mounting HON-17516-ZE8-000
...
6
Rubber B, Tank Mounting HON-17516-896-700
...
7
Collar, Tank Setting HON-17518-ZE8-000
...
12
Washer, Tank Mounting HON-90455-896-700
...
13
Washer, Plain (8Mm) HON-90471-SB0-000
...
18
Bolt, Flange (8X95) HON-95701-08095-00
...
19
Clamp, Tube (D8) HON-95002-40800-08
...
20
Clamp, Tube (D10.5) HON-95002-41050-08
...
21
Cap Assy., Fuel Tank HON-17620-Z8B-800
...
22
Gauge, Fuel Level HON-17636-Z5N-000

Honda GXV390UT1 DNXE

...
...

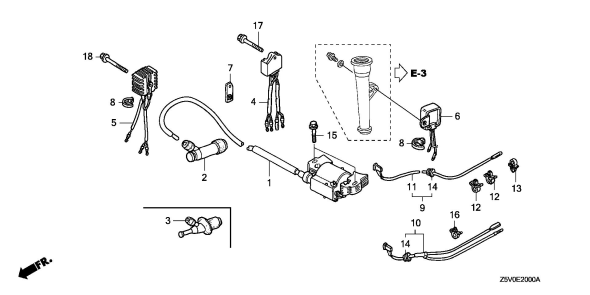

1
Coil Assy., Ignition HON-30500-Z1E-801
...
2
Cap Assy., Noise Suppressor HON-30700-ZF5-013
...
6
Rectifier, Silicon HON-31700-ZF5-003
...
8
Band B1, Wire HON-32161-404-610
...
9
Wire, Stop Switch HON-36101-ZE8-000
...
12
Clip, Brake Pipe (A) HON-46391-VM0-003
...
14
Grommet, Wire Cord HON-80101-166-000
...
15
Bolt, Flange (6X28) (Ct200) HON-90015-883-000

Honda GXV390UT1 DNXE

...
...
1
Emblem, Top Cover (Gxv390) HON-87101-ZF5-V02
...
2
Mark, Operator Caution (Pictograph) HON-87519-Z4H-000
...
3
Mark, Type (Dnxe) HON-87601-ZF5-750

Honda GXV390UT1 DNXE

...
...

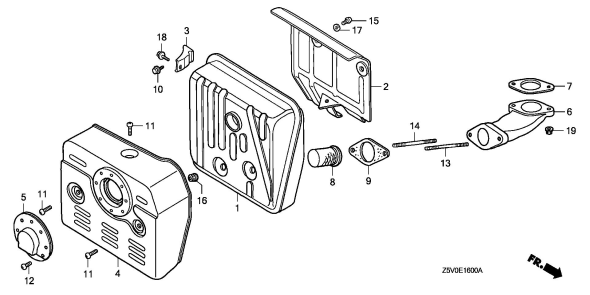

1
Muffler HON-18310-Z1E-010
...
2
Separator, Muffler HON-18316-ZF5-V01
...
3
Stay, Muffler HON-18318-ZE8-000
...
4
Protector, Muffler HON-18321-ZF5-010
...
6
Pipe, Ex. HON-18331-ZF5-000
...
7
Gasket, Ex. Pipe HON-18333-Z1C-801
...
9
Gasket, Ex. Pipe HON-18382-Z1F-801
...
10
Bolt, Flange (8X16) HON-90031-883-000
...
11
Screw, Tapping (5X8) HON-90050-ZE1-000
...
13
Bolt, Stud (8X60) HON-92900-08060-1B
...
14
Bolt, Stud (8X70) HON-92900-08070-1B
...
15
Screw, Pan (6X6) HON-93500-06006-0A
...
16
Nut, Flange (8Mm) HON-94050-08000
...
17
Washer, Plain (6Mm) HON-94101-06800
...
18
Bolt, Flange (8X14) HON-95701-08014-00
...
19
Nut, Flange (8Mm) HON-94050-08000

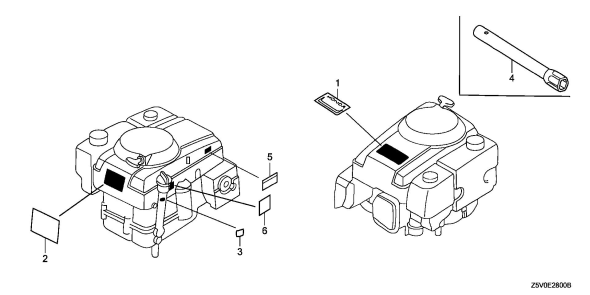

Honda GXV390UT1 DNXE

...
...
10
Mark, Operator Caution (English)(Made In Thai) HON-87516-Z4H-010
...
10
Mark, Operator Caution (French)(Made In Thai) HON-87516-Z4H-801
...
12
Mark, Ex. Caution (English) HON-87539-Z0J-000
...
12
Mark, Ex. Caution (French) HON-87539-Z0J-810

Honda GXV390UT1 DNXE

...
...

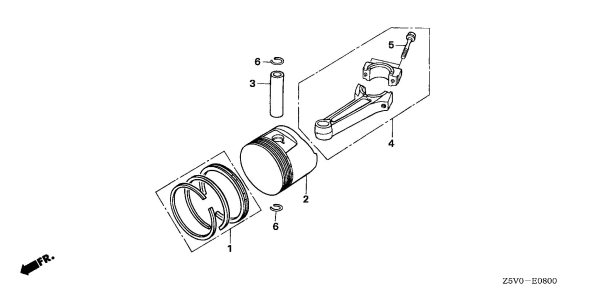

1
Ring Set, Piston (Std) (Tpr) HON-13010-Z7E-931
...
2
Piston (Std) HON-13101-Z5T-010
...
3
Pin, Piston HON-13111-ZF6-000
...
4
Rod Assy., Connecting (Std) HON-13200-Z1E-000
...
5
Bolt, Connecting Rod HON-90001-ZE8-000
...
6
Clip, Piston Pin (20Mm) HON-90601-ZE3-000

Honda GXV390UT1 DNXE

...
...

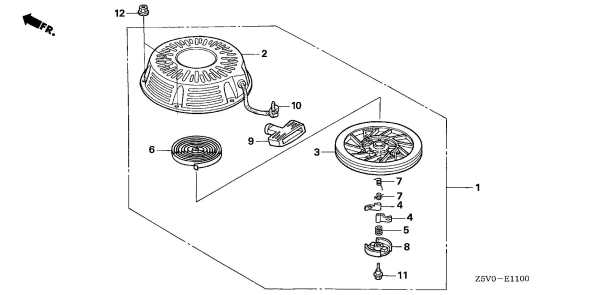

1
Starter Assy., Recoil *R280* (Power Red) HON-28400-ZE3-W02ZP
...
2
Case, Recoil Starter *R280* (Power Red) HON-28410-ZE3-W01ZP
...
3
Pulley, Recoil Starter HON-28421-ZE3-W01
...
4
Ratchet, Starter HON-28422-ZE2-W01
...
5
Spring, Friction HON-28441-ZE2-W01
...
6
Spring, Starter Return HON-28442-ZE2-W01
...
7
Spring, Ratchet HON-28443-ZE2-W01
...
8
Retainer, Spring HON-28444-ZE2-W01
...
9
Grip, Starter HON-28461-ZE2-W03
...
10
Rope, Recoil Starter HON-28462-ZE3-W01
...
11
Screw, Center HON-90004-ZE2-W01
...
12
Nut, Flange (6Mm) HON-94050-06000

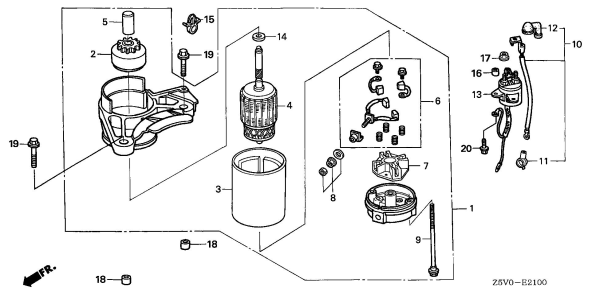

Honda GXV390UT1 DNXE

...
...
1
Starter Motor Assy. HON-31200-ZF5-L32
...
2
Drive Assy. HON-31206-ZF5-L31
...
3
Yoke HON-31216-ZJ1-004
...
4
Armature HON-31217-ZF5-L31
...
5
Stopper Set, Pinion HON-31225-ZF5-L31
...
6
Brush Set HON-31226-ZF5-L31
...
7
Holder, Brush HON-31231-ZJ1-004
...
8
Nut Set, Terminal HON-31237-ZJ1-004
...
9
Bolt, Through HON-31261-ZF5-L31
...
10
Wire, Magnetic Switch HON-32402-ZF5-V00
...
11
Cover, Starter Terminal HON-32411-ZV4-811
...
12
Cover, Magnetic Switch Terminal HON-32412-ZV4-811
...
13
Switch Assy., Starter Magnetic HON-35850-ZF5-V01
...
14
Washer, Thrust HON-90407-ZF5-L31
...
16
Collar (6.5X11X10) HON-91503-ZY1-300
...
17
Nut-Washer (6Mm) HON-94070-06080
...
18
Pin, Dowel (10X12) HON-94301-10120
...
19
Bolt, Flange (8X35) HON-95701-08035-00
...
20
Bolt, Flange (6X25) HON-96001-06025-00
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
