Honda GXR120RT KRW1

...
...
3

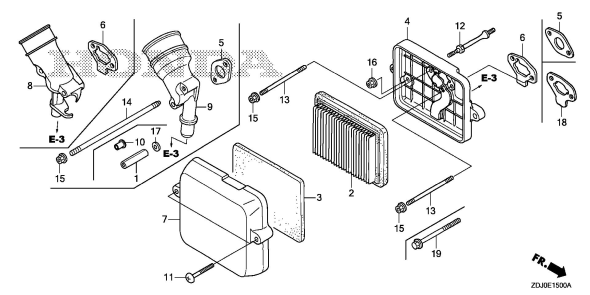

Filter (Outer) HON-17218-Z0D-000
...
5
Gasket, Air Cleaner HON-17228-Z0D-V01
...
7
Cover, Air Cleaner HON-17231-Z0D-010
...
9
Elbow, Air Cleaner HON-17410-Z4E-S31
...
14
Bolt, Stud (5X95) HON-90042-ZDJ-810
...
15
Nut, Flange (5Mm) HON-94050-05000

Honda GXR120RT KRW1

...
...
1

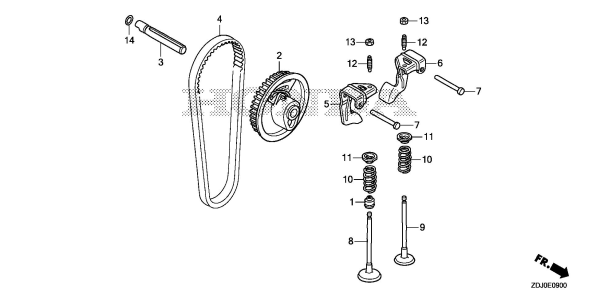

Seal, Valve Stem HON-12209-KT7-013
...
2
Pulley, Camshaft HON-14320-ZDD-000
...
3
Shaft, Cam Pulley HON-14324-Z0D-000
...
4
Belt, Timing (61Yu7 G-200) HON-14400-Z0D-003
...
5
Arm, In. Valve Rocker HON-14431-ZDD-000
...
6
Arm, Ex. Valve Rocker HON-14441-ZDD-000
...
7
Shaft, Rocker Arm HON-14461-ZL8-000
...
8
Valve, In. HON-14711-Z0D-000
...
9
Valve, Ex. HON-14721-Z0D-000
...
10
Spring, Valve HON-14751-Z0D-000
...
11
Retainer, Valve Spring HON-14771-ZDF-000
...
12
Screw, Tappet Adjusting HON-90012-333-000
...
13
Nut, Tappet Adjusting HON-90206-001-000
...
14
O-Ring (6.8X1.9) (Arai) HON-91301-ZM0-V31

Honda GXR120RT KRW1

...
...
1

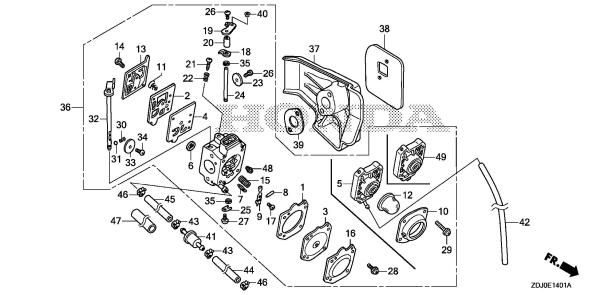

Gasket, Metering Diaphragm HON-16010-Z0D-V02
...
2
Gasket, Pump HON-16011-Z0D-V02
...
3
Diaphragm Assy., Metering HON-16013-Z4E-S44
...
4
Diaphragm, Pump HON-16014-Z0D-V02
...
6
Screen, Inlet HON-16018-ZM3-004
...
7
Valve, Inlet Needle HON-16019-ZM3-004
...
8
Pin, Metering Lever HON-16022-ZM3-014
...
9
Lever, Metering HON-16023-Z0D-V02
...
11
Spring, Pump HON-16030-ZM3-004
...
13
Cover, Pump HON-16040-Z4E-802
...
14
Screw HON-16041-Z0D-V02
...
15
Spring HON-16042-Z0D-V02
...
16
Cover, Metering Diaphragm HON-16043-Z0D-V02
...
17
Screw HON-16044-Z4E-802
...
18
Stopper, Throttle Lever HON-16045-Z0D-V02
...
19
Lever, Throttle HON-16046-Z0D-V73
...
20
Spacer, Throttle Lever HON-16048-Z0D-V02
...
21
Screw, Idle Adjusting HON-16049-Z4E-S12
...
22
Spring HON-16050-Z0D-V02
...
23
Valve, Throttle HON-16051-Z4E-S44
...
24
Shaft, Throttle HON-16052-Z0D-V02
...
25
Clip, Throttle Shaft HON-16053-Z0D-V02
...
26
Screw, Valve HON-16054-Z0D-V02
...
27
Screw Assy. HON-16055-Z0D-V02
...
28
Screw Assy. HON-16055-Z0D-V02
...
30
Spring HON-16056-Z0D-V02
...
31
Ball HON-16057-Z0D-V02
...
32
Shaft Assy., Choke HON-16058-Z0D-V72
...
33
Valve, Choke HON-16059-Z0D-V03
...
34
Screw HON-16060-Z0D-V02
...
35
Dust Seal HON-16061-Z0D-V02
...
36
Carburetor Assy. (Hda-332) HON-16100-ZDJ-842
...
37
Insulator, Carburetor HON-16211-ZDJ-000
...
38
Gasket, Insulator HON-16212-Z0D-V00
...
39
Gasket, Carburetor HON-16221-Z0D-V00
...
40
Collar, Lever HON-16552-896-650
...
48
Jet (#42) HON-99101-Z0D-0420
...
48
Jet (#44) HON-99101-Z0D-0440
...
48
Jet (#46) HON-99101-Z0D-0460

Honda GXR120RT KRW1

...
...
2

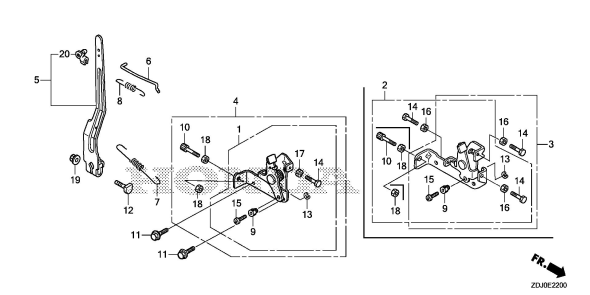

Control Assy. HON-16500-Z4E-S10
...
5
Arm, Governor HON-16550-Z0D-V01
...
6
Rod, Governor HON-16555-Z0D-V00
...
7
Spring, Governor HON-16561-ZDJ-000
...
8
Spring, Throttle Return HON-16562-ZDJ-000
...
9
Holder, Wire HON-16594-883-010
...
11
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
12
Bolt, Governor Arm HON-90015-Z5T-000
...
13
Circlip (5Mm) HON-90605-230-000
...
14
Bolt, Hex. (5X20) HON-92101-05020-0A
...
15
Screw, Pan (4X6) HON-93500-04006-0H
...
16
Nut, Hex. (5Mm) HON-94001-05000-0S
...
19
Nut, Flange (6Mm) HON-94050-06000
...
20
Joint, Rod HON-16263-883-W10

Honda GXR120RT KRW1

...
...
1

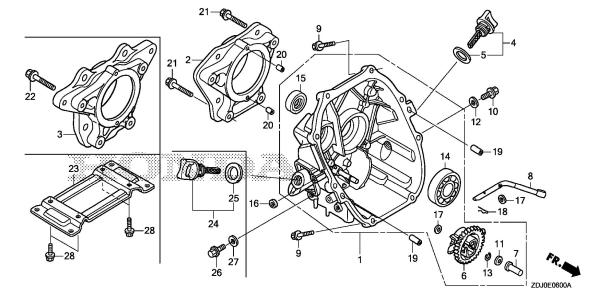

Cover Assy., Crankcase HON-11300-ZDJ-316
...
4
Cap Assy., Oil Filler HON-15600-Z3F-000
...
5
Gasket, Oil Filler Cap HON-15625-Z0T-800
...
6
Governor Assy. HON-16510-ZL8-000
...
7
Slider, Governor HON-16531-ZE1-000
...
8
Shaft, Governor Arm HON-16541-Z0D-000
...
9
Bolt, Flange (6X25) (Ct200) HON-90121-952-000
...
10
Bolt, Drain Plug HON-90131-ZE1-000
...
11
Washer, Thrust (6Mm) HON-90451-ZE1-000
...
12
Washer, Drain Plug (10.2Mm) HON-90601-ZE1-000
...
13
Clip, Governor Holder HON-90602-ZE1-000
...
14
Bearing, Radial Ball HON-91001-878-003
...
15
Oil Seal (22X41X6) HON-91203-ZE0-013
...
16
Oil Seal (6X11X4) (Arai) HON-91231-891-003
...
17
Washer, Plain (6Mm) HON-94101-06800
...
18
Pin, Lock (8Mm) HON-94251-08000
...
19
Pin, Dowel (8X20) HON-94301-08200

Honda GXR120RT KRW1

...
...

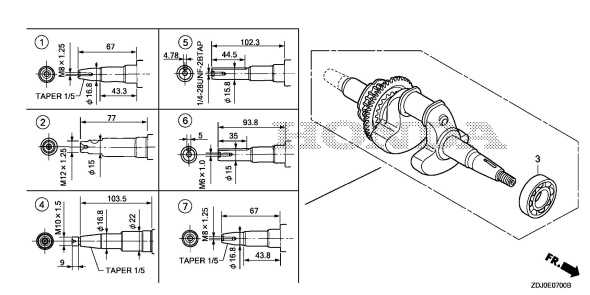

1
Crankshaft HON-13310-ZDJ-000
...
3
Bearing, Radial Ball (62/22) HON-91005-KS4-003

Honda GXR120RT KRW1

...
...
1

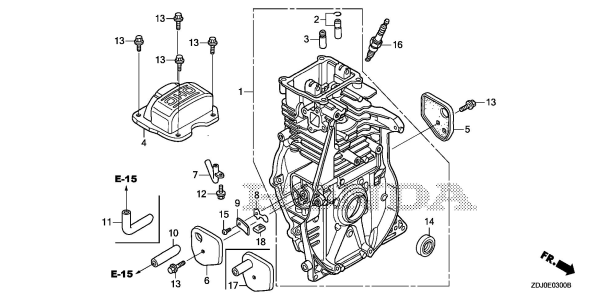

Cylinder Assy. HON-12000-ZDJ-305
...
4
Cover, Head HON-12311-Z0D-000
...
5
Cover A, Breather HON-12355-Z0D-000
...
7
Pipe, Breather HON-15171-Z0D-V00
...
8
Valve, Oil Outlet HON-15571-Z0D-V71
...
9
Plate, Stopper HON-15572-ZM7-000
...
11
Tube, Breather HON-15721-ZDD-R00
...
12
Bolt (4X10) HON-90008-ZM7-000
...
13
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
14
Oil Seal (22X35X6) HON-91202-ZE6-013
...
15
Screw, Pan (3X5) HON-93500-03005-0A
...
16
Spark Plug (U16Fsr-Ub) HON-98056-55777
...
16
Spark Plug (Cr5Hsb) HON-98056-55777
...
17
Cover B, Breather HON-12365-ZDD-R00

Honda GXR120RT KRW1

...
...
1

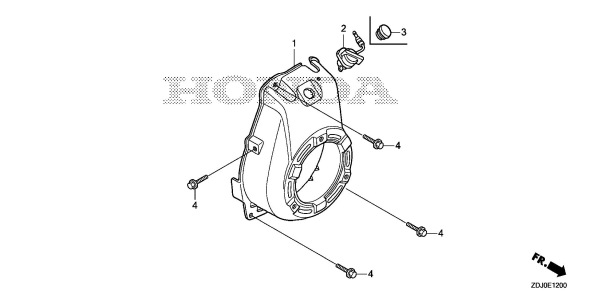

Cover, Fan *Nh1* (Black) HON-19610-Z4E-S11ZA
...
3
Grommet, Drain Hole HON-81329-567-020
...
4
Bolt, Flange (6X14) (Ct200) HON-90014-952-000

Honda GXR120RT KRW1

...
...
1

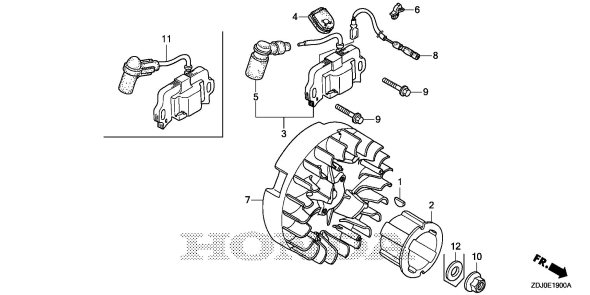

Key, Special Woodruff (25X18) HON-13331-Z8B-900
...
2
Pulley, Starter HON-28451-ZDJ-003
...
3
Coil Assy., Ignition HON-30500-Z0D-V02
...
4
Grommet, Wire HON-30564-ZA5-000
...
5
Terminal Assy., Ignition HON-30700-Z0D-V01
...
7
Flywheel HON-31110-ZDJ-003
...
9
Bolt, Flange (6X20) (Ct200) HON-90022-888-010
...
10
Nut, Special (14Mm) HON-90201-Z0T-800

Honda GXR120RT KRW1

...
...
5
Emblem HON-87521-ZDJ-010
...
8
Mark, Type (Krw1) HON-87601-ZDJ-VN0

Honda GXR120RT KRW1

...
...
1

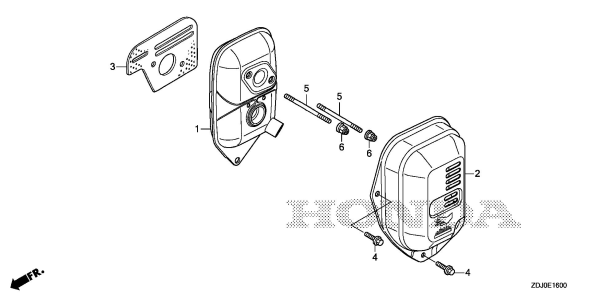

Muffler (Rammer) HON-18310-ZDJ-000
...
2
Protector, Muffler (Rammer) HON-18320-ZDJ-000
...
3
Gasket, Muffler HON-18381-Z0D-000
...
4
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
5
Bolt, Stud (6X56.5) HON-90048-ZDJ-000
...
6
Nut, Self-Lock (6Mm) HON-90343-ZE6-000

Honda GXR120RT KRW1

...
...
1

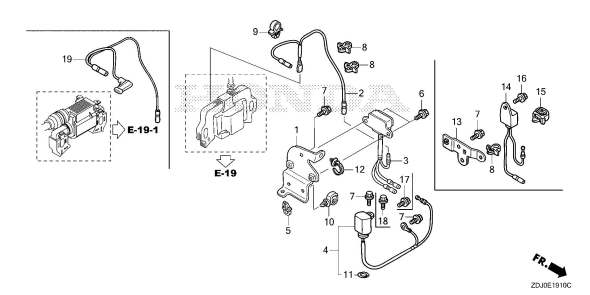

Bracket, Oil Alert Unit HON-32112-Z4E-S11
...
2
Wire, Stop Switch HON-32195-Z4E-S10
...
3
Alert Unit, Oil (Start Led) HON-34150-Z4E-801
...
4
Switch Assy., Oil Level HON-35480-Z4E-S11
...
5
Holder, Stop Switch Wire HON-36103-ZE1-000
...
6
Bolt, Flange (5X8) HON-90002-MC7-000
...
7
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
8
Clip A, Cable (3.8Mm Black) (Nifco) HON-90681-959-003
...
9
Clip B, Cable (9Mm Black) HON-90682-959-661
...
10
Clip, Wire Harness (25Mm) HON-90683-SA0-003
...
11
O-Ring (11.8X2.4) HON-91302-ZL8-003
...
12
Clip, Harness Band (151.5Mm) (Natural) HON-91540-S30-003
...
17
Bolt, Flange (6X12) (Ct200) HON-90013-883-000
...
18
Bolt, Flange (6X14) HON-95701-06014-00

Honda GXR120RT KRW1

...
...
6

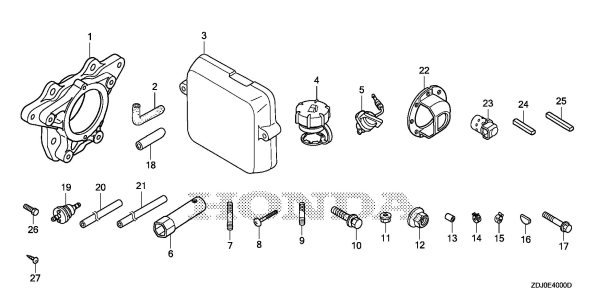

Wrench, Spark Plug HON-89216-045-010

Honda GXR120RT KRW1

...
...
2

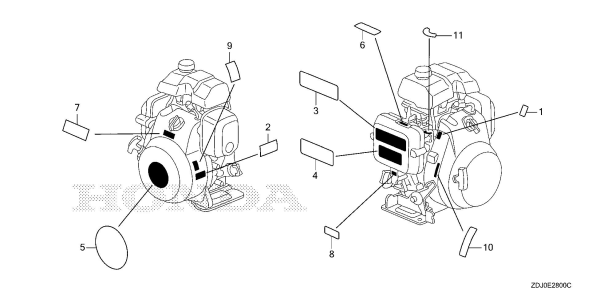

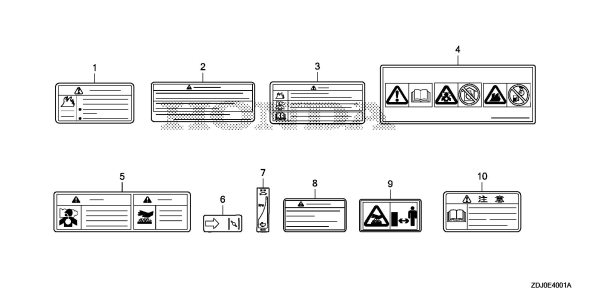

Mark, Operator Caution (English) HON-87516-ZDD-010
...
2
Mark, Operator Caution (French) HON-87516-ZDD-801
...
4
Mark, Operator Caution (Pictograph) HON-87519-ZDD-010
...
6
Mark, Choke Indication HON-87528-Z0D-000
...
8
Mark, Ex. Caution (English) HON-87539-Z4M-000
...
8
Mark, Ex. Caution (French) HON-87539-Z4M-810
...
9
Mark, Ex. Caution (Pictograph) HON-87539-Z4M-800

Honda GXR120RT KRW1

...
...
1

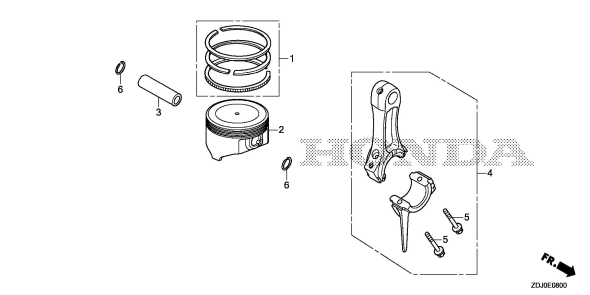

Ring Set, Piston (Std) (Nippon) HON-13010-ZDJ-D01
...
2
Piston HON-13101-ZDJ-D00
...
3
Pin, Piston HON-13111-ZE0-000
...
4
Rod Assy., Connecting HON-13200-ZDJ-900
...
5
Bolt, Connecting Rod (6X32) HON-90001-ZDJ-000
...
6
Clip, Piston Pin (13Mm) HON-90551-ZE0-000

Honda GXR120RT KRW1

...
...

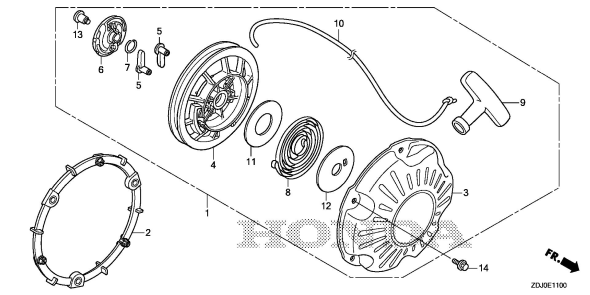

1
Starter Assy., Recoil *Nh1* (Black) HON-28400-ZDJ-003ZB
...
2
Spacer, Recoil Starter Mounting HON-28405-ZDJ-000
...
3
Case, Recoil Starter *Nh1* (Black) HON-28410-ZDJ-003ZB
...
4
Reel, Recoil Starter (Black) HON-28421-ZDD-003
...
5
Ratchet, Starter HON-28422-ZG0-W02
...
6
Guide, Ratchet HON-28433-ZG0-W02
...
7
Spring, Friction HON-28441-ZW6-003
...
8
Spring, Recoil Starter HON-28442-ZH8-003
...
9
Knob, Recoil Starter HON-28461-ZDD-003
...
10
Rope, Recoil Starter HON-28462-Z0D-V03
...
11
Plate, Side HON-28467-Z0D-V02
...
12
Plate, Slide HON-28468-Z0D-V02
...
13
Screw, Setting HON-90003-ZH8-003
...
14
Bolt, Flange (6X14) HON-95701-06014-00
