Honda GXE2.0S V2 Engine

Model: GXE2.0S V2

Save Part Not Listed?
product name

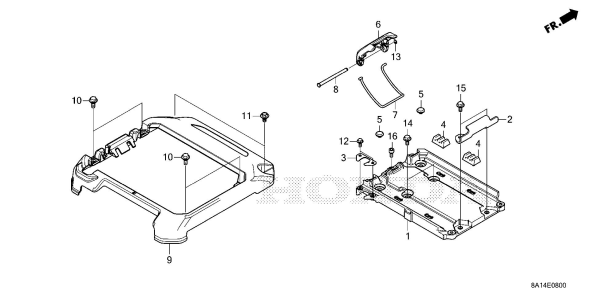

Honda GXE2.0S V2

...
...
1
Tray, Battery HON-60105-8A0-000
...
2
Hook, Battery HON-60107-8A0-000
...
3
Stay, Connector HON-60123-8A0-600
...
4
Rubber, Battery Mounting HON-60801-8A0-000
...
5
Cap, Hole (8Mm) HON-60806-8A0-600
...
6
Lever, Fastener *Nh283* (Stin Gray) HON-60902-8A0-000ZA
...
7
Wire, Fastener HON-60903-8A0-000
...
8
Pin, Lock Lever HON-60904-8A0-000
...
9
Cover, Battery Tray *R280* (Power Red) HON-61105-8A0-800ZA
...
9
Cover, Battery Tray *Nh1* (Black) HON-61105-8A0-800ZB
...
10
Bolt, Special (6X16) HON-90002-8A0-000
...
11
Bolt, Special (6X12) HON-90006-8A0-000
...
12
Bolt, Flange (5X12) HON-90007-892-000
...
13
E-Ring (4Mm) HON-94540-04018
...
14
Bolt, Flange (8X16) HON-95701-08016-08
...
15
Bolt, Flange (8X20) HON-95701-08020-08
...
16
Bolt, Socket (6X12) HON-96600-06012-08

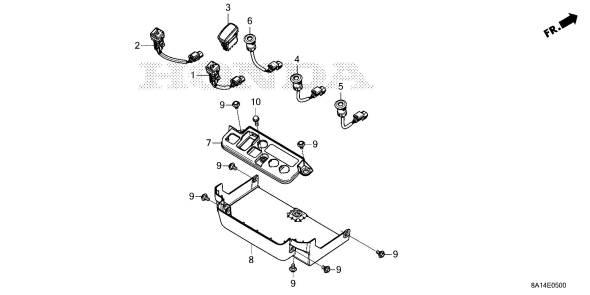

Honda GXE2.0S V2

...
...
1
Switch Assy., Power HON-1N311-8A0-003
...
2
Switch Assy., Speed HON-1N313-8A0-003
...
3
Switch Assy., Start HON-1N330-8A0-003
...
4
Lamp Assy., Indicator (Orange) HON-1N421-8A0-003
...
5
Lamp Assy., Indicator (Red) HON-1N422-8A0-003
...
6
Lamp Assy., Indicator (Green) HON-1N423-8A0-003
...
7
Cover, Control *Nh1* (Black) HON-1N451-8A0-800ZA
...
8
Cover, Pdu *Nh1* (Black) HON-61103-8A0-800ZA
...
9
Bolt, Special (6X12) HON-90006-8A0-000
...
10
Bolt, Flange (6X20) HON-95701-06020-07

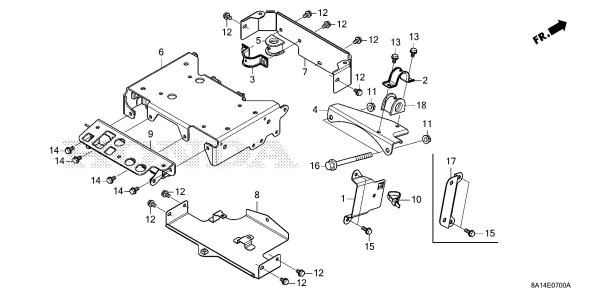

Honda GXE2.0S V2

...
...
1
Stay, Motor Harness HON-1F080-8A0-800
...
2
Holder A, Harness Grommet HON-1F081-8A0-800
...
3
Holder B, Harness Grommet HON-1F082-8A0-800
...
4
Stay, Motor Bracket HON-1F085-8A0-800
...
5
Grommet, Harness HON-1F920-8A0-800
...
6
Frame HON-60110-8A0-800
...
7
Frame, Fr. HON-60112-8A0-800
...
8
Frame (Lower) HON-60113-8A0-800
...
9
Base, Control HON-60116-8A0-800
...
10
Band, Harness HON-91560-8A0-000
...
11
Nut, Flange (8Mm) HON-94050-08080
...
12
Bolt, Flange (6X10) HON-95701-06010-07
...
13
Bolt, Flange (6X10) HON-95701-06010-08
...
14
Bolt, Flange (6X12) HON-95701-06012-08
...
15
Bolt, Flange (6X14) HON-95701-06014-08
...
16
Bolt, Flange (8X125) HON-95701-08125-07
...
18
Grommet, Harness HON-1F920-8A0-800

Honda GXE2.0S V2

...
...

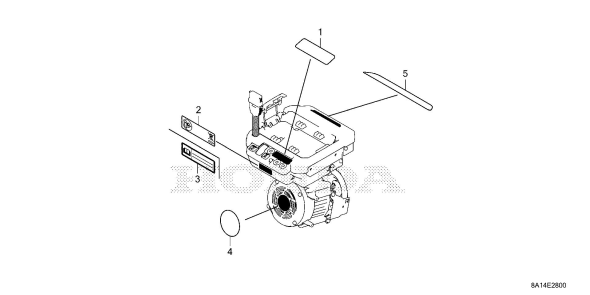

1
Mark, Led Indication HON-87237-8A0-800
...
2
Mark, Operator Caution (Eu) HON-87516-8A0-600
...
4
Mark, Emblem HON-87521-8A0-800
...
5
Mark, Electric Power HON-87523-8A0-800

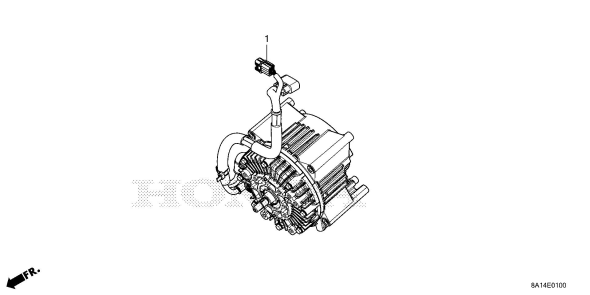

Honda GXE2.0S V2

...
...
1
Motor Assy. (V-Type) HON-1A100-8A0-PB0

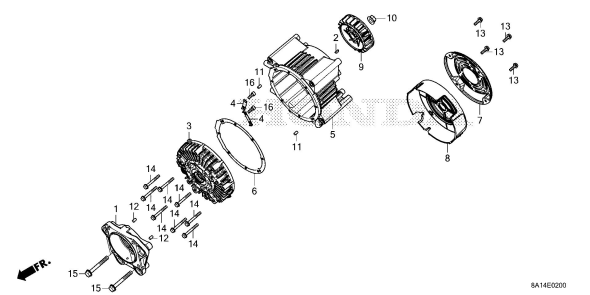

Honda GXE2.0S V2

...
...
2
Key, Special Woodruff (13X12) HON-13331-8A0-000
...
3
Housing, Motor (P.T.O. Side) HON-1A110-8A0-000
...
4
Stay, Motor Harness HON-1A113-8A0-000
...
5
Housing, Motor (Fan Side) HON-1A120-8A0-000
...
6
Paking, Housing HON-1A381-8A0-000
...
7
Cover, Top *R280* (Power Red) HON-1A602-8A0-800ZA
...
7
Cover, Top *Nh1* (Black) HON-1A602-8A0-800ZB
...
8
Cover, Fan *Nh1* (Black) HON-1A610-8A0-800ZA
...
9
Fan, Cooling HON-1A702-8A0-000
...
10
Nut, Flange (12Mm) HON-94050-12080
...
11
Pin B, Dowel (6X10) HON-94302-06100
...
13
Bolt, Flange (6X20) HON-95701-06020-07
...
14
Bolt, Flange (6X50) HON-95701-06050-08
...
16
Bolt, Socket (6X16) HON-96600-06016-08

Honda GXE2.0S V2

...
...
1
Cord Kit, Pc HON-06301-8A0-000
...
2
Switch Assy., Power HON-1N311-8A0-003
...
3
Terminator Assy. HON-32107-ZVL-003
...
4
Wire, Pc (F) HON-32135-8A0-PA0
...
6
Mark, Operator Caution (E) HON-87516-8A0-620

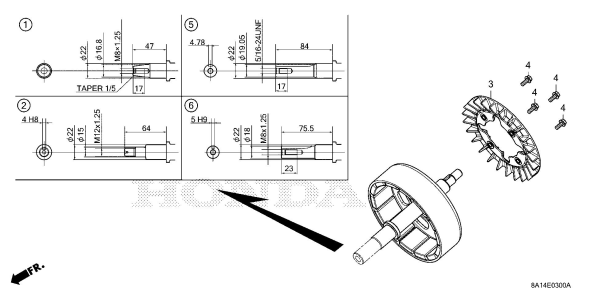

Honda GXE2.0S V2

...
...
1
Rotor (V-Type) HON-1A300-8A0-800
...
3
Fan, Rotor HON-1A710-8A0-000
...
4
Bolt, Flange (5X12) HON-90007-892-000

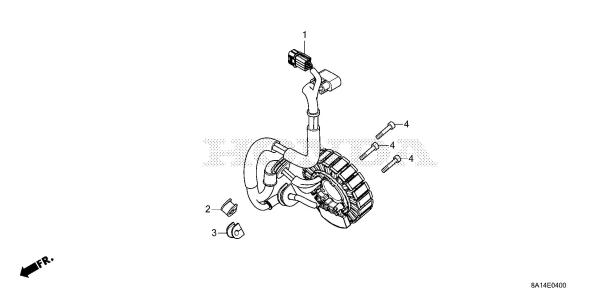

Honda GXE2.0S V2

...
...
1
Stator Assy. HON-1A240-8A0-811
...
2
Grommet, Motor Harness (Inner) HON-1A915-8A0-000
...
3
Grommet, Sensor Harness (Inner) HON-1A916-8A0-000
...
4
Bolt, Socket (6X40) HON-96600-06040-08

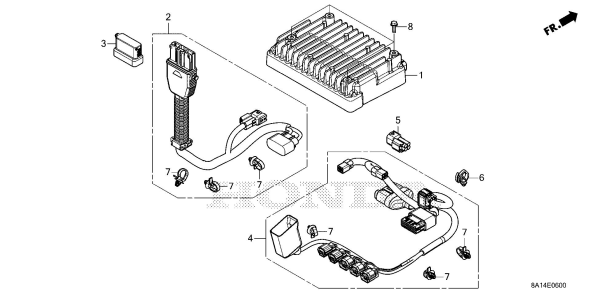

Honda GXE2.0S V2

...
...
1
Pdu Assy. (Js) HON-1B100-8A0-801
...
2
Cable Assy., Power HON-1F100-8A0-800
...
3
Cap, Battery Connector HON-1F512-8A0-000
...
4
Wire Harness Assy., Main HON-1N500-8A0-800
...
5
Connector, Dummy (4P) HON-32174-VP7-000
...
6
Clip, Harness HON-90691-ZB7-003
...
7
Clip, Harness Band (145Mm) (Black) HON-91541-S0A-003
...
8
Bolt, Flange (6X16) HON-95701-06016-08
