product name

Honda GXE2.0H S5 Engine

Model: GXE2.0H S5

Save Part Not Listed?
product name

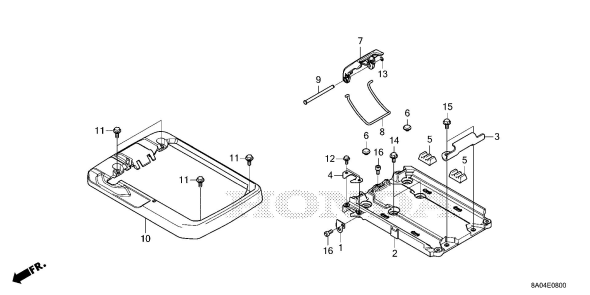

Honda GXE2.0H S5

...
...
1
Bracket A, Harness Clip HON-1F222-8A0-600
...
2
Tray, Battery HON-60105-8A0-000
...
3
Hook, Battery HON-60107-8A0-000
...
4
Stay, Connector HON-60123-8A0-600
...
5
Rubber, Battery Mounting HON-60801-8A0-000
...
6
Cap, Hole (8Mm) HON-60806-8A0-600
...
7
Lever, Fastener *Nh283* (Stin Gray) HON-60902-8A0-000ZA
...
8
Wire, Fastener HON-60903-8A0-000
...
9
Pin, Lock Lever HON-60904-8A0-000
...
10
Cover, Battery Tray *R280* (Power Red) HON-61105-8A0-600ZA
...
10
Cover, Battery Tray *Nh1* (Black) HON-61105-8A0-600ZB
...
11
Bolt, Special (6X16) HON-90002-8A0-000
...
12
Bolt, Flange (5X12) HON-90007-892-000
...
13
E-Ring (4Mm) HON-94540-04018
...
14
Bolt, Flange (8X16) HON-95701-08016-08
...
15
Bolt, Flange (8X20) HON-95701-08020-08
...
16
Bolt, Socket (6X12) HON-96600-06012-08

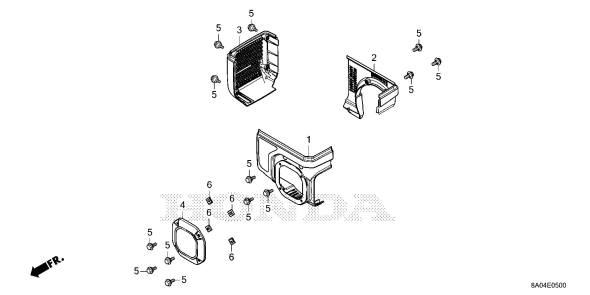

Honda GXE2.0H S5

...
...
1
Cover, Fr. *Nh1* (Black) HON-61101-8A0-600ZA
...
2
Cover, Rr. *Nh1* (Black) HON-61102-8A0-600ZA
...
3
Cover, Pdu *Nh1* (Black) HON-61103-8A0-600ZA
...
4
Cover, Top *R280* (Power Red) HON-61104-8A0-600ZA
...
4
Cover, Top *Nh1* (Black) HON-61104-8A0-600ZB
...
5
Bolt, Special (6X12) HON-90006-8A0-000
...
6
Nut, Spring (6Mm) HON-90320-747-000

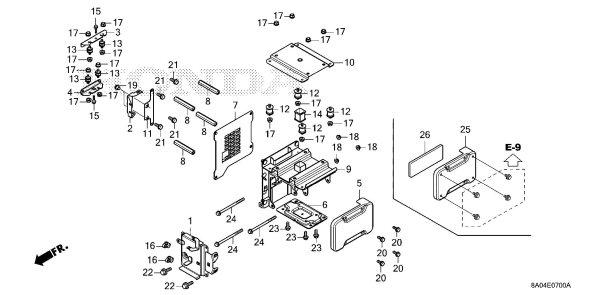

Honda GXE2.0H S5

...
...
1
Bracket A, Harness HON-1F210-8A0-600
...
2
Bracket B, Harness HON-1F221-8A0-600
...
3
Stay A, Pdu HON-60102-8A0-600
...
4
Stay B, Pdu HON-60103-8A0-600
...
6
Base, Motor *Nh105* (Mat Black) HON-60106-8A0-600ZA
...
7
Stay C, Pdu HON-60108-8A0-600
...
8
Collar, Special HON-60109-8A0-600
...
9
Frame HON-60110-8A0-600
...
10
Frame, Battery HON-60121-8A0-600
...
11
Stay, Bracket HON-60122-8A0-600
...
12
Rubber, Battery Mount HON-60811-8A0-600
...
13
Rubber, Mount HON-60820-8A0-600
...
14
Rubber A, Stopper HON-60831-8A0-600
...
15
Bolt, Stopper (6X25) HON-90001-8A0-000
...
16
Clip, Harness Band (145Mm) (Black) HON-91541-S0A-003
...
17
Nut, Flange (6Mm) HON-94050-06000
...
18
Nut, Flange (8Mm) HON-94050-08080
...
19
Bolt, Flange (6X10) HON-95701-06010-08
...
20
Bolt, Flange (6X16) HON-95701-06016-07
...
21
Bolt, Flange (6X16) HON-95701-06016-08
...
22
Bolt, Flange (6X20) HON-95701-06020-08
...
23
Bolt, Flange (8X20) HON-95701-08020-08
...
24
Bolt, Flange (8X125) HON-95701-08125-07
...
25
Frame, Side *Nh1* (Black) HON-60104-8A0-610ZA
...
26
Sheet, Silent HON-60802-8A0-610

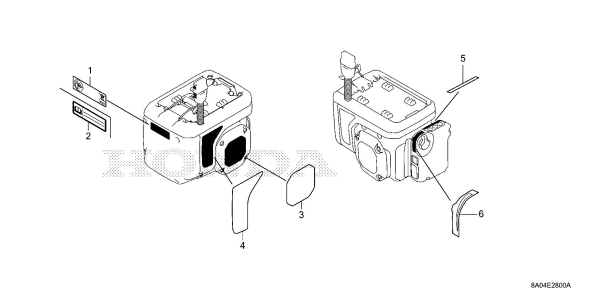

Honda GXE2.0H S5

...
...
2
Mark, Operator Caution (J) HON-87516-8A0-610
...
3
Mark, Emblem HON-87521-8A0-600
...
4
Mark, Electric Power HON-87523-8A0-600

Honda GXE2.0H S5

...
...

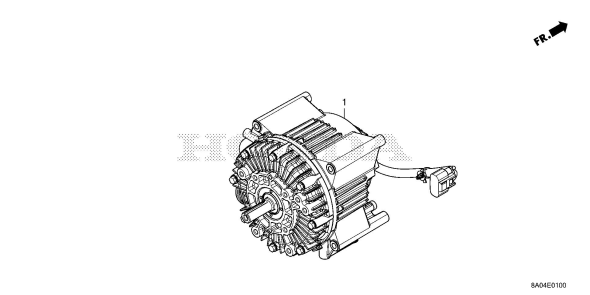

1
Motor Assy. (S-Type) HON-1A100-8A0-PC0

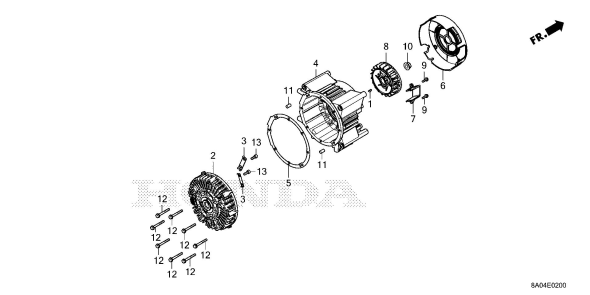

Honda GXE2.0H S5

...
...
1
Key, Special Woodruff (13X12) HON-13331-8A0-000
...
2
Housing, Motor (P.T.O. Side) HON-1A110-8A0-000
...
3
Stay, Motor Harness HON-1A113-8A0-000
...
4
Housing, Motor (Fan Side) HON-1A120-8A0-000
...
5
Paking, Housing HON-1A381-8A0-000
...
6
Cover, Fan *Nh1* (Black) HON-1A610-8A0-600ZA
...
7
Duct, Air HON-1A620-8A0-600
...
8
Fan, Cooling HON-1A702-8A0-000
...
9
Bolt, Flange (5X16) HON-90005-896-000
...
10
Nut, Flange (12Mm) HON-94050-12080
...
11
Pin B, Dowel (6X10) HON-94302-06100
...
12
Bolt, Flange (6X50) HON-95701-06050-08
...
13
Bolt, Socket (6X16) HON-96600-06016-08

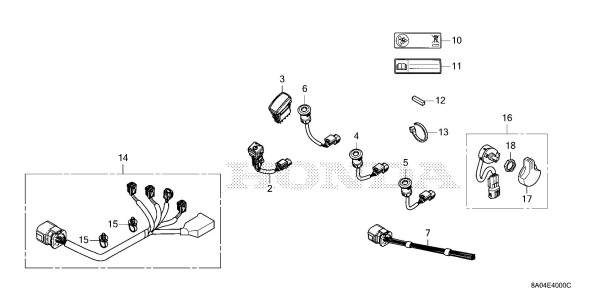

Honda GXE2.0H S5

...
...
2
Switch Assy., Power HON-1N311-8A0-003
...
3
Switch Assy., Start HON-1N330-8A0-003
...
4
Lamp Assy., Indicator (Orange) HON-1N421-8A0-003
...
5
Lamp Assy., Indicator (Red) HON-1N422-8A0-003
...
6
Lamp Assy., Indicator (Green) HON-1N423-8A0-003
...
7
Wire Harness Assy., Control HON-1N550-8A0-620
...
10
Mark, Operator Caution (Eu) HON-87516-8A0-600
...
11
Mark, Operator Caution (E) HON-87516-8A0-620
...
12
Key (5X5X33) (Yellow) HON-90741-883-810
...
16
Volume Assy., Speed HON-1N440-8A0-003
...
17
Knob HON-35571-ZDX-003
...
18
Nut HON-35572-Z2E-004

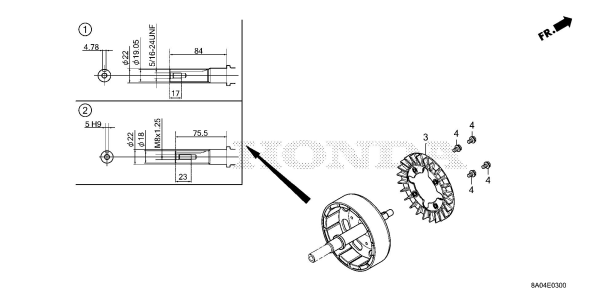

Honda GXE2.0H S5

...
...
2
Rotor (S-Type) HON-1A300-8A0-610
...
3
Fan, Rotor HON-1A710-8A0-000
...
4
Bolt, Flange (5X12) HON-90007-892-000

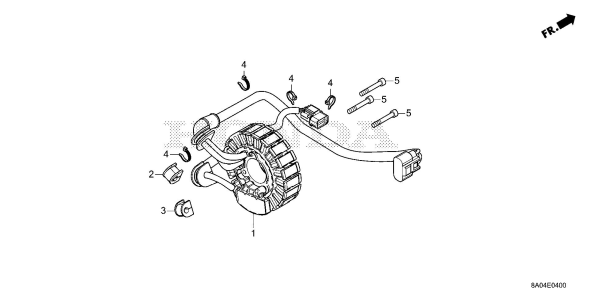

Honda GXE2.0H S5

...
...
1
Stator Assy. HON-1A240-8A0-601
...
2
Grommet, Motor Harness (Inner) HON-1A915-8A0-000
...
3
Grommet, Sensor Harness (Inner) HON-1A916-8A0-000
...
4
Band (Black 3.5X140) HON-35701-MG9-950
...
5
Bolt, Socket (6X40) HON-96600-06040-08

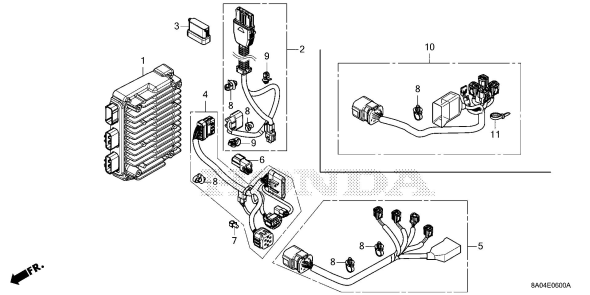

Honda GXE2.0H S5

...
...
1
Pdu Assy. HON-1B100-8A1-611
...
2
Cable Assy., Power HON-1F100-8A0-600
...
3
Cap, Battery Connector HON-1F512-8A0-000
...
4
Wire Harness Assy., Main HON-1N500-8A0-610
...
6
Connector, Dummy (4P) HON-32174-VP7-000
...
7
Clip, Brake Pipe (A) HON-46391-VM0-003
...
8
Clip, Harness Band (145Mm) (Black) HON-91541-S0A-003
...
9
Clip, Harness Band (164.5Mm) (Dark Blue) HON-91542-SNA-003
