Honda EU3200I AC - EBKJ 1000001-9999999 Power Equipment

Model: EU3200I AC - EBKJ 1000001-9999999

Save Part Not Listed?
product name

Honda EU3200I AC - EBKJ 1000001-9999999

...
...

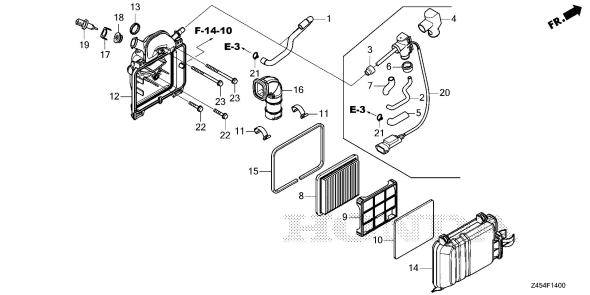

1
Tube, Breather HON-15721-Z45-000
...
8
Element, Air Cleaner HON-17211-ZS9-A02
...
9
Grid, Air Cleaner HON-17212-Z2A-010
...
10
Filter (Outer) HON-17218-Z45-000
...
11
Clip, Air Cleaner HON-17219-Z45-300
...
12
Housing, Air Cleaner HON-17220-Z45-000
...
13
O-Ring, Air Cleaner HON-17228-Z45-000
...
14
Cover, Air Cleaner HON-17230-Z45-000
...
15
Seal, Cover Air Cleaner Housing HON-17233-Z45-000
...
16
Tube, Air Cleaner HON-17251-Z45-000
...
17
Clip, Temperature Sensor Setting HON-18342-YM2-000
...
18
Grommet, Temperature Sensor HON-18343-YM2-000
...
19
Sensor Assy., Temperature HON-35673-YR2-003
...
21
Clamp B, Tube (12.5Mm) HON-90661-GHB-610
...
22
Bolt, Flange (6X32) HON-95701-06032-08
...
23
Bolt, Flange (6X90) HON-95801-06090-08

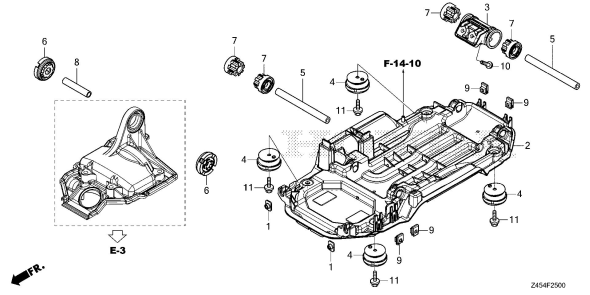

Honda EU3200I AC - EBKJ 1000001-9999999

...
...
1
Nut, Special (6Mm) HON-61304-HB3-003
...
2
Frame, Base HON-63710-Z45-000
...
3
Bracket, Engine Mount HON-68322-Z45-000
...
4
Mount (Lower) HON-68325-Z45-000
...
5
Collar A, Insulator HON-68333-Z45-000
...
6
Mount, Engine (Upper) HON-68335-Z45-000
...
7
Mount, Engine (Lower) HON-68338-Z45-000
...
8
Collar B, Insulator HON-68339-Z45-000
...
9
Nut, Fender Setting HON-84601-HA7-670
...
10
Bolt, Flange (6X25) (Ct200) HON-90121-952-000
...
11
Bolt, Flange (6X10) HON-95701-06010-08

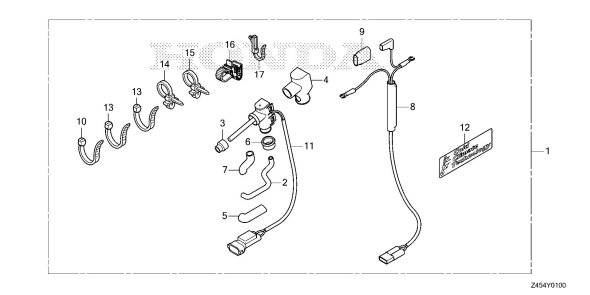

Honda EU3200I AC - EBKJ 1000001-9999999

...
...
1
Heater Kit, Breather HON-06390-Z45-A30
...
2
Tube, Breather HON-15721-Z45-A40
...
3
Tube B, Breather HON-15722-ZS9-T40
...
4
Insulator, Breather Heater HON-15723-Z45-A40
...
5
Insulator A, Breather Tube HON-15724-Z45-A40
...
6
Tube C, Breather HON-15725-Z28-C40
...
7
Insulator B, Breather Tube HON-15726-Z45-A40
...
8
Sub-Wire Assy. HON-32198-Z45-A40
...
9
Tube, Pvc (16X30) HON-32349-Z45-PA0
...
10
Tie, Cable (C) HON-32903-Z22-000
...
11
Heater Assy., Breather (L) HON-39310-Z45-A41
...
12
Mark (Cct) HON-87603-Z07-R10
...
13
Band, Wire Harness HON-90652-ZY9-003
...
14
Band, Wire Harness (150Mm) (Blue) HON-90676-SA8-003
...
15
Clip, Harness Band (145Mm) (Black) HON-91541-S0A-003
...
16
Clip, Harness Band (140.3Mm) (Black) HON-91549-TA0-003
...
17
Band, Harness Offset (10) (122.5Mm) (Blue)(W/Seal) HON-91577-SFE-003

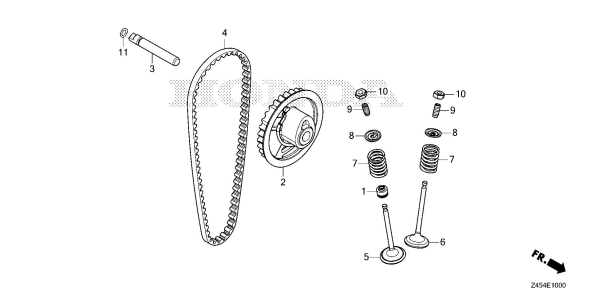

Honda EU3200I AC - EBKJ 1000001-9999999

...
...
1
Seal, Valve Stem HON-12209-KT7-013
...
2
Pulley, Camshaft HON-14320-ZDY-000
...
3
Shaft, Cam Pulley HON-14324-ZDY-000
...
4
Belt, Timing (67Yu7 G-200) HON-14400-ZDY-003
...
5
Valve, In. HON-14711-ZDY-000
...
6
Valve, Ex. HON-14721-ZDY-000
...
7
Spring, Valve HON-14751-ZDY-000
...
8
Retainer, Valve Spring HON-14771-ZDF-000
...
9
Screw, Tappet Adjusting HON-90017-ZDY-000
...
10
Nut, Tappet Adjusting HON-90206-001-000
...
11
O-Ring (6.8X1.9) (Arai) HON-91301-ZM0-V31

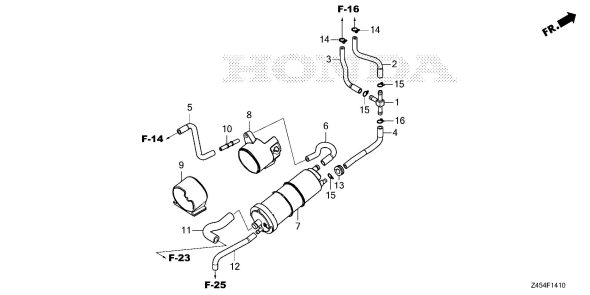

Honda EU3200I AC - EBKJ 1000001-9999999

...
...
1
Pipe, Three Way Joint HON-16960-ME9-000
...
2
Tube A, Canister Charge HON-17303-Z45-000
...
3
Tube B, Canister Charge HON-17304-Z45-000
...
4
Tube C, Canister Charge HON-17306-Z45-000
...
5
Tube A, Canister Purge HON-17308-Z45-000
...
6
Tube B, Canister Purge HON-17309-Z45-000
...
7
Canister HON-17310-Z45-A32
...
8
Rubber A, Canister HON-17311-Z45-000
...
9
Rubber B, Canister HON-17312-Z45-000
...
10
Joint, Tube HON-17313-Z45-000
...
11
Tube, Canister Air HON-17322-Z45-000
...
12
Tube, Canister Drain HON-17323-Z45-000
...
13
Rubber, Tube Mount HON-18357-MKH-D00
...
14
Clip, Tube (B7) HON-95002-02070
...
15
Clip, Tube (B8) HON-95002-02080
...
16
Clip, Tube (C9) HON-95002-50000

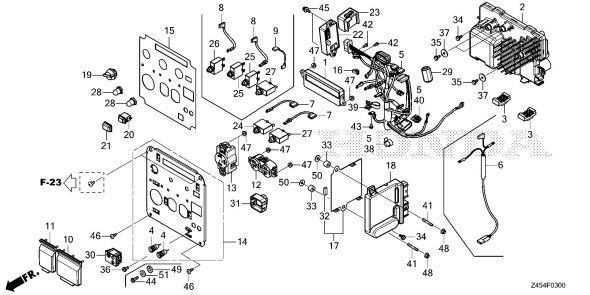

Honda EU3200I AC - EBKJ 1000001-9999999

...
...
1
Indicator Unit Kit (Bluetooth) HON-06371-Z45-020
...
2
Inverter Unit HON-31310-Z45-A32
...
3
Rubber, Inverter HON-31312-Z45-000
...
4
Socket, Composite HON-32139-Z07-C00
...
5
Wire Harness Assy., Control HON-32150-Z45-A30
...
7
Wire, Terminal HON-32221-Z45-A30
...
10
Cover, Receptacle (20A) HON-32320-Z45-A30
...
11
Cover, Receptacle (30A) HON-32325-Z45-A30
...
12
Receptacle (20A/125V) (Matsushita) HON-32330-Z07-C30
...
12
Receptacle (20A/125V) (Leviton) HON-32330-Z21-A31
...
13
Receptacle (30A/125V) HON-32332-ZB4-630
...
13
Receptacle (30A-125V) (Leviton) HON-32332-Z22-E31
...
14
Panel, Control HON-32345-Z45-A30
...
15
Mark, Control Panel HON-32366-Z45-A30
...
16
Tie, Cable (C) HON-32903-Z22-000
...
17
Cover, Electronic Control Unit HON-34740-Z45-000
...
18
Control Unit, Electronic HON-34750-Z45-A31
...
19
Switch Assy., Engine Stop HON-35120-Z45-A31
...
20
Switch, Idle Control HON-35340-Z45-003
...
21
Cap, Idle Control Switch HON-35341-Z45-000
...
22
Sensing Unit HON-35610-Z45-PA0
...
23
Cover, Sensing Unit Proof (Co) HON-35611-Z45-000
...
24
Protector, Circuit (20A) (Black)(Joemex) HON-38240-Z07-T20
...
27
Protector, Circuit (30A) (Black) HON-38241-Z39-D40
...
28
Cover, Circuit Protector HON-38242-Z25-A62
...
29
Filter, Sub Noise HON-38398-Z45-A30
...
30
Led Assy., Indicater HON-38530-Z22-D31
...
31
Cover, Led Indicator Proof HON-38531-Z45-000
...
32
Seal A, L. Side Panel HON-63158-Z45-000
...
33
Collar, Fr. Panel HON-63512-Z45-000
...
34
Bolt, Flange (5X10) HON-90002-892-000
...
35
Bolt, Flange (5X12) HON-90101-P4V-010
...
36
Screw, Pan (5X12) HON-90102-Z21-000
...
37
Washer, Plain (20Mm) HON-90581-310-000
...
38
Band, Wire Harness HON-90651-MA6-720
...
39
Band, Wire Harness (150Mm) (Blue) HON-90676-SA8-003
...
40
Clip, Connector (Dark Brown) HON-91535-TA0-003
...
42
Screw, Pan (3X8) HON-93500-03008-3J
...
43
Screw, Pan (5X8) HON-93500-05008-3J
...
45
Screw-Washer (5X14) HON-93891-05014-08
...
46
Screw, Tapping (5X16) (Po) HON-93913-25480
...
47
Nut, Flange (4Mm) HON-94050-04000
...
48
Nut, Flange (5Mm) HON-94050-05080
...
50
Washer, Plain (5Mm) HON-94103-05800

Honda EU3200I AC - EBKJ 1000001-9999999

...
...

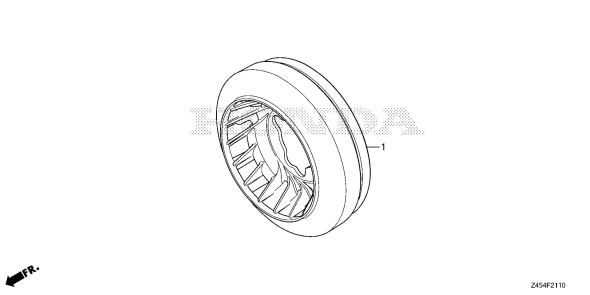

1
Fan, Cooling HON-19511-Z45-000

Honda EU3200I AC - EBKJ 1000001-9999999

...
...

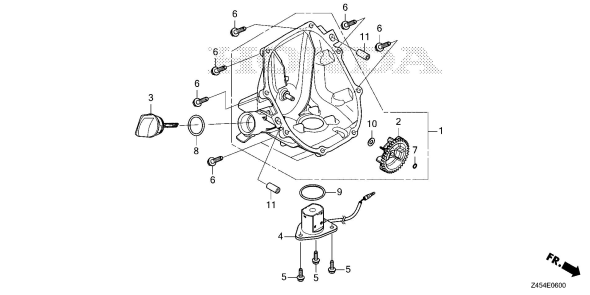

1
Cover Assy., Crankcase HON-11300-ZDY-405
...
2
Slinger, Oil HON-15361-ZDY-000
...
3
Cap, Oil Filler HON-15620-ZDY-000
...
4
Switch Assy., Oil Level HON-35480-ZDY-003
...
5
Bolt, Flange (5X14) (Ct200) HON-90012-ZM3-U30
...
6
Bolt, Flange (6X25) (Ct200) HON-90121-952-000
...
7
Clip, Governor Holder HON-90602-ZE1-000
...
8
O-Ring (25.5X3) HON-91301-ZDJ-D00
...
9
O-Ring (34.6X2.5) HON-91301-ZM7-003
...
10
Washer, Plain (6Mm) HON-94101-06800
...
11
Pin, Dowel (8X20) HON-94301-08200

Honda EU3200I AC - EBKJ 1000001-9999999

...
...

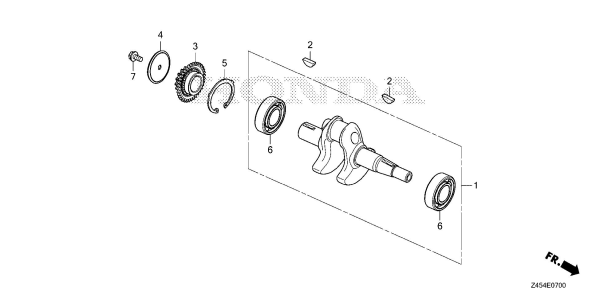

1
Crankshaft HON-13310-ZDY-000
...
2
Key, Special Woodruff (25X18) HON-13331-Z8B-900
...
3
Pulley, Timing Belt Driven HON-13620-ZDY-000
...
4
Guide, Timing Belt Drive HON-13625-ZDY-000
...
5
Circlip (Inner) (47) HON-90601-ZDY-000
...
6
Bearing, Radial Ball (6204) HON-91001-ZDY-003
...
7
Bolt, Flange (6X12) HON-95701-06012-00

Honda EU3200I AC - EBKJ 1000001-9999999

...
...

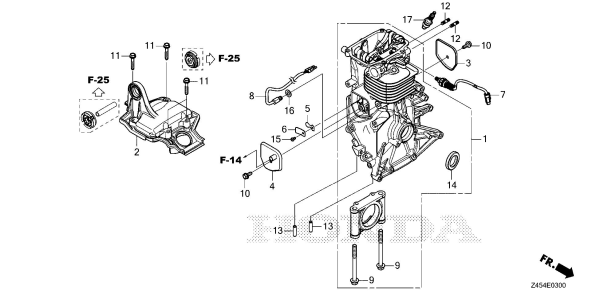

1
Cylinder Assy. HON-12000-ZDY-415
...
2
Cover, Head HON-12311-ZDY-000
...
3
Cover A, Breather HON-12355-ZDJ-D00
...
4
Cover B, Breather HON-12365-ZDY-000
...
5
Valve, Oil Outlet HON-15571-ZM7-003
...
6
Plate, Stopper HON-15572-ZM7-000
...
7
Sensor, Oxygen HON-35655-ZDY-D01
...
8
Sensor Assy., Temperature HON-35673-ZDY-A31
...
9
Bolt, Flange (8X90) HON-90003-ZDY-000
...
10
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
11
Bolt, Flange (6X32) (Ct200) HON-90017-883-000
...
12
Bolt, Stud (6X18) (Ct200) HON-90043-ZDY-000
...
13
Pin, Dowel (6X22.5) HON-90701-ZDY-000
...
14
Oil Seal (22X35X6) HON-91202-ZE6-013
...
15
Screw, Pan (3X5) HON-93500-03005-0A
...
16
Washer, Plain (8Mm) HON-94102-08800
...
17
Spark Plug (Cr6Hsb) HON-98056-56777

Honda EU3200I AC - EBKJ 1000001-9999999

...
...
1
Grommet, Oxygen Sensor HON-15521-Z45-000
...
2
Grommet, Temperature Sensor HON-15522-Z45-000
...
3
Cover, Fan HON-19611-Z45-405
...
4
Seal, Fan Cover HON-19613-Z45-000
...
5
Collar, Fan Cover HON-19619-Z45-300
...
6
Shroud Assy., R. HON-19630-Z45-000
...
7
Seal A, Shroud (Upper) HON-19636-Z45-000
...
8
Seal B, Shroud (Upper) HON-19637-Z45-000
...
9
Shroud Assy., L. HON-19640-Z45-000
...
10
Seal, L. Shroud HON-19646-Z45-000
...
11
Insulator, R. Shroud HON-19653-Z45-000
...
12
Insulator, L. Shroud HON-19657-Z45-000
...
13
Bracket, Harness Clip HON-32114-Z45-000
...
14
Rubber, Oil Check HON-63713-Z45-000
...
15
Bolt, Flange (6X45) (Ct200) HON-90016-ZE8-000
...
16
Bolt, Flange (6X25) (Ct200) HON-90121-952-000
...
17
Clamp, Case HON-90659-Z35-000
...
18
Clip, Insulator Bind HON-90686-Z45-300
...
19
Pin, Lock (16Mm) HON-94252-16100

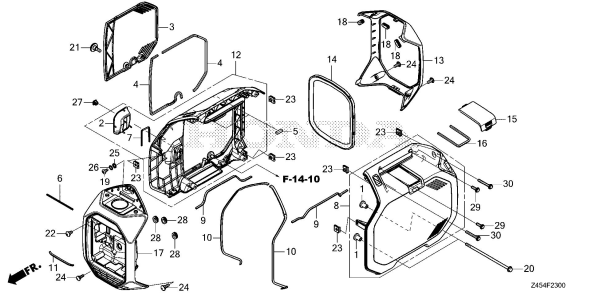

Honda EU3200I AC - EBKJ 1000001-9999999

...
...
1
Collar, Fan Cover HON-19619-Z45-300
...
2
Protector, Starter Rope HON-28477-Z45-000
...
3
Panel, Maintenance *Nhc39R* (Tourmaline Black R) HON-63151-Z45-000ZA
...
4
Seal, Maintenance Panel HON-63153-Z45-000
...
5
Seal A, L. Side Panel HON-63158-Z45-000
...
6
Seal C, Fr. Panel HON-63159-Z45-000
...
7
Seal B, L. Side Panel HON-63162-Z45-000
...
8
Panel, R. Side *Nhc39R* (Tourmaline Black R) HON-63250-Z45-000ZA
...
9
Seal, Side Panel HON-63252-Z45-000
...
10
Seal A, Fr. Panel HON-63253-Z45-000
...
11
Seal B, Fr. Panel HON-63254-Z45-000
...
12
Panel, L. Side *Nhc39R* (Tourmaline Black R) HON-63260-Z45-000ZA
...
13
Cover, Rr. *R280* (Power Red) HON-63311-Z45-000ZB
...
14
Seal Rubber, Rr. Panel HON-63318-Z45-000
...
15
Lid, Plug Check *Nhc39R* (Tourmaline Black R) HON-63340-Z45-000ZA
...
16
Seal, Plug Check Lid HON-63348-Z45-000
...
17
Panel, Fr. *R280* (Power Red) HON-63510-Z45-A30ZA
...
18
Grommet A, Side Cover HON-83601-MB0-000
...
19
Screw, Special Pan (5Mm) HON-90101-K90-VC0
...
20
Bolt, Flange (6X164) HON-90101-Z45-000
...
21
Screw, Special (6X16) HON-90102-Z07-003
...
22
Screw, Truss (6X15) (Torx) HON-90102-Z45-000
...
23
Nut, Spring (6Mm) HON-90320-747-000
...
24
Screw, Special (6X15) HON-90380-GM9-740
...
25
Washer (7X12) HON-90501-961-300
...
26
Washer, Wave (7Mm) HON-90552-VP9-003
...
27
Grommet, Screw (6Mm) HON-90652-SA5-670
...
28
Grommet, Fr. Panel HON-91652-Z45-000
...
29
Screw-Washer (6X20) HON-93891-06020-07

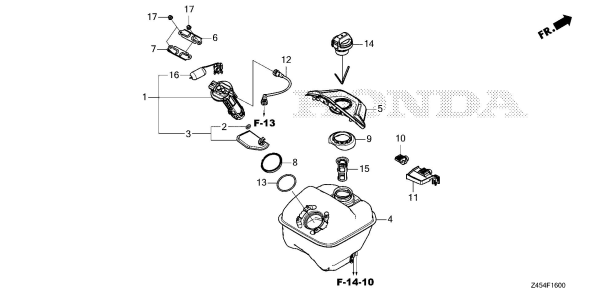

Honda EU3200I AC - EBKJ 1000001-9999999

...
...
1
Pump Assy., Fuel (Msds) HON-16700-Z45-003
...
2
O-Ring (6.8X1.9) HON-16706-GGL-J01
...
3
Filter Set HON-16707-Z45-003
...
4
Tank, Fuel HON-17510-Z45-000
...
5
Seal, Fuel Filler Neck HON-17514-Z45-000
...
6
Retainer, Fuel Pump HON-17517-GGL-J00
...
7
Retainer, Fuel Pump HON-17517-Z45-000
...
8
Dust Seal (Ohtuka Poly-Tech) HON-17518-GHB-601
...
9
Rubber, Fuel Filler HON-17532-Z45-000
...
10
Rubber A, Tank Mount (Lower) HON-17533-Z45-000
...
11
Rubber B, Tank Mount (Lower) HON-17534-Z45-000
...
12
Hose, Fuel Feed HON-17550-Z45-003
...
13
O-Ring, Fuel Pump HON-17572-Z37-000
...
14
Cap, Fuel Filler HON-17620-Z45-003
...
15
Filter, Fuel HON-17670-Z45-000
...
16
Fuel Unit HON-37800-Z45-003
...
17
Nut, Flange (6Mm) HON-94050-06080

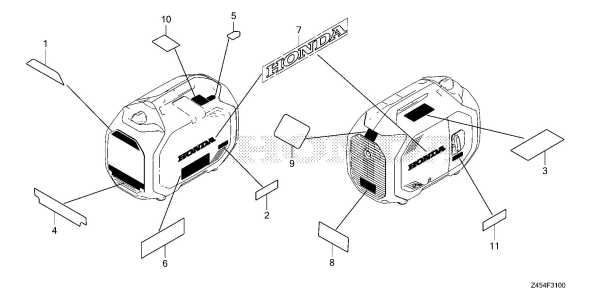

Honda EU3200I AC - EBKJ 1000001-9999999

...
...
1
Mark, Emblem (Eu3200I) HON-87101-Z45-A30
...
3
Mark, Co Caution HON-87561-Z45-A30
...
5
Mark, Direction HON-87178-Z45-A30
...
6
Label, Operator Warning HON-87516-Z45-A30
...
7
Mark, Honda HON-87531-Z45-000
...
8
Label, Ex. Warning HON-87539-Z45-A30
...
9
Mark, Ex. Caution HON-87542-Z45-000
...
10
Label, Shutoff Caution HON-87545-Z45-A30

Honda EU3200I AC - EBKJ 1000001-9999999

...
...

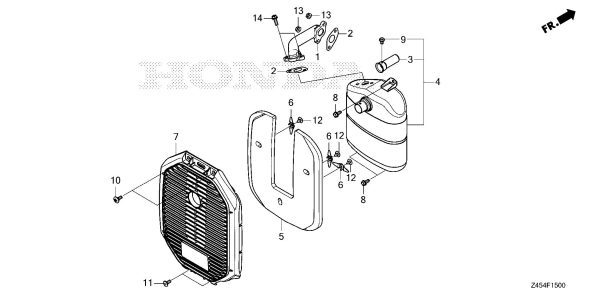

1
Pipe, Ex. HON-18331-Z45-000
...
2
Gasket, Ex. Pipe HON-18333-Z45-003
...
3
Arrester, Spark HON-18355-Z45-000
...
4
Muffler Assy. HON-18700-Z45-010
...
5
Insulator, Muffler Protector HON-19652-Z45-000
...
6
Clip, Insulator HON-19656-Z25-R50
...
7
Protector, Muffler *Nh1* (Black) HON-63312-Z45-000ZA
...
8
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
9
Screw, Tapping (4X6) HON-90055-ZE1-000
...
10
Screw, Special (6Mm) HON-90164-V02-000
...
11
Screw, Special (6X15) HON-90380-GM9-740
...
12
Screw, Tapping (5X10) (Po) HON-93913-25110
...
13
Nut, Flange (6Mm) HON-94050-06080
...
14
Bolt, Flange (6X18) HON-95701-06018-08

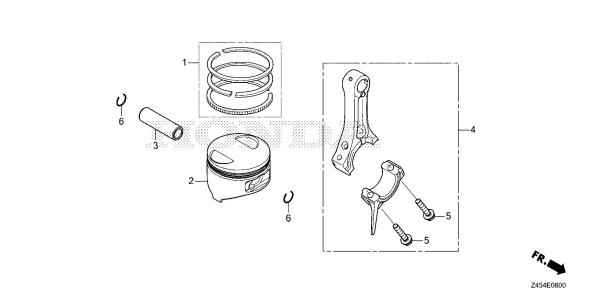

Honda EU3200I AC - EBKJ 1000001-9999999

...
...
1
Ring Set, Piston HON-13010-ZDY-003
...
2
Piston HON-13101-ZDY-000
...
3
Pin, Piston HON-13111-ZDY-000
...
4
Rod Assy., Connecting HON-13200-ZDY-000
...
5
Bolt, Connecting Rod (6X32) HON-90001-ZDJ-000
...
6
Clip, Piston Pin (13Mm) HON-90551-ZE0-000

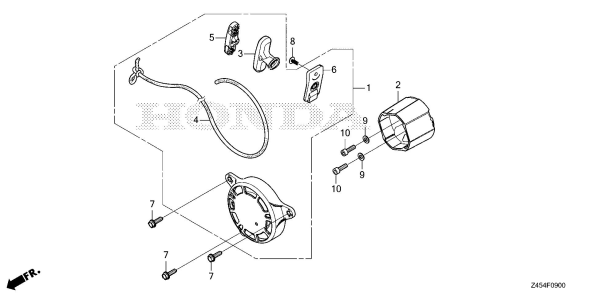

Honda EU3200I AC - EBKJ 1000001-9999999

...
...
1
Starter Assy., Recoil HON-28400-Z45-003
...
2
Pulley, Recoil Starter HON-28451-Z45-003
...
3
Grip, Starter HON-28461-Z45-003
...
4
Rope, Recoil Starter HON-28462-Z45-003
...
5
Cover, Grip HON-28464-Z45-003
...
6
Guide, Starter Rope HON-28475-Z45-003
...
7
Bolt, Flange (6X20) (Ct200) HON-90022-888-010
...
8
Screw, Tapping (5X14) (Po) HON-93913-25380
...
9
Washer, Plain (6Mm) HON-94101-06800
...
10
Bolt, Socket (6X20) HON-96600-06020-08

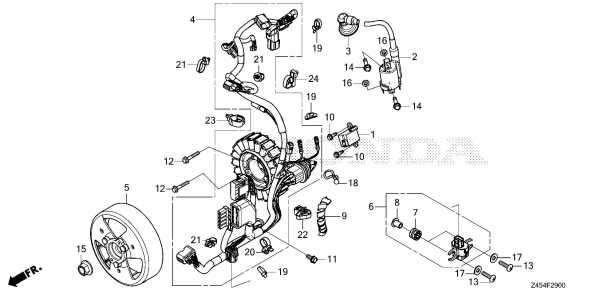

Honda EU3200I AC - EBKJ 1000001-9999999

...
...
1
Generator Assy., Pulse (Tec) HON-30300-HA0-033
...
2
Coil, Ignition HON-30510-Z45-A32
...
3
Cap Assy., Noise Suppressor HON-30700-Z45-A31
...
4
Stator Assy. HON-31120-Z45-A31
...
5
Rotor HON-31130-Z45-000
...
6
Sensor Assy., Bank Angle HON-35160-KRE-G01
...
7
Collar HON-35162-KRE-G00
...
8
Grommet HON-35163-KRE-G00
...
9
Tube, Spiral B HON-36105-ZW9-003
...
10
Bolt, Flange (5X14) (Ct200) HON-90012-ZM3-U30
...
11
Bolt, Flange (6X14) (Ct200) HON-90014-952-000
...
12
Bolt, Flange (5X32) (Ct200) HON-90101-Z07-000
...
14
Bolt, Flange (6X25) (Ct200) HON-90121-952-000
...
15
Nut, Flange (14Mm) HON-90301-Z45-003
...
16
Washer, Plain (6.5X15) HON-90401-ZA0-000
...
17
Washer, Plain (7Mm) HON-90402-ZG3-880
...
18
Clip, Purse Lock HON-90630-751-000
...
19
Band, Wire Harness HON-90652-ZY9-003
...
20
Clip B, Harness Band (129.4Mm) (Dark Brown) HON-91507-P01-003
...
21
Clip, Harness Band (145Mm) (Black) HON-91541-S0A-003
...
22
Clip, Harness Band (140.3Mm) (Black) HON-91549-TA0-003
...
23
Clip, Wire Harness (Black) HON-91558-SD5-003
...
24
Band, Harness Offset (10) (122.5Mm) (Blue)(W/Seal) HON-91577-SFE-003

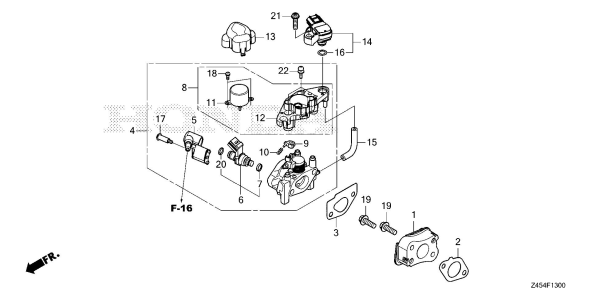

Honda EU3200I AC - EBKJ 1000001-9999999

...
...
1
Insulator, Throttle Body HON-16210-ZDY-000
...
2
Gasket, Insulator HON-16212-ZDY-003
...
3
Gasket, Throttle Body HON-16221-ZDY-003
...
4
Body Assy., Throttle (Bl80A A) HON-16400-ZDY-003
...
5
Joint, Injector HON-16422-ZDY-003
...
6
Injector Assy., Fuel HON-16450-K80-H01
...
7
Ring, Seal HON-16472-KPC-D50
...
8
Motor Assy., Throttle Control HON-36160-ZDY-003
...
9
Lever, Link HON-36161-ZL0-D31
...
10
Spring, Compression Coil HON-36162-ZL0-D31
...
11
Motor, Throttle Control HON-36165-ZF6-F41
...
12
Bracket, Throttle Motor HON-36166-ZDY-003
...
13
Cover, Throttle Motor HON-36168-Z39-C90
...
14
Sensor Assy., Map HON-37830-6Y0-J01
...
15
Tube, Map Sensor HON-37833-ZDY-000
...
16
O-Ring HON-37835-PGK-A01
...
17
Screw, Shoulder HON-90001-ZDY-003
...
18
Screw-Washer (3X8) HON-90003-ZL0-D30
...
19
Bolt, Flange (6X18) (Nshf) HON-90004-GHB-640
...
20
O-Ring (6.3X2.2) HON-91301-KZL-931
...
21
Screw-Washer (5X20) HON-93891-05020-08
...
22
Screw-Washer (4X10) HON-93893-04010-08
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
