Homelite BM903631VNM (099930662) Generator

Model: BM903631VNM

Save Part Not Listed?
product name

Homelite BM903631VNM

...
...
1
Engine, Ducar 212Cc See Fig. E
...
2
Muffler HM-309322033
...
3
Spark Arrestor Set Screw HM-661404001
...
4
Spark Screen HM-638147008
...
5
Exhaust Gasket HM-678728004
...
6
Muffler Mounting Bracket (Gen Head) HM-638777011
...
7
Muffler Mounting Bracket (Muffer) HM-638777012
...
8
Flange Bolt (M6 X 10 Mm) HM-660972011
...
9
Heat Shield HM-638497039
...
10
Engine/Co Shutdown Wiring Harness HM-290435073
...
11
Gen Head Assembly (See Fig. B) HM-310227078
...
12
Bolt (M6 X 50 Mm, T-30 Torx Hd.) HM-660224019
...
13
Ground Lug HM-638703005
...
14
Carrier Assembly HM-308581113
...
15
Handle Assembly HM-310224079
...
16
Quick Release Pin Assembly HM-308910008
...
17
Fuel Valve Bezel HM-519813017
...
18
Handle Bumper HM-570712002
...
19
Isolator (Right) HM-679940007
...
20
Isolator (Left) HM-679940008
...
21
Cap HM-519712007
...
22
Fuel System Assembly See Fig. D
...
23
Vapor Hose HM-570358108
...
24
Fuel Line Clamp HM-678409003
...
25
Hitch Pin HM-678146002
...
26
Momentary Switch HM-760700002
...
27
18 Ga Black Wire Assembly HM-290405003
...
28
18 Ga Green Wire Assembly HM-290427001
...
29
Ground Wire Assembly HM-290404001
...
30
Electrical Panel Assembly (See Fig. C) HM-290403081
...
31
Co Detector Assembly HM-290432064
...
32
Star Washer (M8) HM-673157001
...
33
Screw (Crph 6-20 X .38 Type B) HM-660598001
...
34
Flat Washer (5/16 In.) HM-638128002
...
35
Flange Nut (M8) HM-678774002
...
36
Bolt (M6 X 25 Mm, Hex Hd.) HM-661836004
...
37
Flat Washer (1/4 In.) HM-638387002
...
38
Lock Nut (M6) HM-678774009
...
39
Bolt (M8 X 16 Mm, Hex Hd.) HM-660973020
...
40
Handle Pivot Bolt HM-678522027
...
41
Lock Nut (5/16 In.) HM-678259003
...
42
Bolt (M6 X 16 Mm, T30 Torx Hd.) HM-660764013
...
43
U-Clip HM-678824004
...
44
Wheel HM-308451061
...
45
Flat Washer (M10) HM-638422004
...
46
Axle HM-681866008
...
47
Lock Nut (M8) HM-678774003
...
48
Bolt (M8 X 45 Mm, Hex Washer Hd.) HM-661836007
...
49
Foot HM-562856010

Homelite BM903631VNM

...
...
1
Bolt (M5 X 12 Mm, Hex Flange Hd.) HM-660938025
...
2
Brush Cover HM-678296005
...
3
Bolt (M5 X 16 Mm, Hex Flange Hd.) HM-660938024
...
4
Automatic Voltage Regulator HM-290440011
...
5
Brush Assembly HM-290441007
...
6
Terminal Block HM-290602007
...
7
Rotor Bolt HM-661557024
...
8
Stator Bolt HM-660869010
...
9
Bearing Housing HM-678865005
...
10
Stator Assembly HM-310772065
...
11
Rotor Assembly HM-310771070
...
12
Wrapper HM-638545007
...
13
Rotor Washer HM-638678011
...
14
Rubber Wire Protector HM-570766008

Homelite BM903631VNM

...
...
1
Wiring Rubber Boot HM-570766006
...
2
Control Box Housing HM-519707009
...
3
Receptacle 120V 30A HM-290400009
...
4
Circuit Breaker 30A HM-780351001
...
5
Circuit Breaker 20A HM-780350001
...
6
120 Volt Duplex Receptacle HM-290400001
...
7
Electrical Panel Face Plate HM-638496022
...
8
Electrical Panel Label HM-940780080
...
9
Screw (Crph 6-20 X .38 Type B) HM-660598001
...
10
Hex Lock Nut (6-32) HM-678720001
...
11
U- Clip Nut (6) HM-678824001

Homelite BM903631VNM

...
...
1
Fuel Line Clamp (1/2 In.) HM-678408006
...
2
Inline Fuel Filter HM-308733008
...
3
Fuel Shut-Off Valve HM-308459002
...
4
Fuel Hose HM-570358068
...
5

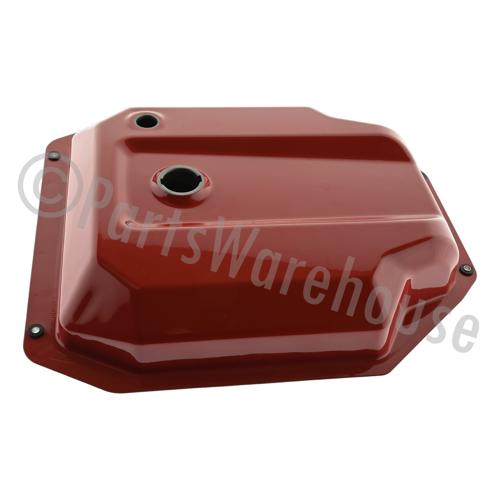

Fuel Tank HM-310711178
...
6
Isolator HM-518528002
...
7
Bushing HM-519832003
...
8
Fuel Cap HM-310720026
...
9
Hose (120 Mm) HM-570358156
...
10
Rollover Valve HM-310854006
...
11
Ring Clip HM-678899007

Homelite BM903631VNM

...
...
1
Crankcase HM-D240214
...
2
Ball Bearing HM-D93009
...
3
Oil Seal HM-D93507
...
4
Governor Assembly HM-D244302
...
5
Governor Arm Shaft HM-D243901
...
6
Governor Arm Washer HM-D96804
...
7
Lock Pin HM-D243902
...
8
Drain Plug Bolt HM-D91816
...
9
Drain Plug Washer HM-D94007
...
10
Switch Assembly HM-D245102
...
11
Bolt HM-D91329
...
12
Casecover Dowel Pin HM-D240904
...
13
Piston HM-D241208
...
14
Scraper Ring Set HM-D241606
...
15
Connect Rod Assembly HM-D241503
...
16
Piston Ring HM-D245503
...
17
Piston Clip HM-D241301
...
18
Cover Assembly HM-D240113
...
19
Cylinder Head HM-D241011
...
20
Intake Valve HM-D241704
...
21
Exhaust Valve HM-D245904
...
22
Intake Valve Returner HM-D241806
...
23
Valve Spring HM-D246001
...
24
Valve Spring Seat HM-D241801
...
25
Valve Spring Seat HM-D241802
...
26
Push Rod Guide Plate HM-D242202
...
27
Rocker Assembly HM-D242101
...
28
Rotator HM-D241804
...
29
Stud Bolt HM-D91022
...
30
Stud Bolt HM-D91007
...
31
Carburetor Assembly HM-D242850
...
32
Fuel Line HM-D95472
...
33
Fuel Line Clip HM-D94412
...
34
Governor Arm HM-D244001
...
35
Wire Harness Clip HM-D599601
...
36
Nut HM-D90016
...
37
Crankshaft Assembly HM-D248001
...
38
Valve Lifter HM-D246102
...
39
Casecover Packing HM-D96041
...
40
Camshaft Assembly HM-D242003
...
41
Dowel Pin HM-D240905
...
42
Bolt (M8 X 30 Mm) HM-D91347
...
43
Cylinder Head Gasket HM-D96058
...
44
Bolt (M8 X 60 Mm) HM-D91359
...
45
Spark Plug HM-D97108
...
46
Push Rod HM-D241901
...
47
Shroud HM-D240501
...
48
Bolt HM-D91325
...
49
Headcover Packing HM-D96045
...
50
Cylinder Cover HM-D241107
...
51
Wind Shield HM-D245702
...
52
Bolt (M6 X 20 Mm) HM-D91330
...
53
Flywheel Assembly HM-D240401
...
54
Recoil Starter Fan HM-D244601
...
55
Starter Pulley HM-D314502
...
56
Nut HM-D90003
...
57
Ignition Coil Assembly HM-D97599
...
58
Bolt HM-D91331
...
59
Intake Packing HM-D96047
...
60
Carburetor Insulator HM-D242301
...
61
Carburetor Packing HM-D96051
...
62
Carburetor Spacer HM-D94229
...
63
Governor Rod HM-D242701
...
64
Throttle Return Spring HM-D244201
...
65
Recoil Starter Assembly HM-D244705-087A
...
66
Recoil Starter Case HM-D244405
...
67
Air Cleaner Assembly HM-D242920
...
68
Breather Tube HM-D95604
...
69
Lock Nut (M6) HM-D90023
...
70
Governor Spring HM-D244103
...
71
Amplifier HM-D245117
...
72
Dipstick HM-D245601-313
...
73
Bolt (M6 X 8 Mm) HM-D91340
...
74
Adjuster Rocker Arm HM-D91818
...
75
Flameout Wire HM-D536419

Homelite BM903631VNM

...
...
1
Engine Recoil Label HM-940705469
...
2
Inquiries Label HM-941486009
...
3
Cpsc Label HM-940515020
...
4
Start Label HM-940617160
...
5
Danger Icon Label HM-940654363
...
6
Fire Danger Label HM-940974025
...
7
Check Oil Label HM-940828004
...
8
Handle Release Label HM-940758020
...
9
E85 Label HM-940872003
...
10
Combustion Label HM-940947006
...
11
Hot Surface Label HM-940680083
...
12
Ground Warning Label HM-940513013
...
13
Notice Hangtag HM-940971086
...
14
Fuel Stabilizer Label (Eng/Fr) HM-940872022
...
15
Fire Distance Label HM-940974024
...
16
Ground Icon Label HM-940513002
...
17
Fuel Stabilizer Label (Sp) HM-940872023
...
18
Black Max Logo Label HM-940705467
...
19
Performance Label HM-940705468
...
20
Co Warning Label HM-941207024
...
21
Maxsense Logo Label (Front) HM-940705475
...
22
Maxsense Logo Label (Side) HM-940705466
...
23
Exhaust Direction Label HM-941209004
...
24
Auto Co Shutdown Label HM-941207018
