Hechinger Mdl 129-352R372/06-425532 Self-Propelled Walk-Behind Mower

Model: Hechinger Mdl 129-352R372/06-425532

Save Part Not Listed?
product name

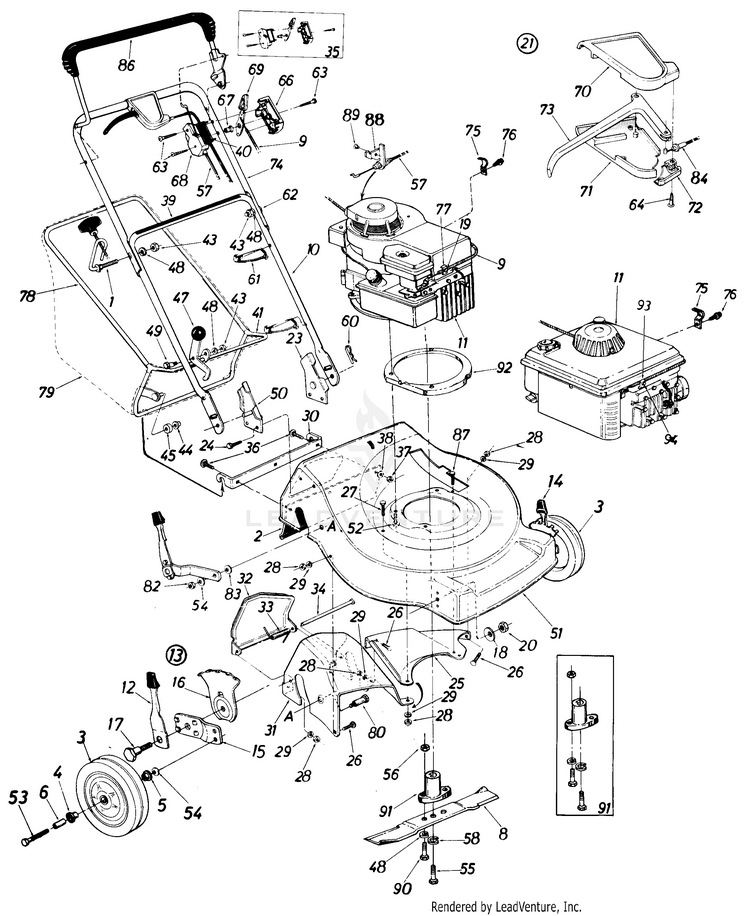

Parts01

...
...
1
SCREW-RECOIL HANDLE GUIDE MTD-710-0842B
...
2
FLAP MTD-731-0665
...
3
Front Wheel Ass'y. Comp. MTD-734-0636
...
4
BALL BEARING MTD-941-0484
...
5
FORTIFLEX BEARING MTD-741-0267
...
6
Spacer 3/8" I.D. MTD-750-0434
...
8
20" BLADE MTD-742-0123B
...
9
Throttle Wire-58" Lg. MTD-946-0674A
...
10
Lower Handle MTD-749-0907B
...
11
Engine MTD-NA
...
12
Front Spring Lever MTD-94832
...
13
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
14
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
15
Pivot Bar MTD-15262B
...
16
Height Adjustment Plate MTD-787-01290A
...
17
Shld. Bolt .50" Dia. x .357" MTD-738-0507B
...
18
BELL WASHER MTD-936-0356
...
19
Hex Self-Tap Scr. #8 x .38" Lg. (352R) MTD-710-0227
...
20
Hex Nut 3/8-16 Thd. MTD-712-0798
...
21
KIT-CLUTCH CONTROL MTD-753-0362
...
23
BRACKET ASSEMBLY MTD-12297
...
24
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
25
BAFFLE-CHU MTD-13405A
...
26
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
27
Hex Bolt 1/4-20 x .88" Lg. MTD-710-0206
...
28
HEX NUT 1/4-20 MTD-912-0287
...
29
L-Wash. 1/4" I.D. MTD-936-0329
...
30
ADAPTER-GR MTD-14012
...
31
BAFFLE-CHU MTD-14235
...
32
CHUTE DOOR MTD-13407
...
33
TORSION SPRING MTD-732-0346
...
34
HINGE PIN MTD-738-0386
...
35
CONTROL HOUSING COMP. MTD-753-0430
...
36
Carriage Bolt 1/4-20 x .75"* MTD-710-0703
...
37
Sems Nut 1/4-20 Thd. MTD-712-0271
...
38
Fl-Wash. .285" I.D. x 1.25" O.D. MTD-736-0211
...
39
LABEL MTD-777-5776
...
40
LABEL - THROTTLE CONTROL MTD-777-5773
...
41
FRAME-CATC MTD-13924
...
43
HEX NUT 5/16-18 MTD-712-3010
...
44
Push Nut 3/8" Rod MTD-726-0100
...
45
ROLLER-PLASTIC MTD-731-0430
...
47
GRIP ASSEMBLY- MTD-13435
...
48
Lock Wash. 5/16" I.D. MTD-936-0119
...
49
Shld. Bolt .437" Dia. x .180" MTD-738-0140
...
50
BRACKET ASSEMBLY MTD-12296B-0637
...
51
DECK ASSEMBLY-20IN MTD-16109
...
52
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg. MTD-710-0654A
...
53
Hex Bolt 3/8-16 x 1.75" Lg. MTD-710-0347
...
54
Bell-Wash. .44" I.D. x .88" O.D. MTD-736-0105
...
55
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) MTD-710-0331
...
56
Hex Nut 5/16-24 Thd. MTD-912-3057
...
57
CONTROL CABLE MTD-946-0477A
...
58
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
60
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
61
Cable Tie MTD-725-0157
...
62
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
63
Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796
...
64
Flat "C"-Sunk Hd. Scr. #10 x 1.0" Lg. MTD-710-0841
...
66
PANEL MTD-731-0817
...
67
CONROL DISC PIN MTD-731-0524
...
68
CIUTCH PANEL HALF MTD-731-0816
...
69
Throttle Control Lever MTD-931-0972
...
70
HALF COVER MTD-731-0617A
...
71
Control Cover Half-Lower MTD-753-0833
...
72
CABLE MOUNTING CAP MTD-731-0619
...
73
Drive Control MTD-731-0620A
...
74
Upper Handle MTD-749-0439E-0637
...
75
CASING CLAMP MTD-12894A
...
76
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
77
CLAMP-CONDUIT (352R) MTD-751-0369
...
78
FRAME-CATCHER-UPR MTD-749-0278
...
79
GRASSBAG MTD-764-0170B
...
80
Shld. Bolt .500" Dia. x .685" MTD-738-0430
...
82
Jam Nut, 3/8-16 MTD-912-3008
...
83
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
84
CLUTCH CABLE-50" MTD-746-0463A
...
86
BAIL (LH) MTD-731-0609
...
87
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
88
BRACKET-CA MTD-14924
...
89
RIVET MTD-728-0171
...
90
Hex Bolt 5/16-24 x 1.0" Lg. Special MTD-710-0888
...
91
Blade Adapter Kit MTD-753-0348
...
92
Engine Mount Cover MTD-13773A
...
93
CLIP-CASING (359R) MTD-751-0463
...
94
Hex Wash. Hd. Self-Tap Scr. (359R) MTD-710-0651
...
xx
GRASSCATCH MTD-190-006-000

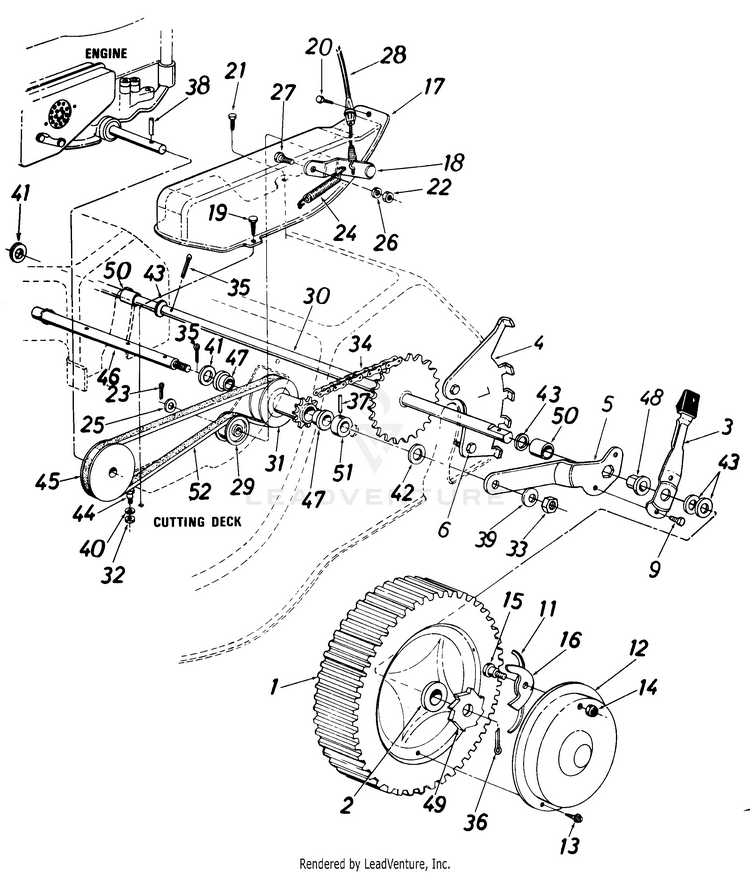

Parts02

...
...
1
GEAR TREAD (8 x 1.75") MTD-734-1411
...
2
BALL BEARING MTD-941-0180
...
3
LEVER-SPRING MTD-732-0467
...
4
INDEX PLATE ASS'Y. L.H. MTD-16097
...
xx
Index Plate-R.H. (Not Shown) MTD-16098
...
5
BRACKET-PI MTD-16099
...
xx
BRACKET-PI (Not Shown) MTD-16100
...
6
SCREW 1/4-14 x .625 MTD-710-0892
...
9
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
11
Nylon Spring MTD-10622B
...
12
HUB CAP MTD-10647
...
13
SCREW #12-14 x .500 MTD-710-0748
...
14
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
15
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137
...
16
PAWL - (LH) MTD-948-0188B
...
17
456/N Belt Cover MTD-12309C
...
18
BRACKET AS MTD-13415
...
19
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
20
HEX SCREW #10-16 x 0.500 MTD-710-0456
...
21
Hex TT-Tap Scr. 1/4-20 x .75" MTD-710-0642
...
22
HEX NUT 1/4-20 MTD-912-0287
...
23
Cotter Pin 1/8" Dia. x 1" MTD-714-0115
...
24
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
25
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
26
L-Wash. 1/4" I.D. MTD-936-0329
...
27
SHOULDER SCREW MTD-938-0255
...
28
CABLE-CLUTCH MTD-746-0463
...
29
FLAT IDLER PULLEY MTD-756-0360
...
30
SHAFT ASSEMBLY MTD-11866
...
31
PULLEY W/S MTD-756-0191
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Jam Nut, 3/8-16 MTD-912-3008
...
34
#48 CHAIN 1/2 PITCH x 31 MTD-913-0144
...
xx
#48 MASTER LINK MTD-713-0122
...
35
Cotter Pin 3/32" Dia. x 1." MTD-714-0111
...
36
Cotter Pin 1/8" Dia. x 1" MTD-714-0115
...
37
Spring Pin Spir. 3/16" Dia. x 1.00" Lg. MTD-715-0120
...
38
SPIROL PIN MTD-715-0144
...
39
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
40
Lock Wash. 5/16" I.D. MTD-936-0119
...
41
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
42
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
43
Fl-Wash. .510" I.D. x 1.0" O.D. MTD-736-0326
...
44
SHOULDER SCREW .437 DIA x .350 MTD-938-0141
...
45
PULLEY MTD-756-0384
...
46
SHAFT-PULLEY MTD-738-0385
...
47
Flange Brg. .506" I.D. Plastic MTD-741-0248
...
48
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
49
RACHET-WHEEL MTD-748-0187
...
50
SPACER MTD-750-0190
...
51
SPACER MTD-750-0387
...
52
V-Belt MTD-954-0935
