Hechinger 146-834-372 Garden Tractor

Model: Hechinger 146-834-372

Back To Assemblies

Save Part Not Listed?
product name

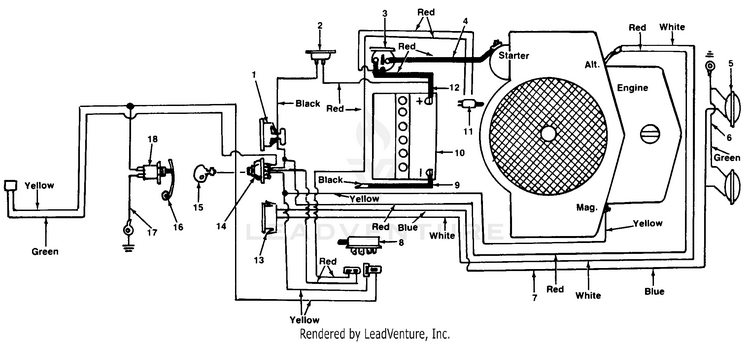

Electrical

...
...
1
Ammeter MTD-925-0925
...
2
CIRCUIT BREAKER MTD-753-0685
...
3
Solenoid MTD-925-0771
...
4
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
5
Head Light MTD-925-0222
...
6
WIRE MTD-725-0916A
...
7
WIRE HARNESS MTD-725-1134
...
8
Safety Switch MTD-925-0465A
...
9
6 GA. BLACK WIRE MTD-725-0996
...
10
BATTERY MTD-725-0453
...
11
SWITCH MTD-925-0268
...
12
Wire MTD-725-0563
...
13
Light Switch MTD-925-0634
...
14
Ignition Switch MTD-925-0267B
...
15
Key MTD-925-0201
...
16
Spring Lever MTD-732-0405
...
17
WIRE-REV LOCKOUT MTD-725-0765
...
18
SWITCH MTD-925-0268
