Hechinger 136-704-372 Lawn Tractor

Model: Hechinger 136-704-372

Back To Assemblies

Save Part Not Listed?
product name

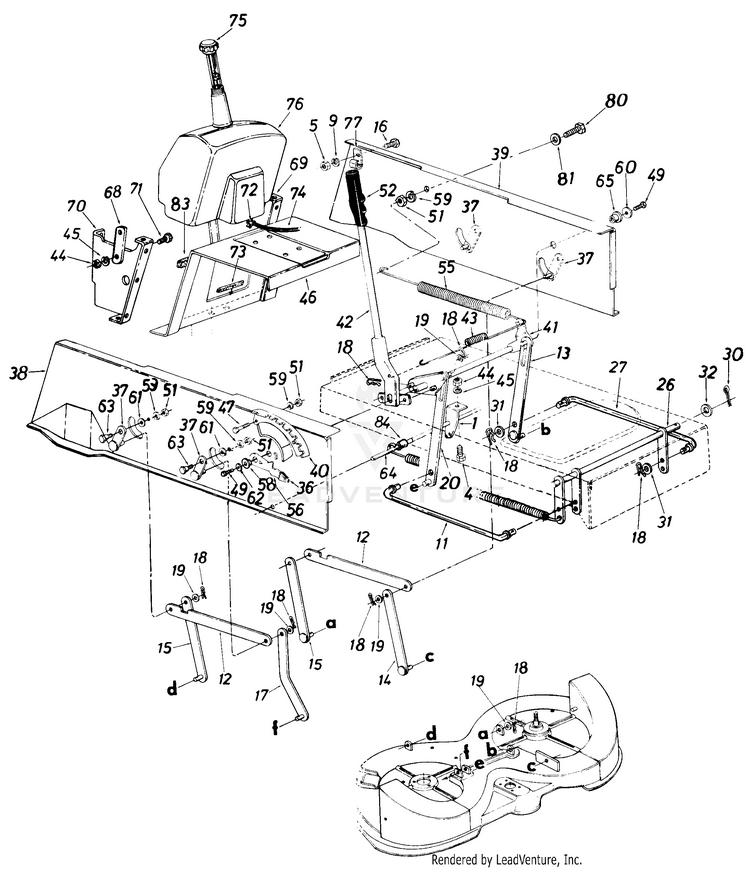

40" Deck

...
...
1
Spring Hanger Bracket MTD-16181
...
4
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
5
HEX NUT 5/16-18 MTD-712-3010
...
xx
SPRING MTD-732-0410
...
9
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
ROD-STABILIZER MTD-711-0738
...
12
CONNECTING ROD MTD-09735
...
13
DECK LIFT LINK (POWDER BLACK) MTD-14802A-0637
...
14
DECK HANGER LINK ASS'Y. MTD-14804
...
15
DECK HANGER LINK ASS'Y. MTD-15373
...
16
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
17
HANGER-DECK L (Dog Leg) MTD-14800
...
18
Inter. Cotter Pin 1/2" Dia. MTD-714-0101
...
19
Fl-Wash. .531 I.D. x .93" O.D. MTD-736-0160
...
20
DECK LIFT LINK (POWDER BLACK) MTD-14802A-0637
...
26
STABILIZER SHAFT ASS'Y MTD-16234
...
27
ROD-STABILIZER MTD-711-0738
...
30
Cotter Pin 1/8" Dia. x 1.25" Lg. MTD-714-0470
...
31
Fl-Wash. MTD-936-0117
...
32
Fl-Wash. .635" I.D. x 1.12" O.D. MTD-736-0156
...
36
KNOB-HGT ADJ-BLACK MTD-08540
...
37
LINK ASSEMBLY- MTD-09721
...
38
FRAME-SIDE (RH) MTD-14602G-0637
...
39
L.H. SIDE FRAME MTD-14603
...
40
Index Brkt. (Deck Lift) MTD-16462
...
41
LIFT SHAFT ASS'Y. MTD-16463
...
42
KIT-DECK LIFT MTD-16465
...
43
EXTENSION SPRING MTD-932-0498
...
44
HEX NUT 1/4-20 MTD-912-0287
...
45
L-Wash. 1/4" I.D. MTD-936-0329
...
46
Hitch Plate MTD-16223
...
47
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
49
Screw, 5/16-18 x .625 MTD-710-0604A
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
LIFT HANDLE GRIP MTD-720-0157
...
55
EXTENSION SPRING MTD-932-0307A
...
56
HEIGHT ADJUSTMENT LEVER MTD-732-0412
...
58
Flange Brg. .630" I.D. MTD-748-0176
...
59
Lock Wash. 5/16" I.D. MTD-936-0119
...
60
UNKNOWN MTD-NA
...
61
Fl-Wash. .344" I.D. x .62" O.D. x .063 MTD-736-0264
...
62
Fl-Wash. .344" I.D. x 1.125" O.D. MTD-736-0231
...
63
Shld. Bolt .437" Dia. x .180 MTD-738-0140
...
64
ROD-RUNNING BOARD MTD-738-0526
...
65
Flange Bearing .632 ID MTD-741-0487C
...
68
Fender Support Brkt. MTD-16330
...
69
BRACKET-SUPPORT-LH MTD-15363
...
70
BRACKET-SUPPORT-RH MTD-15364
...
71
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
72
HOSE CLAMP MTD-726-0207
...
73
Trim Strip-5" Lg. MTD-731-0511
...
74
FUEL HOSE 1/4-24" MTD-751-22813-24
...
75
Gas Tank Cap MTD-951-0226A
...
76
GAS TANK MTD-751-0403
...
77
CLAMP MTD-726-0175
...
80
SCREW 5/16-18 x 1.50 GR5 MTD-710-0959
...
81
Fl-Wash. .344" I.D. x .875" O.D. MTD-736-0159
...
83
FOAM STRIP MTD-722-0157
...
84
Spacer .523" I.D. x .640" O.D. x 1.95" Lg. MTD-711-0425
