Hechinger 136-668-372 Lawn Tractor

Model: Hechinger 136-668-372

Back To Assemblies

Save Part Not Listed?
product name

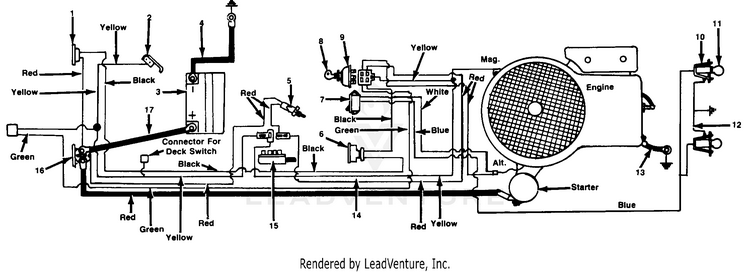

Electrical System

...
...
1
CIRCUIT BREAKER MTD-753-0685
...
2
SAFETY SWITCH KIT MTD-725-0759
...
3
BATTERY MTD-753-0607
...
4
WIRE MTD-725-0975
...
5
SAFETY SWITCH MTD-725-0577
...
6
Ammeter MTD-925-0925
...
7
Light Switch MTD-925-0634
...
8
Key MTD-925-0201
...
9
Ignition Switch MTD-925-0267B
...
10
HEADLAMP SOCKET MTD-925-1058A
...
11
Miniature Lamp 12V Socket Type MTD-925-0963
...
12
WIRE MTD-725-0916A
...
13
WIRE MTD-725-0976
...
14
WIRE HARNESS MTD-725-1187
...
15
Safety Switch MTD-725-0803B
...
16
Solenoid MTD-925-0771
...
17
WIRE-ELEC MTD-725-0150
