Hechinger 136-668-372 Lawn Tractor

Model: Hechinger 136-668-372

Back To Assemblies

Save Part Not Listed?
product name

Parts04

...
...
1
HOOD-FRONT MTD-12780
...
2
Nut, Hex Lock, #10-24 MTD-712-0102A
...
3
L-Wash. #10 I.D. MTD-736-0722
...
4
Fl-Wash. .25" I.D. x .62" MTD-736-0463
...
5
Truss Scr. #10-24 x .375"* MTD-710-0192
...
6
Truss Hd. Scr. #10-24 x .50"* MTD-710-0473
...
7
HOOD STOP MTD-727-0199
...
8
Head Light (Optional Part) MTD-925-0222
...
9
Headlight Bezel (Optional Part) MTD-12787
...
10
Front Grille Upper Ass'y. (Optional Part) MTD-12814
...
11
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
12
Lower Grille (Optional Part) MTD-12781
...
13
HEX NUT 1/4-20 MTD-912-0287
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
15
Vinyl "U"-Channel (Optional Part) MTD-731-0144
...
16
Grille Screen (Optional Part) MTD-12791
...
17
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
18
R.H. Lower Side Panel (B&S) MTD-15544
...
xx
R.H. Lower Side Panel (Tec.) MTD-16600
...
19
L.H. LOWER SIDE PANE MTD-15545
...
20
HEADLIGHT HOUSING (Optional Part) MTD-931-0705
...
21
HEADLAMP LENS (Optional Part) MTD-931-0706
...
22
LOWER FRAME MTD-15930
...
23
KIT-FUEL TANK W/CA MTD-753-0503
...
24
Front Pivot Brkt. MTD-14619
...
25
SUPPORT-GA MTD-14605
...
26
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
27
CARR. BOLT 1/4-20 x 1.75" LG. MTD-710-0495
...
28
Carriage Bolt 1/4-20 x .62"* MTD-710-0134
...
29
Running Board (R.H. & L.H.) MTD-14604
...
30
Blade Brake Ass'y. (Refer to Deck Breakdown) MTD-NA
...
32
Miniature Lamp 12V Socket Type (Optional Part) MTD-925-0963
...
33
Truss Mach. Scr. 5/16-18 x .75" Lg.* MTD-710-0323
...
34
Light Switch (Optional Part) MTD-925-0634
...
36
CLAMP-FEND MTD-14671
...
37
Fender (R.H.) MTD-16197
...
xx
FENDER (L.H.) MTD-14666
...
xx
FENDER-RR (R.H.) Used w/36" & 40" Rear Discharge Decks MTD-16198
...
xx
FENDER (L.H.) Used w/36" & 40" Rear Discharge Decks MTD-15350
...
38
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
39
FRAME-SIDE (RH) MTD-14602G-0637
...
40
PANEL-GRIL (Optional Part) MTD-15871
...
41
PANEL-GRILLE-LWR (Optional Part) MTD-15872
...
42
HOOK-BATTERY STRAP MTD-747-0475
...
43
STRAP-RUBBER MTD-731-0718
...
44
BATTERY MTD-753-0607
...
45
L.H. SIDE FRAME MTD-14603
...
46
Shift Cover MTD-16432
...
47
SAFETY SWITCH KIT MTD-725-0759
...
48
Insulatop Nut Plate MTD-926-0320
...
50
Hitch Plate MTD-14607
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
54
SEAT (used w/Hex Nut) MTD-757-0264
...
xx
SEAT-SAFETY MTD-757-0322
...
xx
Seat Ass'y. (used w/Hex Bolts) MTD-757-0299
...
xx
SEAT MTD-757-0318
...
58
Hex AB-Tap Scr. #8 x .50" MTD-710-0227
...
59
Tool Tray (Optional Part) MTD-731-0561
...
60
FENDER PANEL (Optional Part) MTD-14789
...
61
Truss Mach. Tap Scr. #10 x .50" Lg. MTD-710-0351
...
62
HEADLAMP SOCKET (Optional Part) MTD-925-1058A
...
68
Head Lamp Retainer (Optional Part) MTD-12788
...
69
SIDE PANEL-R.H. MTD-12784
...
70
Side Panel-L.H. MTD-12785
...
71
Hex Bolt 1/4-20 x .62" Lg.* MTD-710-0258
...
72
Cable Tie MTD-726-0230
...
73
GAUGE-GAS MTD-723-0333
...
74
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
75
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" MTD-936-0101
...
76
RUBBER WASHER MTD-735-0200
...
77
Throttle Control Box Ass'y. MTD-831-0823A
...
78
HEX NUT (Optional) MTD-712-0206
...
79
INSERT-DASH PANEL MTD-731-0804
...
80
HEX SCREW 1/2-13X1.00 (Optional) MTD-710-0865
...
81
L-Wash. 1/2" I.D.* MTD-736-0921
...
82
Hex Bolt 5/16-18 x 1.00"* MTD-710-0376
...
83
SEAT SPRING MTD-732-0458
...
84
FOOT PAD (Optional Part) MTD-723-0360
...
85
DASH PANEL ASS'Y. MTD-15895
...
86
HOOD LOCK ASSEMBLY MTD-723-0296
...
87
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
89
ROD-RUNNING BOARD MTD-738-0526
...
90
HOSE CLAMP MTD-726-0207
...
91
FUEL HOSE 1/4-24" MTD-751-22813-24
...
92
Hex Sems Nut #10-24 Thd. MTD-712-0272
...
93
Ignition Switch MTD-925-0267B
...
94
Key MTD-925-0201
...
95
Trim Strip-57" Lg. MTD-731-0511
...
96
Ammeter (Optional Part) MTD-925-0925
...
99
Belleville Wash. .34" I.D. MTD-736-0242
...
100
BUSHING (Side Disc. Deck) MTD-22550
...
xx
SPACER-.354 ID x . (Rear Disc. Deck) MTD-748-0298
...
101
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
102
CABLE-CONT (B&S) MTD-746-0505
...
xx
Throttle Control Wire 18.5" (Tec.) MTD-946-0638
...
xx
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
104
Speed Nut #10Z MTD-726-0139
...
105
Trim Strip-15" MTD-731-0511
...
106
Speed Nut #10Z MTD-726-0139
...
107
CHOKE CONTROL 29" MTD-946-0615A

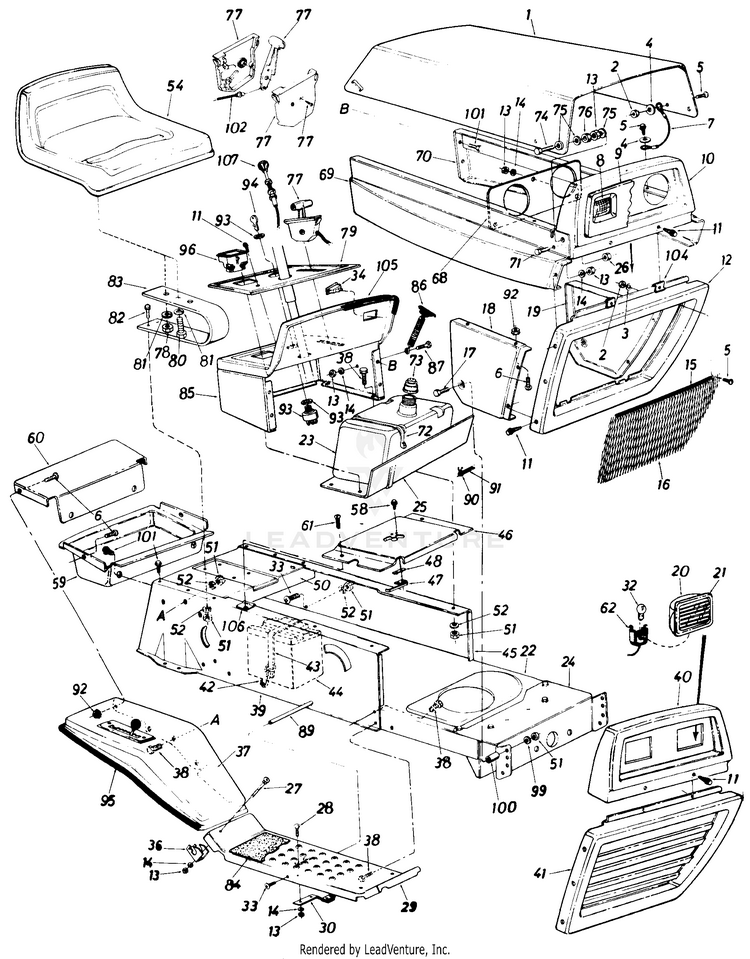

Schematic Image Zoomed
