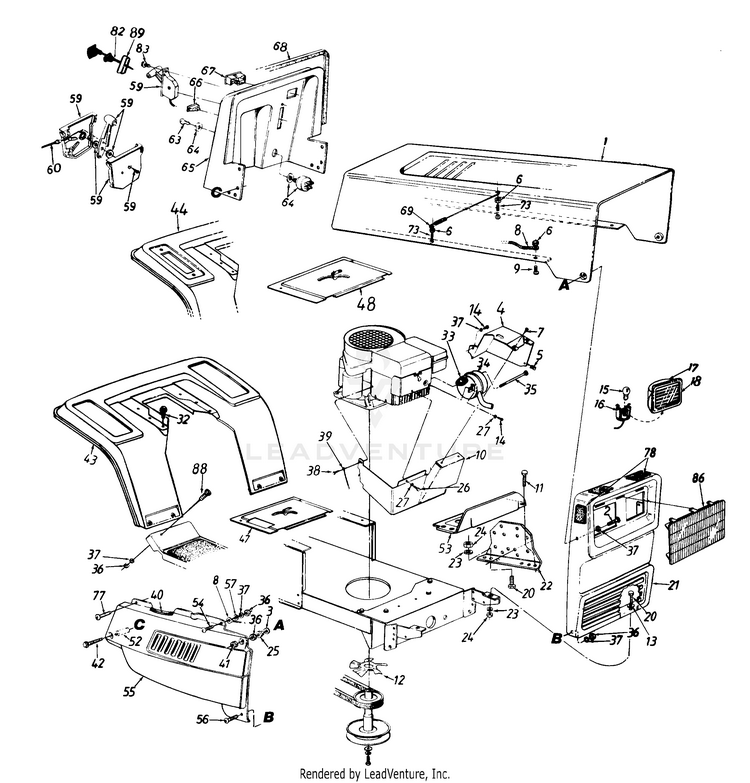

HEAT SHEID ASSEMBLY Used with Single Cylinder Engine Only.
MTD-683-0042A
5
Speed Nut #10-24 Thd. Used with Single Cylinder Engine Only.
MTD-712-0147
6
Hex Sems Nut #10-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-712-0272
7
Hex B-Tap Scr. #10 x .38" Used with Single Cylinder Engine Only.
MTD-910-0429
Truss Hd. Scr. #10-24 x 1/2" For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0473
10
SHIELD-MUF Used with Single Cylinder Engine Only.
MTD-16936
11
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.
MTD-710-0603
12
COOLING FAN Used with Single Cylinder Engine Only.
MTD-17199-0637
Hex Bolt 5/16-18 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0118
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-936-0119
24
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-712-3010
HEX CAP SCREW 1/4-20 x .375 GR5 Used with Single Cylinder Engine Only.
MTD-710-0294
27
Spring Wash. .265 I.D. x .562 O.D. Used with Single Cylinder Engine Only.
MTD-936-0175
33
Gasket-Exhaust Used with Single Cylinder Engine Only.
MTD-BS-692236
34
MUFFLER Used with Single Cylinder Engine Only.
MTD-951-0465A
35
SHOULDER SCREW Used with Single Cylinder Engine Only.
MTD-938-0636
36
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-912-0287
37
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-936-0329
38
Truss Mach. Scr. 5/16-18 x .75" Lg. Used with Single Cylinder Engine Only. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0323
39
WIRE Used with Single Cylinder Engine Only.
MTD-725-0980
Truss Mach. Scr. 1/4-20 x.75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0924
55
SIDE PANEL (RH) Used with Single Cylinder Engine Only.
MTD-16725
xx
COVER-SIDE (RH) Used with Single Cylinder Engine Only.
MTD-16723
xx
SIDE PANEL (RH) Used with Twin Cylinder Engine Only.
MTD-16725
xx
PANEL-SIDE (LH) Not Shown; Used with Single Cylinder Engine Only.
MTD-17309B
xx
PANEL-SIDE (LH) Not Shown; Used with Twin Cylinder Engine Only.
MTD-17309B
56
Truss Mach. Scr. 1/4-20 x .50" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0286
