Hechinger 112-508R372 (1992) Push Walk-Behind Mower

Model: 112-508R372 (1992)

Save Part Not Listed?
product name

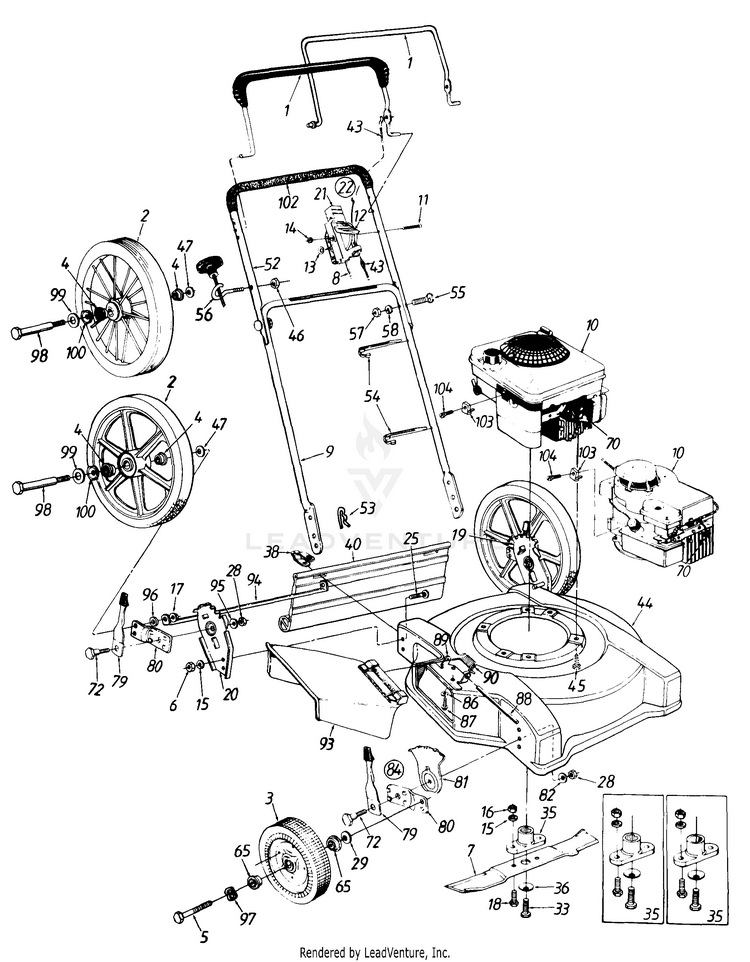

Engine And Handle Assembly

...
...
1
ROD-CUTTERHEAD (Std.) New Part MTD-747-0804
...
xx
Std. Control Handle (Deluxe) New Part MTD-747-0824B-0637
...
2
WHEEL ASSEMBLY W/TIRE 14IN PLASTI MTD-634-0003
...
xx
WHEEL-14"STL SPOKE MTD-734-1665
...
xx
WHEEL ASSEMBLY W/TIRE 16IN PLASTI MTD-634-0002
...
xx
WHEEL ASSEMBLY W/TIRE STEEL SPOKE MTD-734-1661
...
3
Front Wheel Ass'y. MTD-NA
...
4
BALL BEARING MTD-941-0484
...
5
Front Axle Bolt MTD-NA
...
6
Hex Nut 3/8-24 Thd. MTD-712-0241
...
7
22" BLADE MTD-742-0522
...
8
Throttle Wire 55" Lg. New Part; For models (500R, 502R, 504R, 506R, 507R & 508R) MTD-946-0671A
...
xx
Throttle Cable New Part; For models (503R & 505R) MTD-946-1115
...
9
Lower Handle MTD-749-0928A-0637
...
10
Engine MTD-NA
...
11
Oval C-Sunk Mach. Scr. New Part MTD-710-0605
...
12
Throttle Lever New Part MTD-946-0876
...
13
Curved Spring Wash. .66" I.D. New Part MTD-936-0501
...
14
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
15
L-Wash. 3/8" I.D. MTD-736-0169
...
16
Hex Nut 3/8-24 Thd. MTD-712-0241
...
17
Flange Lock Nut 3/8-16 MTD-912-0431
...
18
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
19
BRACKET ASSEMBLY (LH) MTD-682-3003
...
20
BRACKET ASSEMBLY (RH) MTD-682-3002
...
21
Throttle Body New Part MTD-946-0875
...
22
Throttle Box Comp. New Part (Incl. Ref. 11, 12, 13, 14, 21) MTD-811-0185
...
25
SCREW 3/8-24 x .80 MTD-710-0793
...
28
Hex Nut 3/8-16 Thd. MTD-712-0798
...
29
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
33
Hex Bolt 3/8-24 x 1,5" Lg. Used w/Keyed Adapter MTD-710-1044
...
xx
Hex Bolt 7/16-20 x 1.5" Lg. Used w/Splined Adapter MTD-710-0757
...
35
Blade Adapter Kit (Keyed) MTD-753-0484
...
xx
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
36
Bell-Wash. .39" I.D. Used w/Keyed Adapter MTD-736-0452
...
xx
BELL WASHER MTD-936-0453
...
38
HINGE CLIP MTD-17098P
...
40
TRAILSHED MTD-731-1026
...
43
Control Cable - 51" New Part; For models (503R, 505R & 507R) MTD-946-0737
...
xx
Control Cable 39" New Part; For models (500R, 502R, 504R, 506R & 508R) MTD-946-0550
...
44
22" Deck Ass'y. MTD-682-0220
...
45
Hex Wash. Hd. TT-Tap Scr 3/8-16 x 1.00" Lg. MTD-710-0654A
...
46
Hex Nylon L-Nut 1/4-20 Thd. MTD-712-0324
...
47
Bell-Wash. .38" I.D. x .88" MTD-736-0105
...
52
UPPER HANDLE New Part MTD-749-0538C
...
53
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
54
Cable Tie MTD-725-0157
...
55
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
56
Rope Guide MTD-710-1205
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
Lock Wash. 5/16" I.D. MTD-936-0119
...
65
Bearing MTD-NA
...
70
INSULATOR-SPARK PLUG (Optional) MTD-735-0639
...
72
Shoulder Bolt .50" Dia. MTD-738-0507B
...
79
Front Spring Lever MTD-94832
...
80
Pivot Bar MTD-15262B
...
81
Height Adjustment Plate MTD-787-01290A
...
82
BELL WASHER MTD-936-0356
...
84
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
86
SPRING WASHER BELL MTD-736-0270
...
87
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
88
Hinge Pin MTD-747-0710A
...
89
PLATE-ADAPTER MTD-17032A
...
90
Torsion Spring MTD-932-0593
...
93
CHUTE DEFLECTOR MTD-931-1034B
...
94
STABILIZER MTD-749-0860
...
95
Bell-Wash. .39" I.D. x 1.13" MTD-736-0331
...
96
SPACER MTD-750-0796
...
97
Wave Washer .53" I.D. (Used w/Ball Brg. Wheels) MTD-736-0232
...
98
SHOULDER SCREW MTD-938-0822
...
99
FLAT WASHER MTD-936-0456
...
100
Spr. Wash. .5" I.D. x 1.0" MTD-736-0182
...
102
Grip Foam (Optional) MTD-720-0295
...
103
Cable Clamp (B&S) New Part MTD-BS-690798
...
104
Hex Wash. Hd. Tap Scr. #10-32 x .62" Lg. (B&S) New Part MTD-710-1237
...
?106
Hex AB-Tap Scr. #8 x .50" MTD-710-0227
