Haier QGAS740RM1SS Gas Range Or Dual Fuel

Model: QGAS740RM1SS

Save Part Not Listed?
product name

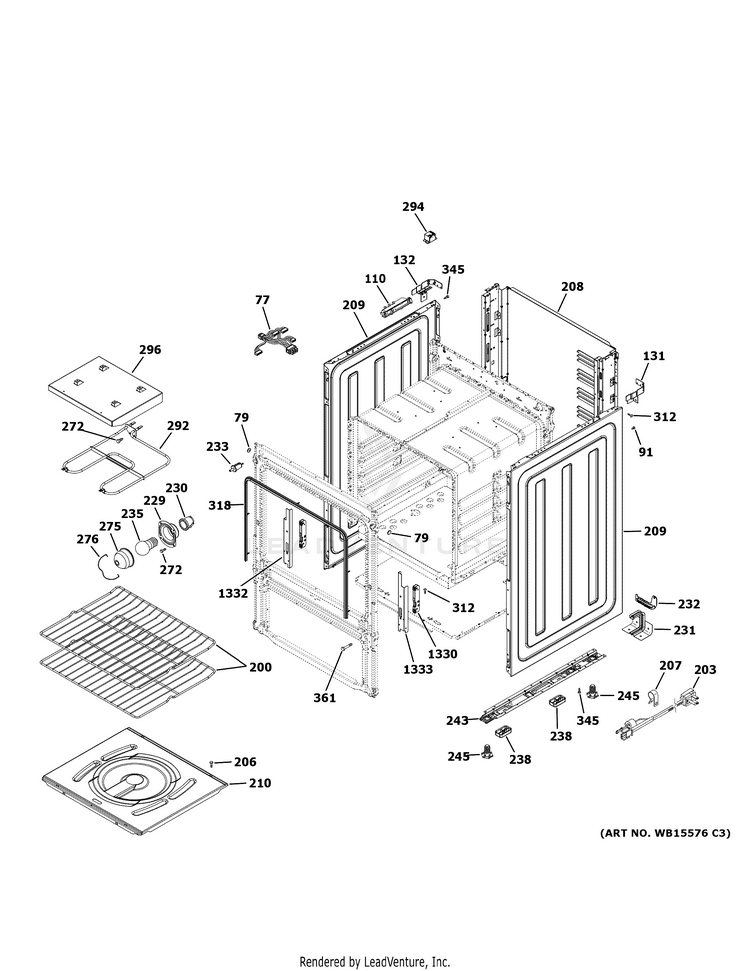

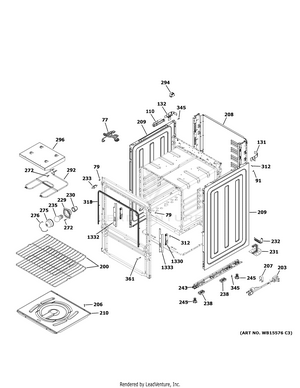

BODY PARTS

...
...
77
HARNESS MAIN GEH-WB18X31110
...
79
SPACER SIDE GEH-WB02X20849
...
91
SCREW GROUND GEH-WB01X1261
...
110
IGNITION MODULE GEH-WB13X24323
...
131
BRACKET COOKTOP GEH-WB37X30909
...
132
BRACKET COOKTOP GEH-WB37X30910
...
200
RACK OVEN GEH-WB48X30918
...
203
LINE CORD GEH-WB18X30955
...
206
SCR 8-18 AB X 5/16S GEH-WB01X26995
...
207
CLAMP CABLE GEH-WB02K0036
...
208
COVER BACK GEH-WB34X30976
...
209
PANEL SIDE ASM GEH-WB56X30952
...
210
OVEN BOTTOM GEH-WB63X30979
...
229
HOUSING RECEPTABLE GEH-WB08K10010
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ASM ANTI-TIP GEH-WB02X30959
...
232
ARM ANTI TIP GEH-WB02K10235
...
233
PLUNGER SWITCH GEH-WB24K10068
...
235
40A15 GEH-STD372401
...
238
SPACER BASE GEH-WB02X30963
...
243
SUPPORT BASE GEH-WB37X30907
...
245
LEG LEVELER GEH-WB02K10182
...
272
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
275
GLASS OVEN LAMP GEH-WB08K0005
...
276
BAIL GEH-WB02K0027
...
292
HEATER BROIL GEH-WB44X30973
...
294
RELAY GEH-WB13K10050
...
296
DEFLECTOR BROIL GEH-WB34X30985
...
312
SCREW GEH-WB01K10091
...
318
GASKET DOOR GEH-WB32X31916
...
345
SCREW (BLK) GEH-WB01K0042
...
361
SCREW GEH-WB01X30980
...
1330
RECEIVER HINGE GEH-WB10X31976
...
1332
GUSSET HINGE LH GEH-WB10X30947
...
1333
GUSSET HINGE RH GEH-WB10X30946

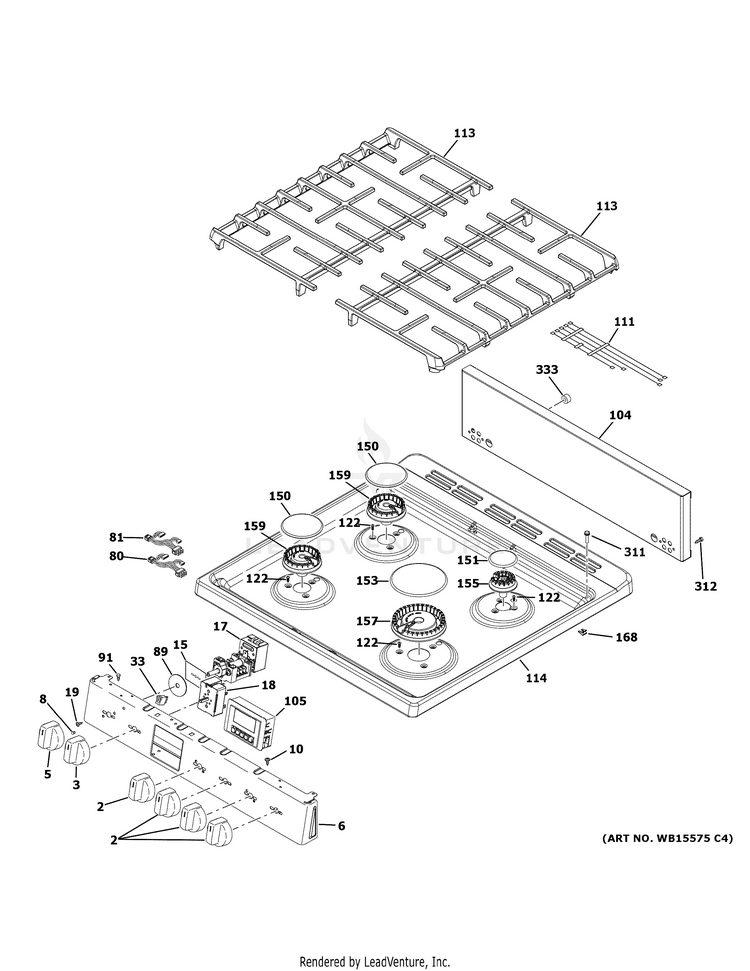

CONTROL PANEL & COOKTOP

...
...
2
KNOB ASM GEH-WB03X31122
...
3
OVEN MODE SELECTOR KNOB GEH-WB03X31070
...
5
THERMOSTAT KNOB ASM GEH-WB03X31121
...
6
MANIFOLD PANEL GEH-WB36X31109
...
8
LENS GEH-WB25X29379
...
10
SCREW 10-16 SHLDR TYPE A GEH-WB01T10009
...
15
COVER THERMOSTAT GEH-WB02K0006
...
17
THERMOSTAT ELECTRIC GEH-WB24X31123
...
18
OVEN MODE SELECTOR SWITCH GEH-WB24X31083
...
19
SCREW THERMOSTAT GEH-WB01K0008
...
33
LIGHT INDICATOR PILOT GEH-WB25K10010
...
80
HARNESS CONMUTATOR GEH-WB18X31075
...
81
HARNESS THERMOSTAT GEH-WB18X31073
...
89
SEAL VALVE GEH-WB02X31933
...
91
SCREW GROUND GEH-WB01X1261
...
104
BACKGUARD RANGE GEH-WB36X31079
...
105
TIMER-CLOCK & OVERLAY ASM GEH-WB24X31108
...
111
ELECTRODE TOP & HARNESS HV GEH-WB18X30975
...
113
GRATE TOP GEH-WB31X30957
...
114
RANGE TOP & INSULATION ASM GEH-WB62X31120
...
122
CKT SCREW GEH-WB01X24735
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM. CAP, BURNER SMALL V2 GEH-WB16X28654
...
153
CAP BURNER ASM (15K) GEH-WB28K10222
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
157
BURNER, XL V2 GEH-WB16X24722
...
159
BURNER, MEDIUM V2 GEH-WB16X24724
...
168
CLIP, IGNITER V2 GEH-WB02X24976
...
311
BUMPER GEH-WB02X24790
...
312
SCREW GEH-WB01K10091
...
333
SPACER-HANDLE GEH-WB01K10020

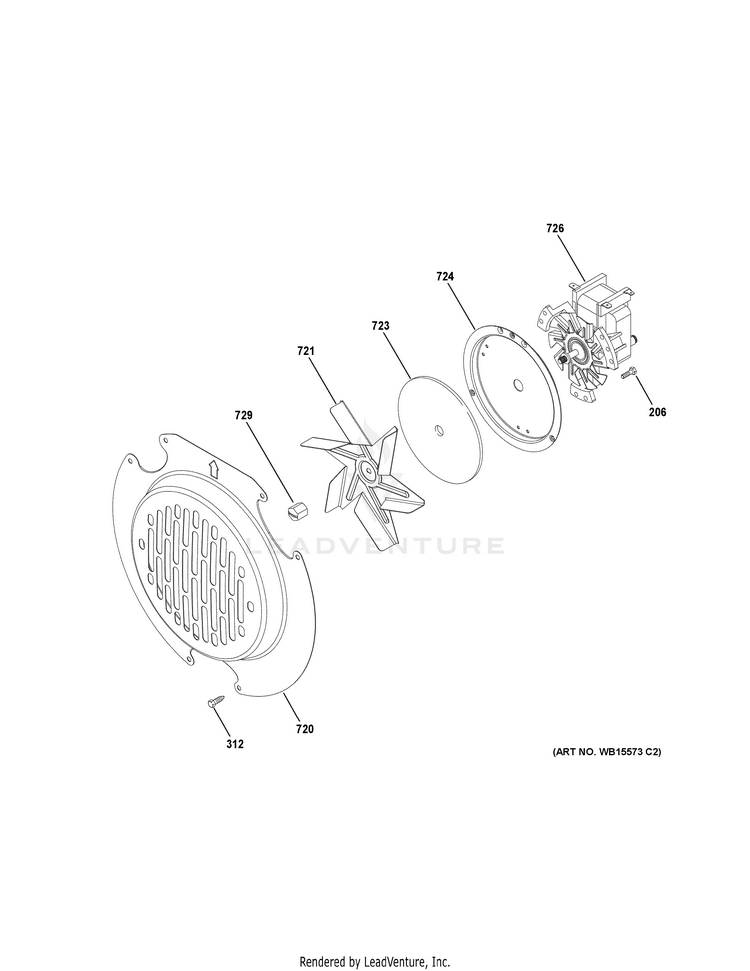

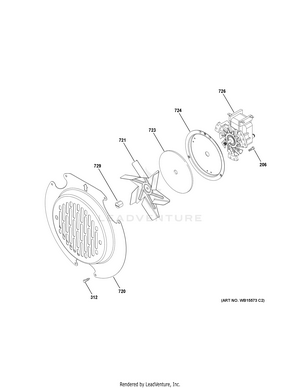

CONVECTION FAN

...
...
206
SCR 8-18 AB X 5/16S GEH-WB01X26995
...
312
SCREW GEH-WB01K10091
...
720
FAN COVER GEH-WB34X31084
...
721
FAN BLADE GEH-WB02X8351
...
723
FAN INSULATOR GEH-WB35K10038
...
724
FAN SUPPORT GEH-WB02K10034
...
726
FAN MOTOR CONVECT GEH-WB26X28953
...
729
NUT GEH-WB02T10017

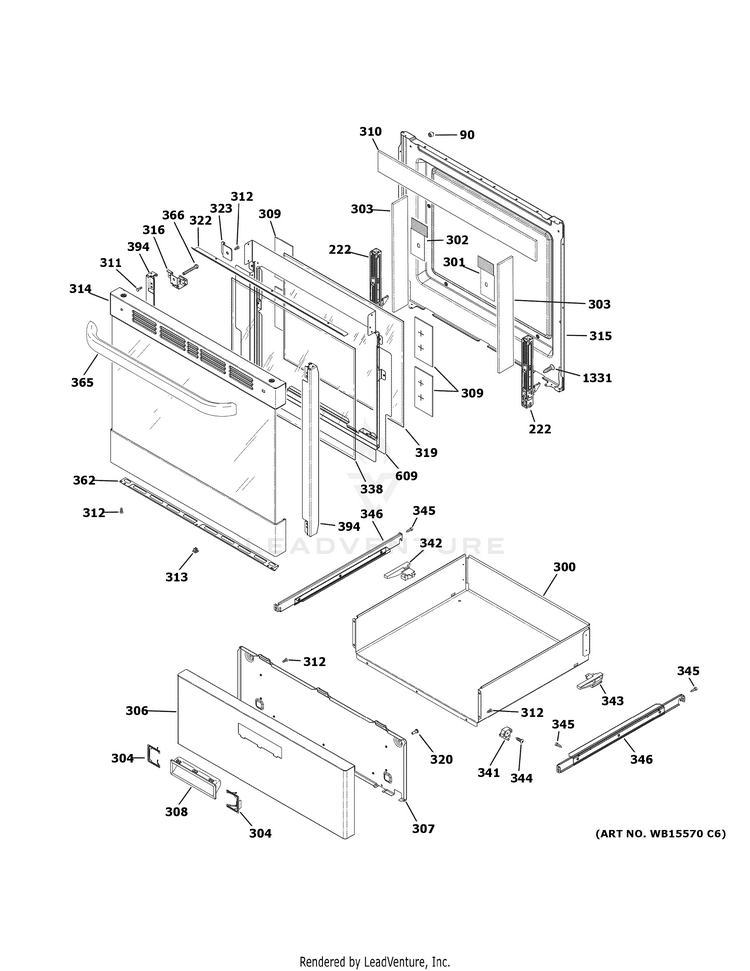

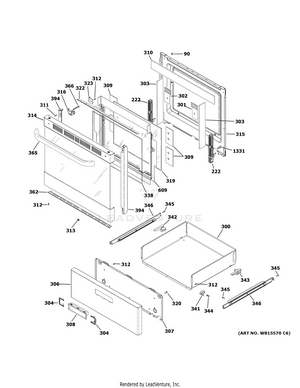

DOOR & DRAWER PARTS

...
...
90
FRAME FRONT BUMPER GEH-WB02X28737
...
222
HINGE DOOR GEH-WB10X30929
...
300
BODY DRAWER GEH-WB63X30936
...
301
INSULATION VENT TRIM GEH-WB35X31931
...
302
INSULATION VENT TRIM GEH-WB35X31934
...
303
BACKGUARD FOIL GEH-WB35X32665
...
304
CLIP BROIL HANDLE GEH-WB01X26891
...
306
PANEL DRAWER GEH-WB56X30920
...
307
LINER DRAWER GEH-WB56X30925
...
308
HANDLE BROIL GEH-WB15X26672
...
309
DOOR INSULATION GEH-WB35X30903
...
310
INSULATION DOOR GEH-WB35X32513
...
311
BUMPER GEH-WB02X24790
...
312
SCREW GEH-WB01K10091
...
313
GROMMET GEH-WB02K0008
...
314
GLASS OVEN DOOR ASM GEH-WB56X31077
...
315
LINER DOOR GEH-WB56X30926
...
316
BRACKET BACKER GEH-WB37X30911
...
319
GLASS LINER DOOR GEH-WB56X30906
...
320
BUMPER, BLACK GEH-WB02K0015
...
322
DEFLECTOR UPPER DOOR GEH-WB34X30935
...
323
BRACKET GLASS GEH-WB02K10350
...
338
GLASS LINER DOOR GEH-WB56X30905
...
341
DRAWER SUPPORT GEH-WB02K10186
...
342
GLIDER DRAWER LEFT GEH-WB02K10062
...
343
GLIDER DRAWER RIGHT GEH-WB02K10061
...
344
SCREW GEH-WB01X30915
...
345
SCREW (BLK) GEH-WB01K0042
...
346
RAIL & BRACKET GUIDE DRAWER ASM GEH-WB37X30908
...
362
BARRIER DOOR GEH-WB56X31921
...
365
HANDLE DOOR GEH-WB15X31076
...
366
SCREW 10-32 HSW 1/2 GEH-WB01X33709
...
394
TRIM POST DOOR GEH-WB07X31067
...
609
GUARD INSULATION GEH-WB34X30933
...
1331
SCREW GEH-WB01K0081

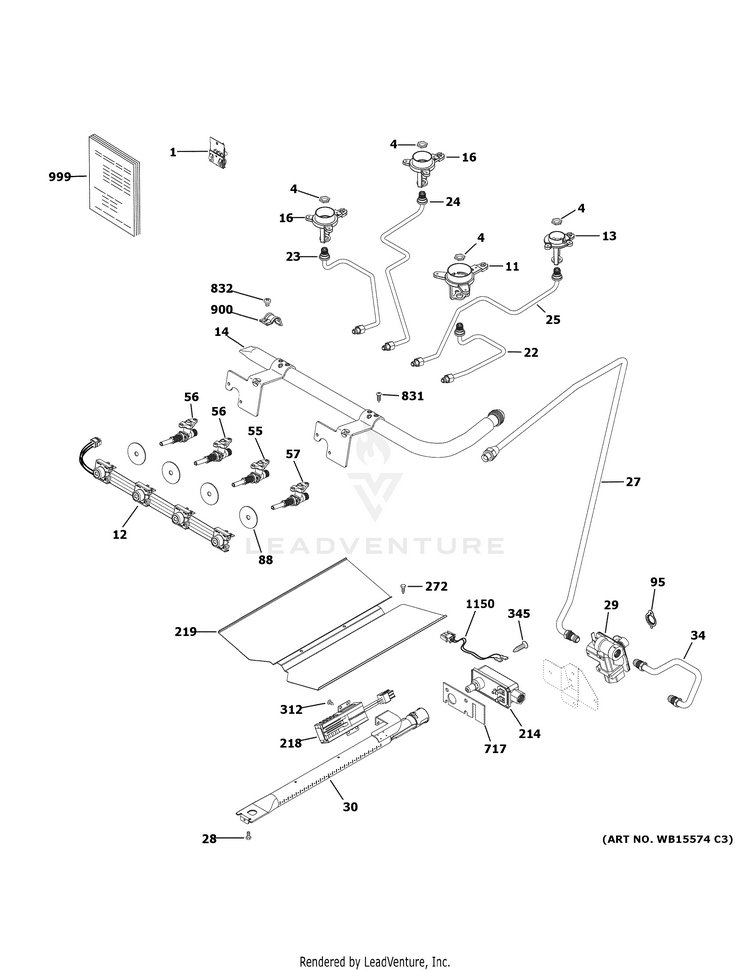

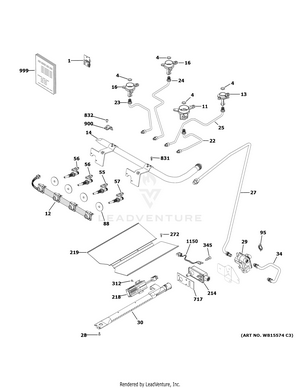

GAS & BURNER PARTS

...
...
1
CONVERSION KIT LP ASM GEH-WB28X30958
...
1
KIT HIGH ALTITUDE NG GEH-WB28X31269
...
1
KIT HIGH ALTITUDE PROPANE GEH-WB28X31267
...
4
ECONOMIC NUT GEH-WB01K10037
...
11
INJET, XL V2 GEH-WB02X24725
...
12
HARNESS SWITCHES GEH-WB18X30974
...
13
INJET, SMALL V2 GEH-WB02X24728
...
14
MANIFOLD PIPE ASM GEH-WB28X30981
...
16
INJET, MEDIUM V2 GEH-WB02X24727
...
22
ORIFICE HOLDER RF GEH-WB28X30967
...
23
ORIFICE HOLDER LF GEH-WB28X30969
...
24
ORIFICE HOLDER LR GEH-WB28X30966
...
25
ORIFICE HOLDER RR GEH-WB28X30968
...
27
TUBE MANIFOLD SUPPLY GEH-WB28X30961
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
29
PRESSURE REGULATOR GEH-WB21X30965
...
30
BURNER OVEN ASM GEH-WB16X30977
...
34
TUBE SAFETY VALVE GEH-WB28X30960
...
55
VALVE BURNER 270 GEH-WB21X20261
...
56
VALVE BURNER 270 GEH-WB21X20260
...
57
VALVE BURNER 270 GEH-WB21X20262
...
88
SEAL VALVE GEH-WB35X21708
...
95
COVER CAP GEH-WB02K10337
...
214
SAFETY VALVE GEH-WB21X31124
...
218
IGNITER GLOWBAR GEH-WB13X30972
...
219
DEFLECTOR OVEN GEH-WB34X30988
...
272
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
312
SCREW GEH-WB01K10091
...
345
SCREW (BLK) GEH-WB01K0042
...
717
SAFETY VALVE INSULATION GEH-WB35K10079
...
831
SCREW 8-32 GEH-WB01K10083
...
832
SCREW THERMOSTAT GEH-WB01K10097
...
900
BRACKET VALVE GEH-WB02K10297
...
999
PM PROPANE INSTALLATION GEH-31-11144
...
999
PM MANUAL MINI & WD ASM GEH-31-17294
...
999
PM OWNERS MANUAL GEH-49-2001074
...
999
PM INSTALL INSTRUCTIONS GEH-31-11141
...
999
PM QUICK OWNERS MANUAL GEH-49-2001060
...
1150
HARNESS SAFETY VALVE GEH-WB18X30987
