Haier HRT18RCPB1 Refrigerator

Model: HRT18RCPB1

Save Part Not Listed?
product name

Popular Parts

Popular Parts

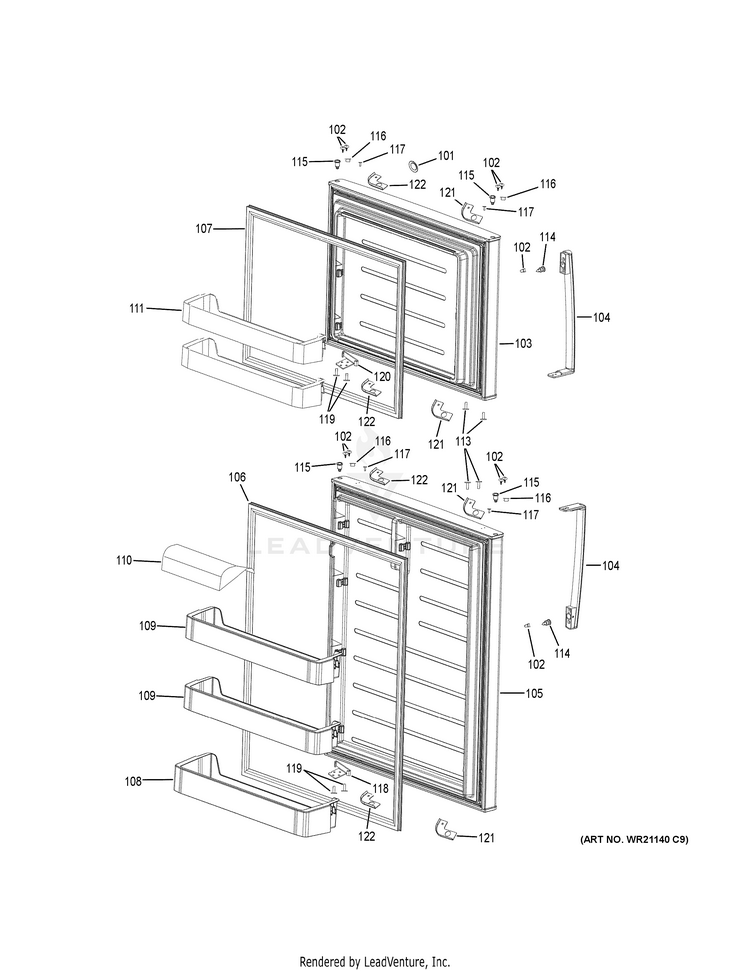

DOORS

...
...
101
BADGE ASM HAIER GEH-WR02X27273
...
102
DOOR SCREW PLUG BLACK GEH-WR02X27445
...
103
PS DOOR FZ BLACK GEH-WR78X27325
...
104
HANDLE DOOR BB GEH-WR12X27379
...
105
PS DOOR FF BLACK GEH-WR78X27323
...
106
GASKET DOOR FF BB GEH-WR14X27381
...
107
GASKET DOOR FZ BB GEH-WR14X27382
...
108
SHELF DOOR FULL FF WHITE GEH-WR71X27387
...
109
FREEZER DOOR - RAIL BIN WHITE GEH-WR71X27450
...
110
COVER DAIRY BIN GEH-WR01X27287
...
111
SHELF DOOR HALF FZ WHITE GEH-WR71X27389
...
113
SCREW 3.9MM X 16MM GEH-WR01X27333
...
114
SCREW DOVE TAIL GEH-WR01X27334
...
115
DOOR THIMBLE BLACK GEH-WR02X27453
...
116
PLUG BUTTON THIMBLE GEH-WR02X11774
...
117
SCREW #8 X 9/16" GEH-WR01X27330
...
118
DOOR STOP FRESH FOOD GEH-WR01X27349
...
119
SCREW PH ST 3.9X19 GEH-WR01X27336
...
120
DOOR STOP FREEZER GEH-WR01X27350
...
121
DOOR CAP RIGHT CORNER BLACK GEH-WR02X27460
...
122
DOOR CAP LEFT CORNER BLACK GEH-WR02X27461

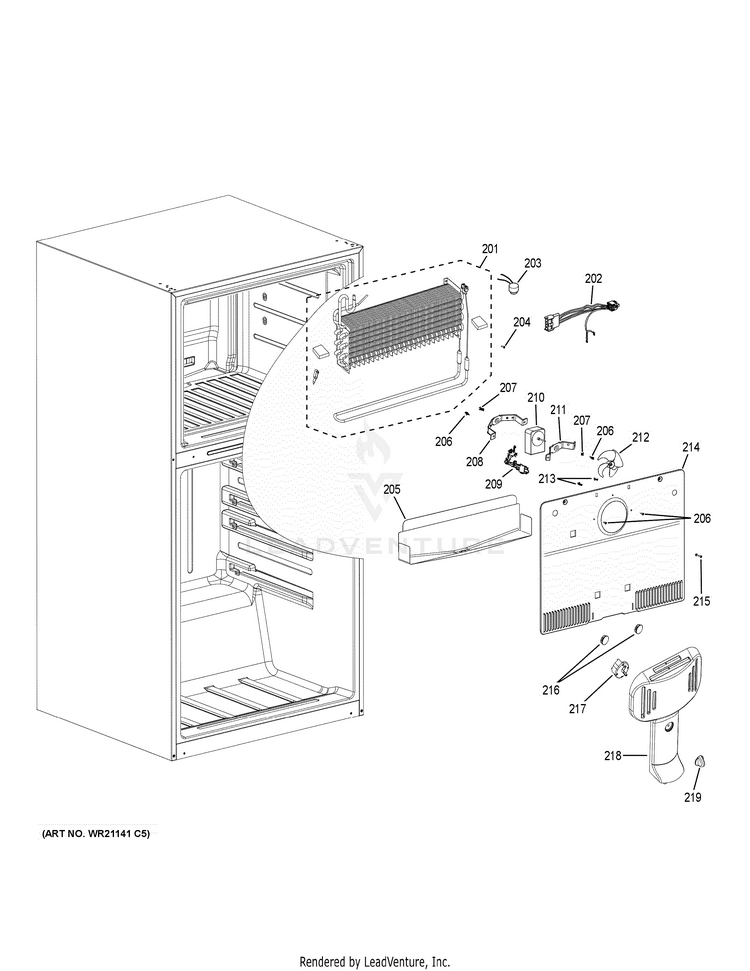

FREEZER SECTION

...
...
201
EVAP AND HEATER ASM GEH-WR87X27295
...
202
IM DEFROST CABLE GEH-WR55X27420
...
203
THERMOSTAT DEFROST GEH-WR09X27353
...
204
SCREW #8 X 5/8" GEH-WR01X27329
...
205
DEFROST DRAIN TRAY GEH-WR14X27293
...
206
SCREW #8-32 X 3/8" GEH-WR01X27327
...
207
GROUND SCREW STAR WASHER GEH-WR01X27302
...
208
EVAPORATOR FAN REAR BRACKET GEH-WR02X27278
...
209
JUMPER MOTOR EVAP FAN GEH-WR55X27310
...
210
MOTOR AC EVAP FAN GEH-WR60X27314
...
211
EVAPORATOR FAN INNER BRACKET GEH-WR02X27926
...
212
BLADE EVAP FAN ASM GEH-WR60X27275
...
213
SCREW #8 X 3/8" GEH-WR01X27328
...
214
EVAPORATOR COVER GEH-WR14X29187
...
215
EVAP COVER SCREW & WASHER GEH-WR01X27296
...
216
PLUG BUTTON WW GEH-WR01X27320
...
217
IM RECEPTACLE COVER GEH-WR02X27610
...
218
AIR TOWER ASSEMBLY GEH-WR14X27927
...
219
KNOB AIR TOWER GEH-WR02X27311

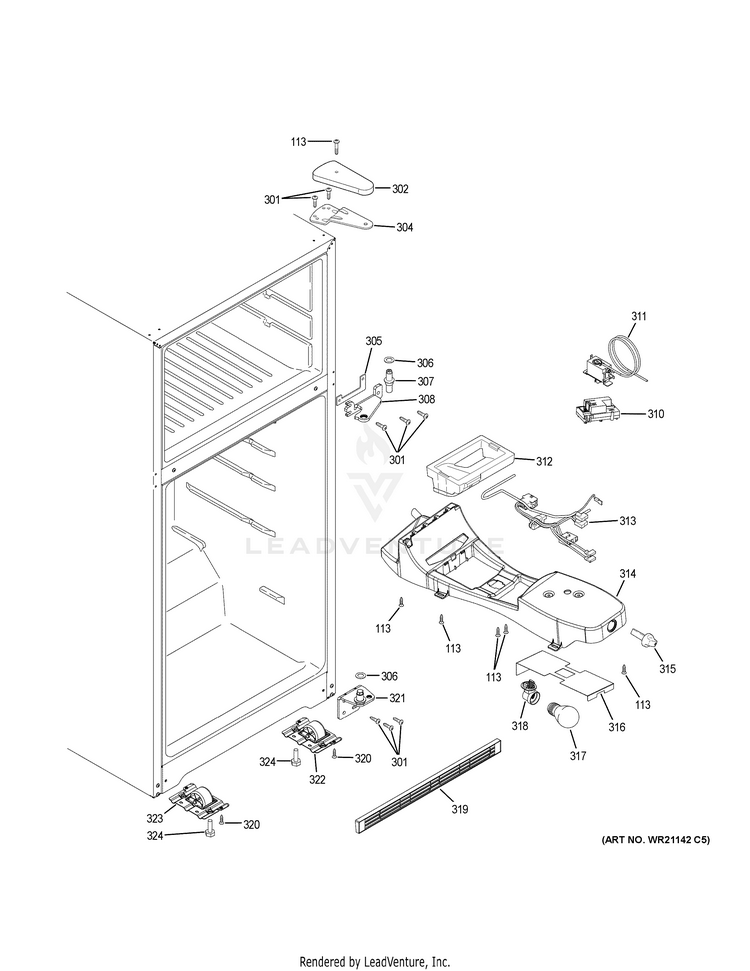

FRESH FOOD SECTION

...
...
113
SCREW 3.9MM X 16MM GEH-WR01X27333
...
301
SCREW M6 X 16MM GEH-WR01X27335
...
302
TOP HINGE COVER BLACK GEH-WR13X27459
...
304
TOP HINGE GEH-WR13X27462
...
305
CENTER HINGE SHIM GEH-WR13X27290
...
306
WASHER HINGE PIN GEH-WR01X27360
...
307
CENTER HINGE PIN GEH-WR13X27432
...
308
CENTER HINGE UNPAINTED GEH-WR13X27463
...
310
ADAPTIVE DEFROST CONTROL GEH-WR09X28646
...
311
THERMOSTAT GEH-WR09X27352
...
312
NOZZLE SUPPLY FOAM GEH-WR01X27316
...
313
HARNESS COLD CONTROL GEH-WR55X27421
...
314
HOUSING COLD CONTROL GEH-WR09X27436
...
315
KNOB CONTROL GEH-WR02X27312
...
316
SHIELD DEFLECTOR GEH-WR14X27345
...
317
LIGHT BULB 40W GEH-WR02X27378
...
318
SOCKET LIGHT GEH-WR01X27348
...
319
TOE KICK BLACK GEH-WR02X27607
...
320
SCREW 1/4" X 3/4" GEH-WR01X27331
...
321
HINGE BOTTOM GEH-WR13X27306
...
322
WHEEL MOBILITY ASM RH GEH-WR02X27363
...
323
WHEEL MOBILITY ASM LH GEH-WR02X27362
...
324
LEVELING LEG GEH-WR01X27313

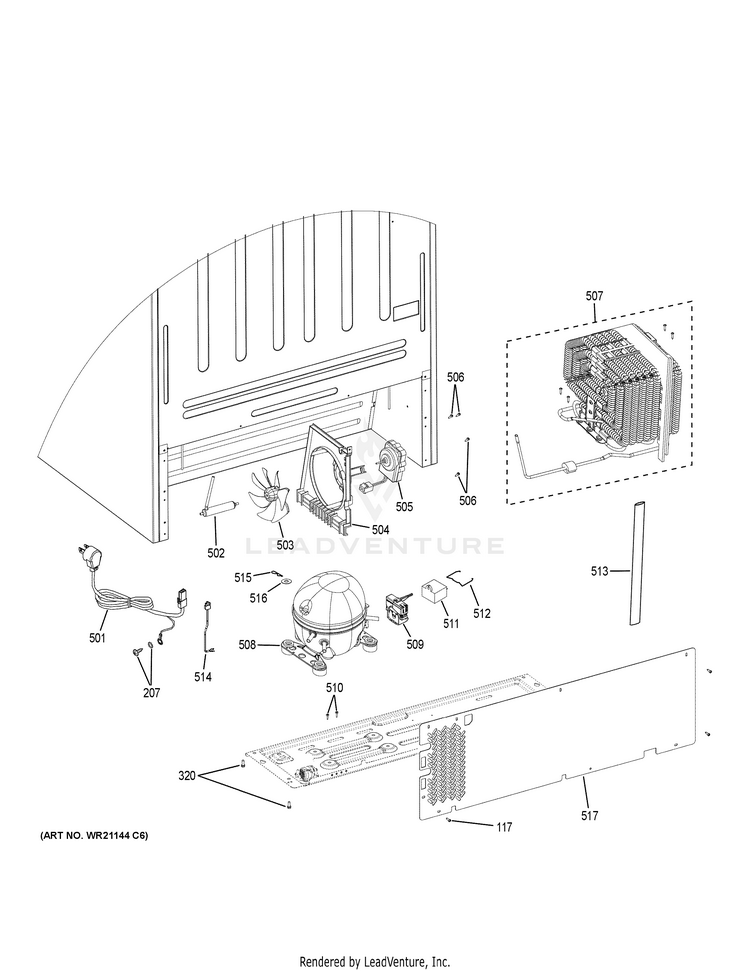

MACHINE COMPARTMENT

...
...
117
SCREW #8 X 9/16" GEH-WR01X27330
...
207
GROUND SCREW STAR WASHER GEH-WR01X27302
...
320
SCREW 1/4" X 3/4" GEH-WR01X27331
...
501
POWER CORD ASM GEH-WR55X27408
...
502
DRYER GEH-WR87X27294
...
503
BLADE COND FAN ASM GEH-WR60X27274
...
504
BRACKET COND FAN GEH-WR02X27276
...
505
MOTOR COND FAN GEH-WR60X27315
...
506
SCREW 3.9MM X 11MM GEH-WR01X27332
...
507
CONDENSER FORMED ASM GEH-WR87X27284
...
508
EM3Z50HLT COMPRESSOR GEH-WR87X28809
...
509
TSD W/O BALE STRAP GEH-WR55X27418
...
510
GROUND SCREW #8-32 X 3/8" GEH-WR01X27301
...
511
CAPACITOR 12 UF GEH-WR55X23731
...
512
CLIP RETAINER COMBO GEH-WR02X22564
...
513
EXTENSION DRAIN TUBE GEH-WR02X27297
...
514
HARNESS COMPRESSOR GEH-WR55X27304
...
515
PIN COMPRESSOR GEH-WR01X27318
...
516
COMPRESSOR WASHER GEH-WR02X27433
...
517
COVER REAR ACCESS GEH-WR13X27286

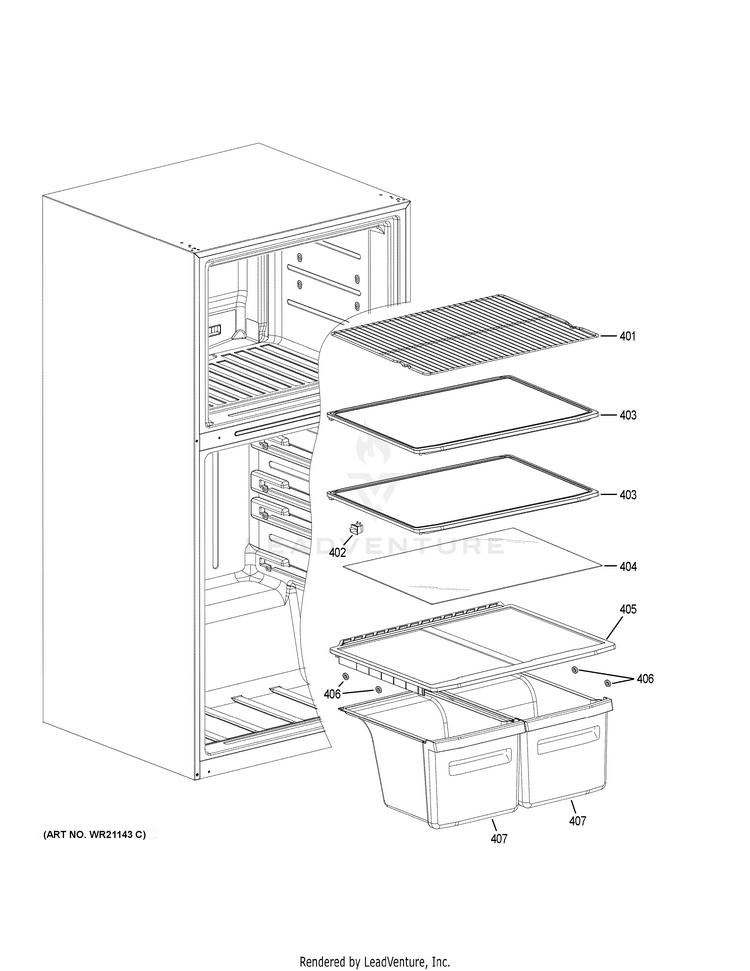

SHELVES & DRAWERS

...
...
401
SHELF WIRE FZ GEH-WR71X27611
...
402
SWITCH LIGHT GEH-WR23X27351
...
403
SHELF GLASS FF GEH-WR71X27339
...
404
VEGETABLE PAN COVER GLASS GEH-WR71X29188
...
405
COVER VEG PAN ASM GEH-WR71X27291
...
406
WHEEL COVER VEG PAN GEH-WR01X27361
...
407
VEGETABLE PAN GEH-WR71X30050
