Haier HRB10N2BGS Refrigerator

Model: HRB10N2BGS

Save Part Not Listed?
product name

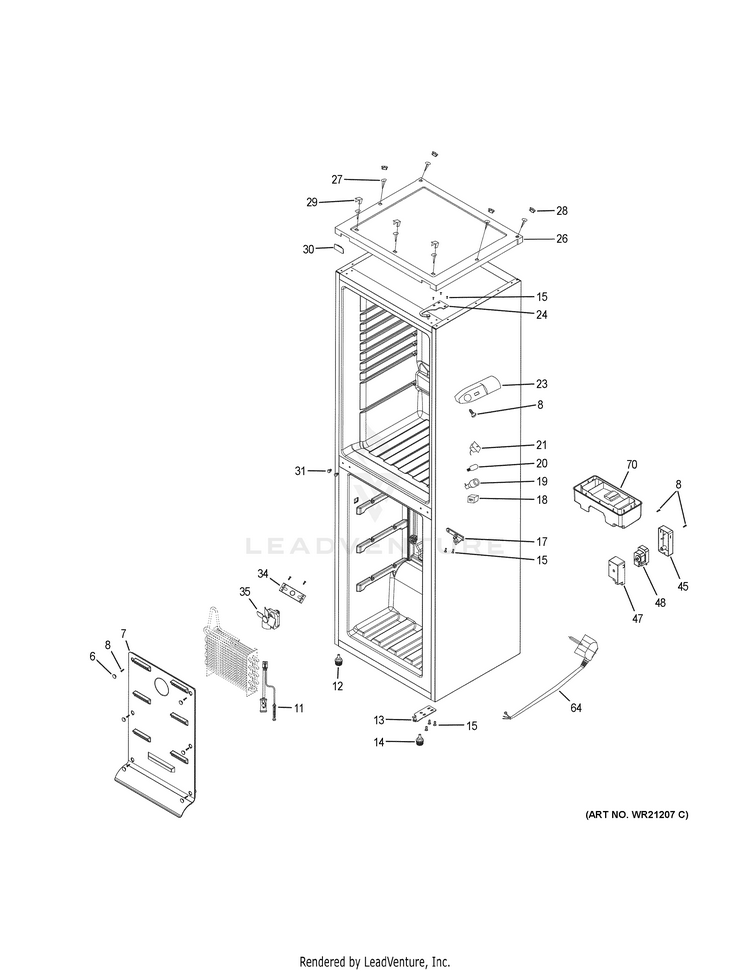

CABINET

...
...
6
SCREW HOLE COVER GEH-WR01X29683
...
7
AIR DUCT COVER GEH-WR14X29648
...
8
SCREW GEH-WR01X29680
...
11
DEFROST PROTECTOR GEH-WR09X29654
...
12
LEVELING LEG LEFT GEH-WR01X29671
...
13
LOWER HINGE GEH-WR13X29674
...
14
LEVELING LEG RIGHT GEH-WR01X29672
...
15
BOLT GEH-WR01X29649
...
17
MIDDLE HINGE GEH-WR13X29676
...
18
DOOR SWITCH GEH-WR55X29659
...
19
LAMP SOCKET GEH-WR01X29670
...
20
BULB GEH-WR01X29651
...
21
THERMOSTAT GEH-WR09X29685
...
23
THERMOSTAT COVER GEH-WR13X29686
...
24
TOP HINGE GEH-WR13X29692
...
26
TOP COVER GEH-WR13X29690
...
27
SCREW GEH-WR01X29681
...
28
TOP SCREW HOLE COVER GEH-WR01X29693
...
29
TOP CLIP GEH-WR01X29688
...
30
TOP CLIP COVER GEH-WR01X29689
...
31
PLUG BUTTON GEH-WR01X29678
...
34
FAN MOTOR BRACKET GEH-WR14X29663
...
35
FAN MOTOR GEH-WR60X29662
...
45
TIMER COVER GEH-WR13X29687
...
47
SCREW GEH-WR01X29682
...
48
DEFROST TIMER GEH-WR09X29655
...
64
POWER CORD GEH-WR55X29679
...
70
DRAIN TRAY GEH-WR14X29661

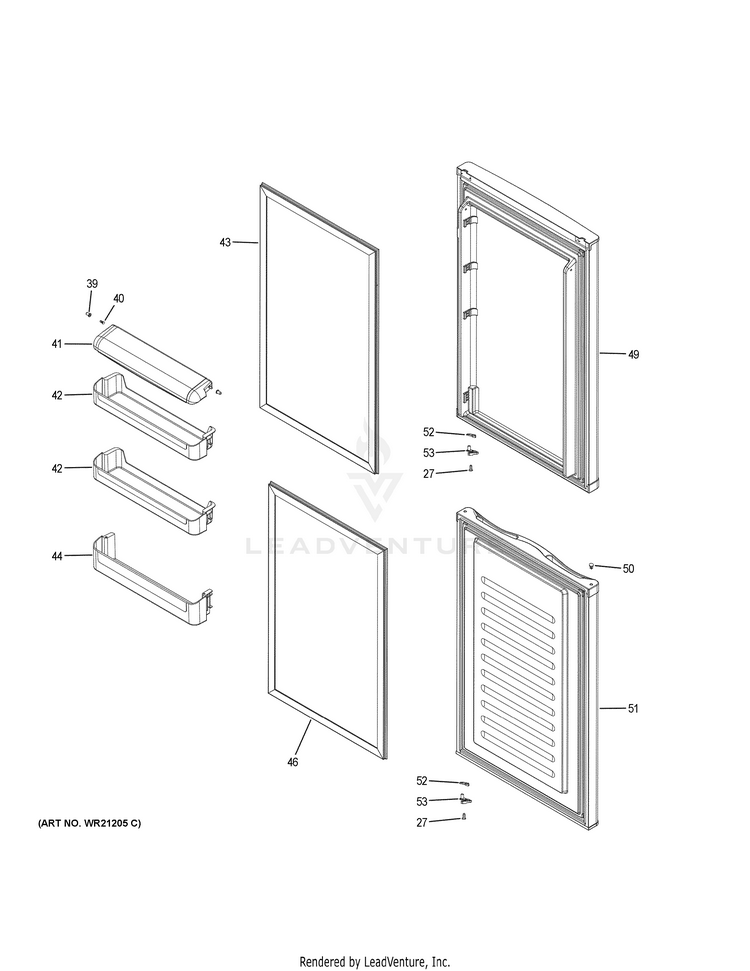

DOORS

...
...
27
SCREW GEH-WR01X29681
...
39
SOCKET GEH-WR01X29684
...
40
PIN GEH-WR01X29677
...
41
DOOR SHELF COVER GEH-WR13X29657
...
42
TOP DOOR SHELF GEH-WR71X29691
...
43
FRESH FOOD DOOR GASKET GEH-WR14X29668
...
44
BOTTOM DOOR SHELF GEH-WR71X29650
...
46
FREEZER DOOR GASKET GEH-WR14X29666
...
49
FRESH FOOD DOOR GEH-WR78X29667
...
50
DOOR THIMBLE GEH-WR01X29660
...
51
FREEZER DOOR GEH-WR78X29665
...
52
DOOR STOP GEH-WR01X29658
...
53
DOOR CAM GEH-WR01X29656

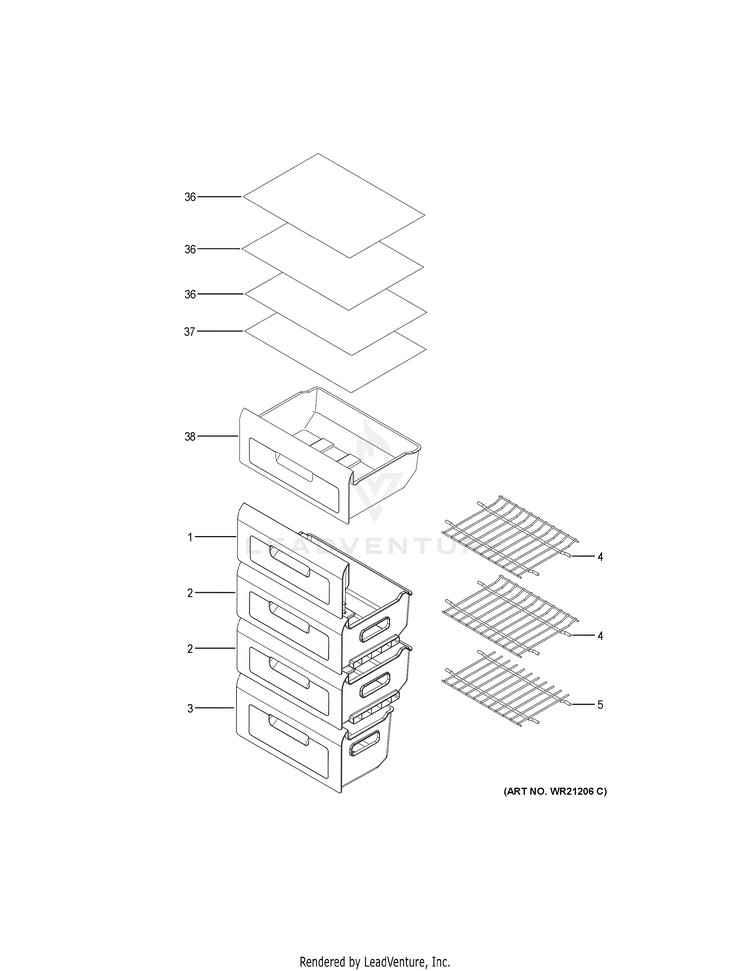

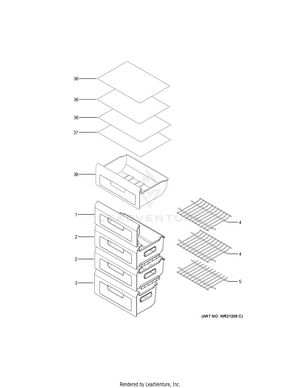

SHELVES & DRAWERS

...
...
1
FLAP GEH-WR71X29664
...
2
MIDDLE DRAWER GEH-WR71X29675
...
3
LOWER DRAWER GEH-WR71X29673
...
4
WIRE SHELF GEH-WR71X29694
...
5
WIRE SHELF LOWER GEH-WR71X29695
...
36
GLASS SHELF GEH-WR71X29669
...
37
CRISPER COVER GEH-WR71X29652
...
38
CRISPER PAN GEH-WR71X29653
