Haier HCR6250AGS Gas Range Or Dual Fuel

Model: HCR6250AGS

Back To Assemblies

Save Part Not Listed?
product name

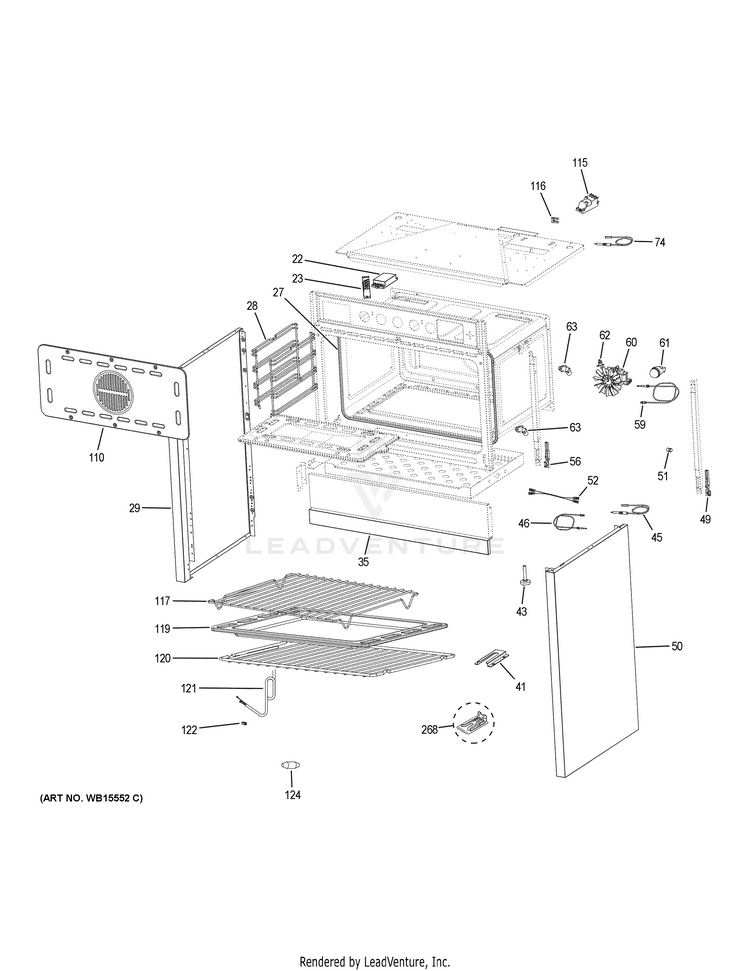

BODY PARTS

...
...
22
OKILI IGNITION GEH-WB13X28362
...
23
TOP BURNER SPARK MODULE GEH-WB13X28463
...
27
DOOR GASKET GEH-WB35X28431
...
28
GUIDE RAIL ASM GEH-WB48X28446
...
29
SIDE PANEL LT GEH-WB56X28459
...
35
TOE KICK GEH-WB07X28462
...
41
ANTI-TIP BRACKET GEH-WB02X28464
...
43
LEVELING LEG GEH-WB02X28308
...
45
IGNITOR WITH WIRE GEH-WB13X28355
...
46
ELECTRODE HOLDER GEH-WB02X28440
...
46
THERMOCOUPLE GEH-WB13X28382
...
49
HINGE RECEIVER RT GEH-WB10X28402
...
50
SIDE PANEL RT GEH-WB56X28460
...
51
GUIDE RAIL NUT GEH-WB02X28297
...
52
THERMOCOUPLE HARNESS GEH-WB18X28383
...
56
HINGE RECEIVER LT GEH-WB10X28401
...
59
THERMOCOUPLE GEH-WB13X28380
...
60
CONVECTION MOTOR AND BLADE ASM GEH-WB26X28342
...
61
LAMP SOCKET AND LENSE ASM GEH-WB18X28358
...
62
COOLING FAN THERMOSTAT GEH-WB24X28282
...
63
ELBOW GEH-WB28X28437
...
74
ELECTRODE / IGNITOR GEH-WB13X28438
...
110
CONVECTION FAN COVER GEH-WB34X28428
...
115
OVEN SPARK MODULE GEH-WB13X28374
...
116
ELECTRODE HOLDER GEH-WB02X28441
...
117
GRILL RACK GEH-WB48X28445
...
119
GREASE COLLECTOR PAN GEH-WB32X28444
...
120
OVEN RACK GEH-WB48X28458
...
121
POWER CORD GEH-WB18X28375
...
122
MIDDLE GLASS BRACKET GEH-WB02X28453
...
124
EMI FERRITE GEH-WB18X28346
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10578
