Haier HCR2250AGS Gas Range Or Dual Fuel

Model: HCR2250AGS

Save
 Part Not Listed?Part Not Listed?
product name

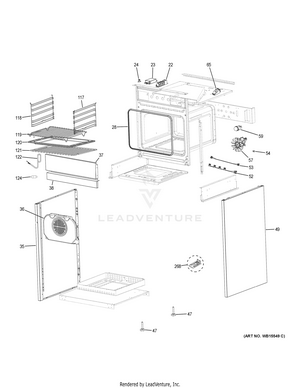

BODY PARTS

...
...
22
TOP BURNERS SPARK MODULE GEH-WB13X28324
...
23
OKILI IGNITION GEH-WB13X28362
...
24
COOLING FAN THERMOSTAT GEH-WB24X28282
...
28
DOOR GASKET GEH-WB35X28344
...
35
SIDE PANEL LT GEH-WB56X28317
...
36
CONVECTION FAN COVER GEH-WB34X28341
...
37
FRONT BOTTOM TRIM GEH-WB07X28291
...
38
TOE KICK GEH-WB07X28385
...
47
LEVELING LEG GEH-WB02X28308
...
49
SIDE PANEL RT GEH-WB56X28318
...
52
SWITCH HARNESS ASM GEH-WB18X28319
...
53
THERMOCOUPLE HARNESS GEH-WB18X28383
...
54
GUIDE RAIL NUT GEH-WB01X28351
...
57
CONVECTION MOTOR AND BLADE ASM GEH-WB26X28342
...
59
LAMP SOCKET AND LENSE ASM GEH-WB18X28358
...
65
OVEN SPARK MODULE GEH-WB13X28374
...
117
GUIDE RAIL ASM RT GEH-WB48X28350
...
118
GUIDE RAIL ASM LT GEH-WB48X28349
...
119
GRILL RACK GEH-WB48X28348
...
120
GREASE COLLECTOR PAN GEH-WB32X28296
...
121
OVEN RACK GEH-WB48X28313
...
122
POWER CORD GEH-WB18X28375
...
124
EMI FERRITE GEH-WB18X28346
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10578

CONTROL PANEL & COOKTOP

...
...
1
WOK ADAPTER GEH-WB31X28325
...
2
BURNER CAP GEH-WB29X28275
...
3
BURNER BASE GEH-WB16X28272
...
4
IGNITOR WITH WIRE GEH-WB13X28299
...
5
BURNER CAP INNER GEH-WB29X28276
...
6
THERMOCOUPLE GEH-WB13X28322
...
7
BURNER CAP OUTER GEH-WB29X28277
...
8
NG ORIFICE GEH-WB28X30659
...
8
LP ORIFICE GEH-WB28X30651
...
9
BURNER BASE GEH-WB16X28273
...
10
INJET GEH-WB28X28303
...
11
INJET GEH-WB28X28301
...
12
BURNER SUPPLY TUBE GEH-WB28X28338
...
12
BURNER SUPPLY TUBE GEH-WB28X28339
...
12
BURNER SUPPLY TUBE GEH-WB28X28340
...
12
BURNER SUPPLY TUBE GEH-WB28X28337
...
13
MAINTOP SS GEH-WB62X28310
...
14
MANIFOLD GEH-WB28X28359
...
15
LP ORIFICE GEH-WB28X30653
...
15
NG ORIFICE GEH-WB28X30660
...
16
NG ORIFICE GEH-WB28X30661
...
16
LP ORIFICE GEH-WB28X30652
...
17
GAS VALVE GEH-WB21X28294
...
17
GAS VALVE GEH-WB21X28293
...
17
GAS VALVE GEH-WB21X28347
...
18
LP BROIL ORIFICE GEH-WB28X30648
...
18
NG BROIL ORIFICE GEH-WB28X30655
...
19
LP BAKE ORIFICE GEH-WB28X30647
...
19
NG BAKE ORIFICE GEH-WB28X30654
...
20
TEMPERATURE CONTROL VALVE GEH-WB21X28379
...
21
NG BROIL ORIFICE GEH-WB28X30656
...
21
LP BROIL ORIFICE GEH-WB28X30646
...
62
COOLING FAN ASM GEH-WB26X28343
...
67
BROIL BURNER SUPPLY TUBE GEH-WB28X28373
...
68
BAKE BURNER SUPPLY TUBE GEH-WB28X28372
...
74
BACKSPLASH GEH-WB34X28326
...
76
INJET GEH-WB28X28302
...
77
IGNITOR WITH WIRE GEH-WB13X28300
...
78
BURNER BASE GEH-WB16X28271
...
79
BURNER CAP GEH-WB29X28274
...
80
THERMOCOUPLE GEH-WB13X28381
...
81
THERMOCOUPLE GEH-WB13X28321
...
82
GRATE GEH-WB31X28295
...
93
TIMER GEH-WB24X28384
...
97
SELECTOR SWITCH GEH-WB24X28378
...
99
CONTROL PANEL OVERLAY GEH-WB07X30669
...
100
KNOB GEH-WB03X28306
...
103
SELECTOR KNOB GEH-WB03X28377
...
106
BROIL BURNER GEH-WB16X28336
...
108
IGNITOR WITH WIRE GEH-WB13X28354
...
109
THERMOCOUPLE GEH-WB13X28380
...
110
BAKE BURNER GEH-WB16X28335
...
111
THERMOCOUPLE GEH-WB13X28382
...
112
IGNITOR WITH WIRE GEH-WB13X28355
...
114
GASKET GEH-WB35X28292
...
115
INLET ELBOW GEH-WB28X28304
...
116
REGULATOR GEH-WB21X28376

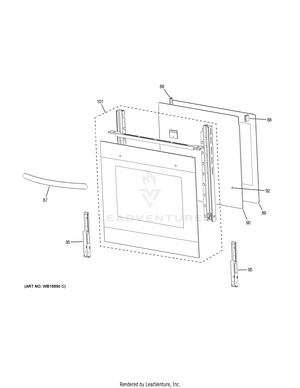

DOOR

...
...
87
HANDLE ASM GEH-WB15X28352
...
88
MIDDLE GLASS SPACER GEH-WB02X28361
...
89
INNER DOOR GLASS GEH-WB56X28357
...
90
MIDDLE DOOR GLASS GEH-WB56X28360
...
92
HANDLE FASTENER GEH-WB01X28356
...
95
DOOR HINGE GEH-WB10X28345
...
101
OUTER DOOR ASM GEH-WB56X30676
...
...
...
