Haier 1U18LC2VHA Room Air Conditioner Built In

Model: 1U18LC2VHA

Save Part Not Listed?
product name

ROOM AIR CONDITIONER

...
...
1
CASING GEH-WJ71X23695
...
2
FAN BLADE GEH-WJ73X23305
...
3
OUTDOOR FAN MOTOR GEH-WJ94X23327
...
4
OUTDOOR FAN MOTOR BRACKET GEH-WJ65X23697
...
6
LEFT SIDE PANEL GEH-WJ71X23696
...
8
TOP PANEL GEH-WJ71X23357
...
9
VALVE COVER GEH-WJ73X24376
...
10
RIGHT SIDE PANEL GEH-WJ71X23699
...
11
REAR GRILLE GEH-WJ71X23339
...
12
4-WAY VALVE GEH-WJ53X22987
...
13
ELECTRONIC EXPANSION VALVE GEH-WJ53X23169
...
14
DISCHARGE TUBE GEH-WJ53X23295
...
15
2-WAY STOP VALVE GEH-WJ53X22991
...
16
3-WAY VALVE GEH-WJ53X22992
...
17
SUCTION TUBE GEH-WJ53X23348
...
18
OUTDOOR WIRE HARNESS GEH-WJ35X23003
...
19
COMPRESSOR GEH-WJ98X23285
...
20
AMBIENT TEMPERATURE SENSOR GEH-WJ26X23278
...
23
OUTDOOR POWER CONTROL BOARD GEH-WJ26X35953
...
24
TERMINAL BLOCK GEH-WJ27X23010
...
25
TERMINAL BLOCK GEH-WJ27X23011
...
26
REACTOR GEH-WJ27X23006
...
30
PIPE SENSOR GEH-WJ26X23334
...
33
FLANGE NUT GEH-WJ01X23312
...
35
ELECTRICAL COVER GEH-WJ73X24377
...
36
COMPRESSOR TEMPERATURE SENSOR GEH-WJ26X23286
...
37
SUCTION TEMPERATURE SENSOR GEH-WJ26X23346
...
43
INVERTER ASSEMBLY GEH-WJ26X24109

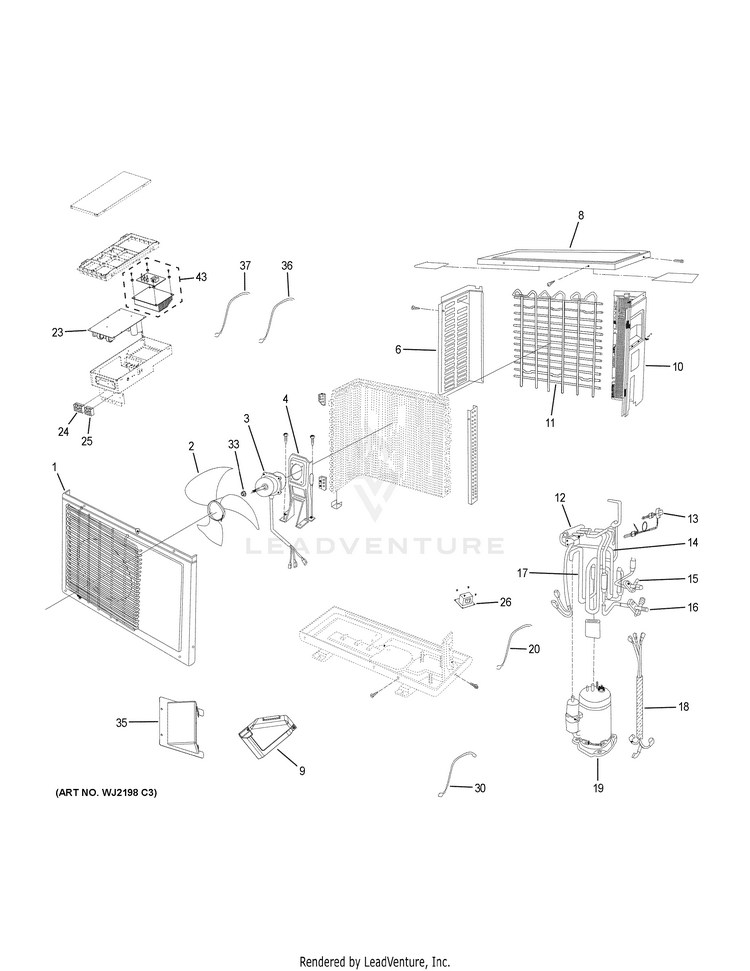

Schematic Image Zoomed
