HPP1832-0 Briggs and Stratton Generator BSP7500L3 Non EEC

Model: HPP1832-0

Save Part Not Listed?
product name

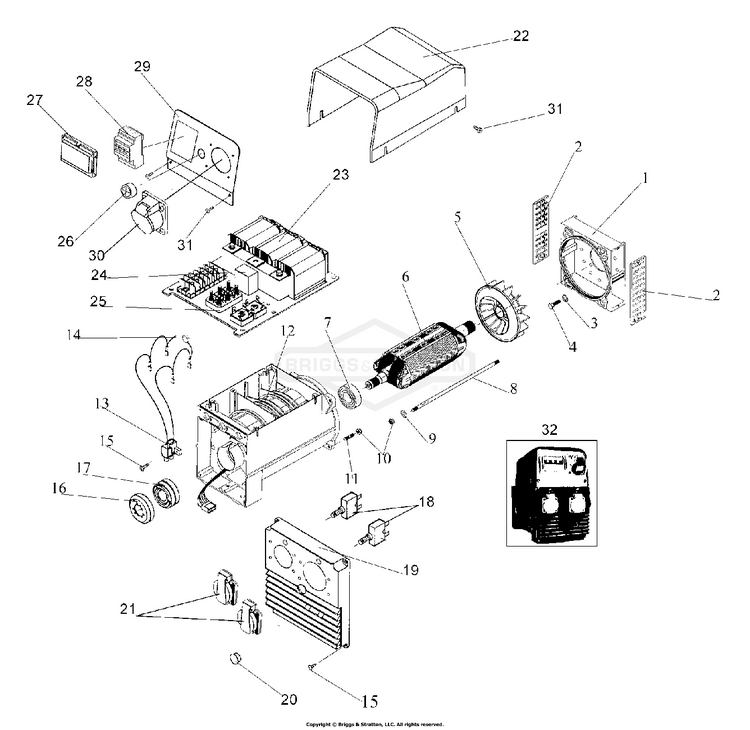

Alterntor & Outlet Panel

...
...
1
FLANGE PLATE BS-102271GS
...
2
SIDE GRILL (PLASTIC) BS-102139GS
...
3
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
4
SCREW CAP 3/8 UNC * 1 1/4" BS-102279GS
...
5
ROTOR FAN SINCRO 3PHASE (98602) BS-102355GS
...
6
ROTOR ASSEMBLY SINCRO 3 PHASE (98602) BS-102356GS
...
7
ROTOR BEARING BS-102038GS
...
8
ROTOR BOLT 285MM BS-102074GS
...
9
WASHER FLAT M8 & 5/16" BS-~NSP
...
10
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
11
STUD M8*30MM BS-102131GS
...
12
STATORASSEMBLY SINCRO 3PHASE (98602) BS-102357GS
...
13
BRUSHASSEMBLY BS-102240GS
...
14
VARISTOR, SINCRO 3PH FOR BRIDGE RECTIFIER BS-102338GS
...
15
SCREW MC PPHD M5*10MM BS-~NSP
...
16
SLIP RING COVER BS-102243GS
...
17
SLIP RING ASSEMBLY BS-102242GS
...
18
CIRCUIT BREAKER 15A BS-102133GS
...
19
OUTLET PANEL COMPLETE SINCRO EP G/S BS-102093GS
...
20
END CAP PLASTIC (OUTLET PANEL) BS-102085GS
...
21
SOCKET OUTLET BS-102030GS
...
22
COVER TOP BOX BS-102287GS
...
23
TRANSFORMER ASSY COMPOUND SINCRO 3PHASE BS-102350GS
...
24
FILTER ASSY (WAVE FORM) BS-102349GS
...
25
BRIDGE RECTIFIER BS-102161GS
...
26
LAMP HOLDER ASSY SINCRO 3 PHASE BS-102347GS
...
27
COVER CLEAR PLASTIC (CIRCUIT BREAKERS) BS-102346GS
...
28
CIRCUIT BREAKER ASSY SINCRO 3PHASE 10A BS-103005GS
...
29
PANEL ASSY TOP BOX (ALUMINIUM) BS-102344GS
...
30
OUTLET 230V 3 PHASE BS-102846GS
...
31
SCREW MACHINE M5*8MM BS-~NSP
...
32
ALTERNATOR 6.5KVA 3PHASE 230V NONEEC BS-102847GS

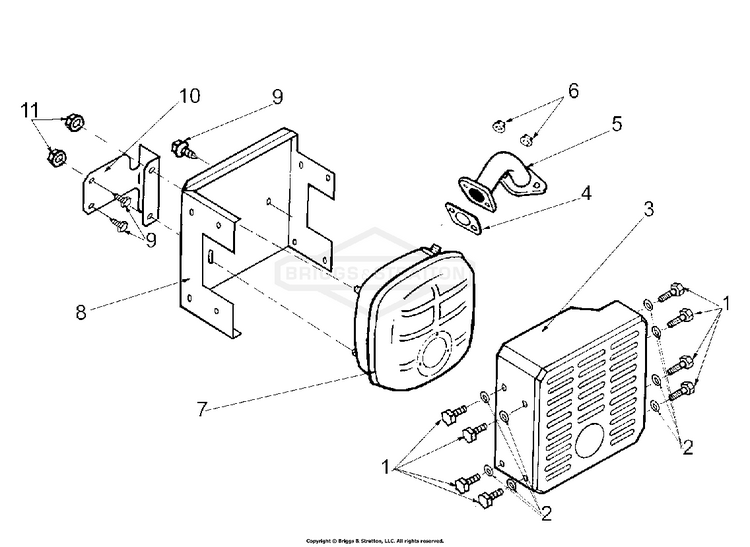

Exhaust And Fittings

...
...
1
SCREW SET HHD M6-1.0*12MM BS-~NSP
...
2
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
3
GUARD QGS MUFFLER BS-102530GS
...
4
GASKET BS-710250
...
5
MANIFOLD BS-715601
...
6
LOCKNUT MANIFOLD BS-710090
...
7
MUFFLER BS-715600
...
8
BRACKET EXHAUST GUARD MOUNT BS-102531GS
...
9
SCREW SELF DRILL 5.5*1.8*20MM BS-~NSP
...
10
BRACKET EXHAUST MOUNTING BS-102668GS
...
11
NUT FLANGE M8-1.25 BS-~NSP

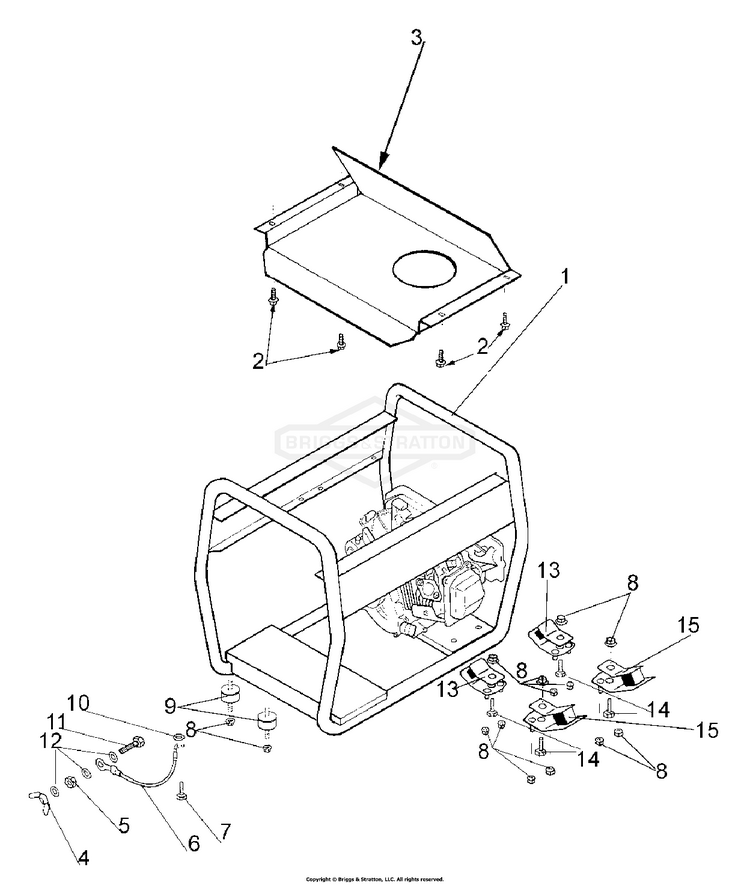

Frame And Fittings

...
...
1
CRADLE PP7500L BS-102297GS
...
2
SCREW SELFTAP 5.5*1.8*13MM BS-~NSP
...
3
HEAT SHIELD PP7500L BS-102300GS
...
4
NUT WING M6-1.0 BS-102036GS
...
5
NUT FULL M6-1.0 BS-~NSP
...
6
LEAD EARTH ASSY 145MM BS-102378GS
...
7
SCREW SET M8-1.25X12 PLATED BS-~NSP
...
8
NUT FLANGE M8-1.25 BS-~NSP
...
9
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
10
WASHER SHAKEPROOF M8 INT BS-~NSP
...
11
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
12
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
13
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
14
SCREW SET M8-1.25 X40 BS-102264GS
...
15
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
--
DECAL BSP7500 B&S 650*90MM (Not Illustrated) BS-102317GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL L 3-PHASE TRIANGLE 65*65*90 (Not Illustrated) BS-102360GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
MANUAL OWNERS BS2012 (Not Illustrated) BS-102065GS

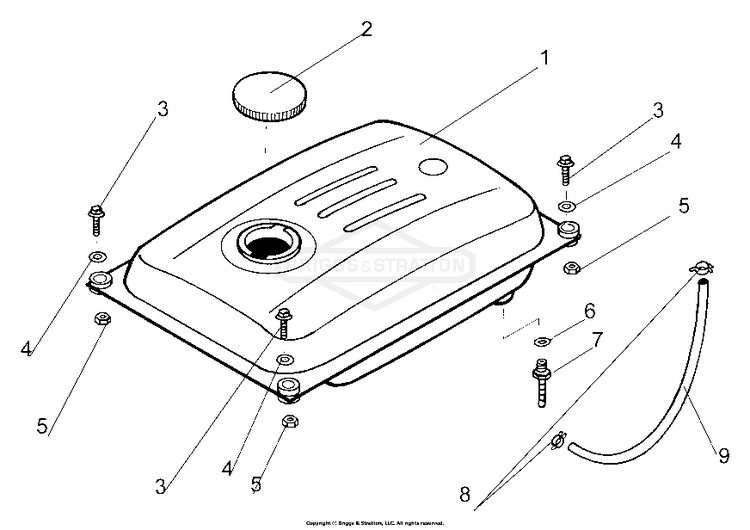

Fuel Tank

...
...
1
TANK FUEL METAL BS-102044GS
...
2
FUEL CAP BS-102090GS
...
3
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
4
WASHER REPAIR 6X20 OXY BLACK BS-102042GS
...
5
NUT LOCKING FLANGE M6-1.0MM BS-~NSP
...
6
WASHER FIBRE M10 BS-102435GS
...
7
HOSE TAIL CONNECTOR BS-102225GS
...
8
CLAMP HOSE 1/4" ID BS-102047GS
...
9
HOSE FUEL 1/4"ID SAE 30R7 BS-102025GS

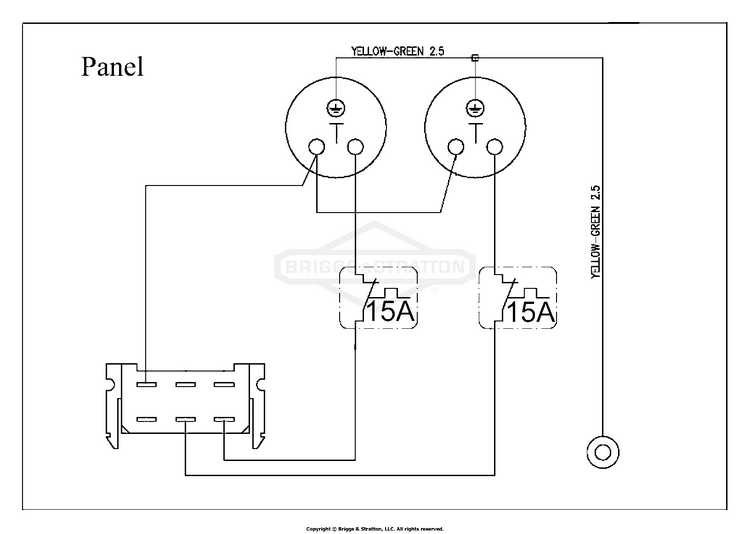

Lower Panel Wiring Diagram

...

No Parts Available for this Schematic

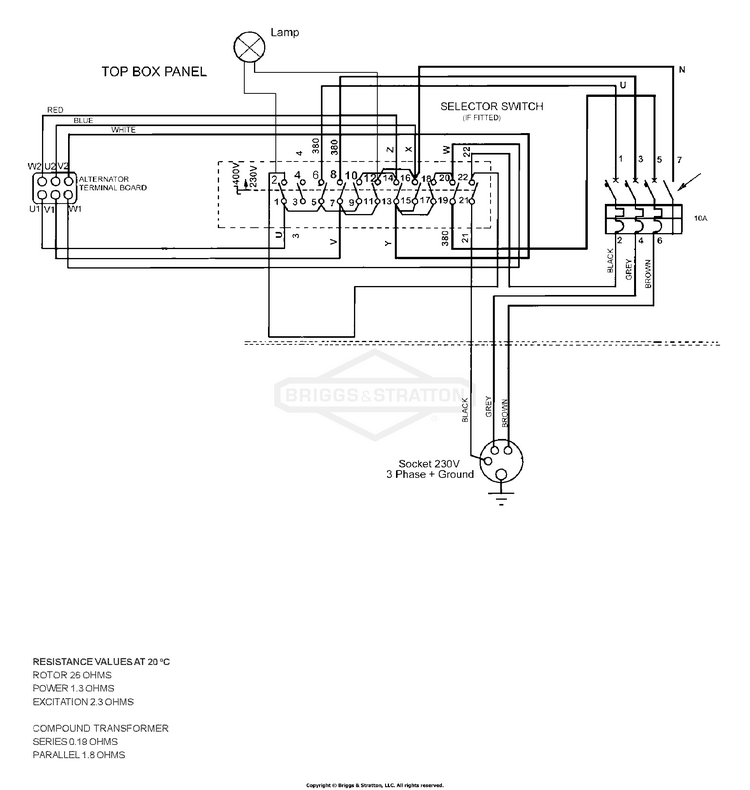

Top Panel Wiring Diagram

...

No Parts Available for this Schematic
