HPP1831-0 Briggs and Stratton Generator BSP7500L Non EEC

Model: HPP1831-0

Save Part Not Listed?

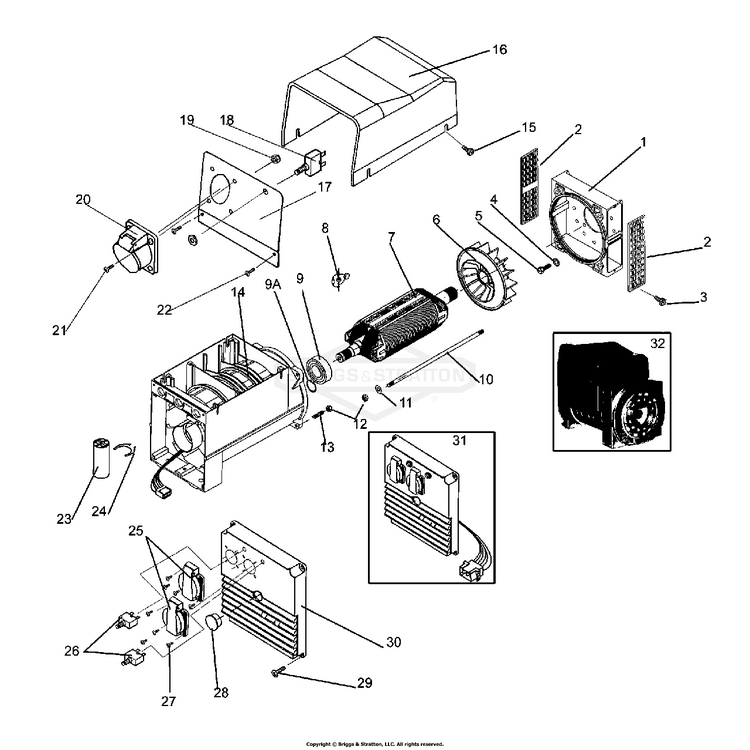

product name

Alternator Outlet Panel

...
...
1
FLANGE PLATE BS-102278GS
...
2
SIDE GRILL (PLASTIC) BS-102139GS
...
3
SCREW MC PPHD M5*10MM BS-~NSP
...
4
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
5
SCREW CAP 3/8 UNC * 1 1/4" BS-102279GS
...
6
ROTOR FAN BS-102073GS
...
7
ROTOR ASSEMBLY SINCRO BS-102281GS
...
8
DIODE, VARISTOR & CAPACITOR ASSY BS-102282GS
...
9
BEARING ASSY SINCRO BS-102283GS
...
9A
CIRCLIP BS-~NSP
...
10
ROTOR BOLT SINCRO 270MM BS-102397GS
...
11
WASHER FLAT M8 & 5/16" BS-~NSP
...
12
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
13
STUD M8*30MM BS-102131GS
...
14
STATOR ASSEMBLY SINCRO BS-102286GS
...
15
SCREW M6 * 15MM BS-~NSP
...
16
COVER TOP BOX BS-102287GS
...
17
OUTLET PANEL BLANK (ALUMINIUM) TOP BOX BS-102288GS
...
18
CIRCUIT BREAKER 25A BS-102757GS
...
19
NUT NYLOCK M4 BS-~NSP
...
20
SOCKET OUTLET 32A 230V BS-102290GS
...
21
SCREW MACHINE PPHD M4*20MM BS-~NSP
...
22
SCREW MACHINE M5*8MM BS-~NSP
...
23
CAPACITOR 40UF BS-102293GS
...
24
CAPACITOR CLIP EP/EK SERIES BS-~NSP
...
25
SOCKET OUTLET BS-102030GS
...
26
CIRCUIT BREAKER 15A BS-102133GS
...
27
SCREW PLASTITE PPHD NO6 * 3/8" BS-~NSP
...
28
END CAP PLASTIC (OUTLET PANEL) BS-102085GS
...
29
SCREW MC PPHD M5*10MM BS-~NSP
...
30
OUTLET PANEL BLANK BS-102294GS
...
31
OUTLET PANEL COMPLETE WITH FLY LEAD BS-102295GS
...
32
ALTERNATOR SINCRO LK6 BS-102296GS

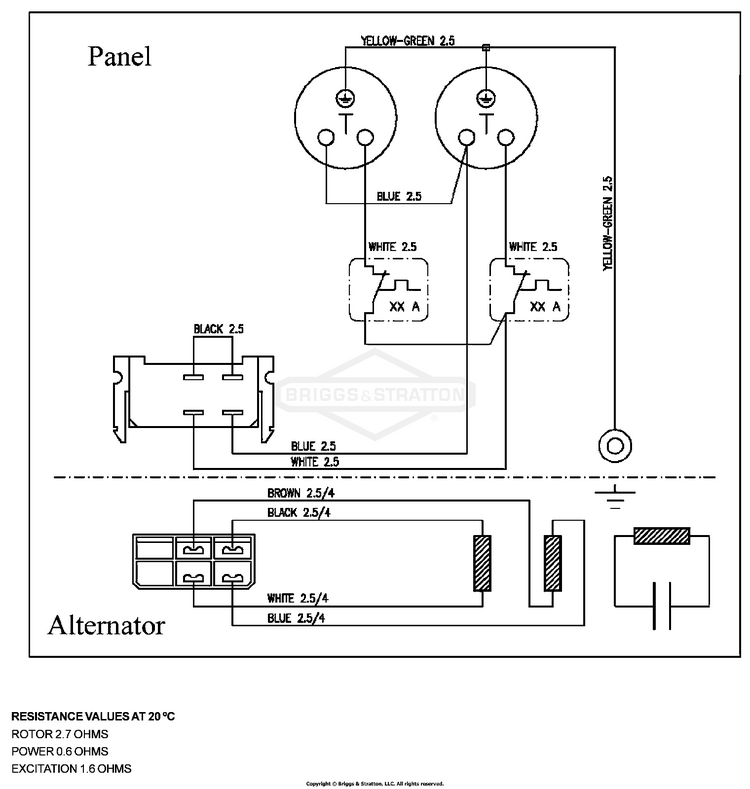

Alternator Wiring Diagram

...

No Parts Available for this Schematic

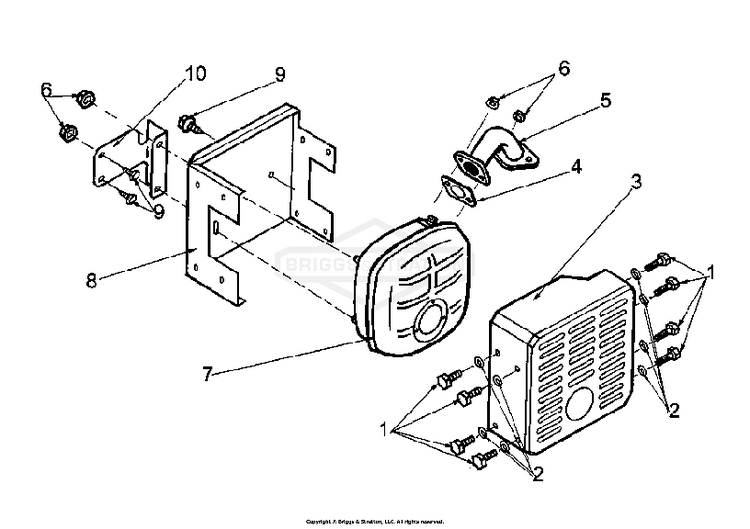

Exhaust And Fittings

...
...
1
SCREW SET HHD M6-1.0*12MM BS-~NSP
...
2
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
3
GUARD QGS MUFFLER BS-102530GS
...
4
GASKET BS-710250
...
5
MANIFOLD BS-715601
...
6
NUT FLANGE M8-1.25 BS-~NSP
...
7
MUFFLER BS-715600
...
8
BRACKET EXHAUST GUARD MOUNT BS-102531GS
...
9
SCREW SELF DRILL 5.5*1.8*20MM BS-~NSP
...
10
BRACKET EXHAUST MOUNTING BS-102668GS

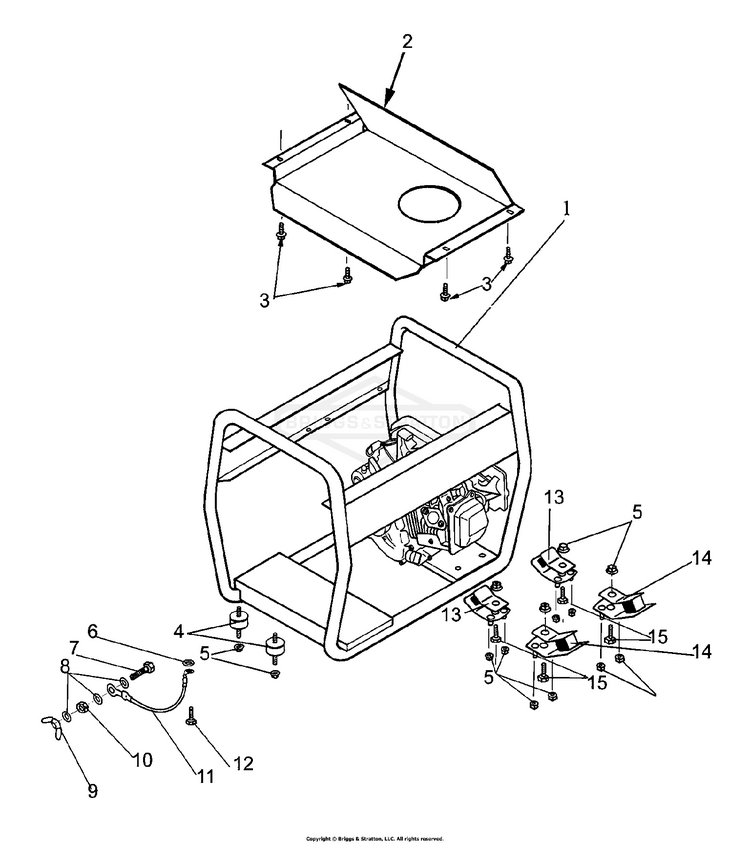

Frame And Fittings

...
...
1
CRADLE PP7500L BS-102297GS
...
2
HEAT SHIELD PP7500L BS-102300GS
...
3
SCREW SELFTAP 5.5*1.8*13MM BS-~NSP
...
4
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
5
NUT FLANGE M8-1.25 BS-~NSP
...
6
WASHER SHAKEPROOF M8 INT BS-~NSP
...
7
SCREW SET M8-1.25X12 PLATED BS-~NSP
...
8
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
9
NUT WING M6-1.0 BS-102036GS
...
10
NUT FULL M6-1.0 BS-~NSP
...
11
LEAD EARTH ASSY 125MM BS-102378GS
...
12
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
13
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
14
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
15
SCREW SET M8-1.25 X40 BS-102264GS
...
--
CAP OIL FILL (Not Illustrated) BS-493668
...
--
BRACKET FUEL TANK (Not Illustrated) BS-710491
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL BSP7500 B&S 650*90MM (Not Illustrated) BS-102317GS
...
--
DECAL L/LONG- RUN TRIANGLE (Not Illustrated) BS-102066GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL FUEL SHUT OFF (Not Illustrated) BS-102672GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
MANUAL OWNERS BS2012 (Not Illustrated) BS-102065GS

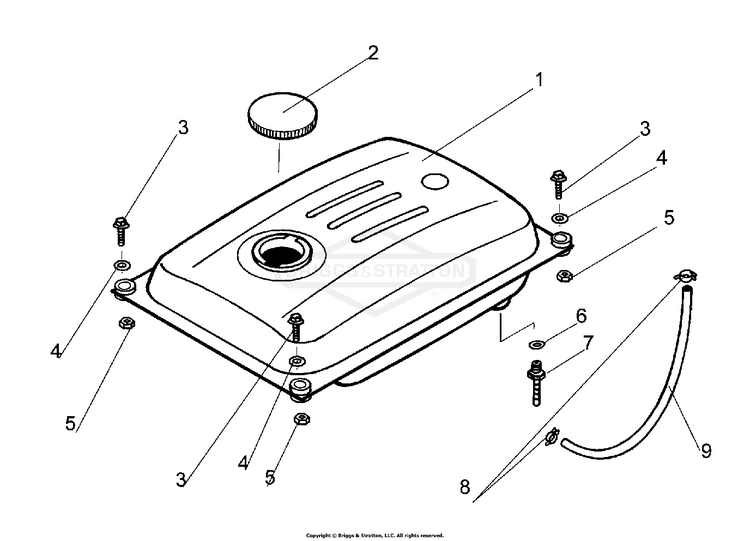

Fuel Tank

...
...
1
TANK FUEL METAL BS-102044GS
...
2
FUEL CAP BS-102090GS
...
3
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
4
WASHER REPAIR 6X20 OXY BLACK BS-102042GS
...
5
NUT LOCKING FLANGE M6-1.0MM BS-~NSP
...
6
WASHER FIBRE M10 BS-102435GS
...
7
HOSE TAIL CONNECTOR BS-102225GS
...
8
CLAMP HOSE 1/4" ID BS-102047GS
...
9
HOSE FUEL 1/4"ID SAE 30R7 BS-102025GS

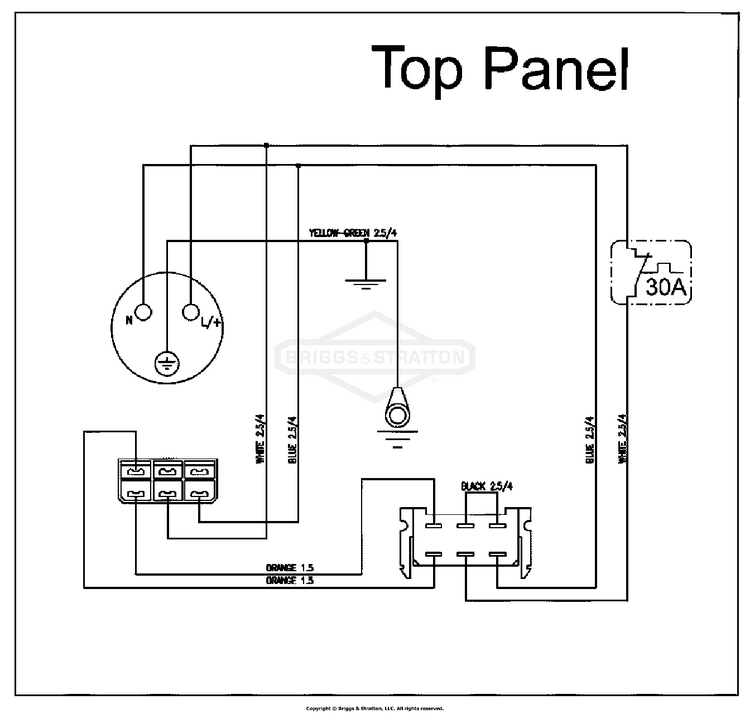

Panel Wiring Diagram

...
