product name

HPP1824-0 Briggs and Stratton Generator BSP3200L

Model: HPP1824-0

Save Part Not Listed?
product name

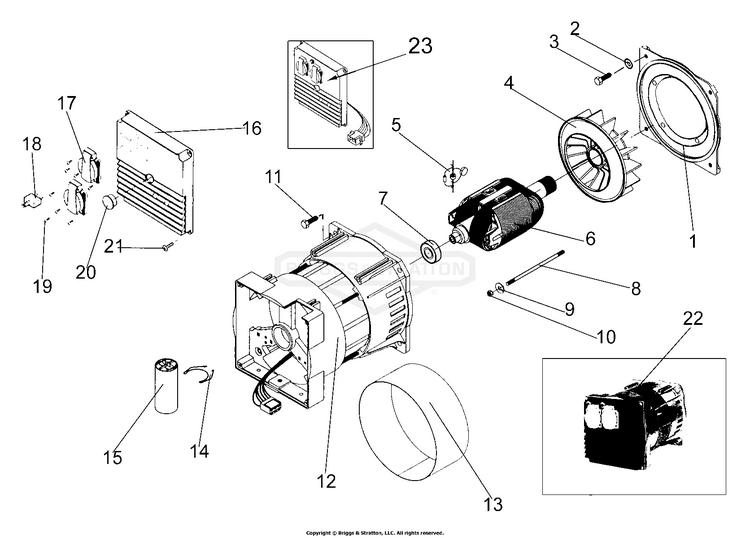

Alternator & Outlet Panel

...
...
1
FLANGE PLATE BS-102051GS
...
2
WASHER SPRING M8 & 5/16" BS-102019GS
...
3
SCREW SET 5/16"UNF X 3/4" BS-102035GS
...
4
ROTOR FAN SINCRO BS-102073GS
...
5
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
6
ROTOR ASSY SINCRO EP3.0 BS-102080GS
...
7
ROTOR BEARING BS-102038GS
...
8
ROTOR BOLT 195MM BS-102057GS
...
9
WASHER FLAT M8 & 5/16" BS-102020GS
...
10
NUT NYLOCK M8-1.25 TYPE T BS-102017GS
...
11
SCREW SET 5/16"UNF X 3/4" BS-102035GS
...
12
STATOR EP3.6 60HZ BS-102820GS
...
13
STATOR COVER BAND BS-102094GS
...
14
CAPACITOR CLIP EP SERIES BS-102083GS
...
15
CAPACITOR BS-707029
...
16
OUTLET PANEL BLANK (FITTINGS REMOVED) BS-102075GS
...
17
SOCKET OUTLET G/S BS-102030GS
...
18
CIRCUIT BREAKER 15A BS-102133GS
...
19
SCREW PLASTITE PPHD NO6 * 3/8" BS-102040GS
...
20
END CAP PLASTIC (OUTLET PANEL) BS-102085GS
...
21
SCREW MC PPHD M5*10MM BS-102087GS
...
22
ALTERNATOR SINCRO EP3.6 60HZ BS-102821GS
...
23
OUTLET PANEL COMPLETE SINCRO EP G/S BS-102093GS

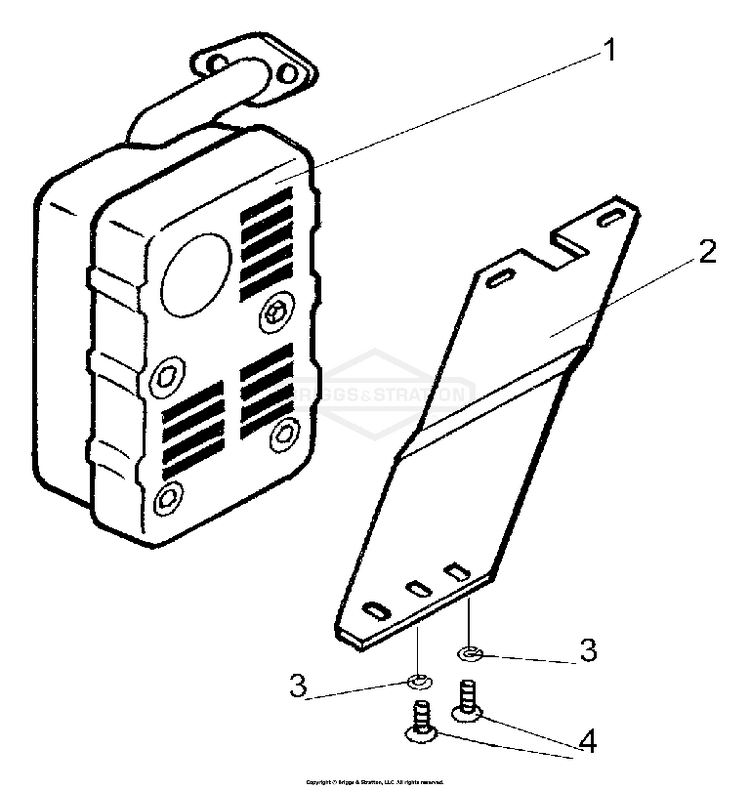

Exhaust And Fittings

...
...
1
MUFFLER INTEK 6.5HP BS-102043GS
...
2
BRACKET EXHAUST MOUNTING BS-102081GS
...
3
WASHER SPRING M6* 1/4" BS-102018GS
...
4
SCREW SET HHD M6-1.0*12MM BS-102027GS

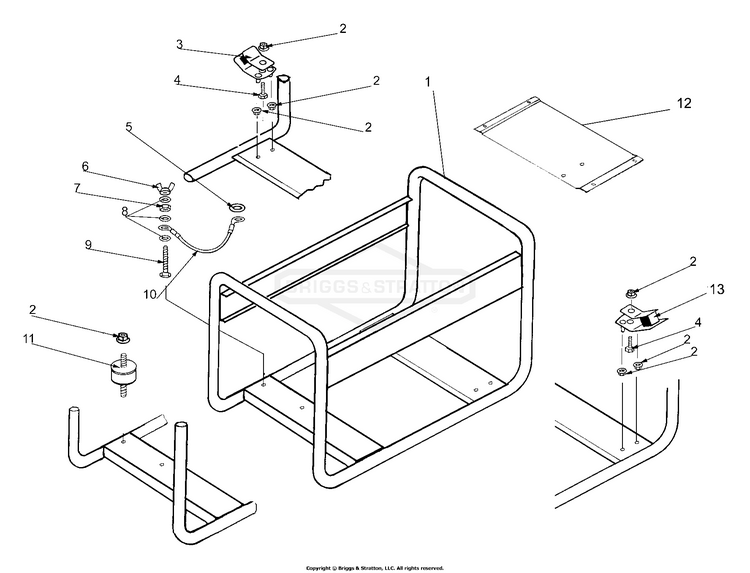

Frame And Fittings

...
...
1
CRADLE PP3000L/PP3200L BS-102067GS
...
2
NUT FLANGE M8-1.25 BS-102029GS
...
3
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
4
SCREW SET BS-102026GS
...
5
WASHER SHAKEPROOF M8 INT BS-102024GS
...
6
NUT WING M6-1.0 BS-102036GS
...
7
NUT FULL M6-1.0 BS-102028GS
...
8
WASHER SHAKEPROOF 1/4" & M6 INT BS-102021GS
...
9
SCREW SET M6-1.0X25MM PLATED BS-102037GS
...
10
LEAD EARTH ASSY 145MM BS-102050GS
...
11
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
12
HEATSHIELD BS-102817GS
...
13
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
--
DECAL BSP3200 B&S 75X540MM (Not Illustrated) BS-102072GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL L/LONG- RUN TRIANGLE (Not Illustrated) BS-102066GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
MANUAL OWNERS BS2012 (Not Illustrated) BS-102065GS

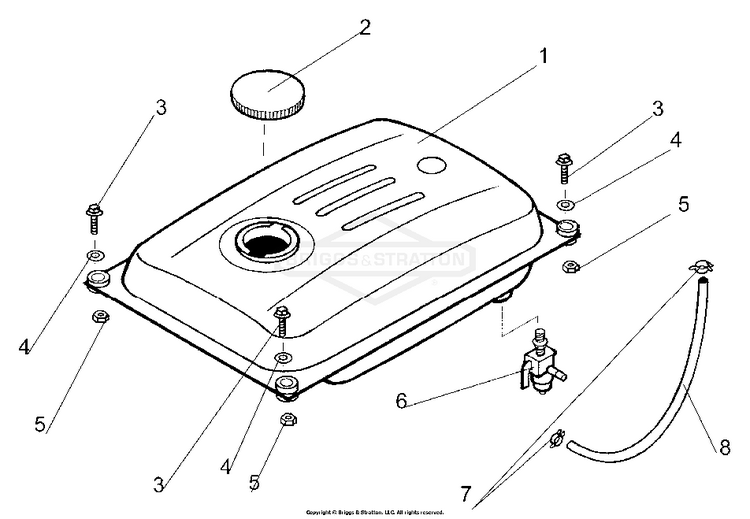

Fuel Tank

...
...
1
TANK FUEL METAL BS-102044GS
...
2
FUEL CAP BS-102090GS
...
3
SCREW SET M6-1.0X25MM PLATED BS-102037GS
...
4
WASHER REPAIR 6X20 OXY BLACK BS-102042GS
...
5
NUT LOCKING FLANGE M6-1.0MM BS-102032GS
...
6
VALVE FUEL BS-102045GS
...
7
CLAMP HOSE 1/4" ID BS-102047GS
...
8
HOSE FUEL 1/4" ID SAE 30R7 BS-102025GS

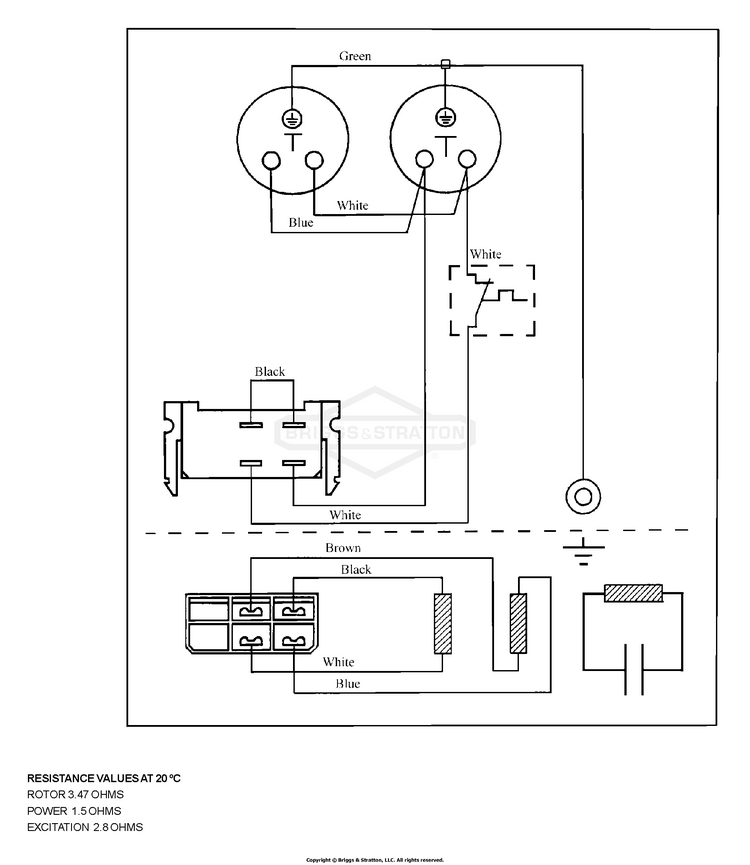

Panel Wiring Diagram

...

No Parts Available for this Schematic
