product name

HPP1718-0 Briggs and Stratton Generator BSW200DC

Model: HPP1718-0

Back To Assemblies

Save Part Not Listed?
product name

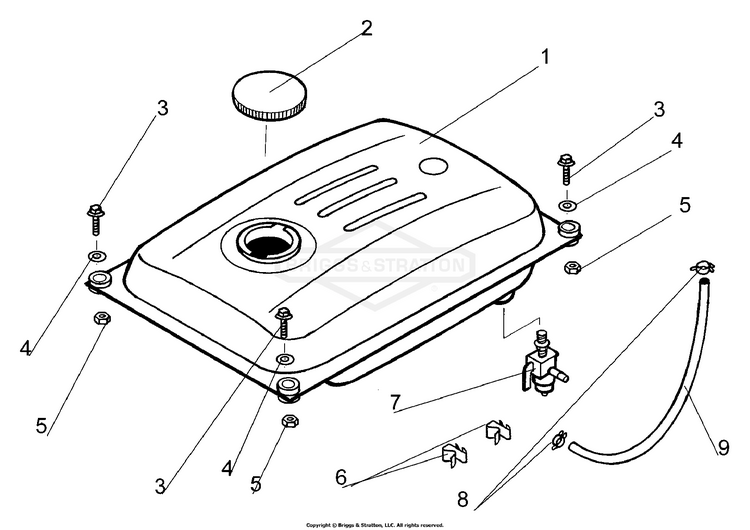

Fuel Tank

...
...
1
TANK FUEL METAL BS-102044GS
...
2
FUEL CAP BS-102090GS
...
3
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
4
WASHER REPAIR 6X20 OXY BLACK BS-102042GS
...
5
NUT LOCKING FLANGE M6-1.0MM BS-~NSP
...
6
CLIP 13MM HOSE BS-102319GS
...
7
VALVE FUEL BS-102045GS
...
8
CLAMP HOSE 1/4" ID BS-102047GS
...
9
HOSE FUEL BS-102025GS
