HPP1714-0 Briggs and Stratton Generator BSQ1000

Model: HPP1714-0

Back To Assemblies

Save Part Not Listed?
product name

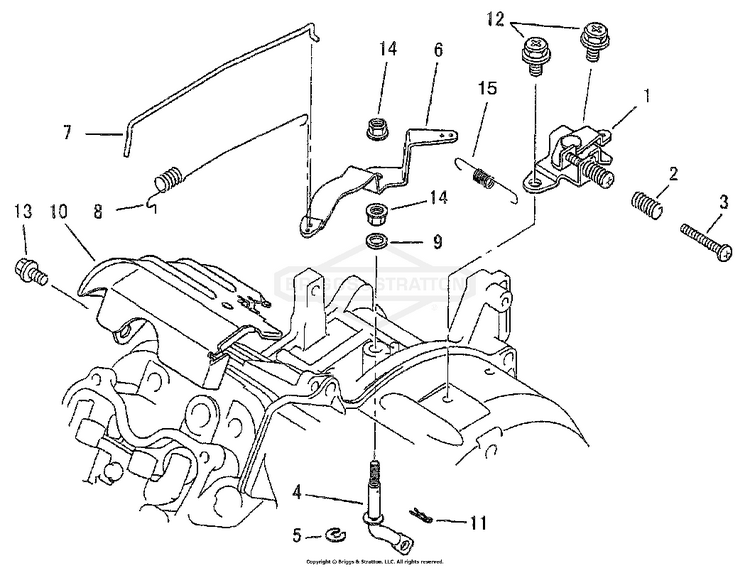

Control/Linkages

...
...
1
BRACKET, Control BS-715945
...
2
SCREW/SPG-GOV SPEED BS-715941
...
3
SCREW/SPG-GOV SPEED BS-715941
...
4
CRANK, Governor BS-711514
...
5
RING, SNAP, GOV ROD BS-187510GS
...
6
LEVER - GOV. CONTROL BS-711515
...
7
LINK, Mechanical Governor BS-711513
...
8
SPRING/LINK, Governor BS-711512
...
9
WASHER BS-711516
...
10
CVR,TOP BS-187516GS
...
11
CLIP, GOV ROD BS-187517GS
...
12
BOLT, SPEED CNTRL BKT BS-187518GS
...
13
BOLT,TOP CVR BS-187519GS
...
14
NUT, GOV LEVER BS-187520GS
...
15
SPRING - GOVERNOR BS-711510
