HPP1714-0 Briggs and Stratton Generator BSQ1000

Model: HPP1714-0

Save Part Not Listed?

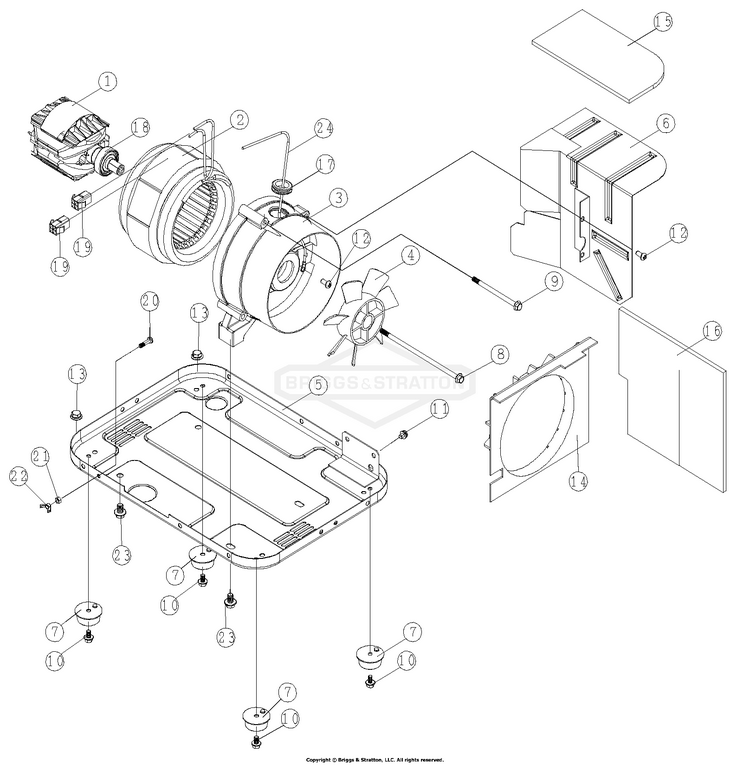

Main Unit

ENGINE GM82PN-801 (Not Illustrated) BS-~NSP

ROTOR ASSY BS-102000GS

STATOR ASSY BS-102001GS

BEARING CARRIER BS-187381GS

COOLING FAN BS-187382GS

GENERATOR BASE BS-187383GS

MUFFLER SHIELD BS-187384GS

VIBRATION MOUNT BS-187385GS

ROTOR BOLT (M6X160) WITH FLANGE BS-187382GS

STATOR BOLT (M6X90) WITH FLANGE BS-187389GS

BOLT, HEX HEAD (M6X10) WITH FLANGE BS-187390GS

SCREW, PAN HEAD (M6X10) WITH FLAT,LOCK BS-187392GS

SELF TAPPING SCREW (M6X12) BS-187399GS

NUT, HEX HEAD (M8X1.25) WITH FLANGE BS-187401GS

AIR DUCT BS-187403GS

HEAT SHIELD SPONGE #1 BS-187405GS

HEAT SHIELD SPONGE #2 BS-187407GS

BUSH, LEAD WIRE (G790B) BS-187409GS

BEARING BS-187411GS

CONNECTOR BS-187413GS

SCREW,PAN HEAD (M5X20) BS-187415GS

NUT, HEX HEAD (M5X0.8) WITH FLANGE BS-187423GS

NUT,WING (M5X0.8) BS-187424GS

BOLT, HEX HEAD (M8X12) WITH FLANGE BS-187427GS

LEAD WIRE ASSY GRAY BS-187430GS
