HPP1631-0 Briggs and Stratton Generator BSP4500LA

Model: HPP1631-0

Save Part Not Listed?
product name

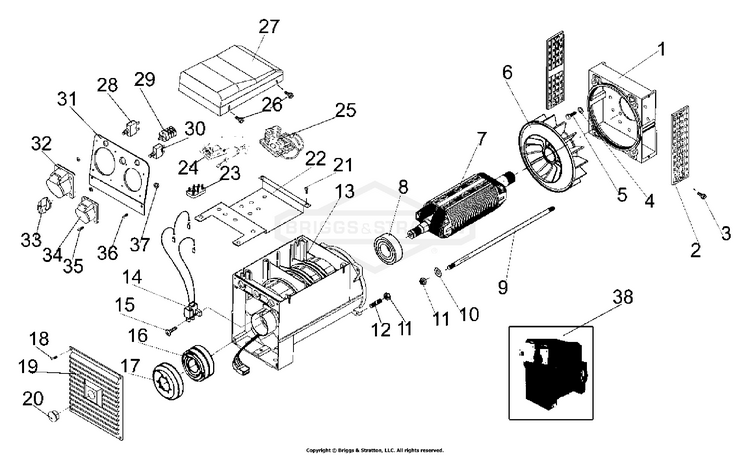

Alternator With Outlet Panel

...
...
1
FLANGE PLATE BS-102271GS
...
2
SIDE GRILL (PLASTIC) BS-102139GS
...
3
SCREW MC PPHD M5*10MM BS-~NSP
...
4
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
5
SCREW CAP 3/8" UNC X 1" BS-~NSP
...
6
ROTOR FAN SINCRO BS-102073GS
...
7
ROTOR ASSEMBLY BB07-A AVR BS-102232GS
...
8
ROTOR BEARING BS-102038GS
...
9
ROTOR BOLT 265MM M8 BS-102160GS
...
10
WASHER FLAT M8 & 5/16" BS-~NSP
...
11
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
12
STUD M8 BS-102131GS
...
13
STATOR ASSEMBLY BB07 AVR BS-102233GS
...
14
BRUSH ASSEMBLY BS-102240GS
...
15
SCREW MACHINE M4-0.7*12MM BS-~NSP
...
16
SLIP RING ASSEMBLY BS-102242GS
...
17
SLIP RING COVER BS-102243GS
...
18
SCREW MC PPHD M5*10MM BS-~NSP
...
19
BLANK PANEL BS-102407GS
...
20
END CAP PLASTIC (OUTLET PANEL) BS-102085GS
...
21
SCREW MC PPHD M6*10MM BS-~NSP
...
22
SUPPORT PLATE BS-102234GS
...
23
TERMINAL BLOCK ET AVR BS-102237GS
...
24
SYSTEM CONTROL BOARD BS-102238GS
...
25
POWER MODULE BS-102239GS
...
26
SCREW M6 * 15MM BS-~NSP
...
27
COVER ALTERNATOR LOW PROFILE BS-102245GS
...
28
CIRCUIT BREAKER 30A BS-102289GS
...
29
SWITCH CHANGE OVER 115/230V BS-102411GS
...
30
CIRCUIT BREAKER 15A BS-102133GS
...
31
TOP BOX BLANK FRONT PANEL ALUMINIUM BS-102405GS
...
32
SOCKET OUTLET 32A 115V BS-102406GS
...
33
KNOB SWITCH 2 POSITION BS-102374GS
...
34
SOCKET OUTLET 16A 230V BS-102418GS
...
35
SCREW MACHINE PPHD M4*20MM BS-~NSP
...
36
SCREW MACHINE PPHD M5*8MM BS-~NSP
...
37
NUT NYLOCK M5 BS-~NSP
...
38
ALTERNATOR SINCRO 4KVA AVR BS-102247GS

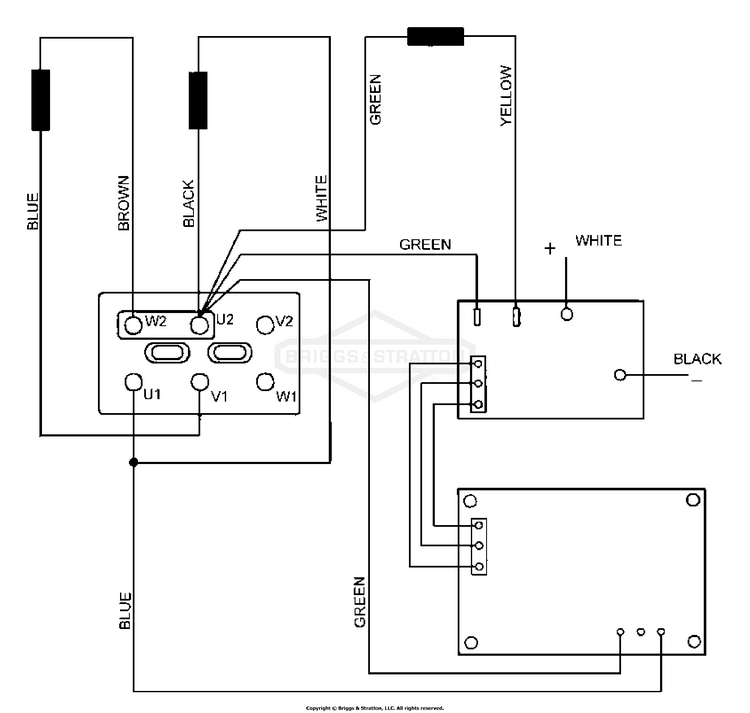

AVR Wiring Diagram

...

No Parts Available for this Schematic

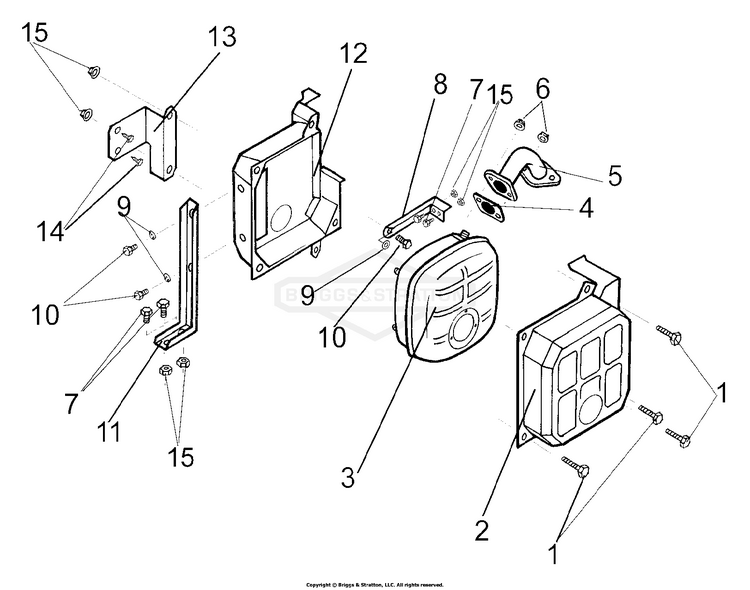

Exhaust & Fittings

...
...
1
SCREW M6 BS-710074
...
2
GUARD MUFFLER FRONT BS-710793
...
3
MUFFLER BS-715602
...
4
GASKET BS-710082
...
5
MANIFOLD BS-715603
...
6
LOCKNUT MANIFOLD BS-710090
...
7
SCREW MACHINE HHD M8-1.25*16MM BS-~NSP
...
8
BRACKET EXHAUST GUARD MOUNTING BS-102227GS
...
9
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
10
SCREW SET HHD M6-1.0*12MM BS-~NSP
...
11
BRACKET EXHAUST GUARD MOUNTING BS-102228GS
...
12
GUARD MUFFLER REAR BS-710794
...
13
BRACKET EXHAUST MOUNTING BS-102156GS
...
14
SCREW SELF DRILL #8*12.7 PPHD BS-~NSP
...
15
NUT FLANGE M8-1.25 BS-~NSP

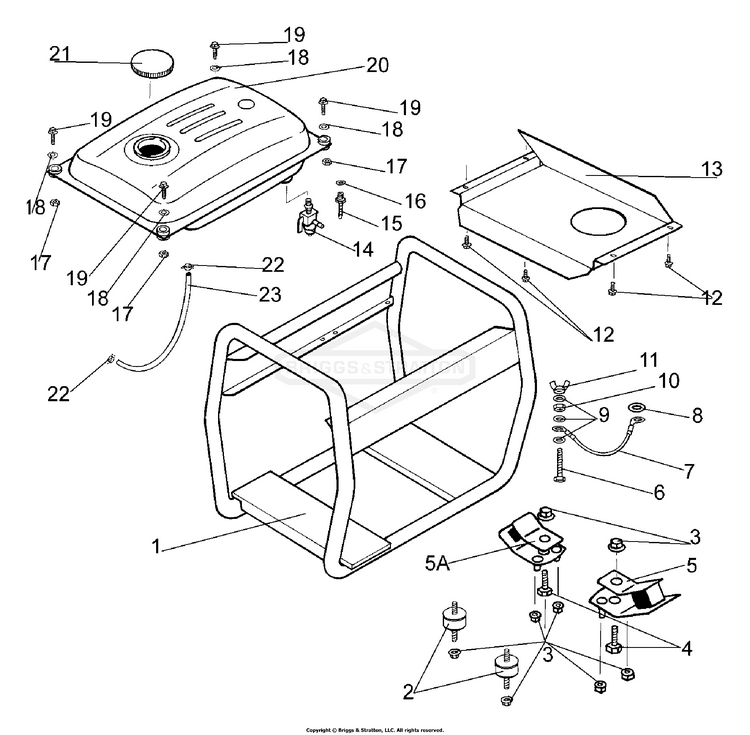

Frame, Fuel Tank, Fittings, Mounts And EPA

...
...
1
CRADLE PP4500L BS-102223GS
...
2
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
3
NUT FLANGE M8-1.25 BS-~NSP
...
4
SCREW SET M8-1.25*35MM BS-~NSP
...
5
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
5A
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
6
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
7
LEAD EARTH ASSY 145MM BS-102050GS
...
8
WASHER SHAKEPROOF M8 INT BS-~NSP
...
9
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
10
NUT FULL M6-1.0 BS-~NSP
...
11
NUT WING M6-1.0 BS-102036GS
...
12
SCREW SELFTAP 5.5*1.8*13MM BS-~NSP
...
13
HEAT SHIELD BS-102224GS
...
14
VALVE FUEL BS-102045GS
...
15
HOSE TAIL CONNECTOR BS-102225GS
...
16
DOWTY BONDED SEAL BS-102226GS
...
17
NUT LOCKING FLANGE M6-1.0MM BS-~NSP
...
18
WASHER REPAIR 6X20 OXY BLACK BS-102042GS
...
19
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
20
TANK FUEL METAL BS-102044GS
...
21
FUEL CAP BS-102090GS
...
22
CLAMP HOSE 1/4" ID BS-102047GS
...
23
HOSE FUEL 1/4"ID SAE J30R7 BS-102025GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL BSP4500 B&S 590X90MM (Not Illustrated) BS-102230GS
...
--
DECAL LA/LONG-RUN, AVR TRIANGLE (Not Illustrated) BS-102248GS
...
--
MANUAL OWNERS BS2012 (Not Illustrated) BS-102065GS

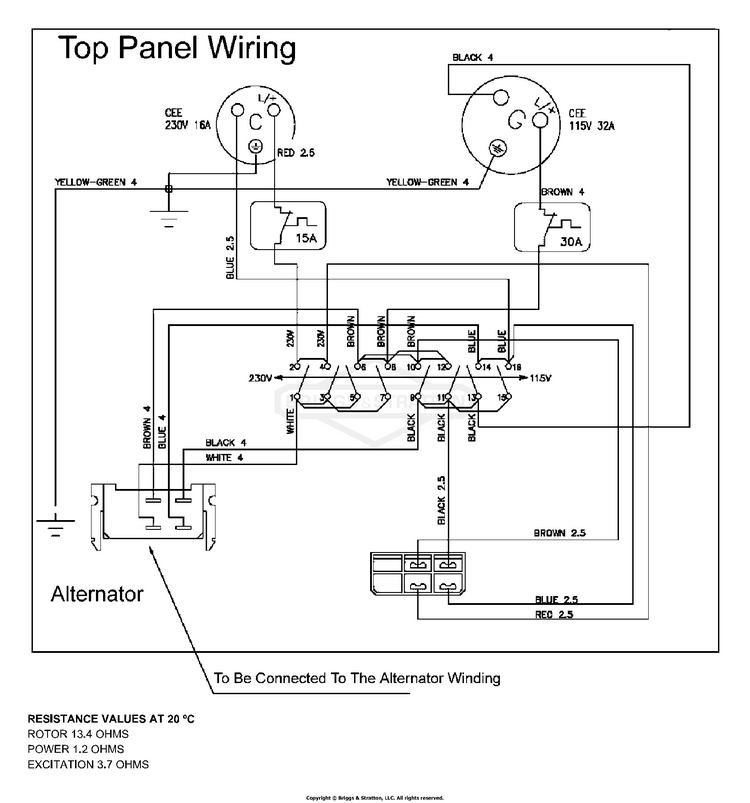

Panel Wiring Diagram

...

No Parts Available for this Schematic
