HPP1629-0 Briggs and Stratton Generator BSQ4500

Model: HPP1629-0

Back To Assemblies

Save Part Not Listed?
product name

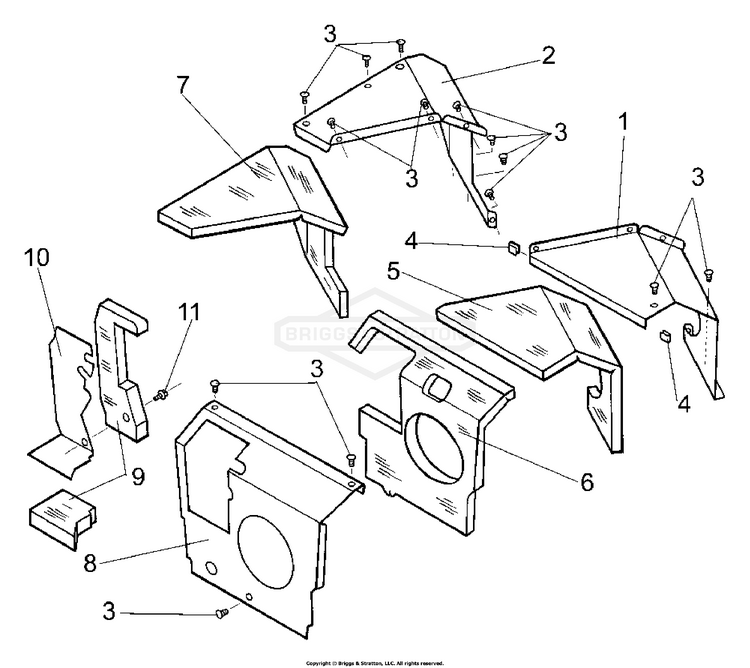

Air Ducting Assembly

...
...
1
DUCTING PANEL 1. ALTERNATOR END BS-102152GS
...
2
DUCTING PANEL 2. ALTERNATOR END BS-102153GS
...
3
SCREW TAPTITE PPHD 4.2*1.4*8MM BS-~NSP
...
4
EDGE PANEL FASTENER BS-102169GS
...
5
ACOUSTIC FOAM (PANEL AK20) BS-102170GS
...
6
ACOUSTIC FOAM (PANEL AK22) BS-102172GS
...
7
ACOUSTIC FOAM (PANEL AK21) BS-102171GS
...
8
DUCTING PANEL 3. ENGINE END BS-102154GS
...
9
ACOUSTIC FOAM (PANEL AK27) BS-102189GS
...
10
HEATSHIELD CARBURETOR BS-102155GS
...
11
SCREW TAPTITE M5-0.8 * 10MM BS-~NSP
