HPP1629-0 Briggs and Stratton Generator BSQ4500

Model: HPP1629-0

Back To Assemblies

Save Part Not Listed?
product name

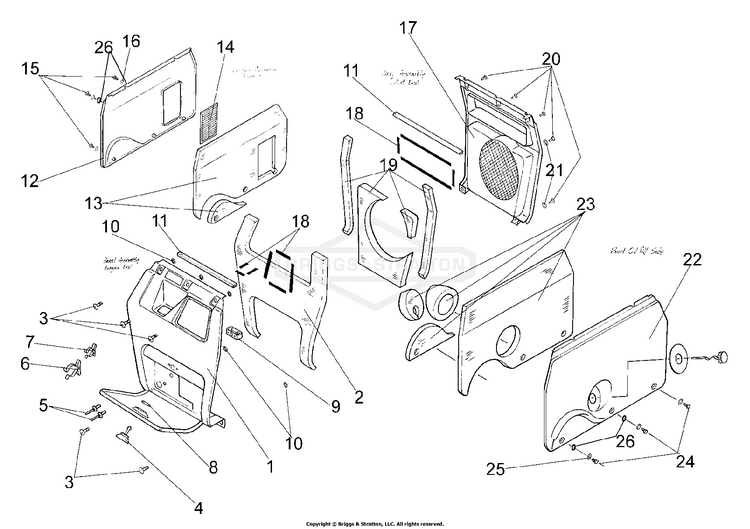

Acoustic Panels

...
...
1
Panel Engine End BS-102126GS
...
2
Acoustic Foam (Panel 188694) BS-102180GS
...
3
Fastener Stud Rapier 7mm BS-102179GS
...
4
Fastener Stud Plastic Knob BS-102183GS
...
5
Rivet Pop CSHD 3.2*11mm BS-~NSP
...
6
Pipe-Clip 1" OD BS-102162GS
...
7
Pipe Clip 3/4" BS-102163GS
...
8
Retainer 1/4 Turn Fastener Dart BS-102196GS
...
9
Fastener Receptacle 1/4 Turn BS-102182GS
...
10
Retainer 1/4 Turn Fastener 7mm BS-102195GS
...
11
Seal Edge Mounting 2mm panel BS-102181GS
...
12
Panel Exhaust Side BS-102128GS
...
13
Acoustic Foam (panel 188696) BS-102185GS
...
14
Grill (Air Out) BS-102150GS
...
15
Screw Set M6*20 Slotted Head BS-102201GS
...
16
Washer Plain M6 BS-~NSP
...
17
Panel Outlet End Inc. Fan Cowling BS-102127GS
...
18
Foam Sealing Tape3*6mm BS-~NSP
...
19
Acoustic Foam(Panel 188695) BS-102184GS
...
20
Screw Set M6*20 Slotted Head BS-102201GS
...
21
Washer Plain M6 BS-~NSP
...
22
Panel Oil Fill Side BS-102129GS
...
23
Acoustic Foam (Panel 188699) BS-102186GS
...
24
Screw Set M6*20 Slotted Head BS-102201GS
...
25
Washer Plain M6 BS-~NSP
...
26
Washer Rubber 19*6*4mm BS-102560GS
