HPP1629-0 Briggs and Stratton Generator BSQ4500

Model: HPP1629-0

Back To Assemblies

Save Part Not Listed?
product name

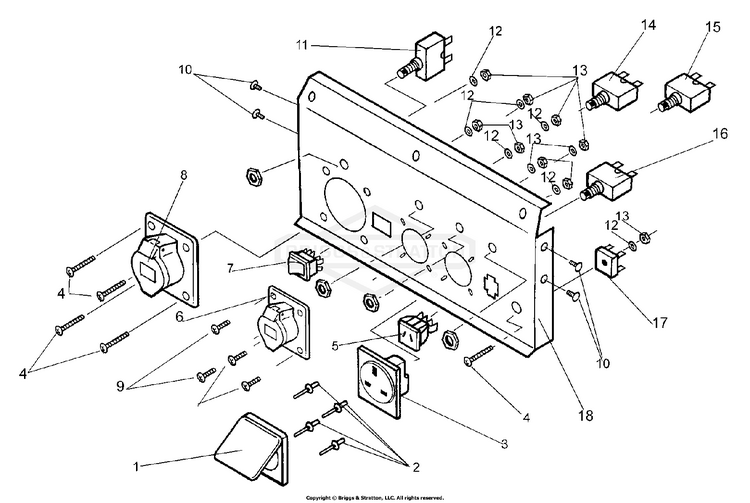

Alternator Outlet Panel

...
...
1
Cover Outlet Hinged Berker BS-102107GS
...
2
Rivet Pop 4mm * 10mm BS-~NSP
...
3
Outlet Domestic Berker 230V BS-102413GS
...
4
Screw Machine PPHd M5-0.8*20mm BS-~NSP
...
5
Outlet 12V DC BS-102112GS
...
6
Socket Outlet 16A 230V BS-102340GS
...
7
Switch Toggle Change Over BS-102564GS
...
8
Socket Outlet 32A 115V BS-102406GS
...
9
Screw Machine PPHd M5-0.8*16mm BS-~NSP
...
10
Screw Selftap 5.5*1.8*13mm BS-~NSP
...
11
Circuit Breaker 30A BS-102289GS
...
12
Washer Shakeproof M5 ext BS-~NSP
...
13
Nut Full M5-0.8mm Plated BS-~NSP
...
14
Circuit Breaker 15A BS-102133GS
...
15
Circuit Breaker 12A BS-102049GS
...
16
Circuit Breaker 10A BS-102132GS
...
17
Bridge Rectifier BS-102161GS
...
18
Outlet Panel BS-102140GS
Schematic Image Zoomed
