HPP1628-0 Briggs and Stratton Generator BSP3200L

Model: HPP1628-0

Save Part Not Listed?
product name

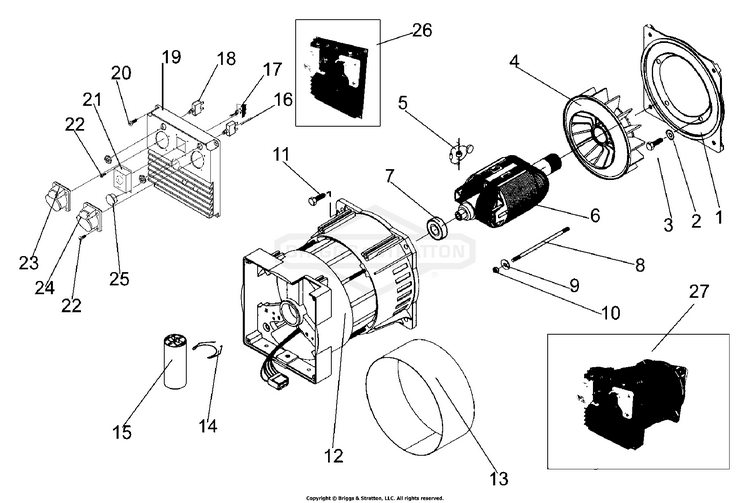

Alternator With Outlet Panel

...
...
1
FLANGE PLATE BS-102051GS
...
2
WASHER SPRING M8 & 5/16" BS-~NSP
...
3
SCREW SET 5/16"UNF X 3/4" BS-~NSP
...
4
ROTOR FAN SINCRO BS-102073GS
...
5
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
6
ROTOR ASSY SINCRO EP3.0 BS-102080GS
...
7
ROTOR BEARING BS-102038GS
...
8
ROTOR BOLT 195MM BS-102057GS
...
9
WASHER FLAT M8 & 5/16" BS-~NSP
...
10
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
11
SCREW SET 5/16"UNF X 3/4" BS-~NSP
...
12
STATOR ASSY SINCRO EP3.0 BS-102078GS
...
13
STATOR COVER BAND EP3.0 BS-~NSP
...
14
CAPACITOR CLIP EP SERIES BS-~NSP
...
15
CAPACITOR BS-707029
...
16
CIRCUIT BREAKER 12A BS-102049GS
...
17
SWITCH VOLTAGE CHANGE-OVER BS-102404GS
...
18
CIRCUIT BREAKER 20A BS-102261GS
...
19
OUTLET PANEL BLANK (HP3000FF) BS-102424GS
...
20
SCREW MC PPHD M5*10MM BS-~NSP
...
21
SWITCH BOX BLANK (FOR CHANGE OVER SWITCH) BS-102425GS
...
22
SCREW SELF TAP #10*15MM BS-~NSP
...
23
SOCKET OUTLET 16A 115VOLT BS-102419GS
...
24
SOCKET OUTLET 16A 230V BS-102418GS
...
25
END CAP PLASTIC (OUTLET PANEL) BS-102085GS
...
26
OUTLET PANEL COMPLETE SINCRO EP3.0 BS-102427GS
...
27
ALTERNATOR SINCRO EP3.0 UK BS-102428GS

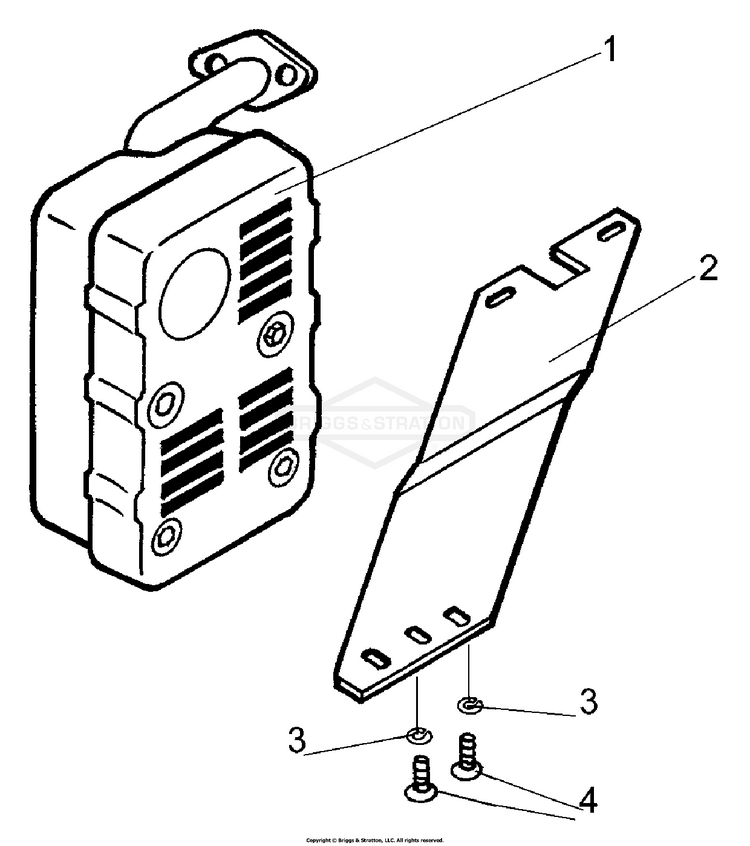

Exhaust & Fittings

...
...
1
MUFFLER INTEK 6.5HP BS-102043GS
...
2
BRACKET EXHAUST MOUNTING BS-102081GS
...
3
WASHER SPRING M6*1/4" BS-~NSP
...
4
SCREW SET HHD M6-1.0*12MM BS-~NSP

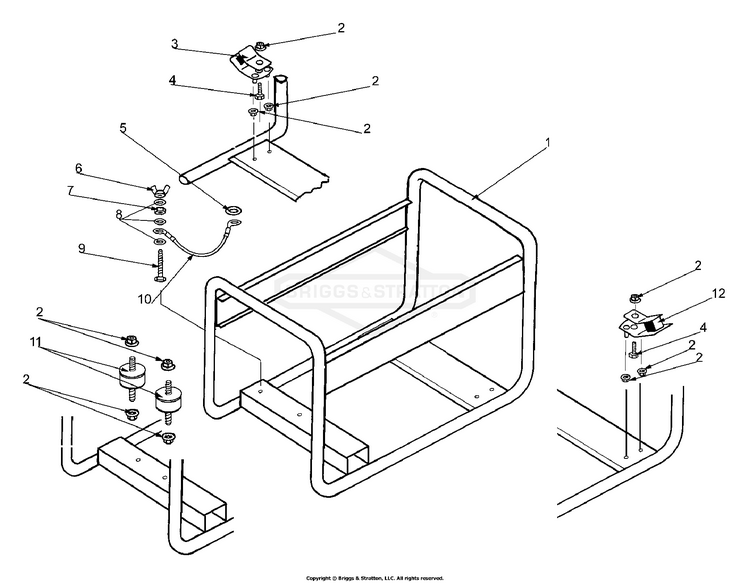

Frame, Mounts And EPA

...
...
1
CRADLE BSP3200 BS-102067GS
...
2
NUT FLANGE M8-1.25 BS-~NSP
...
3
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
4
SCREW SET M8-1.25*35MM BS-~NSP
...
5
WASHER SHAKEPROOF M8 INT BS-~NSP
...
6
NUT WING M6-1.0 BS-102036GS
...
7
NUT FULL M6-1.0 BS-~NSP
...
8
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
9
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
10
LEAD EARTH ASSY 145MM BS-102050GS
...
11
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
12
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL BSP3200 B&S 75X540MM (Not Illustrated) BS-102072GS
...
--
DECAL L/LONG RUN TRIANGLE (Not Illustrated) BS-102066GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
MANUAL OWNERS BS2012 (Not Illustrated) BS-102065GS

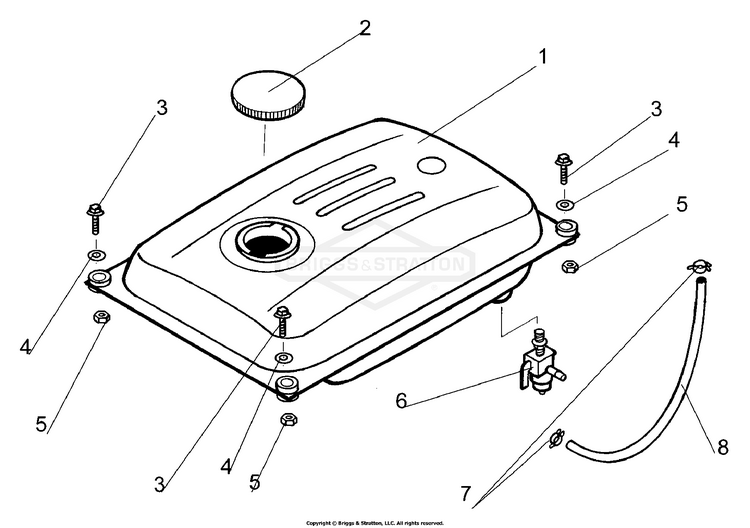

Fuel Tank

...
...
1
TANK FUEL METAL BS-102044GS
...
2
FUEL CAP BS-102090GS
...
3
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
4
WASHER REPAIR 6X20 OXY BLACK BS-102042GS
...
5
NUT LOCKING FLANGE M6-1.0MM BS-~NSP
...
6
VALVE FUEL BS-102045GS
...
7
CLAMP HOSE 1/4" ID BS-102047GS
...
8
HOSE FUEL 1/4"ID SAE 30R7 BS-102025GS

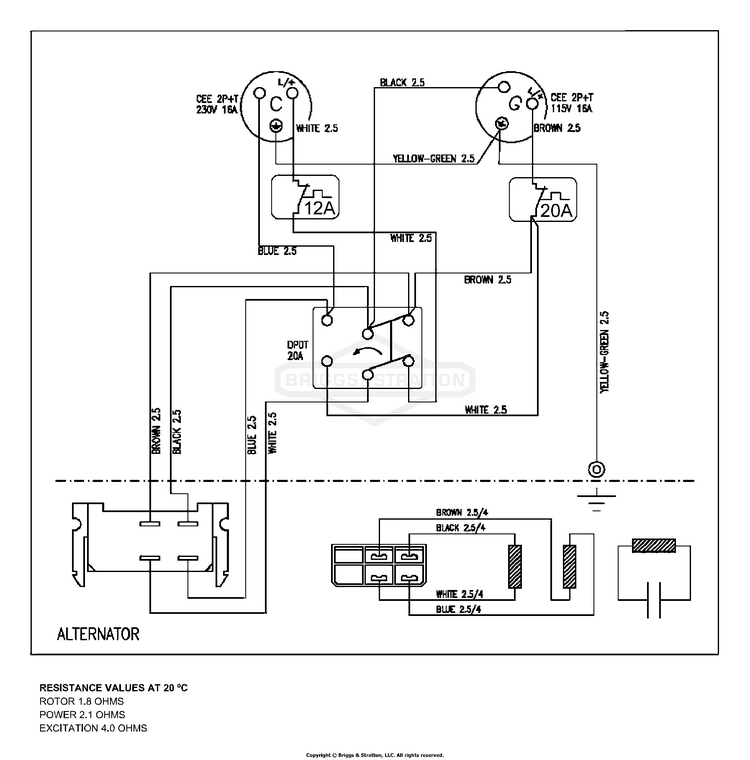

Panel Wiring Diagram

...

No Parts Available for this Schematic
