HPP1613-0 Briggs and Stratton Generator BSW200DC

Model: HPP1613-0

Save Part Not Listed?
product name

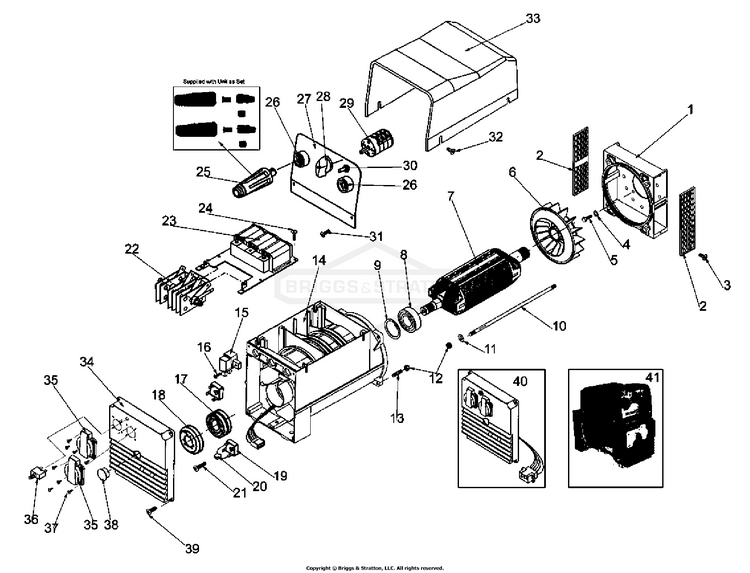

Alternator With Outlet Panel

...
...
1
FLANGE PLATE BS-102271GS
...
2
SIDE GRILL (PLASTIC) BS-102139GS
...
3
SCREW MC PPHD M5*10MM BS-~NSP
...
4
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
5
SCREW CAP 3/8 UNC * 1 1/4" BS-102279GS
...
6
ROTOR FAN SINCRO (30MM) BS-102073GS
...
7
ROTOR EW DC WELDER BS-102278GS
...
8
BEARING ASSY SINCRO BS-102283GS
...
9
BEARING CIRCLIP BS-~NSP
...
10
ROTOR BOLT 325MM BS-102285GS
...
11
WASHER FLAT M8 & 5/16" BS-~NSP
...
12
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
13
STUD M8*30MM BS-102131GS
...
14
STATOR EWDC WELDER BS-102366GS
...
15
BRUSH HOLDER & BRUSH BS-102367GS
...
16
SCREW MACHINE M4-0.7*12MM BS-~NSP
...
17
SLIP RING ASSEMBLY BS-102242GS
...
18
SLIP RING COVER BS-102243GS
...
19
BRIDGE RECTIFIER BS-102161GS
...
20
VARISTOR BS-102368GS
...
21
SCREW MACHINE BS-~NSP
...
22
WELDING BRIDGE RECTIFIER BS-102369GS
...
23
WELDING IMPEDANCE BS-102370GS
...
24
SCREW MC PPHD M6*10MM BS-~NSP
...
25
MALE CONNECTOR BS-102371GS
...
26
FEMALE CONNECTOR BS-102372GS
...
27
PANEL ALUMINIUM BLANK BS-102373GS
...
28
KNOB SWITCH 7 POSITION BS-102391GS
...
29
SWITCH 7 POSITION BS-102393GS
...
30
SWITCH CHANGEOVER BS-102376GS
...
31
SCREW MACHINE M5*8MM BS-~NSP
...
32
SCREW M6 * 15MM BS-~NSP
...
33
COVER TOP BOX BS-102287GS
...
34
OUTLET PANEL BLANK BS-102075GS
...
35
SOCKET OUTLET BS-102030GS
...
36
CIRCUIT BREAKER 15A BS-102133GS
...
37
SCREW PLASTITE PPHD NO6 * 3/8" BS-~NSP
...
38
END CAP PLASTIC (OUTLET PANEL) BS-102085GS
...
39
SCREW MC PPHD M5*10MM BS-~NSP
...
40
OUTLET PANEL COMPLETE BS-102263GS
...
41
ALTERNATOR WELDER EW200DC BS-102377GS

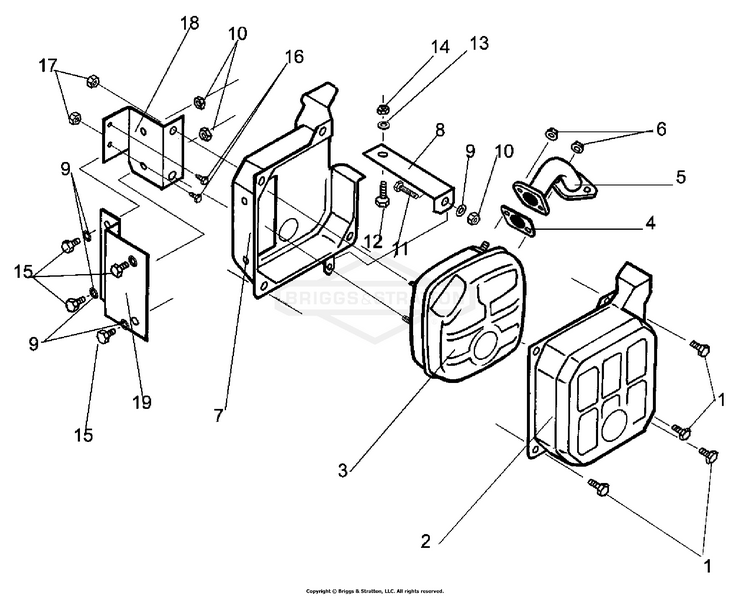

Exhaust & Fittings

...
...
1
SCREW M6 BS-710074
...
2
GUARD MUFFLER BS-710791
...
3
MUFFLER BS-715600
...
4
GASKET BS-710250
...
5
MANIFOLD BS-715604
...
6
NUT FLANGE M8 BS-710090
...
7
GUARD MUFFLER BS-710792
...
8
BRACKET EXHAUST GUARD MOUNTING BS-102307GS
...
9
WASHER SHAKEPROOF 1/4" BS-~NSP
...
10
NUT FULL M6 BS-~NSP
...
11
SCREW M6 BS-~NSP
...
12
SCREW M8 BS-~NSP
...
13
WASHER FLAT M8 BS-~NSP
...
14
NUT NYLOCK M8 BS-~NSP
...
15
SCREW M5 BS-~NSP
...
16
SCREW SELF DRILL BS-~NSP
...
17
NUT M8 BS-~NSP
...
18
BRACKET EXHAUST MOUNTING BS-102310GS
...
19
BRACKET EXHAUST GUARD MOUNTING BS-102311GS

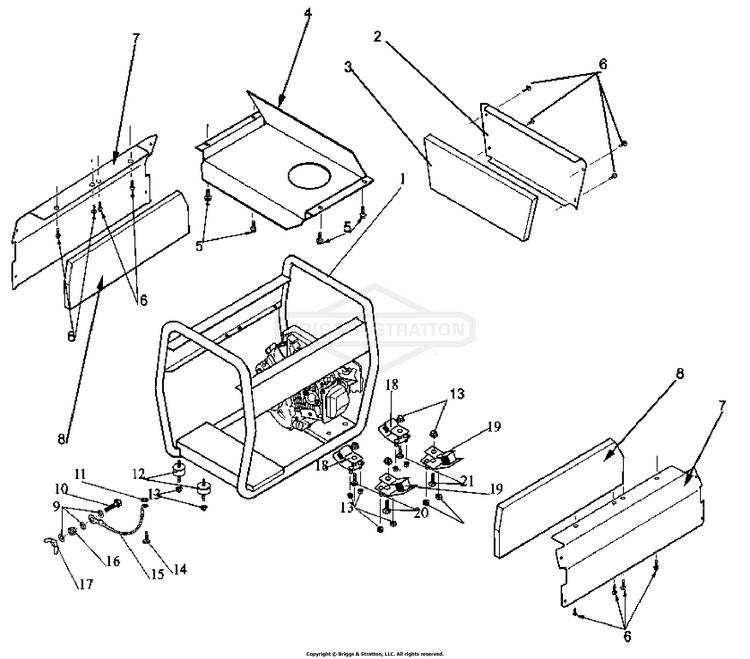

Frame Mounts And EPA

...
...
1
CRADLE RED BS-102297GS
...
2
PANEL ACOUSTIC (END PANEL) BS-102298GS
...
3
ACOUSTIC FOAM 25MM (FOR PANEL BA04) BS-102299GS
...
4
HEATSHIELD 7500L BS-102300GS
...
5
SCREW SELF TAP 5.5*1.8*13MM BS-~NSP
...
6
SCREW SELF DRILL #8*12.7 PPHD BS-~NSP
...
7
PANEL ACOUSTIC BS-102301GS
...
8
ACOUSTIC FOAM 25MM SELF ADHESIVE (FOR AK13 PANEL) BS-102302GS
...
9
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
10
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
11
WASHER SHAKEPROOF M8 INT BS-~NSP
...
12
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
13
NUT FLANGE M8-1.25 BS-~NSP
...
14
SCREW SET M6*25MM BS-~NSP
...
15
LEAD EARTH ASSY 145MM BS-102378GS
...
16
NUT FULL M6-1.0 BS-~NSP
...
17
NUT WING M6-1.0 BS-102036GS
...
18
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
19
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
20
BOLT M8-1.25 X40 BS-102264GS
...
21
SCREW SET M8-1.25*35MM BS-~NSP
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL BSW200 B&S 650X90MM (Not Illustrated) BS-102379GS
...
--
DECAL DC YELLOW TRIANGLE (Not Illustrated) BS-102380GS
...
--
MANUAL OWNERS (Not Illustrated) BS-102065GS

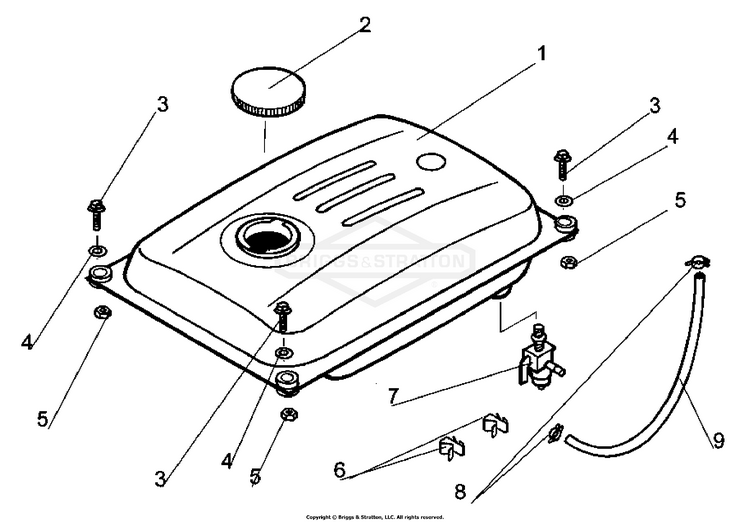

Fuel Tank

...
...
1
TANK FUEL METAL BS-102044GS
...
2
FUEL CAP BS-102090GS
...
3
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
4
WASHER REPAIR 6X20 OXY BLACK BS-102042GS
...
5
NUT LOCKING FLANGE M6-1.0MM BS-~NSP
...
6
CLIP 13MM HOSE BS-102319GS
...
7
VALVE FUEL BS-102045GS
...
8
CLAMP HOSE 1/4" ID BS-102047GS
...
9
HOSE FUEL BS-102025GS

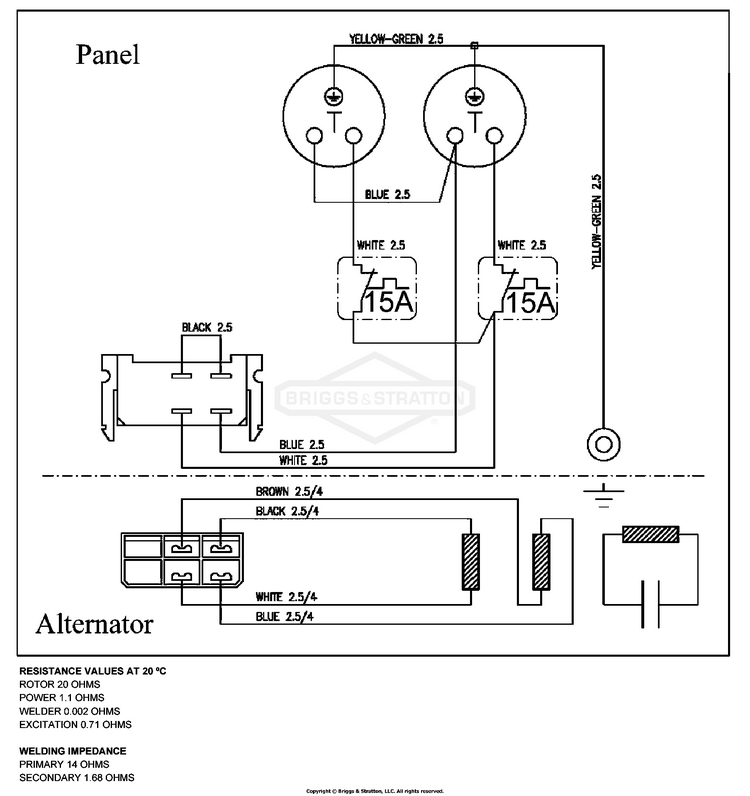

Panel Wiring Diagram

...

No Parts Available for this Schematic

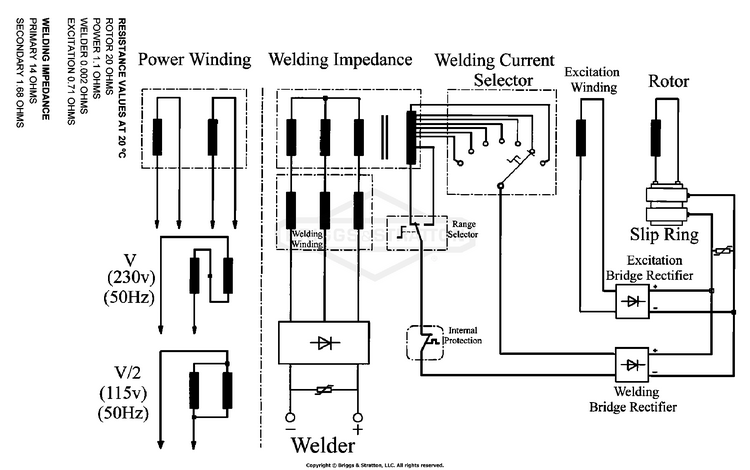

Panel Wiring Diagram (EW 200 DC Welder Generator)

...

No Parts Available for this Schematic
