HPP1612-0 Briggs and Stratton Generator BSW200AC

Model: HPP1612-0

Back To Assemblies

Save Part Not Listed?
product name

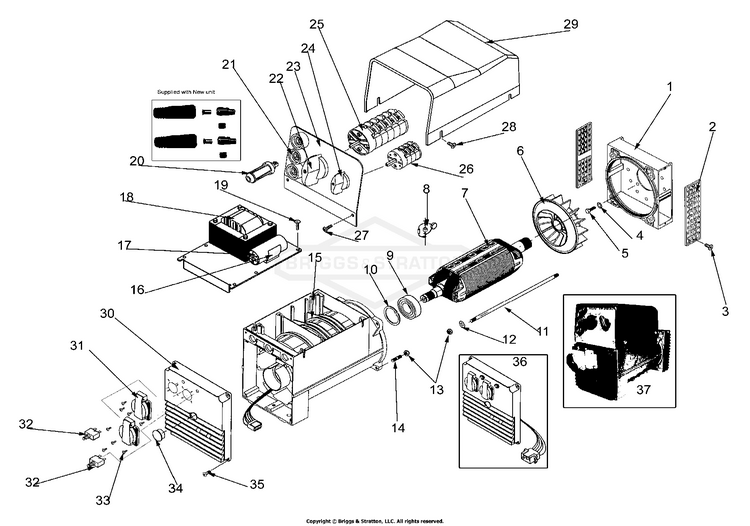

Alternator With Outlet Panel

...
...
1
FLANGE PLATE BS-102271GS
...
2
SIDE GRILL (PLASTIC) BS-102139GS
...
3
SCREW MC PPHD M5*10MM BS-~NSP
...
4
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
5
SCREW CAP 3/8 UNC * 1 1/4" BS-102279GS
...
6
ROTOR FAN SINCRO (30MM) BS-102073GS
...
7
ROTOR EW200 AC WELDER BS-102383GS
...
8
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
9
BEARING ASSY SINCRO BS-102283GS
...
10
BEARING CIRCLIP BS-~NSP
...
11
ROTOR BOLT 325MM BS-102285GS
...
12
WASHER FLAT M8 & 5/16" BS-~NSP
...
13
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
14
STUD M8*30MM BS-102131GS
...
15
STATOR EW AC 200 WELDER BS-102385GS
...
16
CAPACITOR CLIP BS-102386GS
...
17
CAPACITOR 50UF BS-102387GS
...
18
IMPEDENCE WELDER 200AC BS-102388GS
...
19
SCREW MC PPHD M6*10MM BS-~NSP
...
20
CONNECTOR MALE AC WELDER BS-102389GS
...
21
CONNECTOR FEMALE AC WELDER BS-102390GS
...
22
KNOB SWITCH 2 POSITION BS-102374GS
...
23
PANEL ALUMINIUM BLANK BS-102392GS
...
24
KNOB SWITCH 7 POSITION BS-102391GS
...
25
SWITCH 2 POSITION WELD/GEN BS-102375GS
...
26
SWITCH 7 POSITION AC WELDER BS-102393GS
...
27
SCREW MACHINE M5*8MM BS-~NSP
...
28
SCREW M6 * 15MM BS-~NSP
...
29
COVER TOP BOX BS-102287GS
...
30
OUTLET PANEL BLANK BS-102075GS
...
31
SOCKET OUTLET BS-102030GS
...
32
CIRCUIT BREAKER 15A BS-102133GS
...
33
SCREW PLASTITE PPHD NO6 * 3/8" BS-~NSP
...
34
END CAP PLASTIC (OUTLET PANEL) BS-102085GS
...
35
SCREW MC PPHD M5*10MM BS-~NSP
...
36
OUTLET PANEL COMPLETE BS-102263GS
...
37
ALT/WELDER SINCRO EW200AC F/G/S BS-102394GS
