HPP1611-0 Briggs and Stratton Generator BSP7500L3

Model: HPP1611-0

Save Part Not Listed?
product name

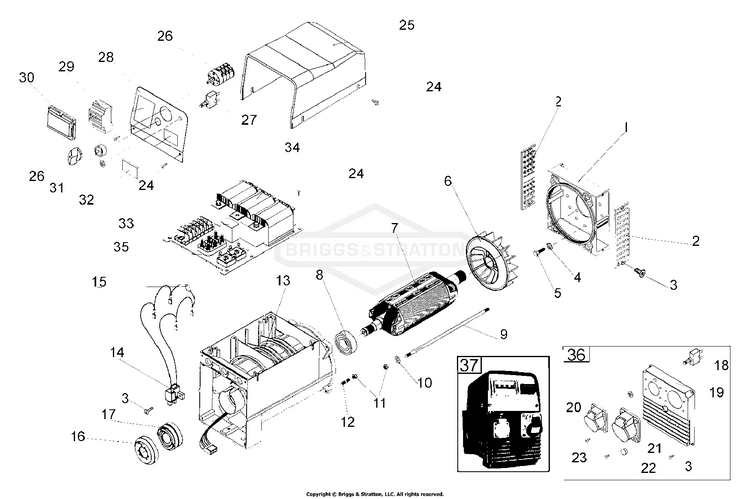

Alternator With Outlet Panel

...
...
1
FLANGE PLATE BS-102271GS
...
2
SIDE GRILL (PLASTIC) BS-~NSP
...
3
SCREW MC PPHD M5*10MM BS-~NSP
...
4
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
5
SCREW CAP 3/8" UNC X 1" BS-~NSP
...
6
ROTOR FAN SINCRO (30MM) BS-102073GS
...
7
ROTOR ASSEMBLY AK14 ALTERNATOR 3 PH BS-102356GS
...
8
ROTOR BEARING BS-102038GS
...
9
ROTOR BOLT, M8-1.25*265MM BS-102160GS
...
10
WASHER FLAT M8 & 5/16" BS-~NSP
...
11
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
12
STUD M8*30MM BS-102131GS
...
13
STATOR ASSY ET4 3PHASE BS-102357GS
...
14
BRUSHASSEMBLY BS-102240GS
...
15
VARISTOR, SINCRO 3PH FOR BRIDGE RECTIFIER BS-102338GS
...
16
SLIP RING COVER BS-102243GS
...
17
SLIP RING ASSEMBLY BS-102242GS
...
18
CIRCUIT BREAKER 15A BS-102133GS
...
19
OUTLET PANEL BLANK SINCRO 3 PHASE BS-102339GS
...
20
OUTLET 230V 16AMP BLUE BS-102418GS
...
21
SOCKET OUTLET 16A 230/415V BS-102341GS
...
22
END CAP PLASTIC PLUG BS-102085GS
...
23
SCREW SELF TAP #10*15MM BS-~NSP
...
24
SCREW MACHINE M5*8MM BS-~NSP
...
25
COVER TOP BOX BS-102287GS
...
26
SWITCH ROTORY SINCRO 3PHASE BS-102342GS
...
27
CIRCUIT BREAKER 7A BS-102358GS
...
28
PANEL ASSY TOP BOX (ALUMINIUM) BS-102344GS
...
29
CIRCUIT BREAKER ASSY SINCRO 3PHASE (10A) BS-103005GS
...
30
COVER CLEAR PLASTIC (CIRCUIT BREAKERS) BS-102346GS
...
31
LAMP HOLDER ASSY SINCRO 3 PHASE BS-102347GS
...
32
VOLTMETER 360-440V L.E.D. TYPE BS-102348GS
...
33
FILTER ASSY (WAVE FORM) BS-102349GS
...
34
TRANSFORMER ASSY COMPOUND SINCRO 3PHASE BS-102350GS
...
35
BRIDGE RECTIFIER BS-102161GS
...
36
OUTLET PANEL COMPLETE (WITH FLY LEAD)ET 3PHASE BS-102351GS
...
37
ALTERNATOR SINCRO ET7.0. 3/1PHASE BS-102359GS

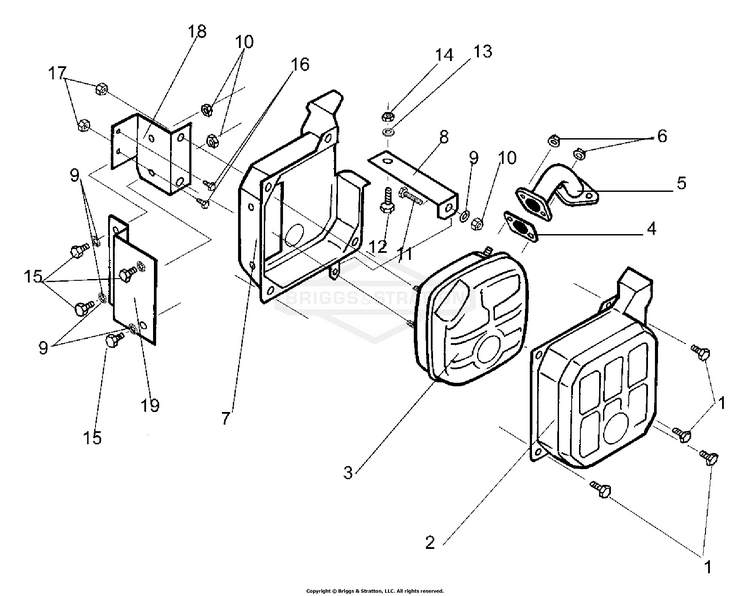

Exhaust & Fittings

...
...
1
SCREW M6 BS-710074
...
2
GUARD MUFFLER BS-710791
...
3
EXHAUST QGS BS-715600
...
4
GASKET BS-710250
...
5
MANIFOLD BS-715601
...
6
NUT FLANGE M8 BS-710090
...
7
GUARD MUFFLER BS-710792
...
8
BRACKET EXHAUST GUARD MOUNTING BS-102307GS
...
9
WASHER SHAKEPROOF 1/4" BS-~NSP
...
10
NUT FULL M6 BS-~NSP
...
11
SCREW M6 BS-~NSP
...
12
SCREW M8 BS-~NSP
...
13
WASHER FLAT M8 BS-~NSP
...
14
NUT NYLOCK M8 BS-~NSP
...
15
SCREW M5 BS-~NSP
...
16
SCREW SELF DRILL BS-~NSP
...
17
NUT M8 BS-~NSP
...
18
BRACKET EXHAUST MOUNTING BS-102310GS
...
19
BRACKET EXHAUST GUARD MOUNTING BS-102311GS

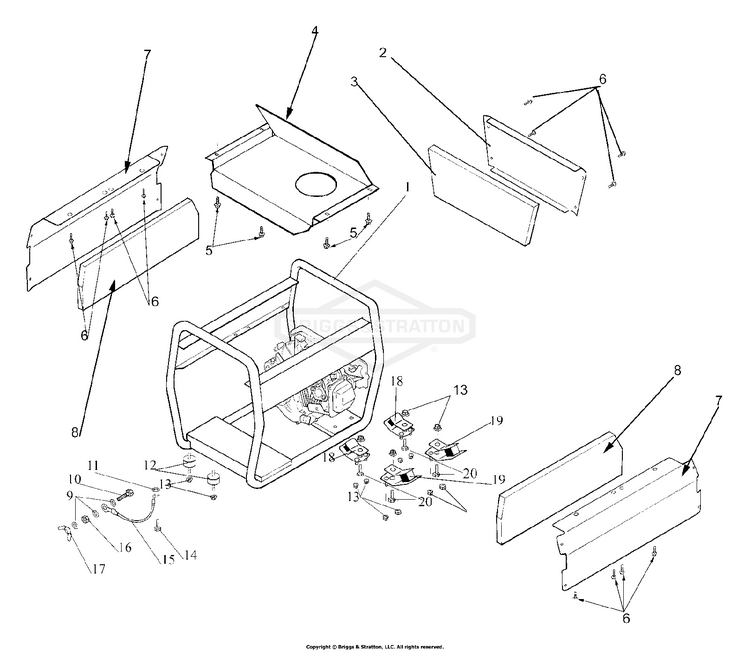

Frame Mounts And EPA

...
...
1
CRADLE RED BS-102297GS
...
2
PANEL ACOUSTIC (END PANEL) BS-102298GS
...
3
ACOUSTIC FOAM 25MM (FOR PANEL BA04) BS-102299GS
...
4
HEATSHIELD 7500L BS-102300GS
...
5
SCREW SELFTAP 5.5*1.8*13MM BS-~NSP
...
6
SCREW SELF DRILL #8*12.7 PPHD BS-~NSP
...
7
PANEL ACOUSTIC BS-102301GS
...
8
ACOUSTIC FOAM 25MM SELF ADHESIVE (FOR AK13 PAN) BS-102302GS
...
9
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
10
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
11
WASHER SHAKEPROOF M8 INT BS-~NSP
...
12
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
13
SCREW SET M8-1.25X12 PLATED BS-~NSP
...
14
NUT FLANGE M8-1.25 BS-~NSP
...
15
LEAD EARTH ASSY 145MM BS-102050GS
...
16
NUT FULL M6-1.0 BS-~NSP
...
17
NUT WING M6-1.0 BS-102036GS
...
18
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
19
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
20
BOLT M8-1.25*40MM BS-102264GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL BSP7500 B&S 650X90MM (Not Illustrated) BS-102317GS
...
--
DECAL L 3-PHASE TRIANGLE (Not Illustrated) BS-102360GS
...
--
MANUAL OWNERS (Not Illustrated) BS-102065GS

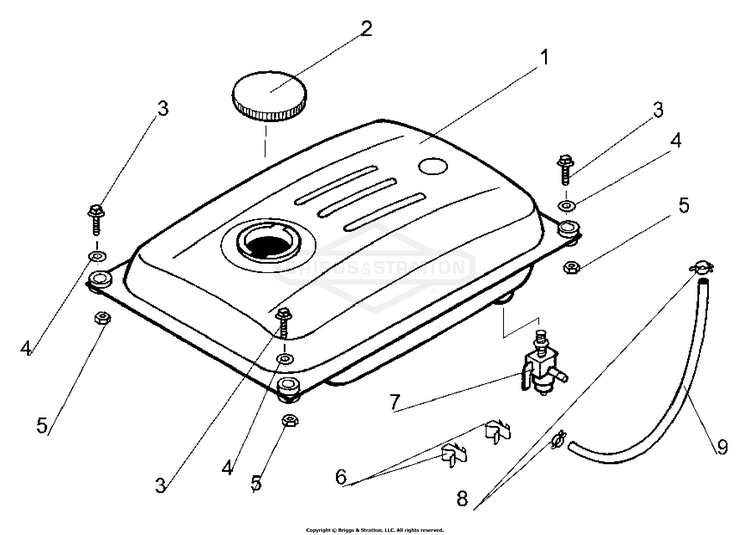

Fuel Tank

...
...
1
TANK FUEL METAL BS-102044GS
...
2
FUEL CAP BS-102090GS
...
3
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
4
WASHER REPAIR 6X20 OXY BLACK BS-102042GS
...
5
NUT LOCKING FLANGE M6-1.0MM BS-~NSP
...
6
CLIP 13MM HOSE BS-102319GS
...
7
VALVE FUEL BS-102045GS
...
8
CLAMP HOSE 1/4" ID BS-102047GS
...
9
HOSE FUEL BS-102025GS

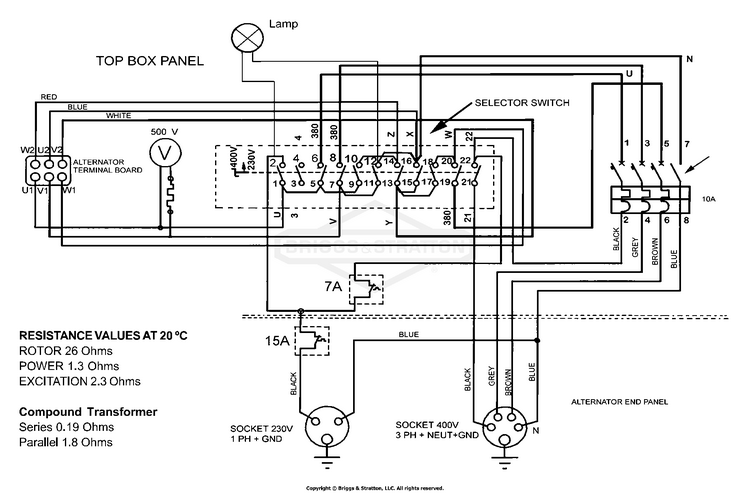

Panel Wiring Diagram

...
