HPP1610-0 Briggs and Stratton Generator BSP5000-3

Model: HPP1610-0

Save Part Not Listed?
product name

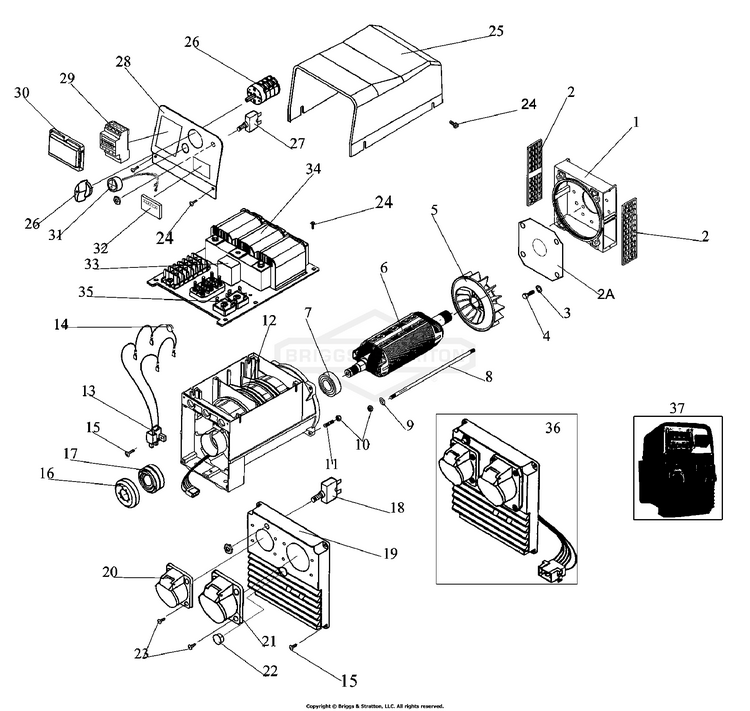

Alternator With Outlet Panel

...
...
1
FLANGE PLATE BS-102271GS
...
2
SIDE GRILL (PLASTIC) BS-102139GS
...
2A
FINGER GUARD BS-102252GS
...
3
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
4
SCREW CAP 3/8" UNC X 1" BS-~NSP
...
5
ROTOR FAN SINCRO BS-102073GS
...
6
ROTOR ASSEMBLY AK14 ALTERNATOR 3 PH BS-102336GS
...
7
ROTOR BEARING BS-102038GS
...
8
ROTOR BOLT 225MM M8-1.25 BS-102160GS
...
9
WASHER FLAT M8 BS-~NSP
...
10
NUT NYLOCK M8-1.25 BS-~NSP
...
11
STUD M8*30MM BS-102131GS
...
12
STATOR ASSY ET4 3PHASE BS-102337GS
...
13
BRUSH ASSEMBLY BS-102240GS
...
14
VARISTOR, SINCRO 3PH FOR BRIDGE RECTIFIER BS-102338GS
...
15
SCREW MACHINEM5*10MM BS-~NSP
...
16
SLIP RING COVER BS-102243GS
...
17
SLIP RING ASSEMBLY BS-102242GS
...
18
CIRCUIT BREAKER 10A BS-102132GS
...
19
OUTLET PANEL BLANK SINCRO 3 PHASE BS-102339GS
...
20
SOCKET OUTLET 16A 230V BS-102340GS
...
21
SOCKET OUTLET 16A 230/415V BS-102341GS
...
22
END CAP PLASTIC (OUTLET PANEL) BS-102085GS
...
23
SCREW SELF TAP #10*15MM BS-~NSP
...
24
SCREW MACHINE M5*8MM BS-~NSP
...
25
COVER TOP BOX BS-102287GS
...
26
SWITCH ROTORY SINCRO 3PHASE BS-102342GS
...
27
CIRCUIT BREAKER 3A BS-102343GS
...
28
PANEL ASSY TOP BOX (ALUMINIUM) BS-102344GS
...
29
CIRCUIT BREAKER ASSY SINCRO 3PHASE BS-102345GS
...
30
COVER CLEAR PLASTIC (CIRCUIT BREAKERS) BS-102346GS
...
31
LAMP HOLDER ASSY SINCRO 3 PHASE BS-102347GS
...
32
VOLTMETER 360-440V L.E.D. TYPE BS-102348GS
...
33
FILTER ASSY (WAVE FORM) BS-102349GS
...
34
TRANSFORMER ASSY COMPOUND SINCRO 3PHASE BS-102350GS
...
35
BRIDGE RECTIFIER BS-102161GS
...
36
OUTLET PANEL COMPLETE ET4.0 BS-102927GS
...
37
ALTERNATOR SINCRO ET4.0 3/1PHASE 4KVA BS-102352GS

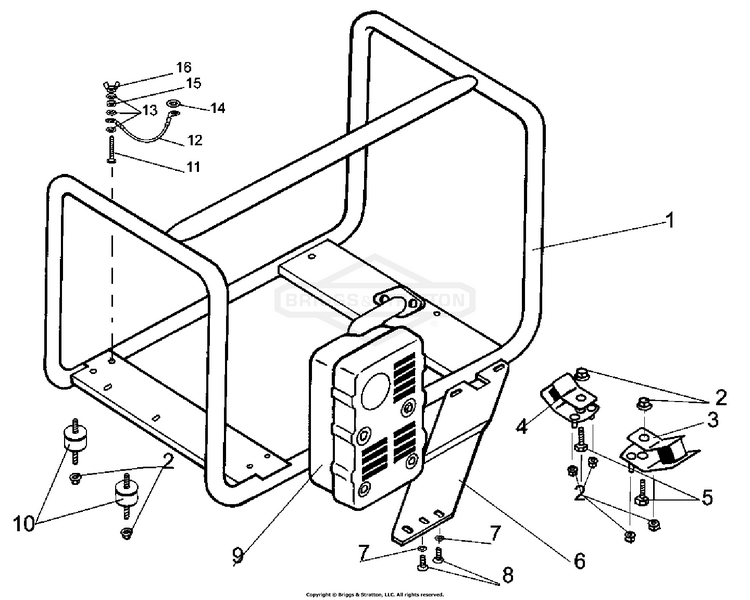

Frame Mounts And EPA

...
...
1
CRADLE BS-102253GS
...
2
NUT FLANGE M8-1.25 BS-~NSP
...
3
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
4
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
5
SCREW SET M8-1.25*35MM BS-~NSP
...
6
BRACKET EXHAUST MOUNTING BS-102254GS
...
7
WASHER SPRING M6 & 1/4" BS-~NSP
...
8
SCREW SET HHD M6-1.0*12MM BS-~NSP
...
9
MUFFLER INTEK 8 BS-102255GS
...
10
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
11
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
12
LEAD EARTH ASSY 145MM BS-102050GS
...
13
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
14
WASHER SHAKEPROOF M8 INT BS-~NSP
...
15
NUT FULL M6-1.0 BS-~NSP
...
16
NUT WING M6-1.0 BS-102036GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
TAPE ADD OIL WARNING (Not Illustrated) BS-102256GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL BSP5000 B & S 400 X 80MM (Not Illustrated) BS-102257GS
...
--
DECAL 3 PHASE TRIANGLE (Not Illustrated) BS-102353GS
...
--
MANUAL OWNERS BS2012 (Not Illustrated) BS-102065GS

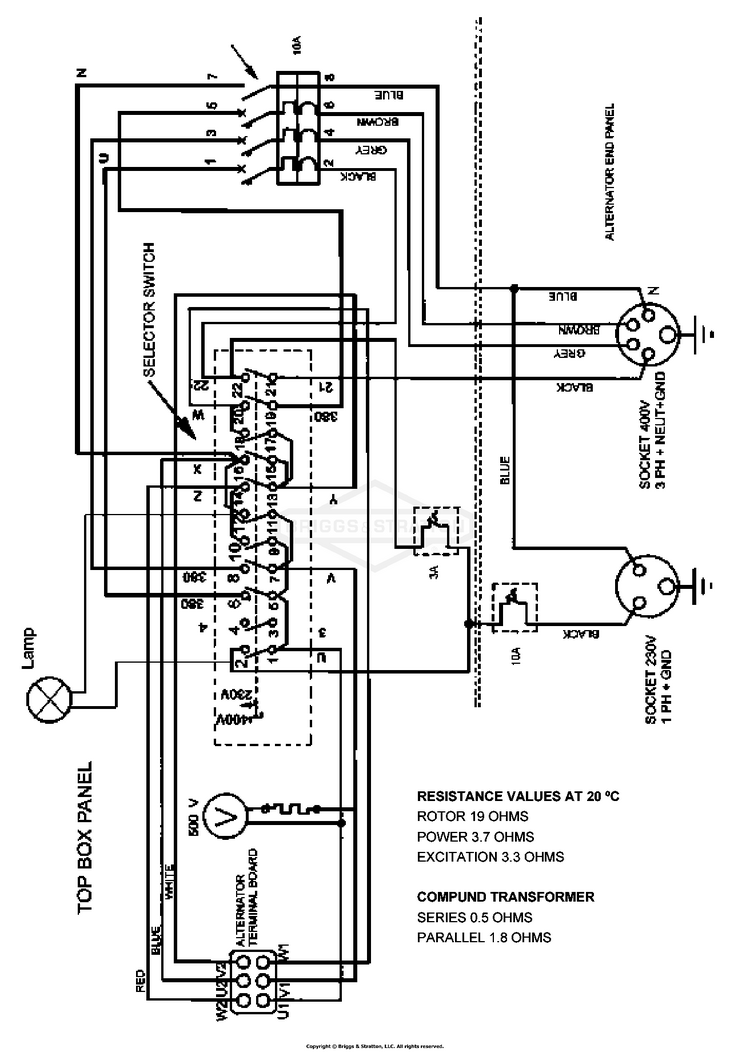

Panel Wiring Diagram

...

No Parts Available for this Schematic
