HPP1605-0 Briggs and Stratton Generator BSP5500L

Model: HPP1605-0

Save Part Not Listed?
product name

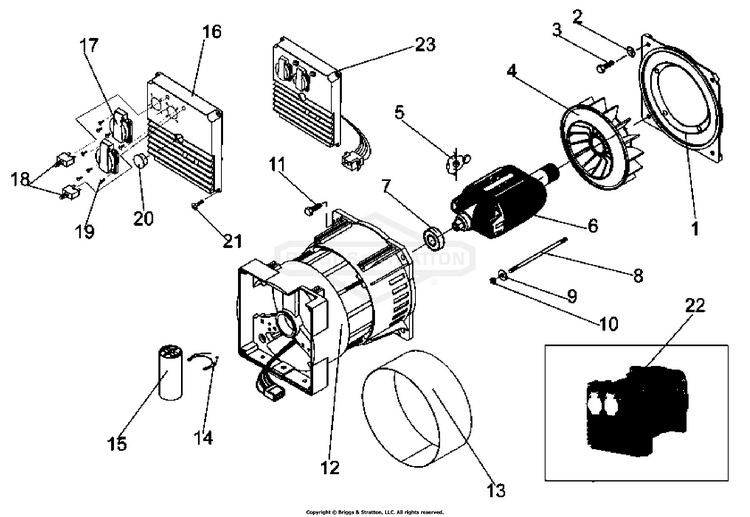

Alternator With Outlet Panel

...
...
1
FLANGE PLATE BS-102138GS
...
2
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
3
SCREW CAP 3/8" UNC X 1" BS-~NSP
...
4
ROTOR FAN SINCRO BS-102073GS
...
5
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
6
ROTOR ASSEMBLY SINCRO EP5 BS-102259GS
...
7
ROTOR BEARING BS-102038GS
...
8
ROTOR BOLT, M8-1.25*235MM BS-102382GS
...
9
WASHER FLAT M8 & 5/16" BS-~NSP
...
10
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
11
SCREW SET 5/16"UNF X 3/4" BS-~NSP
...
12
STATOR ASSEMBLY SINCRO EP5 BS-102260GS
...
13
STATOR COVER BAND BS-~NSP
...
14
CAPACITOR CLIP EP SERIES BS-~NSP
...
15
CAPACITOR 36UF BS-102204GS
...
16
OUTLET PANEL BLANK (FITTINGS REMOVED) BS-102075GS
...
17
SOCKET OUTLET G/S BS-102030GS
...
18
CIRCUIT BREAKER 20 AMP BS-102261GS
...
19
SCREW PLASTITE PPHD NO6 * 3/8" BS-~NSP
...
20
END CAP PLASTIC PLUG BS-102085GS
...
21
SCREW MC PPHD M5*10MM BS-~NSP
...
22
ALTERNATOR SINCRO EP5 BS-102262GS
...
23
OUTLET PANEL ASSY BS-102263GS

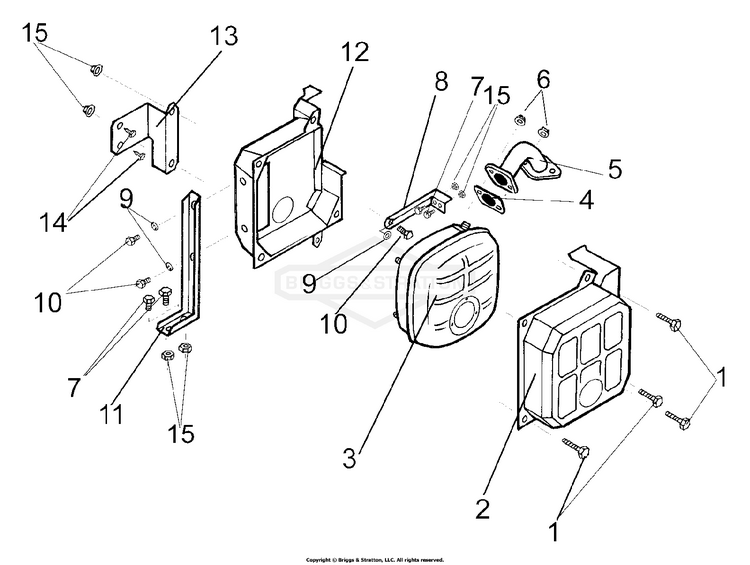

Exhaust & Fittings

...
...
1
SCREW M6 BS-710074
...
2
GUARD EXHAUST FRONT BS-710791
...
3
MUFFLER BS-715600
...
4
GASKET BS-710250
...
5
MANIFOLD BS-715601
...
6
LOCKNUT MANIFOLD BS-710090
...
7
SCREW MACHINE HHD M8-1.25*16MM BS-~NSP
...
8
BRACKET EXHAUST GUARD BS-102265GS
...
9
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
10
SCREW SET HHD M6-1.0*12MM BS-~NSP
...
11
BRACKET EXHAUST GUARD MOUNTING BS-102228GS
...
12
GUARD EXHAUST (REAR) BS-710792
...
13
BRACKET EXHAUST MOUNTING BS-102266GS
...
14
SCREW SELF DRILL #8*12.7 PPHD BS-~NSP
...
15
NUT FLANGE M8-1.25 BS-~NSP

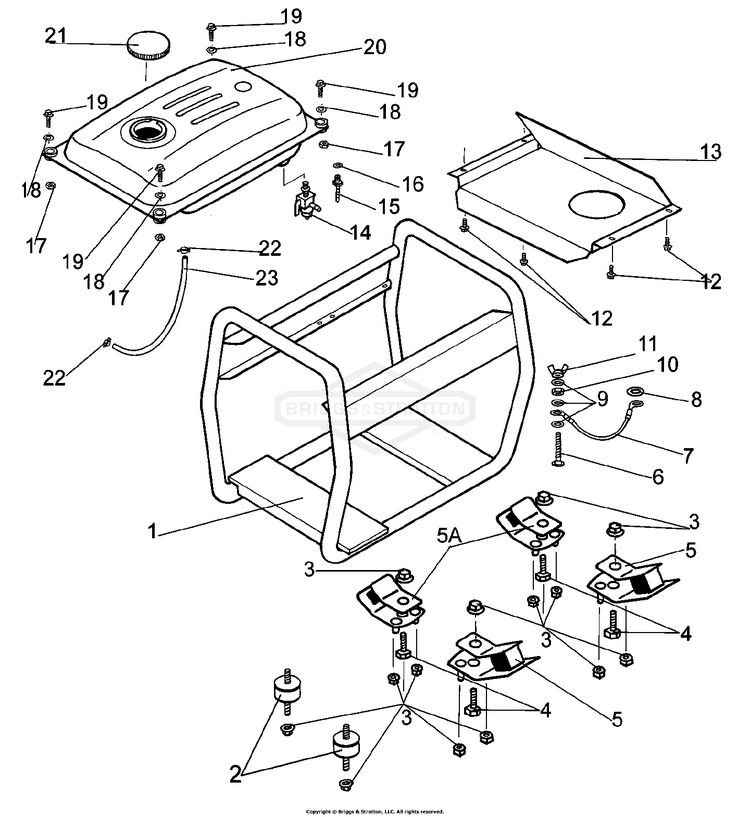

Frame, Fuel Tank, Fittings, Mounts And EPA

...
...
1
CRADLE PP4500L BS-102223GS
...
2
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
3
NUT FLANGE M8-1.25 BS-~NSP
...
4
BOLT M8-1.25*40MM BS-102264GS
...
5
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
5A
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
6
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
7
LEAD EARTH ASSY 145MM BS-102050GS
...
8
WASHER SHAKEPROOF M8 INT BS-~NSP
...
9
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
10
NUT FULL M6-1.0 BS-~NSP
...
11
NUT WING M6-1.0 BS-102036GS
...
12
SCREW SELFTAP 5.5*1.8*13MM BS-~NSP
...
13
HEAT SHIELD BS-102224GS
...
14
VALVE FUEL BS-102045GS
...
15
HOSE TAIL CONNECTOR BS-102225GS
...
16
DOWTY BONDED SEAL BS-102226GS
...
17
NUT LOCKING FLANGE M6-1.0MM BS-~NSP
...
18
WASHER REPAIR 6X20 OXY BLACK BS-102042GS
...
19
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
20
TANK FUEL METAL BS-102044GS
...
21
FUEL CAP BS-102090GS
...
22
CLAMP HOSE 1/4" ID BS-102047GS
...
23
HOSE FUEL 1/4"ID SAE J30R7 BS-102025GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL BSP5500 B&S 590X90MM (Not Illustrated) BS-102269GS
...
--
DECAL L/LONG- RUN TRIANGLE (Not Illustrated) BS-102066GS
...
--
MANUAL OWNERS B&S NO. BS2012 (Not Illustrated) BS-102065GS

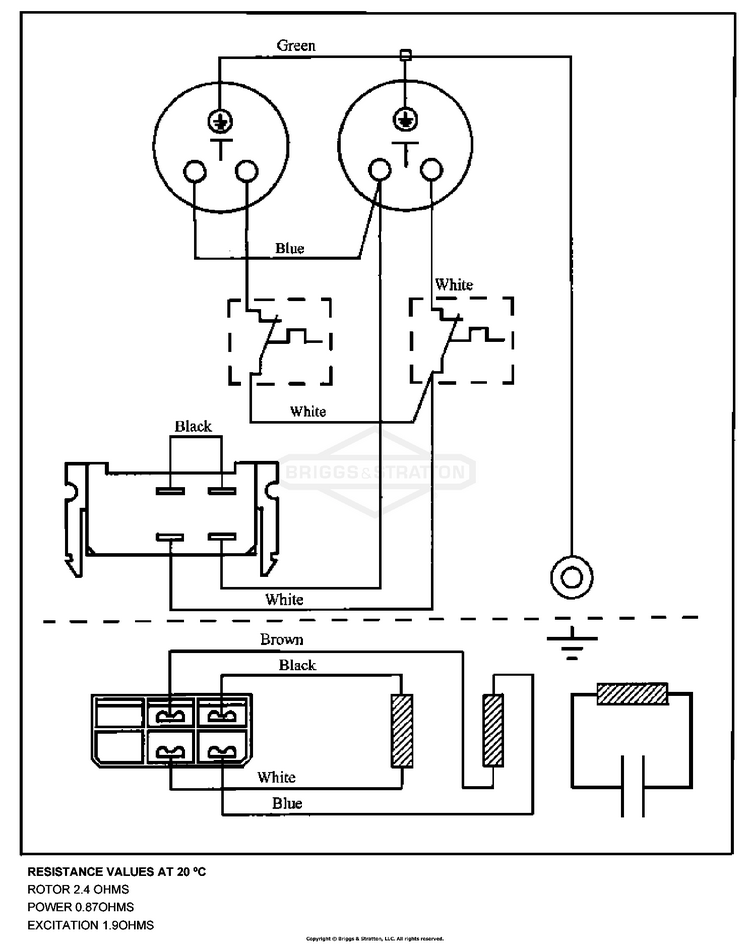

Panel Wiring Diagram

...

No Parts Available for this Schematic

Schematic Image Zoomed
