HPP1604-1 Briggs and Stratton Generator BSP4500LA

Model: HPP1604-1

Save Part Not Listed?
product name

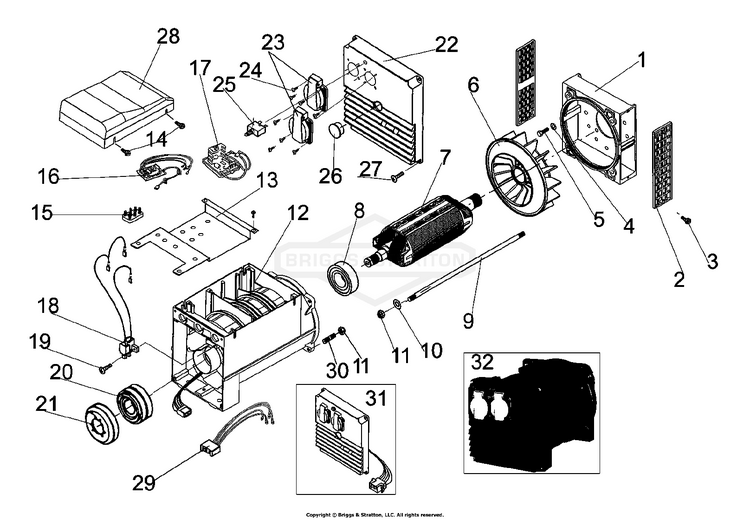

Alternator & Outlet Panel

...
...
1
FLANGE PLATE BS-102771GS
...
2
SIDE GRILL (PLASTIC) BS-102139GS
...
3
SCREW MC PPHD M5*10MM BS-~NSP
...
4
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
4
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
5
SCREW CAP 3/8 UNC * 1 1/4" BS-102279GS
...
6
ROTOR FAN SINCRO BS-102073GS
...
7
ROTOR ASSEMBLY BB07-A AVR BS-102232GS
...
8
ROTOR BEARING BS-102038GS
...
9
ROTOR BOLT 265MM M8-1.25*16MM+5/16"UNF*9/16" BS-102160GS
...
10
WASHER FLAT M8 & 5/16" BS-~NSP
...
11
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
12
STATOR ASSEMBLY BB07-A AVR BS-102233GS
...
13
SUPPORT PLATE BS-102234GS
...
14
SCREW M6 * 15MM BS-~NSP
...
15
TERMINAL BLOCK ET AVR BS-102237GS
...
16
SYSTEM CONTROL BOARD BS-102238GS
...
17
POWER MODULE BS-102239GS
...
18
BRUSH ASSEMBLY BS-102240GS
...
19
SCREW MACHINE M4-0.7*12MM BS-~NSP
...
20
SLIP RING ASSEMBLY BS-102242GS
...
21
SLIP RING COVER BS-102243GS
...
22
OUTLET PANEL BLANK BS-102075GS
...
23
SOCKET OUTLET BS-102030GS
...
24
SCREW PLASTITE PPHD NO6 * 3/8" BS-~NSP
...
25
CIRCUIT BREAKER 15A BS-102133GS
...
26
END CAP PLASTIC (OUTLET PANEL) BS-102085GS
...
27
SCREW MC PPHD M5*10MM BS-~NSP
...
28
COVER ALTERNATOR LOW PROFILE BS-102245GS
...
29
WIRING HARNESS AVR TO PANEL BS-102246GS
...
30
STUD M8*30MM BS-102131GS
...
31
OUTLET PANEL ASSY BS-102222GS
...
32
ALTERNATOR SINCRO 4KVA AVR GSHVFL BS-102365GS

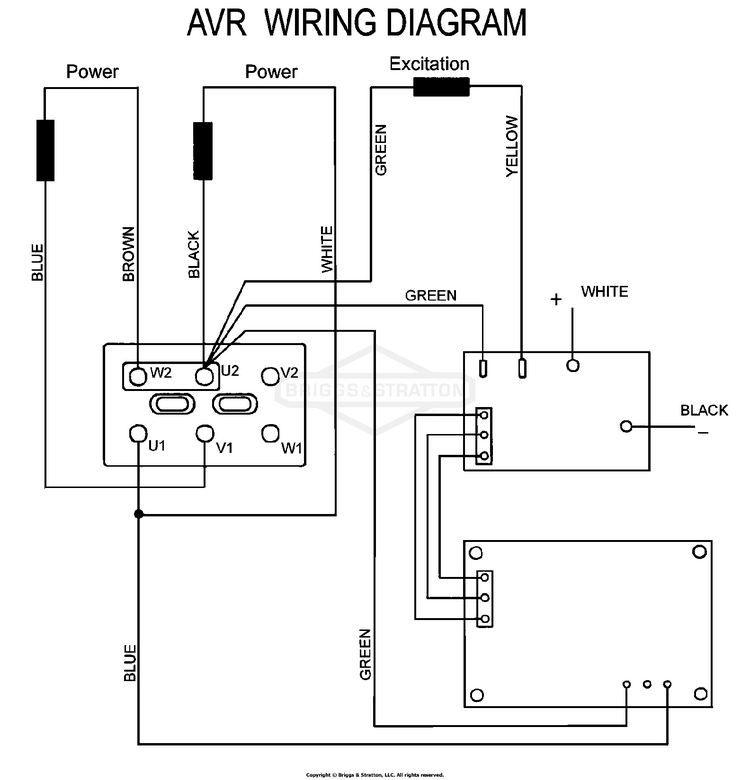

Alternator AVR Wiring Diagram

...

No Parts Available for this Schematic

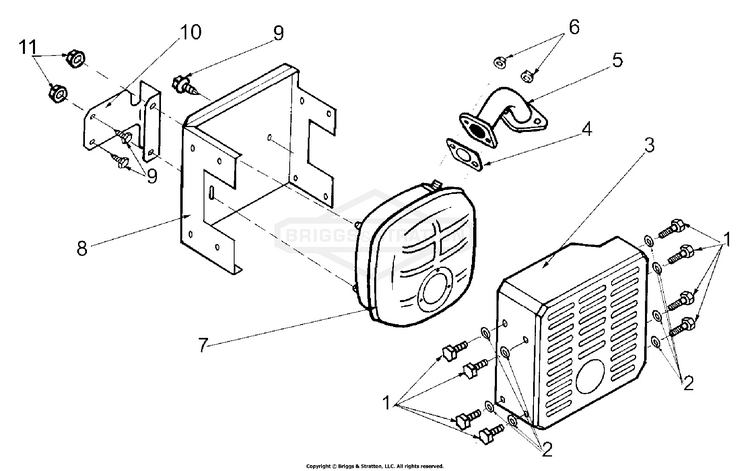

Exhaust And Fittings

...
...
1
SCREW SET HHD M6-1.0*12MM BS-~NSP
...
2
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
3
GUARD QGS MUFFLER BS-102530GS
...
4
GASKET BS-710082
...
5
MANIFOLD BS-715603
...
6
LOCKNUT MANIFOLD BS-710090
...
7
MUFFLER BS-715602
...
8
BRACKET EXHAUST GUARD MOUNT BS-102531GS
...
9
SCREW SELF DRILL #8*12.7 PPHD BS-~NSP
...
10
BRACKET EXHAUST MOUNTING BS-102156GS
...
11
NUT FLANGE M8-1.25 BS-~NSP

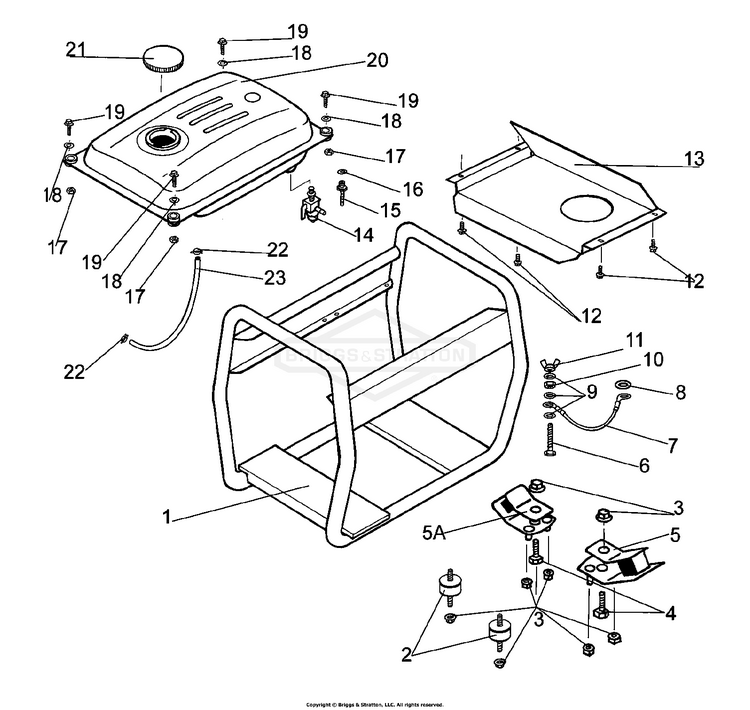

Frame, Fuel Tank And Fittings

...
...
1
CRADLE PP4500L BS-102223GS
...
2
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
3
NUT FLANGE M8-1.25 BS-~NSP
...
4
SCREW SET M8-1.25*35MM BS-~NSP
...
5
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
5A
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
6
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
7
LEAD EARTH ASSY 145MM BS-102050GS
...
8
WASHER SHAKEPROOF M8 INT BS-~NSP
...
9
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
10
NUT FULL M6-1.0 BS-~NSP
...
11
NUT WING M6-1.0 BS-102036GS
...
12
SCREW SELFTAP 5.5*1.8*13MM BS-~NSP
...
13
HEAT SHIELD PP4500L BS-102224GS
...
14
VALVE FUEL BS-102045GS
...
15
HOSE TAIL CONNECTOR BS-102225GS
...
16
WASHER FIBRE M10 BS-102435GS
...
17
NUT LOCKING FLANGE M6-1.0MM BS-~NSP
...
18
WASHER REPAIR 6X20 OXY BLACK BS-102042GS
...
19
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
20
TANK FUEL METAL BS-102044GS
...
21
FUEL CAP BS-102090GS
...
22
CLAMP HOSE 1/4" ID BS-102047GS
...
23
HOSE FUEL 1/4" ID SAE 30R7 BS-102025GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL BSP4500 B&S 590X90MM (Not Illustrated) BS-102230GS
...
--
DECAL LA/LONG-RUN, AVR TRIANGLE (Not Illustrated) BS-102248GS
...
--
ADDENDUM SPECIFICATION & CE (Not Illustrated) BS-102249GS

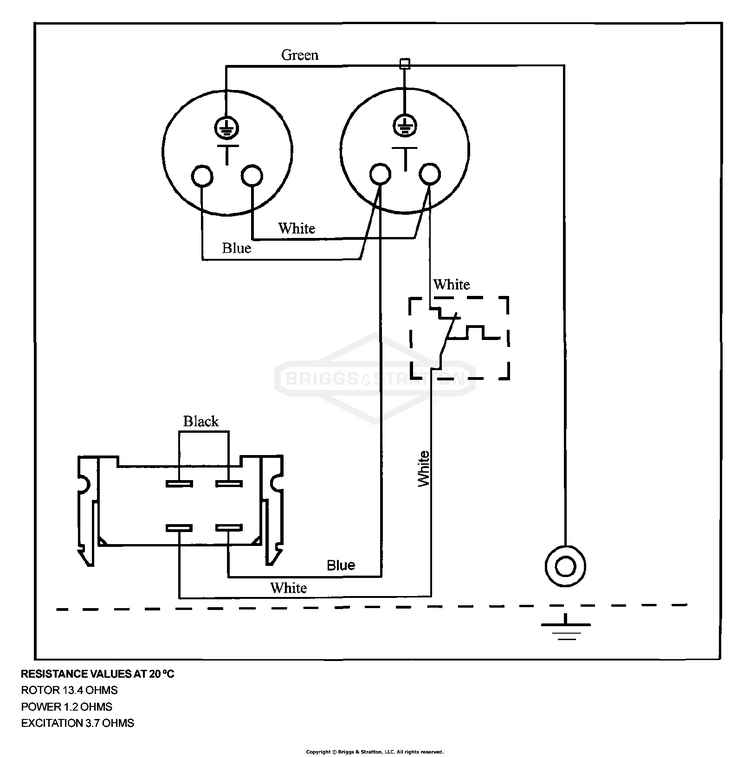

Panel Wiring Diagram

...
