HPP1602-0 Briggs and Stratton Generator BSQ4500

Model: HPP1602-0

Back To Assemblies

Save Part Not Listed?
product name

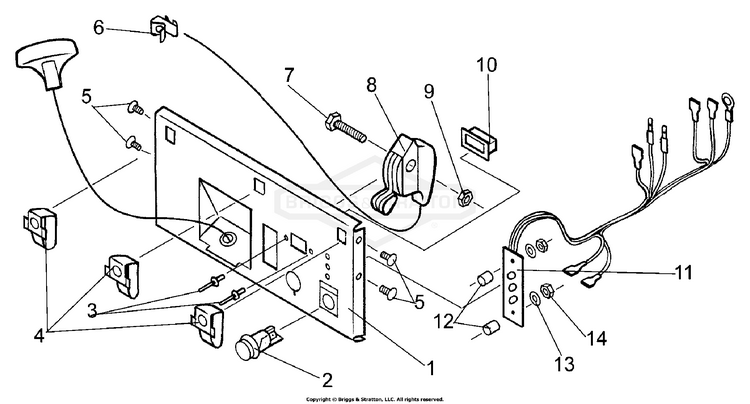

Engine Control Panel

...
...
1
CONTROL PANEL ENGINE BS-102141GS
...
2
SWITCH PUSH BUTTON RED BS-102147GS
...
3
RIVET POP 4MM * 10MM BS-~NSP
...
4
FASTENER RECEPTACLE 1/4 TURN BS-102178GS
...
5
SCREW SELFTAP 5.5*1.8*13MM BS-~NSP
...
6
CLIP CONTROL CABLE STOP BS-102175GS
...
7
BOLT M6-1.0X35MM BLACKENED BS-102123GS
...
8
CHOKE/THROTTLE LEVER BS-102143GS
...
9
NUT NYLOCK M6-1.0 BS-~NSP
...
10
HOUR METER, MAINTENANCE REMINDER BS-102125GS
...
11
WARNING LIGHT ASSEMBLY BS-102174GS
...
12
SPACER NYLON M4*7. 9*6.4MM BS-102197GS
...
13
WASHER FLAT M4 BS-~NSP
...
14
NUT NYLOCK M4-0.7 BS-~NSP
