HPP1602-0 Briggs and Stratton Generator BSQ4500

Model: HPP1602-0

Back To Assemblies

Save Part Not Listed?
product name

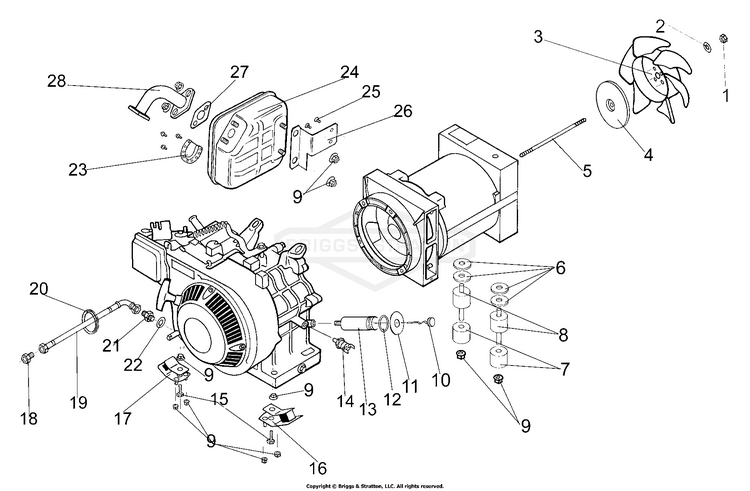

Engine & Exhaust Fittings

...
...
1
Nut nylock M8-1.25 Type T BS-~NSP
...
2
Washer Flat M**21*1.6mm BS-102557GS
...
3
Fan Plastic 8"*6 Blade (Drill hole to 8.5mm) BS-102142GS
...
4
Fan Boss BS-102558GS
...
5
Rotor Bolt 270mm BS-102397GS
...
6
Spacer 4mm BS-102118GS
...
7
Spacer 24mm BS-102136GS
...
8
Vibration Mount 32mm Diameter BS-102111GS
...
9
Nut Flange M8-1.25 BS-~NSP
...
10
Dipstick for use with AJ14 BS-102145GS
...
11
Washer Rubber 80*34*1.5mm BS-102194GS
...
12
O Ring BS-691870
...
13
Oil-Fill Extension Tube BS-102144GS
...
14
Switch Temperature BS-102146GS
...
15
SCREW SET M8-1.25*35MM BS-~NSP
...
16
Vibration Mount 45 Degree Soft BS-102033GS
...
17
Vibration Mount 45 Degree Hard BS-102031GS
...
18
Plug Oil Drain BS-102207GS
...
19
Oil Drain Hose Assembly BS-102151GS
...
20
Grommet Open 20.5mm ID BS-102559GS
...
21
Union Adaptor BS-102208GS
...
22
Washer Dowty Type BS-102209GS
...
23
Deflector Exhaust BS-102662GS
...
24
Muffler (Includes item 27) BS-715602
...
25
Screw Self Drill 5.5*1.8*20mm BS-~NSP
...
26
Bracket Exhaust Mounting BS-102541GS
...
27
Gasket BS-710082
...
28
Manifold BS-715604
