HPP1602-0 Briggs and Stratton Generator BSQ4500

Model: HPP1602-0

Back To Assemblies

Save Part Not Listed?
product name

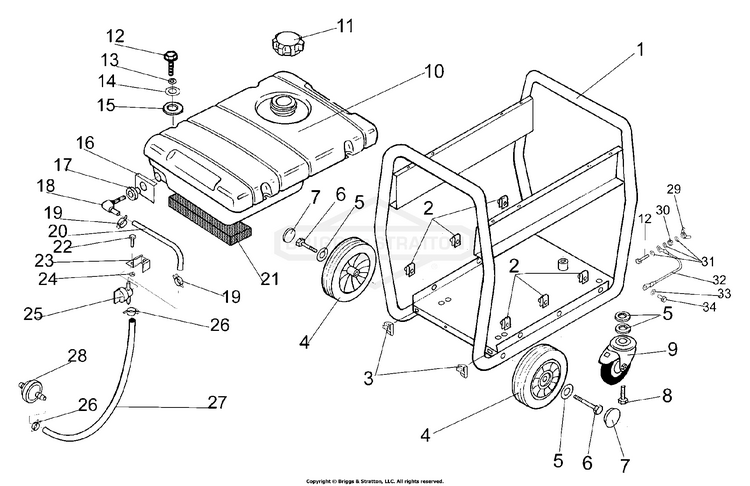

Frame, Fuel Tank, Fittings

...
...
1
Cradle EG4500 BS-102167GS
...
2
Lugnut M6-1.0 BS-102177GS
...
3
Fastener Receptacle 1/4 Turn BS-102178GS
...
4
Wheel And Tyre BS-102159GS
...
5
Washer Flat M12*40*1.5mm BS-102202GS
...
6
Bolt Hx Hd M12-1.5*90mm BS-102188GS
...
7
Wheel Cap BS-102149GS
...
8
Screw Hx Hd set M12-1.5*35mm BS-102187GS
...
9
Castor Wheel 100mm BS-102148GS
...
10
Tank Fuel 5 US Gallon BS-102130GS
...
11
Cap Fuel (Top Venting) BS-102546GS
...
12
Screw Set M6-1.0x25mm Plated BS-~NSP
...
13
Washer Repair 6x20 oxy Black BS-102042GS
...
14
Washer Rubber 19*6*4mm BS-102560GS
...
15
Washer M10 Form C oxy-blackened BS-102547GS
...
16
Bracket Tank Connector BS-102562GS
...
17
Bushing Tank Dextor BS-102104GS
...
18
Connector Hose Reducing Elbow BS-102548GS
...
19
Clamp Hose 14mm OD BS-102549GS
...
20
Hose Fuel 5/16"ID SAE J30R7 BS-102550GS
...
21
Foam Acoustic BS-102551GS
...
22
Screw Machine PPHd M4-0.7*20 BS-~NSP
...
23
Bracket Fuel Tap Mounting BS-102552GS
...
24
Nut Nylock M4-0.7 BS-~NSP
...
25
Valve Fuel In-Line BS-102553GS
...
26
Clamp Hose 1/4" ID BS-102047GS
...
27
Hose Fuel 1/4"ID SAE 30R7 BS-102025GS
...
28
Fuel Filter 150 Micron BS-102554GS
...
29
Nut Wing M6-1.0 BS-102036GS
...
30
Nut Full M6-1.0 BS-~NSP
...
31
Washer Shakeproof 1/4" & M6 Int BS-~NSP
...
32
Lead Earth (Earth Post Assy) BS-102135GS
...
33
Washer Shakeproof M8 int BS-~NSP
...
34
Screw Set M8-1.25x12 Plated BS-~NSP
...
--
DECAL BSQ4500 (Not Illustrated) BS-102158GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL, PANEL ENGINE CONTROL (Not Illustrated) BS-102157GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
WHEEL KIT INSTRUCTION SHEET (Not Illustrated) BS-102203GS
...
--
MANUAL OWNERS BS2012 (Not Illustrated) BS-102065GS
